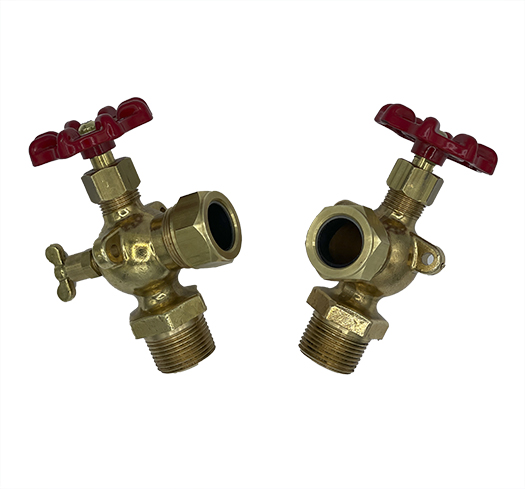

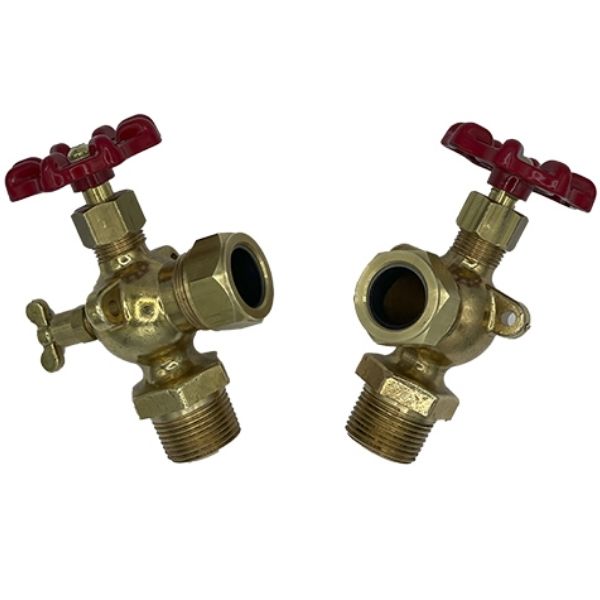

WG112BC Polished Brass Liquid Level Gauges Valve Set In Stock

Item#: WG112BC
Item Name: WG112BC Polished Brass Liquid Level Gauges Valve Set
Short description: WG112BC Polished Brass Liquid Level Gauges Valve Set
Description:
  • Robust Construction: Made from polished, forged brass, ensuring longevity and resistance to high pressures and temperatures.
  • Automatic Ball Checks: Standard on WG112BC models to prevent liquid drainage in case of glass breakage, enhancing safety and reliability.
  • Pressure and Temperature Ratings:
    • Rated for 200 psig at 400°F
    • Rated for 400 psig at 100°F
  • Versatile Connections: Available with 3/4" NPT male pipe connections.
  • Standard Components:
    • Includes a 1/4" needle drain valve in the lower arm.

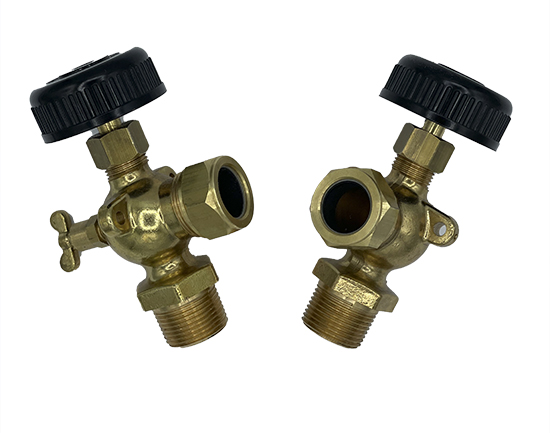

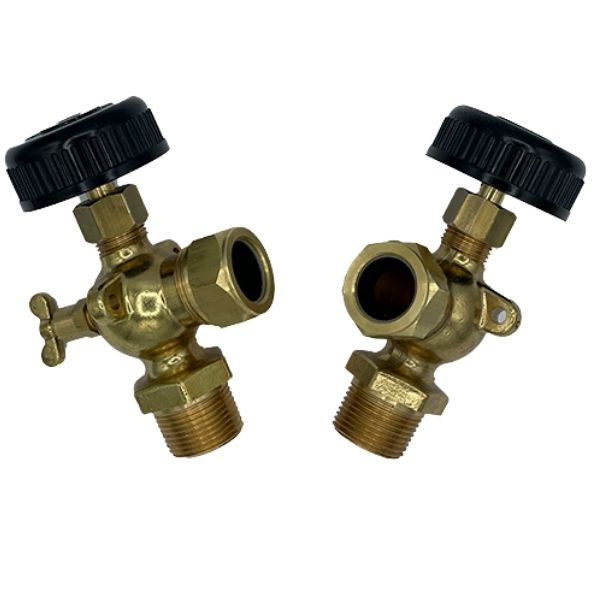

    • Available with aluminum or composite/plastic handles.

Installation:

  • Glass and Rods: Sold separately.
  • Formulas for Glass and Rod Lengths:
    • Glass Length = (Center to Center Dimension) - 1-1/2"
    • Rod Length = (Glass Length) + 1/2"

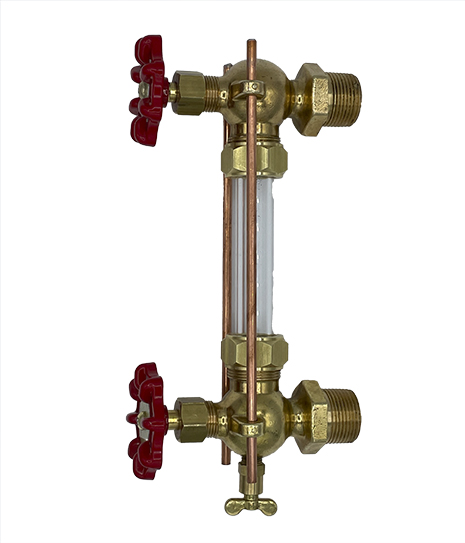

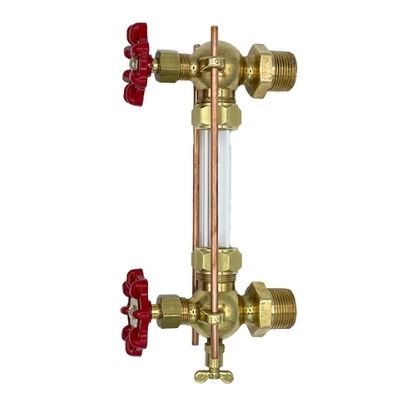

  • The WG112BC Series requires two guard rods for proper installation.
Shipping Time: Same Day In Stock
Specifications (With Ball Checks)
Part # Pipe
Size
Glass
O.D.
Description Price Qty
WG112BC-A* 3/4" 3/4" 3/4" Polished Brass Valve Set (Automatic Ball Checks) | Aluminum Handle $168.95 Add to Cart
WG112BC-P* 3/4" 3/4" 3/4" Polished Brass Valve Set (Automatic Ball Checks) | Plastic Handle $168.95 Add to Cart
