Clear High Pressure Gage Glass In Stock

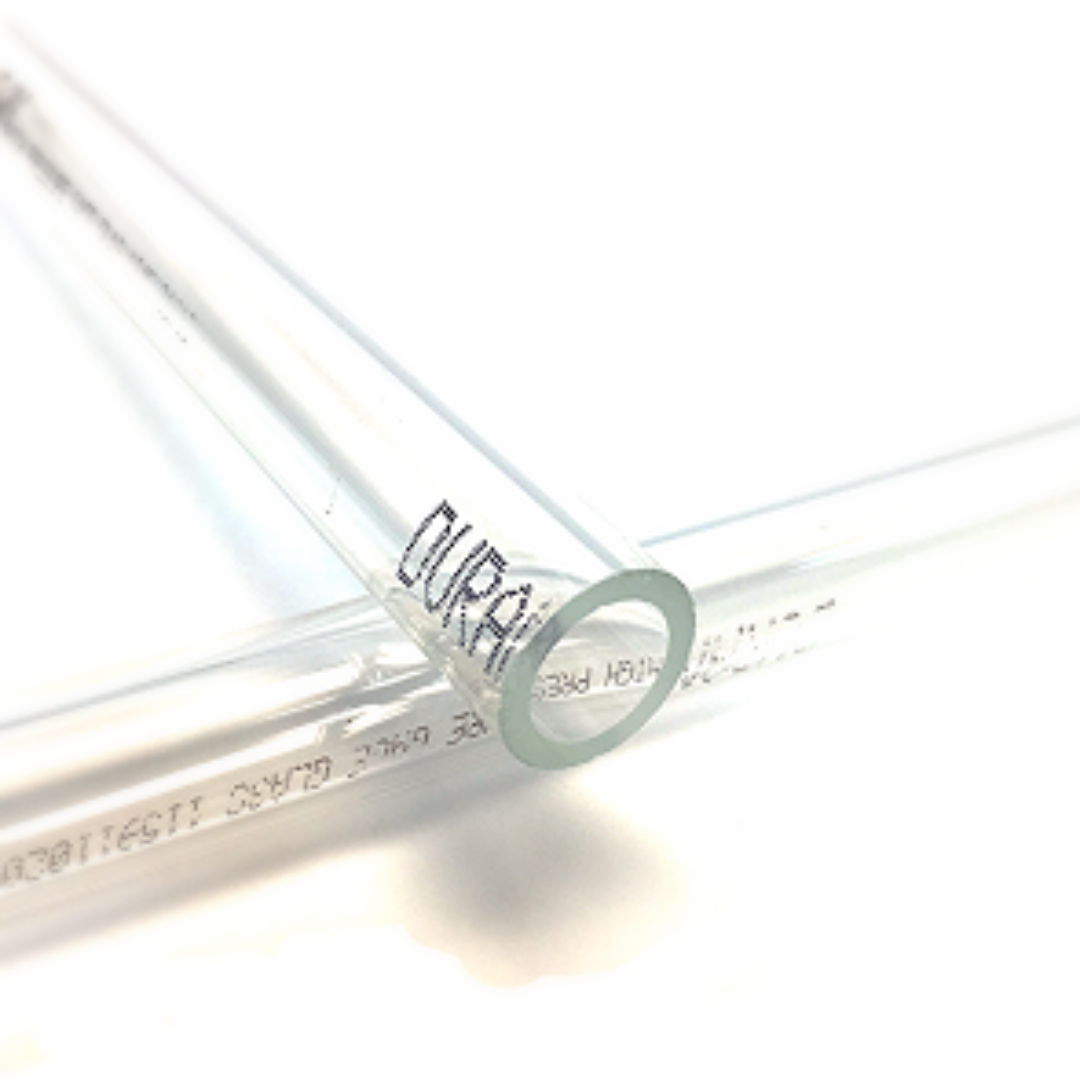

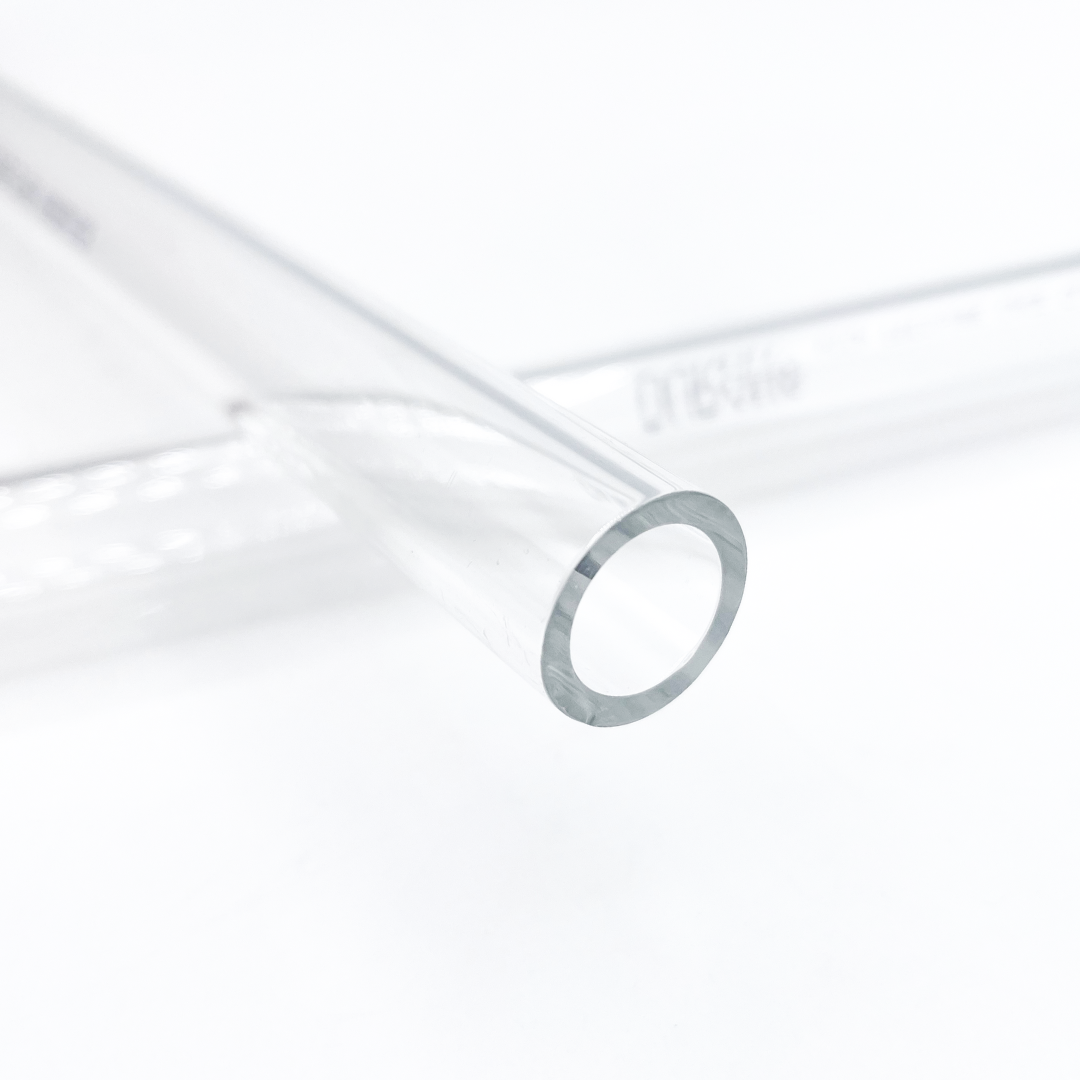

Item Name: High Pressure Clear Tubular Gage Glass
Short description: Clear High Pressure Tubular Gage Glass
Manufacturer:
DURAN®
Description:
Schott Duran® and Corning Pyrex® tubular gauge glass is offered as Red Line, High Pressure Clear, Heavy Wall Clear, and Heavy Wall Red Line. Diameters range from 1/2" OD to 1 1/2" OD. End finishes may be cut, ground, or fire polished depending on application.  Pressure ratings range from 90 PSI to 600 PSI depending on end finish, diameter, and length required.

Glass Below can be purchased in special cut lengths with our one step glass ordering system below or you can purchase standard stock lengths in the tables below that as well. Longer Lengths over 72" can be purchased by calling 1-800-780-3776.



* Please note that dimensions are "OD” and Wall Thickness*

*All Custom Cut Lengths are Non-Returnable*


Shipping Time: Same Day In Stock
Express ship options available

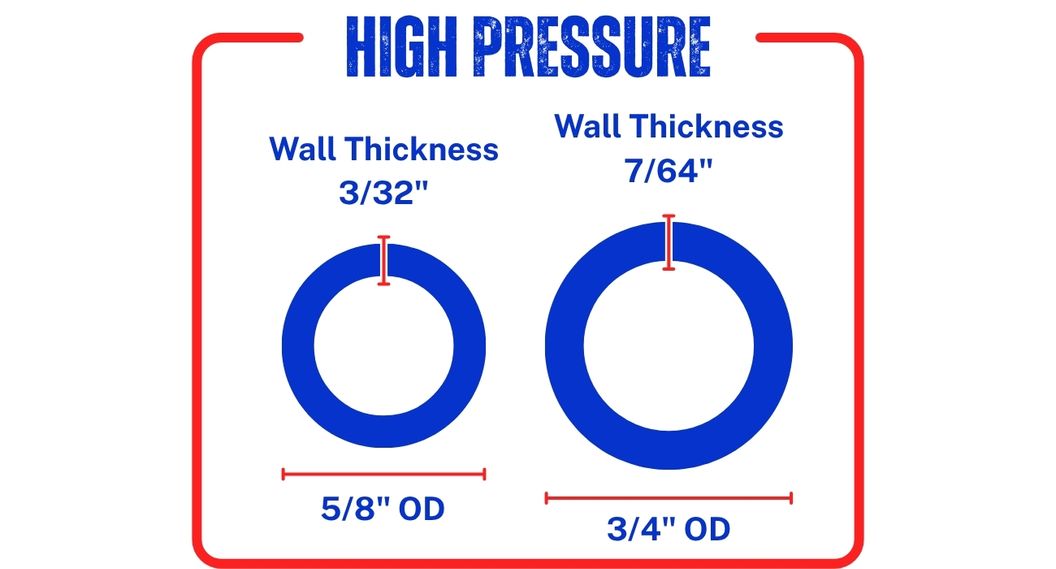

All OD of Glass is (+0 , - 1/32") Wall Thickness 3/32" (+1/64")
Size Length Temperature
Up to
150°F @ PSI 		Steam Service
425°F @ PSI 		Description
Clear High Pressure
Gauge Glass 		Price Qty
5/8" O.D. 8" 435 340 CLHP-625-8 | 5/8" O.D. | 8" Length $10.69 Add to Cart
5/8" O.D. 10" * 420 315 CLHP-625-10 | 5/8" O.D. | 10" Length $12.88 Add to Cart
5/8" O.D. 12" * 410 305 CLHP-625-12 | 5/8" O.D. | 12" Length $15.57 Add to Cart
5/8" O.D. 14" * 390 295 CLHP-625-14 | 5/8" O.D. | 14" Length $17.37 Add to Cart
5/8" O.D. 16" * 375 285 CLHP-625-16 | 5/8" O.D. | 16" Length $20.00 Add to Cart
5/8" O.D. 18" * 360 280 CLHP-625-18 | 5/8" O.D. | 18" Length $22.04 Add to Cart
5/8" O.D. 20" * 350 270 CLHP-625-20 | 5/8" O.D. | 20" Length $25.02 Add to Cart
5/8" O.D. 24" * 320 255 CLHP-625-24 | 5/8" O.D. | 24" Length $29.33 Add to Cart
5/8" O.D. 30" 280 Not Recommended CLHP-625-30 | 5/8" O.D. | 30" Length $36.51 Add to Cart
5/8" O.D. 36" * 245 Not Recommended CLHP-625-36 | 5/8" O.D. | 36" Length $43.64 Add to Cart
5/8" O.D. 48" * 195 Not Recommended CLHP-625-48 | 5/8" O.D. | 48" Length $58.22 Add to Cart
5/8" O.D. 60" * 150 Not Recommended CLHP-625-60 | 5/8" O.D. | 60" Length $74.64 Add to Cart
5/8" O.D. 72" * 100 Not Recommended CLHP-625-72 | 5/8" O.D. | 72" Length $90.67 Add to Cart
All OD of Glass is (+0 , - 1/32") Wall Thickness 7/64" (+1/64")
Size Length Temperature
Up to
150°F @ PSI 		Steam Service
425°F @ PSI 		Description
Clear High Pressure
Gauge Glass 		Price Qty
3/4" O.D. 10" 410 310 CLHP-75-10 | 3/4" O.D. | 10" Length $14.62 Add to Cart
3/4" O.D. 12" 400 300 CLHP-75-12 | 3/4" O.D. | 12" Length $17.24 Add to Cart
3/4" O.D. 14" 385 290 CLHP-75-14 | 3/4" O.D. | 14" Length $19.13 Add to Cart
3/4" O.D. 16" * 370 280 CLHP-75-16 | 3/4" O.D. | 16" Length $21.91 Add to Cart
3/4" O.D. 18" 355 275 CLHP-75-18 | 3/4" O.D. | 18" Length $22.40 Add to Cart
3/4" O.D. 20" 345 265 CLHP-75-20 | 3/4" O.D. | 20" Length $27.29 Add to Cart
3/4" O.D. 24" * 315 250 CLHP-75-24 | 3/4" O.D. | 24" Length $33.18 Add to Cart
3/4" O.D. 30" 275 Not Recommended CLHP-75-30 | 3/4" O.D. | 30" Length $41.98 Add to Cart
3/4" O.D. 36" * 240 Not Recommended CLHP-75-36 | 3/4" O.D. | 36" Length $49.04 Add to Cart
3/4" O.D. 48" * 190 Not Recommended CLHP-75-48 | 3/4" O.D. | 48" Length $66.84 Add to Cart
3/4" O.D. 60" * 145 Not Recommended CLHP-75-60 | 3/4" O.D. | 60" Length $85.27 Add to Cart
3/4" O.D. 72" * 100 Not Recommended CLHP-75-72 | 3/4" O.D. | 72" Length $107.47 Add to Cart
All OD of Glass is (+0 , - 1/32") Wall Thickness 5/64" (+1/64")
Size Length Temperature
Up to
150°F @ PSI 		Steam Service
425°F @ PSI 		Description
Clear High Pressure
Gauge Glass 		Price Qty
1/2" O.D. 8" 460 340 CLHP-50-8 | 1/2" O.D. | 8" Length $8.36 Add to Cart
1/2" O.D. 10" 445 335 CLHP-50-10 | 1/2" O.D. | 10" Length $10.69 Add to Cart
1/2" O.D. 12" 435 325 CLHP-50-12 | 1/2" O.D. | 12" Length $12.89 Add to Cart
1/2" O.D. 14" 415 315 CLHP-50-14 | 1/2" O.D. | 14" Length $14.62 Add to Cart
1/2" O.D. 16" 400 300 CLHP-50-16 | 1/2" O.D. | 16" Length $17.24 Add to Cart
1/2" O.D. 18" 385 295 CLHP-50-18 | 1/2" O.D. | 18" Length $19.13 Add to Cart
1/2" O.D. 20" 375 285 CLHP-50-20 | 1/2" O.D. | 20" Length $21.18 Add to Cart
1/2" O.D. 24" 340 270 CLHP-50-24 | 1/2" O.D. | 24" Length $29.89 Add to Cart
1/2" O.D. 30" 295 Not Recommended CLHP-50-30 | 1/2" O.D. | 30" Length $31.71 Add to Cart
1/2" O.D. 36" 260 Not Recommended CLHP-50-36 | 1/2" O.D. | 36" Length $37.53 Add to Cart
1/2" O.D. 48" 205 Not Recommended CLHP-50-48 | 1/2" O.D. | 48" Length $51.16 Add to Cart
1/2" O.D. 60" 155 Not Recommended CLHP-50-60 | 1/2" O.D. | 60" Length $62.13 Add to Cart
1/2" O.D. 72" * 110 Not Recommended CLHP-50-72 | 1/2" O.D. | 72" Length $79.16 Add to Cart
All OD of Glass is (+0 , - 1/32") Wall Thickness 1/8" (+ 1/32")
Size Length Temperature
Up to
150°F @ PSI 		Steam Service
425°F @ PSI 		Description
Clear High Pressure
Gauge Glass 		Price Qty
1" O.D. 10" 335 Not Recommended CLHP-100-10 | 1" O.D. | 10" Length $22.40 Add to Cart
1" O.D. 12" 325 Not Recommended CLHP-100-12 | 1" O.D. | 12" Length $26.26 Add to Cart
1" O.D. 24" 285 Not Recommended CLHP-100-24 | 1" O.D. | 24" Length $58.04 Add to Cart
1" O.D. 36" 240 Not Recommended CLHP-100-36 | 1" O.D. | 36" Length $79.16 Add to Cart
1" O.D. 48" 190 Not Recommended CLHP-100-48 | 1" O.D. | 48" Length $105.42 Add to Cart
1" O.D. 60" 145 Not Recommended CLHP-100-60 | 1" O.D. | 60" Length $134.89 Add to Cart
1" O.D. 72" 100 Not Recommended CLHP-100-72 | 1" O.D. | 72" Length $164.27 Add to Cart
