Redline Heavy Wall Gage Glass In Stock

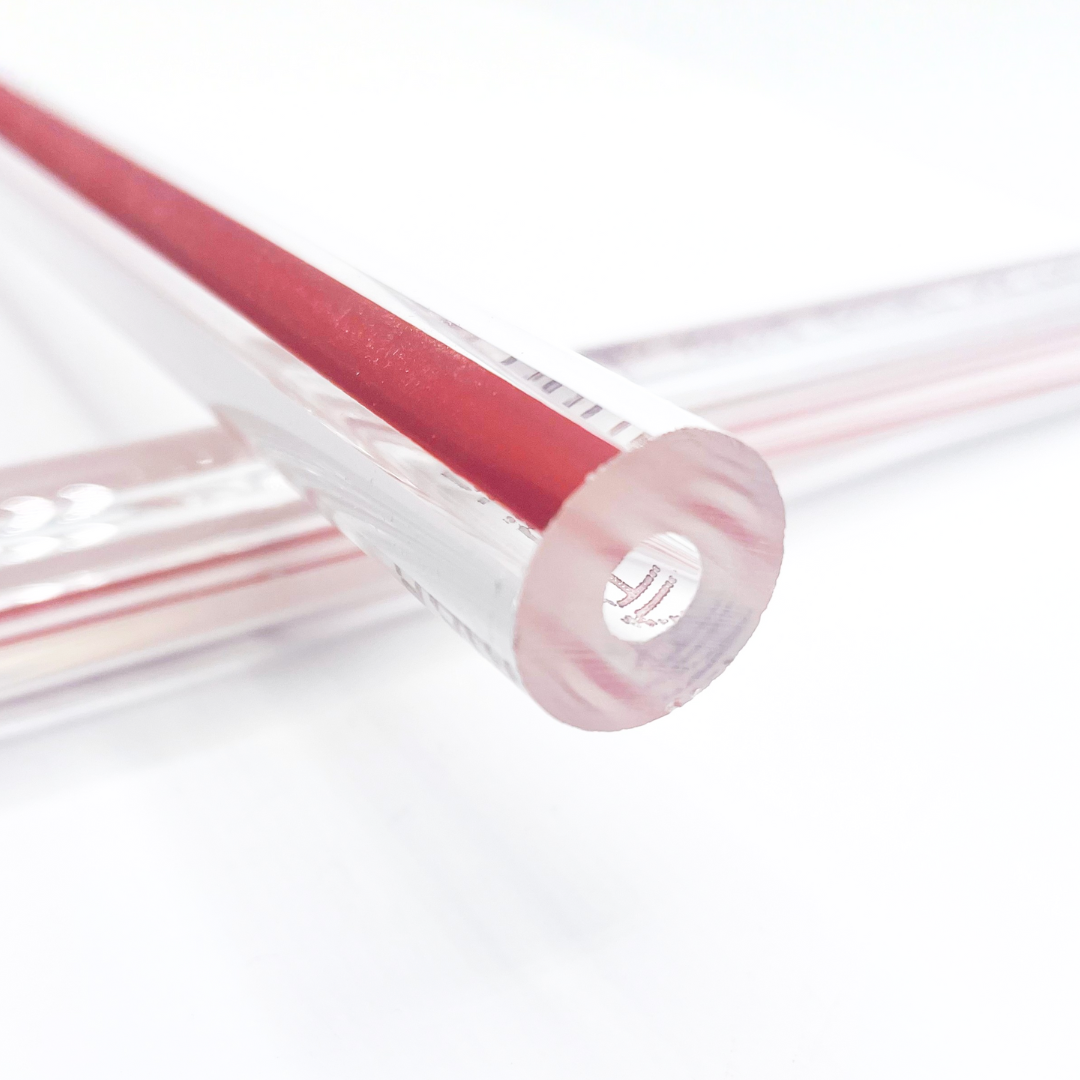

Item Name: Redline Heavy Wall Tubular Gage Glass
Short description: Redline Heavy Wall Tubular Gage Glass
Manufacturer:
DURAN®
Description:

Schott / Duran® and Corning Pyrex® tubular gauge glass is offered as Red Line, High Pressure Clear, Heavy Wall Clear, and Heavy Wall Red Line.  Diameters range from 1/2" OD to 3/4" OD. End finishes may be cut, ground, or fire polished depending on application.  Pressure ratings range from 90 PSI to 600 PSI depending on end finish, diameter, and length required.



*48" is the maximum length for heavywall glass*


Glass Below can be Purchased in Special Cut Lengths with our One Step Glass Ordering System below or you can purchase standard stock lengths in the tables below that as well.



* Please note that dimensions are "OD” and Wall Thickness*

* All Custom Cut Lengths are Non-Returnable*





Shipping Time: Same Day In Stock
All OD of Glass is (+1/64 , - 3/64") Wall Thickness 3/16" (+ 3/64", -0)
Size Length Temperature
Up to
150°F @ PSI
Steam Service
425°F @ PSi
Description
Redline Heavy Wall
Gauge Glass
Price Qty
5/8" O.D. 12" 600 340 RLHW-625-12 | 5/8" O.D. | 12" Length $55.13 Add to Cart
5/8" O.D. 16" 600 325 RLHW-625-16 | 5/8" O.D. | 16" Length $96.27 Add to Cart
5/8" O.D. 20" 600 315 RLHW-625-20 | 5/8" O.D. | 20" Length $96.27 Add to Cart
5/8" O.D. 24" 580 300 RLHW-625-24 | 5/8" O.D. | 24" Length $96.27 Add to Cart
5/8" O.D. 30" 550 Not Recommended RLHW-625-30 | 5/8" O.D. | 30" Length $120.51 Add to Cart
5/8" O.D. 36" * 500 Not Recommended RLHW-625-36 | 5/8" O.D. | 36" Length $120.51 Add to Cart
5/8" O.D. 48" *
(Max)
340 Not Recommended RLHW-625-48 | 5/8" O.D. | 48" Length $157.27 Add to Cart
All OD of Glass is (+1/64 , - 3/64") Wall Thickness 7/32" (+ 1/16", -0)
Size Length Temperature
Up to
150°F @ PSI
Steam Service
425°F @ PSi
Description
Redline Heavy Wall
Gauge Glass
Price Qty
3/4" O.D. 12" 600 340 RLHW-75-12 | 3/4" O.D. | 12" Length $39.26 Add to Cart
3/4" O.D. 16" 600 325 RLHW-75-16 | 3/4" O.D. | 16" Length $76.25 Add to Cart
3/4" O.D. 20" 600 315 RLHW-75-20 | 3/4" O.D. | 20" Length $76.25 Add to Cart
3/4" O.D. 24" 580 300 RLHW-75-24 | 3/4" O.D. | 24" Length $76.25 Add to Cart
3/4" O.D. 30" 550 Not Recommended RLHW-75-30 | 3/4" O.D. | 30" Length $112.18 Add to Cart
3/4" O.D. 36" * 500 Not Recommended RLHW-75-36 | 3/4" O.D. | 36" Length $124.22 Add to Cart
3/4" O.D. 48" *
(Max)
340 Not Recommended RLHW-75-48 | 3/4" O.D. | 48" Length $124.22 Add to Cart
