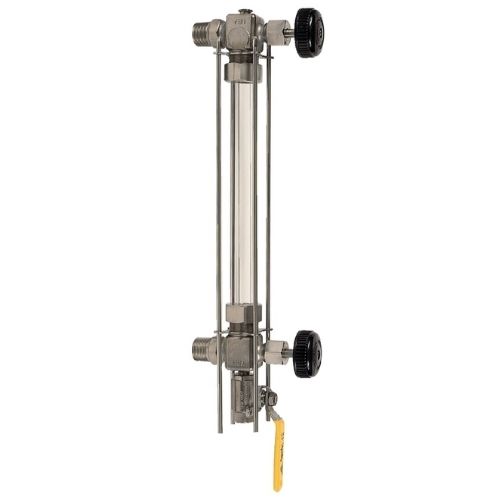

Conbraco 23-450 Stainless Steel Liquid Level Water Gauges In Stock

• Durable Construction: Made from high-quality stainless steel, ensuring long-lasting performance and resistance to corrosion.
• Ball Checks: Standard on the 23-450 series to prevent fluid loss if the glass breaks. The 23-400 series does not include ball checks.
• Versatile Connections: Available with 1/2" and 3/4" NPT male pipe connections.
• High-Temperature and Pressure Ratings: Rated for 500 psig at 450°F (service ratings subject to the pressure/temperature ratings of the gauge glass and gaskets).
• Additional Features:
  • PTFE reinforced gauge glass gaskets and stem packings.
  • Chemical-resistant PTFE seat.
  • 5/16" diameter full flow all stainless steel drain valve with safety handle.
  • Guard rod bracket to accommodate four stainless steel guard rods for added protection.

Installation:

• Glass and Rods: Sold separately.
• Length Calculation:
  • Glass Length = (Center to Center Dimension) - 2"
  • Rod Length = (Glass Length) + 7/8"
• Requires four guard rods for proper installation.
