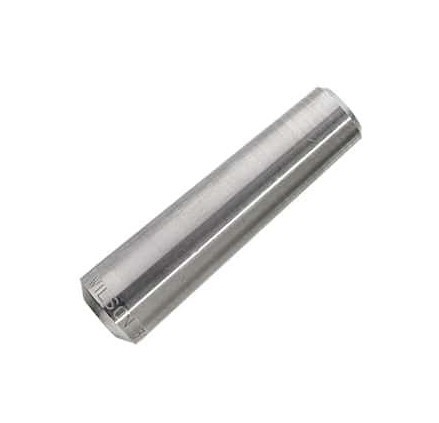

Tube Plugs offer a low-cost, quick, and efficient method of sealing leaking tubes. They are installed easily so the pressure vessel get back on line. Minimum driving is required to establish a positive seal in seconds.
The tube plug and tube metal should always match. Fiber plugs require minimal driving since they tighten as they come in contact with water, but fiber plugs should not be subjected to temperatures exceeding 105°C (221°F). Available in Brass, Carbon steel, Stainless steel, Fiber, Monel (made to order)*, Custom sizes and materials (We can make tube plugs from any material in any size. Contact us with your requirements.)
Tube plugs are packaged 10 per box, except 1 1/2-inch Outer Diameter or larger plugs which are packaged individually.
| Part # |
Tube OD (Inches) |
Tube Wall Gauge |
Description | Price | Qty | |
|---|---|---|---|---|---|---|
| 22023 | 3/8 | 17-22 |
Brass Heat Exchanger Tube Plugs |
$116.18 | Add to Cart | |
| 22024 | 1/2 |
11-14 15-22 |
Brass Heat Exchanger Tube Plugs |
$122.73 | Add to Cart | |
| 22025 | 5/8 |
11-14 15-22 |
Brass Heat Exchanger Tube Plugs |
$127.64 | Add to Cart | |
| 22026 | 3/4 |
11-14 15-22 |
Brass Heat Exchanger Tube Plugs |
$130.91 | Add to Cart | |
| 22027 | 7/8 |
11-14 15-22 |
Brass Heat Exchanger Tube Plugs |
$199.64 | Add to Cart | |
| 39709 | 1 | 11-14 |
Brass Heat Exchanger Tube Plugs |
$248.73 | Add to Cart | |
| 22028 | 1 | 15-22 |
Brass Heat Exchanger Tube Plugs |
$229.10 | Add to Cart | |
| 40507 | 1-1/8 | 15-22 |
Brass Heat Exchanger Tube Plugs |
|||
| 41083 | 1 1/4 | 15-22 |
Brass Heat Exchanger Tube Plugs |
|||
| 41085 | 1-3/8 | 15-22 |
Brass Heat Exchanger Tube Plugs |
|||
| 41233 | 1-1/2 | 15-22 |
Brass Heat Exchanger Tube Plugs |
| Part # |
Tube OD (Inches) |
Tube Wall Gauge |
Description | Price | Qty | |
|---|---|---|---|---|---|---|
| 22041 | 3/8 | 17-22 |
Stainless Steel Heat Exchanger Tube Plugs |
$171.82 | Add to Cart | |
| 22042 | 1/2 |
11-14 15-22 |
Stainless Steel Heat Exchanger Tube Plugs |
$171.82 | Add to Cart | |
| 22043 | 5/8 |
11-14 15-22 |
Stainless Steel Heat Exchanger Tube Plugs |
$171.82 | Add to Cart | |
| 22044 | 3/4 |
11-14 15-22 |
Stainless Steel Heat Exchanger Tube Plugs |
$263.46 | Add to Cart | |
| 22045 | 7/8 |
11-14 15-22 |
Stainless Steel Heat Exchanger Tube Plugs |
$261.82 | Add to Cart | |
| 39712 | 1" | 11-14 |
Stainless Steel Heat Exchanger Tube Plugs |
$351.82 | Add to Cart | |
| 22046 | 1" | 15-22 |
Stainless Steel Heat Exchanger Tube Plugs |
$278.19 | Add to Cart | |
| 41581 | 1-1/8 | 15-22 |
Stainless Steel Heat Exchanger Tube Plugs |
|||
| 41084 | 1 1/4 | 15-22 |
Stainless Steel Heat Exchanger Tube Plugs |
|||
| 41086 | 1-3/8 | 15-22 |
Stainless Steel Heat Exchanger Tube Plugs |
|||
| 41235 | 1-1/2 | 15-22 |
Stainless Steel Heat Exchanger Tube Plugs |
