MacBeth Transparent & Reflex Flat Glass Replacement Kits In Stock

Macbeth Transparent Reflex Flat Glass Replacement Kits provide all the necessary components to replace and maintain the integrity of your liquid level gauges. Combining the benefits of transparent and reflex glass, these kits ensure accurate and reliable readings in high-pressure and high-temperature environments. Each kit includes high-quality glass and gaskets, designed for durability and ease of installation.



Technical Specifications

  • Material: 8488 formulated borosilicate glass
  • Temperature, Pressure, & Chemical Resistance: Suitable for high-tpressure indistrial applications
  • Sizes: Available in various standard sizes
  • Replacements for MacBeth, Clark Reliance, Ernst, Penberthy, Klinger, Jerguson & Pyrex



Item Name: Reflex Gauge Glass Kits
Short description: MacBeth Prismatic Reflex Glass Kits
Description:

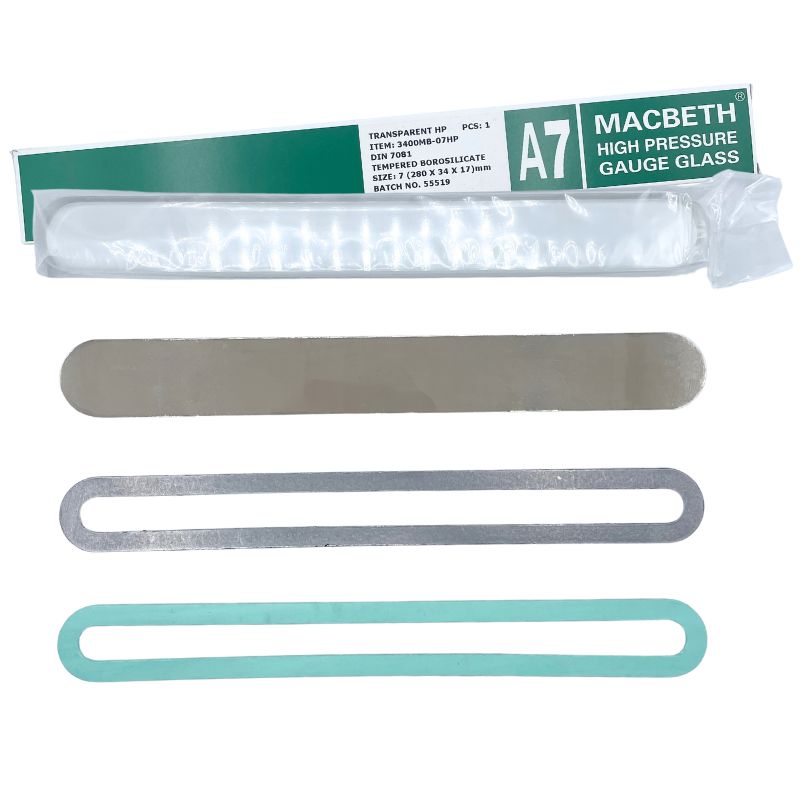

Reflex Gauge Glass Kits Includes:

  • (1) Reflex Glass
  • (1) 1/32" Grafoil Gasket
  • (1) 1/16" Cushion Gasket
Shipping Time: Same Day In Stock
Specifications
Item # Size Length Price Qty
MBR-RK900-1 #1 115mm x 34mm x 17mm $46.50 Add to Cart
MBR-RK900-2 #2 140mm x 34mm x 17mm $49.95 Add to Cart
MBR-RK900-3 #3 165mm x 34mm x 17mm $51.95 Add to Cart
MBR-RK900-4 #4 190mm x 34mm x 17mm $52.95 Add to Cart
MBR-RK900-5 #5 220mm x 34mm x 17mm $55.95 Add to Cart
MBR-RK900-6 #6 250mm x 34mm x 17mm $59.95 Add to Cart
MBR-RK900-7 #7 280mm x 34mm x 17mm $65.95 Add to Cart
MBR-RK900-8 #8 320mm x 34mm x 17mm $69.95 Add to Cart
MBR-RK900-9 #9 340mm x 34mm x 17mm $75.95 Add to Cart
Item Name: Transparent Gauge Glass Kit 600LB
Short description: MacBeth Transparent Glass Kits
Description:

600LB Transparent Gauge Glass Kit Includes:

  • (1) Transparent Glass
  • (1) 1/32" Grafoil Gasket
  • (1) 1/16" Cushion Gasket
  • (1) Standard 34mm, 5-7mm thickness Mica
Shipping Time: Same Day In Stock
Specifications
Item # Size Length Price Qty
MBT-TK600-4 #4 190mm x 34mm x 17mm $52.95 Add to Cart
MBT-TK600-5 #5 220mm x 34mm x 17mm $55.95 Add to Cart
MBT-TK600-6 #6 250mm x 34mm x 17mm $59.95 Add to Cart
MBT-TK600-7 #7 280mm x 34mm x 17mm $65.95 Add to Cart
MBT-TK600-8 #8 320mm x 34mm x 17mm $69.95 Add to Cart
MBT-TK600-9 #9 340mm x 34mm x 17mm $75.95 Add to Cart
Item Name: Transparent Gauge Glass Kit 900LB
Short description: MacBeth Transparent Glass Kits
Description:

900LB Transparent Gauge Glass Kit Includes:

  • (1) Transparent Glass
  • (1) 1/32" Grafoil Gasket
  • (1) 1/16" Cushion Gasket
  • (1) Standard 34mm, 7-9mm thickness Mica
Shipping Time: Same Day In Stock
Specifications
Item # Size Length Price Qty
MBT-TK900-1 #1 115mm x 34mm x17mm $81.95 Add to Cart
MBT-TK900-2 #2 140mm x 34mm x17mm $83.95 Add to Cart
MBT-TK900-3 #3 165mm x 34mm x17mm $85.95 Add to Cart
MBT-TK900-4 #4 190mm x 34mm x17mm $89.95 Add to Cart
MBT-TK900-5 #5 220mm x 34mm x17mm $91.95 Add to Cart
MBT-TK900-6 #6 250mm x 34mm x17mm $100.95 Add to Cart
MBT-TK900-7 #7 280mm x 34mm x17mm $129.95 Add to Cart
MBT-TK900-8 #8 320mm x 34mm x17mm $150.95 Add to Cart
MBT-TK900-9 #9 340mm x 34mm x17mm $166.95 Add to Cart
Item Name: Transparent Gauge Glass Kit 1500LB
Short description: MacBeth Transparent Glass Kits
Description:

1500LB Transparent Gauge Glass Kit Includes:

  • (1) Transparent Glass
  • (1) 1/32" Grafoil Gasket
  • (1) 1/16" Cushion Gasket
  • (1) Standard 34mm, 9-12mm thickness Mica
Shipping Time: Same Day In Stock
Specifications
Item # Size Length Price Qty
MBT-TK1500-1 #1 115mm x 34mm x 17mm $83.95 Add to Cart
MBT-TK1500-2 #2 140mm x 34mm x 17mm $85.95 Add to Cart
MBT-TK1500-3 #3 165mm x 34mm x 17mm $88.95 Add to Cart
MBT-TK1500-4 #4 190mm x 34mm x 17mm $91.95 Add to Cart
MBT-TK1500-5 #5 220mm x 34mm x 17mm $101.95 Add to Cart
MBT-TK1500-6 #6 250mm x 34mm x 17mm $116.95 Add to Cart
MBT-TK1500-7 #7 280mm x 34mm x 17mm $138.95 Add to Cart
MBT-TK1500-8 #8 320mm x 34mm x 17mm $166.95 Add to Cart
MBT-TK1500-9 #9 340mm x 34mm x 17mm $181.95 Add to Cart
