Transparent & Reflex Flat Gauge Glass Kits | Boiler Supplies Schott Maxos Transparent & Reflex Glass
***Schott Maxos® have replaced ALL of Macbeth & Klinger glass***
Transparent & Prismatic Reflex Glass is always IN STOCK and ready for immediate shipping.
Order online or call Toll Free1-800-780-3776
Each Piece is individually boxed. Number of pieces per case is 25.
Maxos® Schott High Pressure Transparent & Prismatic Reflex glass is a formulated borosilicate glass with high chemical durability and exceptional homogeneity.* Chemical service which will not corrosively attach the glass.
Maxos® is manufactured from a special 8488 formulated borosilicate glass, characterized by low coefficent of expansion,high chemical durability and exceptional homogeneity.
Glass is frequently used in gages manufactured by Penberthy, Daniels, Jerguson, Inferno and Clark Reliance.

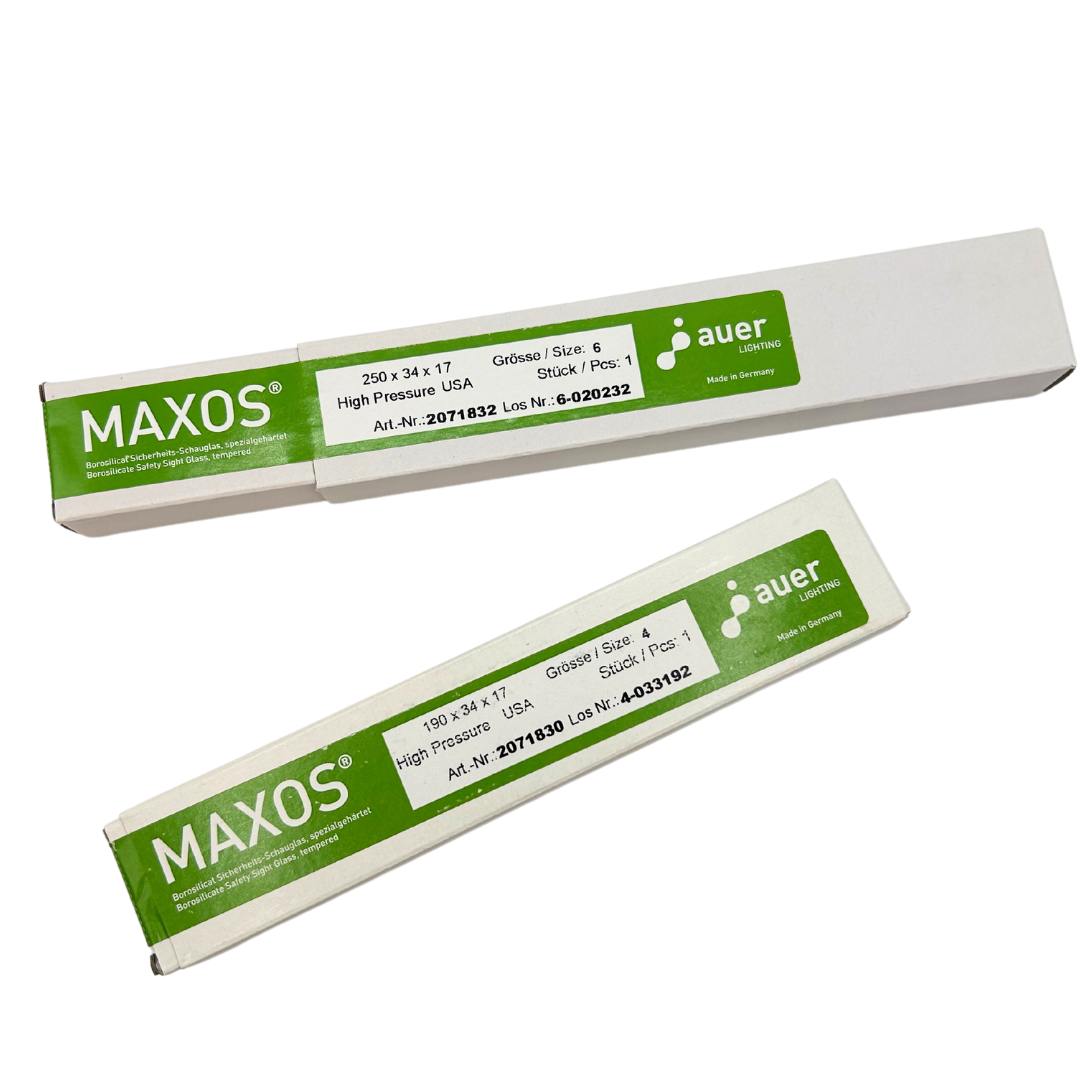

Designed to use in armored-type liquid level gages, Type-A High Pressure Gage Glass provides a high-strength tempered borosilicate glass with a high degree of visibility. Type A High Pressure Gage Glass will tale non-steam pressure up to 5000 psi.
| Part # |
Size Type A |
"Length, In (+0, -1/32)" |
Steam Boiler No Mica Max. Pressures at 470°F |
Steam Boiler Mica Protected Max. Pressures at 608°F |
Non-Steam Service Max. Pressures at 100°F |
Description | Weight | Price | Qty | |
|---|---|---|---|---|---|---|---|---|---|---|
| #1THP |
1 (115mm x34mm x17mm) |
4 1/2" | 500 | 1500 | 5000 |
HP Transparent Flat Gauge Glass |
1.00 | $57.95 | Add to Cart | |
| #2THP |
2 (140mm x 34mm x 17mm) |
5 1/2" | 500 | 1500 | 5000 |
HP Transparent Flat Gauge Glass |
1.00 | $57.95 | Add to Cart | |
| #3THP |
3 (165mm x 34mm x 17mm) |
6 1/2" | 500 | 1500 | 5000 |
HP Transparent Flat Gauge Glass |
1.00 | $57.95 | Add to Cart | |
| #4THP |
4 (190mm x 34mm x 17mm) |
7 1/2" | 500 | 1500 | 5000 |
HP Transparent Flat Gauge Glass |
1.00 | $57.95 | Add to Cart | |
| #5THP |
5 (220mm x 34mm x 17mm) |
8 5/8" | 500 | 1500 | 5000 |
HP Transparent Flat Gauge Glass |
1.00 | $65.00 | Add to Cart | |
| #6THP |
6 (250mm x 34mm x 17mm) |
9 7/8" | 500 | 1500 | 5000 |
HP Transparent Flat Gauge Glass |
1.00 | $68.95 | Add to Cart | |
| #7THP |
7 (280mm x 34mm x 17mm) |
11" | 500 | 1500 | 5000 |
HP Transparent Flat Gauge Glass |
1.00 | $75.50 | Add to Cart | |
| #8THP |
8 (320mm x 34mm x17mm) |
12 5/8" | 500 | 1500 | 5000 |
HP Transparent Flat Gauge Glass |
1.00 | $76.95 | Add to Cart | |
| #9THP |
9 (340mm x 34mm x 17mm) |
13 3/8" | 500 | 1500 | 5000 |
HP Transparent Flat Gauge Glass |
1.00 | $80.95 | Add to Cart |
Maxos® is manufactured from a special 8488 formulated borosilicate glass, characterized by low coefficent of expansion,high chemical durability and exceptional homogeneity.
Glass is frequently used in gages manufactured by Penberthy, Daniels, Jerguson, Inferno and Clark Relience.

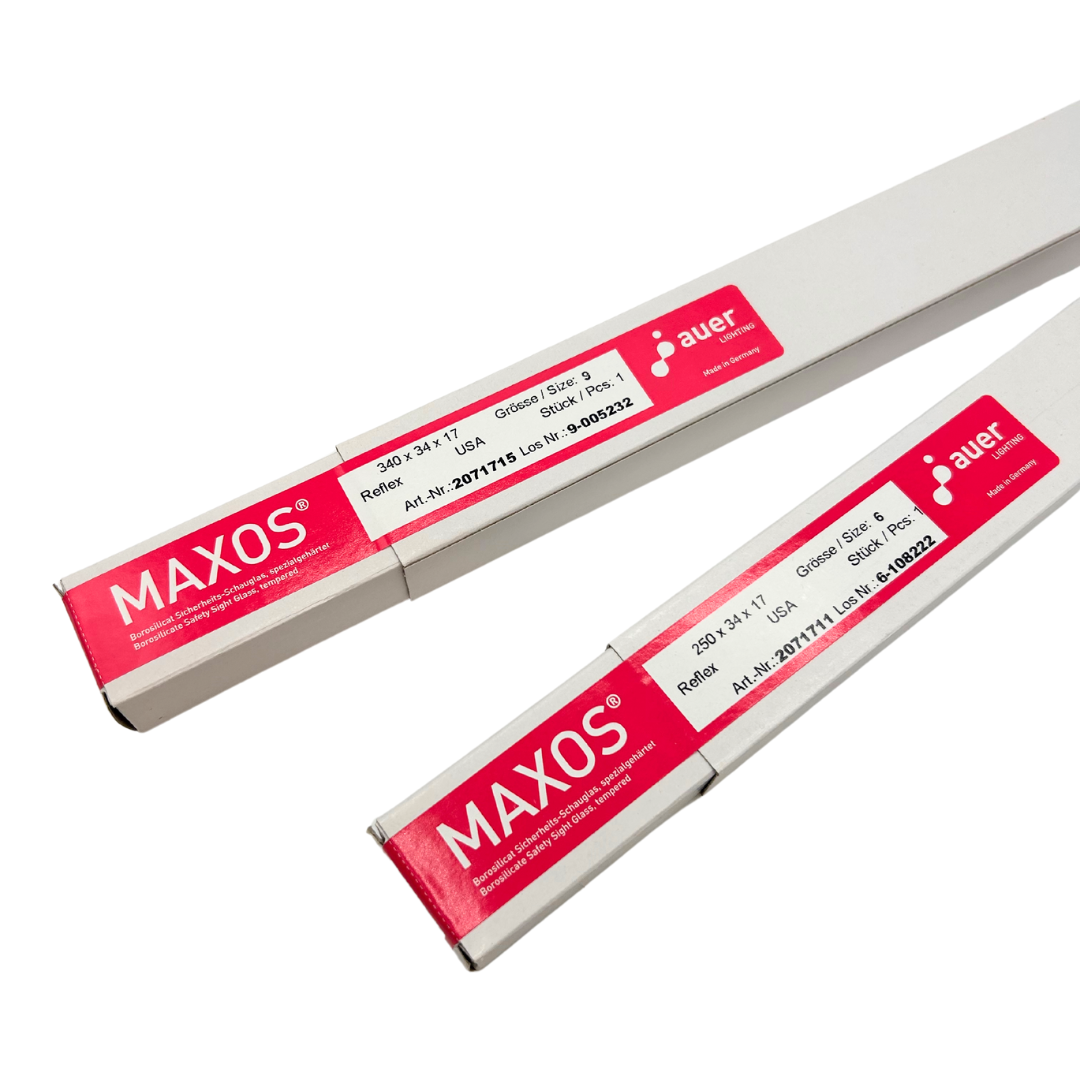

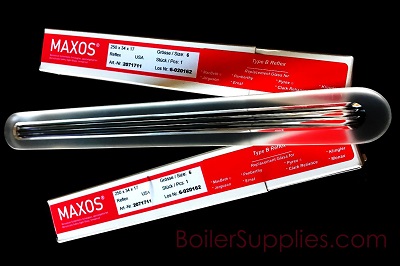

Designed to use in armored-type liquid level gages, Type-B Reflex Gage Glass is made for extra ease in locating liquid levels. This gage glass has vertical prisms extending the full viewing length of the glass. The prism side faces the liquid. The sections of the prisms not covered with the liquid reflect light spectacularly. Therefore, the liquid level stands out very clearly from a long distance away.
| Part # |
Size Type B |
"Length, In (+0, -1/32)" |
Steam Boiler No Mica Max. Pressures at 470°F |
Steam Boiler Mica Protected Max. Pressures at 608°F |
Non-Steam Service Max. Pressures at 100°F |
Description | Weight | Price | Qty | |
|---|---|---|---|---|---|---|---|---|---|---|
| #1R |
1 (115mm x 34mm x 17mm) |
4 1/2" | 500 |
Mica not used w/ Reflex Gage Glass |
2500 |
Reflex Flat Gauge Glass |
1.00 | $36.50 | Add to Cart | |
| #2R |
2 (140mm x 34mm x 17mm) |
5 1/2" | 500 |
Mica not used w/ Reflex Gage Glass |
2500 |
Reflex Flat Gauge Glass |
1.00 | $36.50 | Add to Cart | |
| #3R |
3 (165mm x 34mm x 17mm) |
6 1/2" | 500 |
Mica not used w/ Reflex Gage Glass |
2500 |
Reflex Flat Gauge Glass |
1.00 | $36.50 | Add to Cart | |
| #4R |
4 (190mm x 34mm x 17mm) |
7 1/2" | 500 |
Mica not used w/ Reflex Gage Glass |
2500 |
Reflex Flat Gauge Glass |
1.00 | $37.50 | Add to Cart | |
| #5R |
5 (220mm x 34mm x17mm) |
8 5/8" | 500 |
Mica not used w/ Reflex Gage Glass |
2500 |
Reflex Flat Gauge Glass |
1.00 | $39.50 | Add to Cart | |
| #6R |
6 (250mm x 34mm x 17mm) |
9 7/8" | 500 |
Mica not used w/ Reflex Gage Glass |
2500 |
Reflex Flat Gauge Glass |
1.00 | $42.50 | Add to Cart | |
| #7R |
7 (280mm x 34mm x 17mm) |
11" | 500 |
Mica not used w/ Reflex Gage Glass |
2500 |
Reflex Flat Gauge Glass |
1.00 | $46.95 | Add to Cart | |
| #8R |
8 (320mm x 34mm x 17mm) |
12 5/8" | 500 |
Mica not used w/ Reflex Gage Glass |
2500 |
Reflex Flat Gauge Glass |
1.00 | $48.50 | Add to Cart | |
| #9R |
9 (340mm x 34mm x 17mm) |
13 3/8" | 500 |
Mica not used w/ Reflex Gage Glass |
2500 |
Reflex Flat Gauge Glass |
1.00 | $52.50 | Add to Cart |
