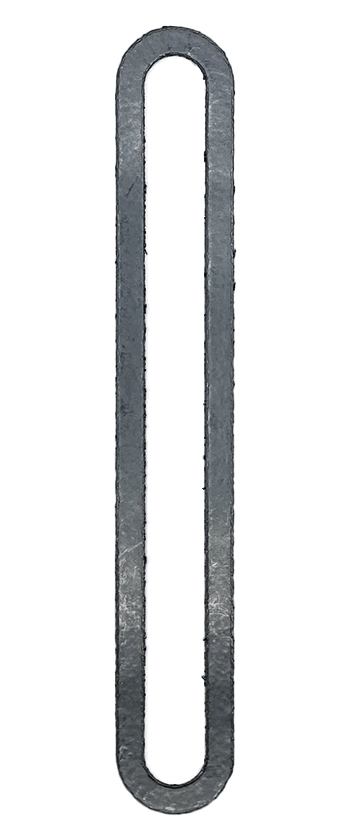

Universal Grafoil, Cushion, & PTFE Standard Flat Glass Gaskets In Stock

Universal Grafoil Cushion PTFE Standard Flat Glass Gaskets are designed to provide a superior sealing solution for flat glass gauge applications in high-pressure and high-temperature environments. Combining the benefits of Grafoil and PTFE, these gaskets ensure reliable performance, durability, and chemical resistance, making them essential components for maintaining the integrity of your liquid level gauges.



  • Non-Asbestos Cushion Gasket
  • Suitable for service in hot water, mild acids, alkalines, and inert gases.
  • Maximum temperatures to 600°F and pressures to 1200 PSI in non-steam service.



OPTIONAL THICKNESS AVAILABLE UPON REQUEST

Item Name: GH-R (34mm) Grafoil Gaskets (with SS Inserts)
Short description: Grafoil & Cushion Standard Flat Glass Gaskets
Description:

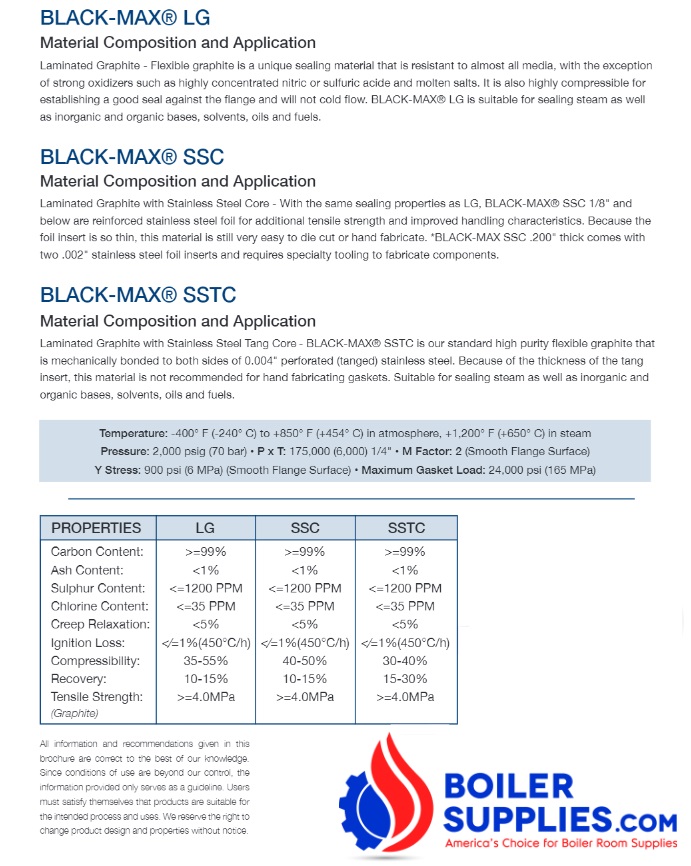

  • A flexible graphite gasket with Stainless Steel Inserts
  • GH-R is laminated graphite with a flat .002 thick 316/316L stainless steel insert.
  • Functional temperature and pressure range in an oxidizing environment is 400°F to 750°F and 1800°F in in a non-oxidizing environment with a maximum pressure of 2000 PSIG. Suitable for 1500 PSIG and 596°F saturated steam service. Maximum PxT factor value of 700,000.
  • Sold in 6-Packs
Shipping Time: Same Day In Stock
Express ship options available
GH-R (34mm) Grafoil Gaskets
Item # Size Thickness Description Weight (6) Pack
Price 		Qty
1-GHR-1/32PK 1 * 1/32" (34mm) Grafoil Gaskets
w/ SS Inserts 		1.00 $63.27 Add to Cart
2-GHR-1/32PK 2 * 1/32" (34mm) Grafoil Gaskets
w/ SS Inserts 		1.00 $63.27 Add to Cart
3-GHR-1/32PK 3 * 1/32" (34mm) Grafoil Gaskets
w/ SS Inserts 		1.00 $63.27 Add to Cart
4-GHR-1/32PK 4 * 1/32" (34mm) Grafoil Gaskets
w/ SS Inserts 		1.00 $63.27 Add to Cart
5-GHR-1/32PK 5 * 1/32" (34mm) Grafoil Gaskets
w/ SS Inserts 		1.00 $63.27 Add to Cart
6-GHR-1/32PK 6 * 1/32" (34mm) Grafoil Gaskets
w/ SS Inserts 		1.00 $63.27 Add to Cart
7-GHR-1/32PK 7 * 1/32" (34mm) Grafoil Gaskets
w/ SS Inserts 		1.00 $63.27 Add to Cart
8-GHR-1/32PK 8 * 1/32" (34mm) Grafoil Gaskets
w/ SS Inserts 		1.00 $63.27 Add to Cart
9-GHR-1/32PK 9 * 1/32" (34mm) Grafoil Gaskets
w/ SS Inserts 		1.00 $63.27 Add to Cart
1-GHR-1/16PK 1 * 1/16" (34mm) Grafoil Gaskets
w/ SS Inserts 		1.00 $122.16 Add to Cart
2-GHR-1/16PK 2 * 1/16" (34mm) Grafoil Gaskets
w/ SS Inserts 		1.00 $122.16 Add to Cart
3-GHR-1/16PK 3 * 1/16" (34mm) Grafoil Gaskets
w/ SS Inserts 		1.00 $122.16 Add to Cart
4-GHR-1/16PK 4 * 1/16" (34mm) Grafoil Gaskets
w/ SS Inserts 		1.00 $122.16 Add to Cart
5-GHR-1/16PK 5 * 1/16" (34mm) Grafoil Gaskets
w/ SS Inserts 		1.00 $122.16 Add to Cart
6-GHR-1/16PK 6 * 1/16" (34mm) Grafoil Gaskets
w/ SS Inserts 		1.00 $122.16 Add to Cart
7-GHR-1/16PK 7 * 1/16" (34mm) Grafoil Gaskets
w/ SS Inserts 		1.00 $122.16 Add to Cart
8-GHR-1/16PK 8 * 1/16" (34mm) Grafoil Gaskets
w/ SS Inserts 		1.00 $122.16 Add to Cart
9-GHR-1/16PK 9 * 1/16" (34mm) Grafoil Gaskets
w/ SS Inserts 		1.00 $122.16 Add to Cart
Item Name: Standard (34mm) Cushion/Non-Asbestos Gaskets
Short description: Grafoil & Cushion Standard Flat Glass Gaskets
Description:
  • A general purpose gasket material suitable for service in hot water, mild acids, alkalines, and inert gases.
  • Maximum temperatures to 600°F and pressures to 1200 PSI in non-steam service.
  • Sold in 6-Packs
Shipping Time: Same Day In Stock
Express ship options available
Standard (34mm) Cushion/Non-Asbestos Gaskets
Item # Size Thickness Description Weight (6) Pack
Price 		Qty
1-CNA-1/16PK 1 * 1/16" (34mm) Cushion/Non-Asbestos
Gaskets 		1.00 $22.16 Add to Cart
2-CNA-1/16PK 2 * 1/16" (34mm) Cushion/Non-Asbestos
Gaskets 		1.00 $22.16 Add to Cart
3-CNA-1/16PK 3 * 1/16" (34mm) Cushion/Non-Asbestos
Gaskets 		1.00 $22.16 Add to Cart
4-CNA-1/16PK 4 * 1/16" (34mm) Cushion/Non-Asbestos
Gaskets 		1.00 $22.16 Add to Cart
5-CNA-1/16PK 5 * 1/16" (34mm) Cushion/Non-Asbestos
Gaskets 		1.00 $22.16 Add to Cart
6-CNA-1/16PK 6 * 1/16" (34mm) Cushion/Non-Asbestos
Gaskets 		1.00 $29.94 Add to Cart
7-CNA-1/16PK 7 * 1/16" (34mm) Cushion/Non-Asbestos
Gaskets 		1.00 $29.94 Add to Cart
8-CNA-1/16PK 8 * 1/16" (34mm) Cushion/Non-Asbestos
Gaskets 		1.00 $29.94 Add to Cart
9-CNA-1/16PK 9 * 1/16" (34mm) Cushion/Non-Asbestos
Gaskets 		1.00 $29.94 Add to Cart
1-CNA-1/32PK 1 1/32" (34mm) Cushion/Non-Asbestos
Gaskets 		1.00 $22.16 Add to Cart
2-CNA-1/32PK 2 1/32" (34mm) Cushion/Non-Asbestos
Gaskets 		1.00 $22.16 Add to Cart
3-CNA-1/32PK 3 1/32" (34mm) Cushion/Non-Asbestos
Gaskets 		1.00 $22.16 Add to Cart
4-CNA-1/32PK 4 1/32" (34mm) Cushion/Non-Asbestos
Gaskets 		1.00 $22.16 Add to Cart
5-CNA-1/32PK 5 1/32" (34mm) Cushion/Non-Asbestos
Gaskets 		1.00 $22.16 Add to Cart
6-CNA-1/32PK 6 1/32" (34mm) Cushion/Non-Asbestos
Gaskets 		1.00 $29.94 Add to Cart
7-CNA-1/32PK 7 1/32" (34mm) Cushion/Non-Asbestos
Gaskets 		1.00 $29.94 Add to Cart
8-CNA-1/32PK 8 1/32" (34mm) Cushion/Non-Asbestos
Gaskets 		1.00 $29.94 Add to Cart
9-CNA-1/32PK 9 1/32" (34mm) Cushion/Non-Asbestos
Gaskets 		1.00 $29.94 Add to Cart
Item#: PTFE Cushion Gaskets for Reflex
Item Name: PTFE (34mm) Teflon
Short description: PTFE Cushion Gaskets for Reflex Glass
Description:
  • PTFE gasket for level gauge is also named PTFE sealing gasket or PTFE cushion joint which resistant to temperatures up to 260 °C and the pressure to 150 bar in PH 0-14 condition.
  • Sold in 6-Packs
Shipping Time: Same Day In Stock
Express ship options available
PTFE Cushion Gaskets for Reflex Glass
Item # Size Thickness Description Weight (6) Pack Price Qty
3-PTFE-1/16PK 3 1/16" (34mm) PTFE Cushion Gaskets 1.00 $46.61 Add to Cart
4-PTFE-1/16PK 4 1/16" (34mm) PTFE Cushion Gaskets 1.00 $54.38 Add to Cart
5-PTFE-1/16PK 5 1/16" (34mm) PTFE Cushion Gaskets 1.00 $66.61 Add to Cart
6-PTFE-1/16PK 6 1/16" (34mm) PTFE Cushion Gaskets 1.00 $69.94 Add to Cart
7-PTFE-1/16PK 7 1/16" (34mm) PTFE Cushion Gaskets 1.00 $76.61 Add to Cart
8-PTFE-1/16PK 8 1/16" (34mm) PTFE Cushion Gaskets 1.00 $86.61 Add to Cart
9-PTFE-1/16PK 9 1/16" (34mm) PTFE Cushion Gaskets 1.00 $94.38 Add to Cart
