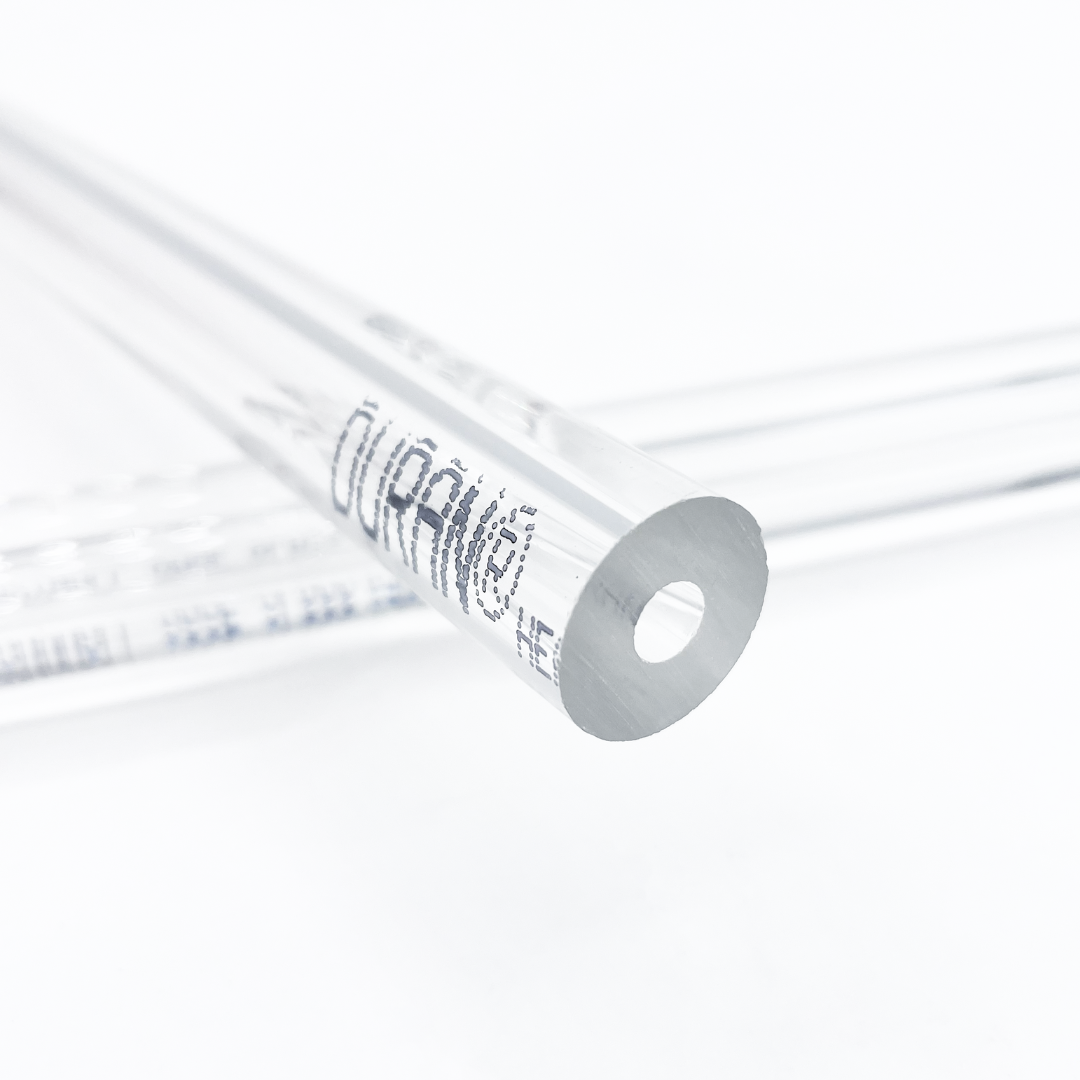

Schott / Duran® and Corning Pyrex® tubular gauge glass is offered as Red Line, High Pressure Clear, Heavy Wall Clear, and Heavy Wall Red Line. Diameters range from 5/8" OD to 3/4" OD. End finishes may be cut, ground, or fire polished depending on application. Pressure ratings range from 90 PSI to 600 PSI depending on end finish, diameter, and length required.
*48" is the maximum length for heavywall glass*
Gauge Glass Below can be Purchased in Special Cut Lengths with our One Step Glass Ordering System below or you can purchase Gage Glass standard stock lengths in the tables below that as well.
* Please note that dimensions are "OD” and Wall Thickness*
*All Custom Cut Lengths are Non-Returnable*
| Size | Length |
Temperature Up to 150°F @ PSI |
Steam Service up to 425°F @ PSI |
Description | Weight | Price | Qty | |
|---|---|---|---|---|---|---|---|---|
| 5/8" O.D. | 12" | 600 | 340 |
Clear Heavy Wall Tubular Gauge Glass |
0.50 | $24.76 | Add to Cart | |
| 5/8" O.D. | 16" | 600 | 325 |
Clear Heavy Wall Tubular Gauge Glass |
0.50 | $50.33 | Add to Cart | |
| 5/8" O.D. | 20" | 600 | 315 |
Clear Heavy Wall Tubular Gauge Glass |
0.50 | $54.25 | Add to Cart | |
| 5/8" O.D. | 24" | 580 | 300 |
Clear Heavy Wall Tubular Gauge Glass |
0.50 | $57.45 | Add to Cart | |
| 5/8" O.D. | 30" | 550 | NOT RECOMMENDED |
Clear Heavy Wall Tubular Gauge Glass |
0.50 | $75.16 | Add to Cart | |
| 5/8" O.D. | 36" * | 500 | NOT RECOMMENDED |
Clear Heavy Wall Tubular Gauge Glass |
0.50 | $77.06 | Add to Cart | |
| 5/8" O.D. |
48" * (Max) |
340 | NOT RECOMMENDED |
Clear Heavy Wall Tubular Gauge Glass |
0.50 | $99.28 | Add to Cart |
| Size | Length |
Temperature Up to 150°F @ PSI |
Steam Service up to 425°F @ PSI |
Description | Weight | Price | Qty | |
|---|---|---|---|---|---|---|---|---|
| 3/4" O.D. | 12" | 600 | 340 |
Clear Heavy Wall Tubular Gauge Glass |
0.50 | $28.11 | Add to Cart | |
| 3/4" O.D. | 16" | 600 | 325 |
Clear Heavy Wall Tubular Gauge Glass |
0.50 | $57.45 | Add to Cart | |
| 3/4" O.D. | 20" | 600 | 315 |
Clear Heavy Wall Tubular Gauge Glass |
0.50 | $59.47 | Add to Cart | |
| 3/4" O.D. | 24" | 580 | 300 |
Clear Heavy Wall Tubular Gauge Glass |
0.50 | $61.38 | Add to Cart | |
| 3/4" O.D. | 30" | 550 | NOT RECOMMENDED |
Clear Heavy Wall Tubular Gauge Glass |
0.50 | $84.91 | Add to Cart | |
| 3/4" O.D. | 36" * | 500 | NOT RECOMMENDED |
Clear Heavy Wall Tubular Gauge Glass |
0.50 | $84.91 | Add to Cart | |
| 3/4" O.D. |
48" * (Max) |
240 | NOT RECOMMENDED |
Clear Heavy Wall Tubular Gauge Glass |
0.50 | $112.35 | Add to Cart |
