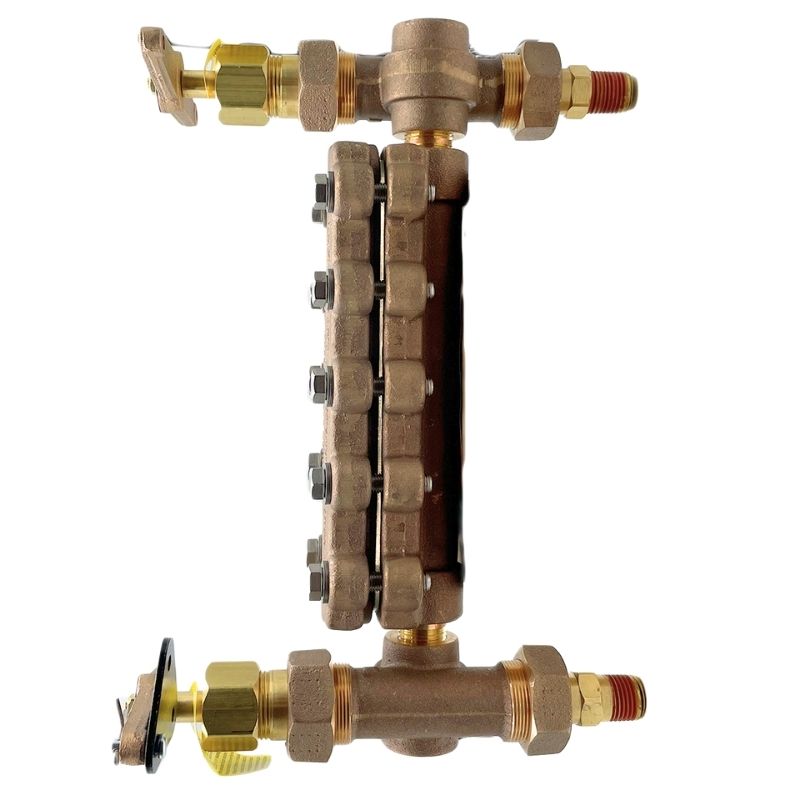

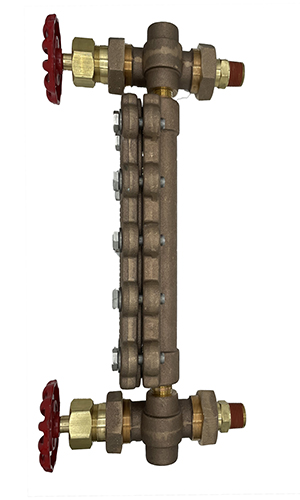

Liquid Level Sight Gauges & Water Gauges | Boiler Supplies Series 800 Bronze Reflex Liquid Level Site Glass Valve Set Series 800 Bronze Reflex Liquid Level Sight Glass Gauge and Valve Sets
Model 897 Bronze Size 5 Level Gauge.
Maintains: 11-1/2” Center-To-Center 1/2" NPT Ports.
Model 899 Bronze Size 7 Level Gauge.
Maintains: 12-3/4" & 12-7/8” Center-To-Center 1/2" NPT Ports.
Bronze Liquid Level Reflex Kits Comes with Sight Glass and Upper & Lower Valve Sets.
Model 900Q Slow Opening Valve Universal Valve Set comes standard with Ball Checks
Threaded Ends – Designed to ASME Boiler and Pressure Vessel Code Section I & ASME B31 Standards
| Item # | Valve Set Size NPT | Center to Center | Description | Price | Qty | |
|---|---|---|---|---|---|---|
| 897KS-50 | 1/2" NPT | 11-1/2" |
Model 897 Bronze Size 5 Site Glass 1/2" NPT w/ 1/2" Upper & Lower Slow-Opening Valve Set |
$1,565.91 | Add to Cart | |
| 897KS-75 | 3/4" NPT | 11-1/2" |
Model 897 Bronze Size 5 Site Glass 1/2" NPT w/ 3/4" Upper & Lower Slow-Opening Valve Set |
$1,565.91 | Add to Cart | |
| 899KS-50 | 1/2" NPT | 12-3/4", and 12-7/8" |
Model 899 Bronze Size 7 Site Glass 1/2" NPT w/ 1/2" Upper & Lower Slow-Opening Valve Set |
$1,795.82 | Add to Cart | |
| 899KS-75 | 3/4" NPT | 12-3/4", and 12-7/8" |
Model 899 Bronze Size 7 Site Glass 1/2" NPT w/ 3/4" Upper & Lower Slow-Opening Valve Set |
$1,795.82 | Add to Cart |
| Item # | Valve Set Size NPT | Center to Center | Description | Price | Qty | |
|---|---|---|---|---|---|---|
| 897KQ-50 | 1/2" NPT | 11-1/2" |
Model 897 Bronze Size 5 Site Glass 1/2" NPT w/ 1/2" Upper & Lower Quick-Opening Valve Set |
$1,642.42 | Add to Cart | |
| 897KQ-75 | 3/4" NPT | 11-1/2" |
Model 897 Bronze Size 5 Site Glass 1/2" NPT w/ 3/4" Upper & Lower Quick-Opening Valve Set |
$1,642.42 | Add to Cart | |
| 899KQ-50 | 1/2" NPT | 12-3/4", and 12-7/8" |
Model 899 Bronze Size 7 Site Glass 1/2" NPT w/ 1/2" Upper & Lower Quick-Opening Valve Set |
$1,872.33 | Add to Cart | |
| 899KQ-75 | 3/4" NPT | 12-3/4", and 12-7/8" |
Model 899 Bronze Size 7 Site Glass 1/2" NPT w/ 3/4" Upper & Lower Quick-Opening Valve Set |
$1,872.33 | Add to Cart |

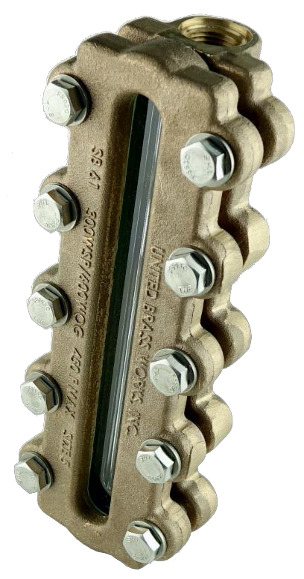

Model 897 Bronze Size 5 Sight Glass
Install Using Supplied Nipples Only Along with United Brass Gauge Valve Sets to Maintain 11 1/2” Center-To-Center Dimensions
Model 899 Bronze Size 7 Special Sight Glass
Install with United Brass Gauge Valve Sets Only to Maintain 12-3/4" & 12 7/8” Center-To-Center Dimensions. Instructions Included with Valve Sets.
| Model # | Visible Sight Length | Description | Price | Qty | |
|---|---|---|---|---|---|
| 897 | 7-7/8" | Size 5 Sight Glass 1/2" NPT End Connected Reflex Gauge Only | $689.47 | Add to Cart | |
| 899 | 10-1/4" | Size 7 Sight Glass 1/2" NPT End Connected Reflex Gauge Only | $919.39 | Add to Cart |
Model 900S Slow Opening Valve Set with Ball Checks
Threaded Ends – Designed to ASME Boiler and Pressure Vessel Code Section I & ASME B31 Standards
| Item # |
Vessel Pipe Size |
Description | Price | Qty | |
|---|---|---|---|---|---|

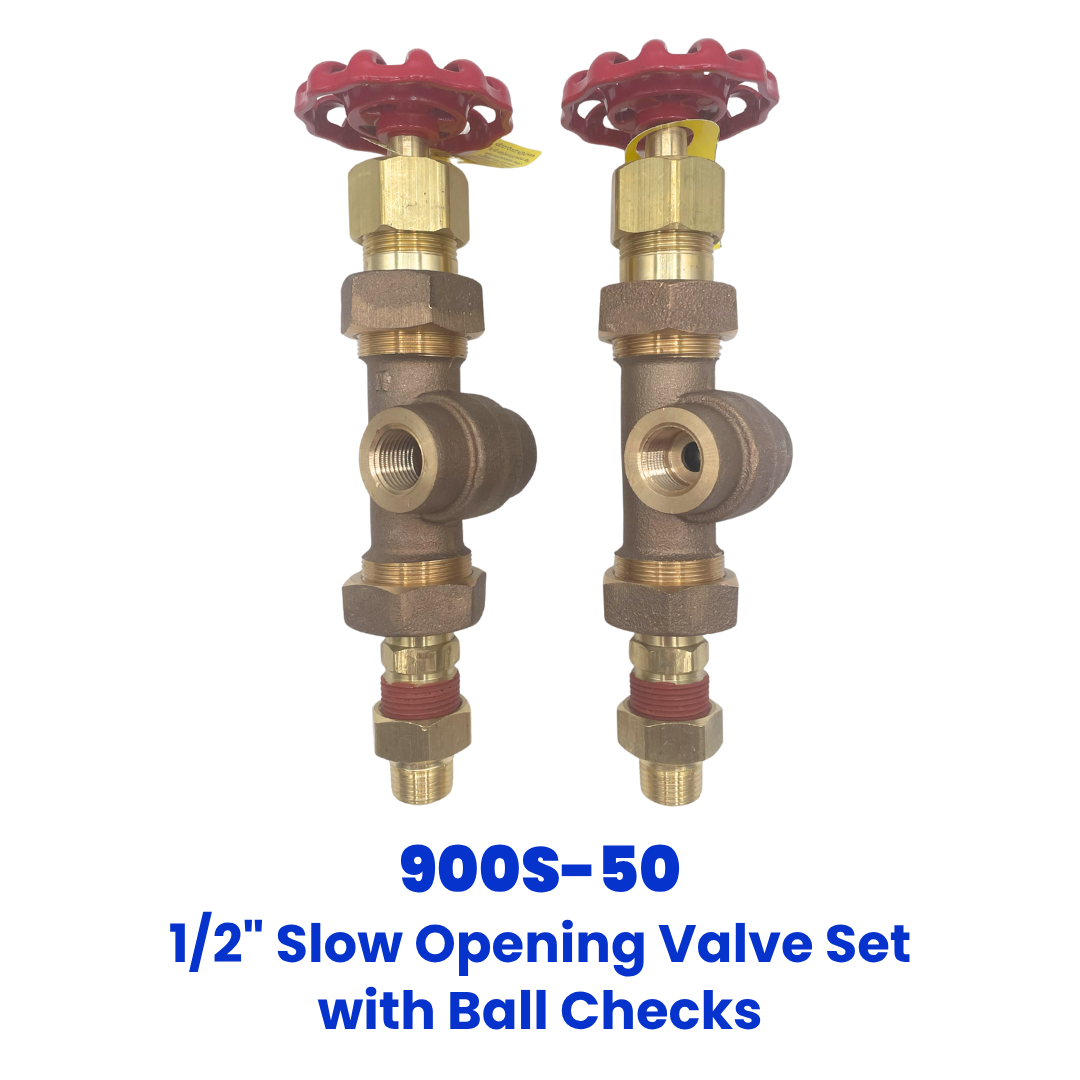

| 900S-50 | 1/2" | 1/2" Slow Opening Valve Set with Ball Checks | $876.44 | Add to Cart | |

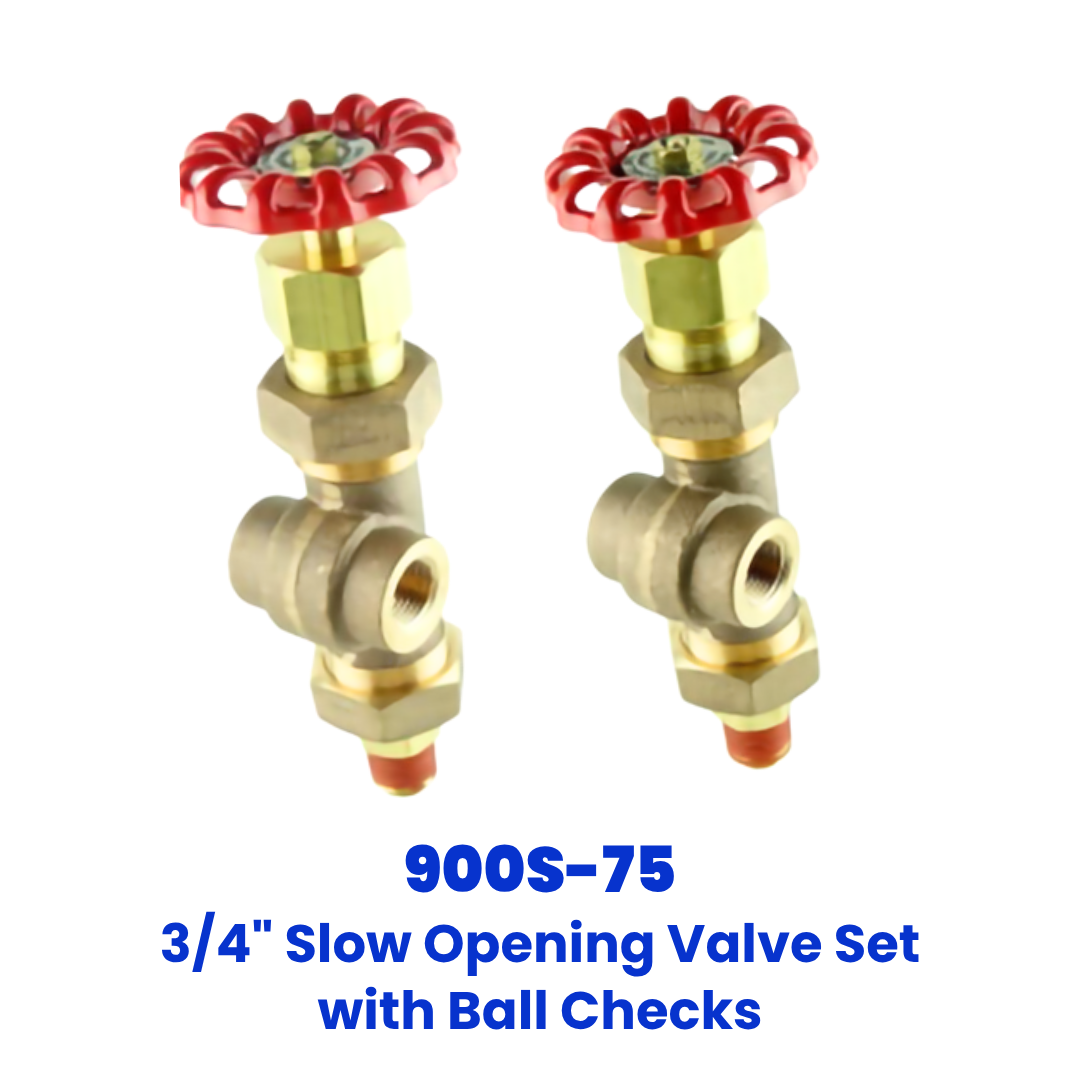

| 900S-75 | 3/4" | 3/4" Slow Opening Valve Set with Ball Checks | $876.44 | Add to Cart |

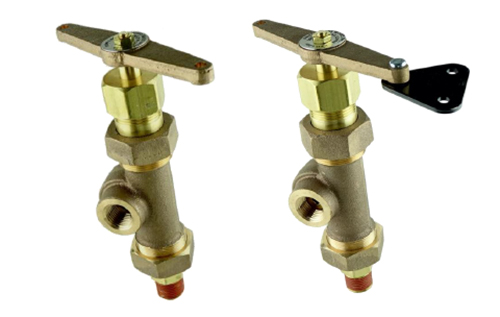

Model 900Q Slow Opening Valve Universal Valve Set comes standard with Ball Checks
Threaded Ends – Designed to ASME Boiler and Pressure Vessel Code Section I & ASME B31 Standards
| Item # |
Vessel Pipe Size |
Description | Price | Qty | |
|---|---|---|---|---|---|
| 900Q-50 | 1/2" | 1/2" Quick Opening Valve Set with Ball Checks | $952.96 | Add to Cart | |
| 900Q-75 | 3/4" | 3/4" Quick Opening Valve Set with Ball Checks | $952.96 | Add to Cart |
