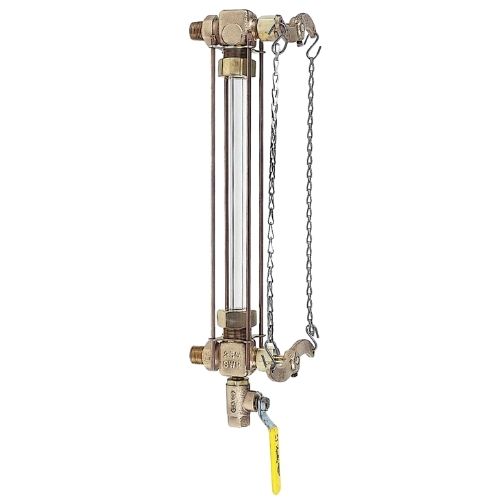

Conbraco 24-650 Chain Lever Liquid Level Water Gauges In Stock

Item#: 24-650
Item Name: Conbraco 24-650 Series Chain Lever Water Gauges
Short description: Conbraco Chain Lever Water Gauges
Description:

The Conbraco 24-650 Chain Lever Liquid Level Water Gauges are designed for use in large boilers with hard-to-reach columns. These gauges allow operators to open and close valves using a standard 12-foot chain lever, ensuring ease of operation. Key features include:



  • Automatic Ball Checks: Enhances safety by preventing fluid loss.
  • Valve stems operate on quarter turns
  • Pressure and Temperature Ratings: 250 psig at 400°F, 500 psig at 100°F.
  • PTFE Reinforced Gaskets: For reliable sealing.

Formula to determine glass and rod lengths

  • Glass Length = (Center to Center Dimension) - 2"
  • Rod Length = (Glass Length) + 7/8"
  • Conbraco 24-650 Series 4 Guard Rods
  • Glass and Rods sold separately
Shipping Time: Same Day In Stock
Specifications
Item # Pipe
Size
Glass
O.D.
Description Price Qty
24-651-03 1/2" 5/8" Conbraco 24-651-03 Chain Lever Liquid Level Water Gauges $598.95 Add to Cart
24-652-03 3/4" 3/4" Conbraco 24-652-03 Chain Lever Liquid Level Water Gauges $598.95 Add to Cart

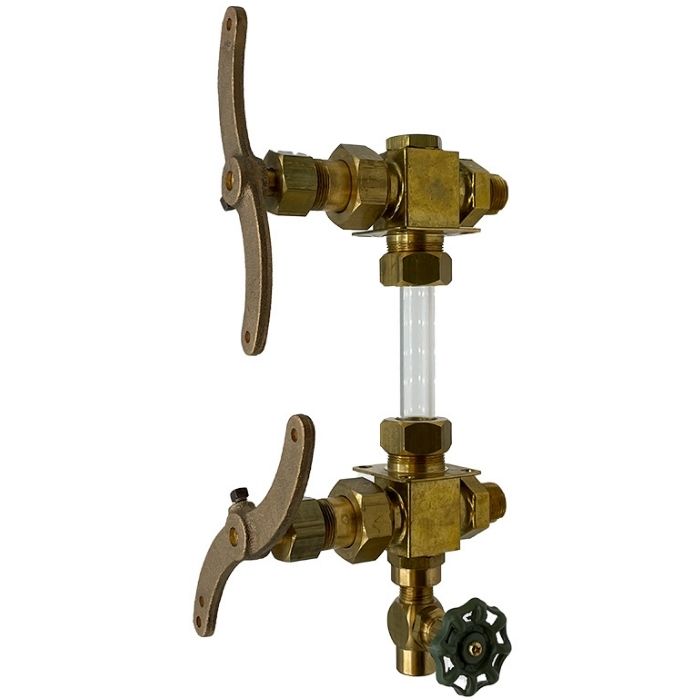

Item#: WG53
Item Name: BoilerSupplies WG53
Short description: BoilerSupplies WG53 Brass Chain Lever Liquid Level Water Gauges
Description:

Use these water gauges on large boilers with inconvenient columns, allows to operate valves with chain.

  • Lever on standard 12-foot chain allows operator to open and close valves that would be beyond reach
  • WG53 Series standard with ball checks.
  • Viton washer for: 3/4" glass - 23/32" x 1" x 3/8"
  • Bottom drain cock
  • 250 psig @ 400°F, 500 psig @ 100 psig

Formula to determine glass and rod lengths -

  • Glass Length = (Center to Center Dimension) - 2"
  • Rod Length = (Glass Length) - 1"
  • WG53 Series Requires 4 Guard Rods
  • Glass and Rods sold separetely
Shipping Time: Same Day In Stock
Specifications
Item # Pipe
Size
Glass
O.D.
Description Price Qty
WG53-50 1/2" 3/4" WG53-50 Brass Chain Lever Liquid Level Water Gauges $598.95 Add to Cart
