Saf-T-Eye® Observation Ports



The Saf-T-Eye® observations ports, when placed in a suitable position on the furnace, oven, or boiler wall, enable the operator to safely and clearly inspect the interior. Adjustments can be made under actual operating conditions without air infiltration or flame sting-out.



Three types of glass are available for a variety of viewing options, such as borosilicate, cobalt blue, and quartz glass. The glass is protected by a stainless steel screen and shutter, which closes automatically when the handle is released. Wing nuts allow the glass to be easily removed for cleaning or replacement. Each unit includes a 1/4" NPT purge hole for adding cooling capabilities with air or nitrogen. Sealant can be added to improve the seal in pressure applications.



All Saf-T-Eye® observation ports are provided with a mounting flange gasket that fits securely between the unit and the vessel wall. All configurations of the Saf-T-Eye® observation ports are available in cast iron (except for the model 16, which is carbon steel) from stock. Fabrication in other metals for specific applications is available upon request.



Quartz Clear - Designated by a "Q" in the model number. Maximum intermittent operating temperature is 2048°F. Maximum continuous operating temperature is 1600°F (Glass Only)*.
Pyrex Clear - (borosilicate glass) Designated by a "P" in the model number. Maximum intermittent operating temperature is 554°F. Maximum continuous operating temperature is 446°F (Glass Only)* . Glass is heat strengthened for safety and is coated with a heat reflecting shield.



UNITS COME STANDARD UNLESS "PRESSURE-TITE" IS REQUESTED

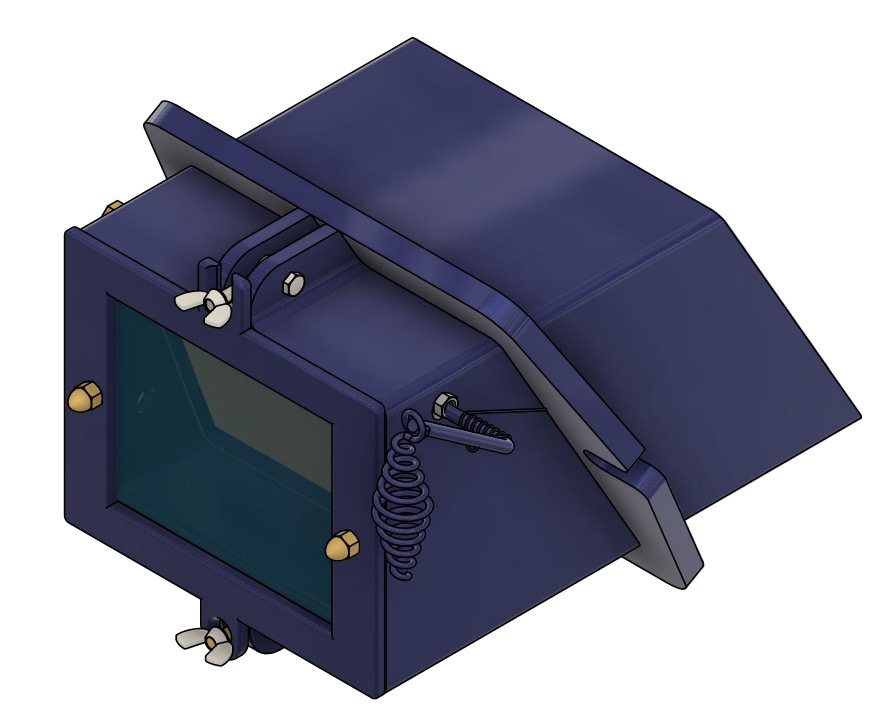

Item Name: Angular Unit - Model Number 12 & 16
Description:

The "E" dimension of these units is cut on a thirty degree angle providing a different viewing aspect inside the vessel.  A small and large viewing window is available from stock.



Saf-T-Eye® Observation Ports



Lead Time: Custom units built to order. Typically 3-5 business days depending on unit.
Saf-T-Eye Model Number 12 & 16
Type Item # Viewing
Area
A B C D E F G H I Weight PSI Rating Pyrex Glass"P"
Quartz Glass "Q"
Material (Cast Iron, Carbon Steel, SS)

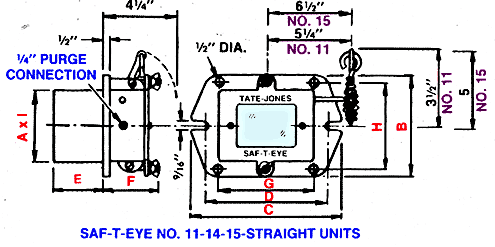

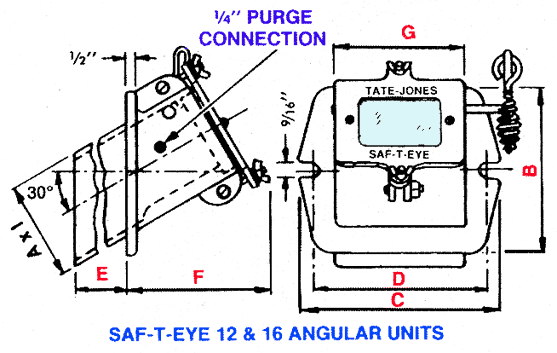

Saf-T-Eye 12 2-3/4" x 3-1/2" 4-1/2" 7-1/2" 9-1/2" 7-3/4" 6-1/4" 6-1/2" 6" 6" 27 5 Add to RFQ
Saf-T-Eye 16 4-1/2" x 5-1/2" 6-1/2" 9-1/2" 11" 3-1/2" 8" 9-3/8" 8" 7-7/8" 33 5 Add to RFQ
Glass Options
Type Code Number Thickness Max Intermittent
Temperature
Max Continuous
Temperature
Pyrex Clear (Borosilicate) Glass P 1/4" 554°F 446°F
Quartz Clear Glass Q 1/4" 2048°F 1600°F

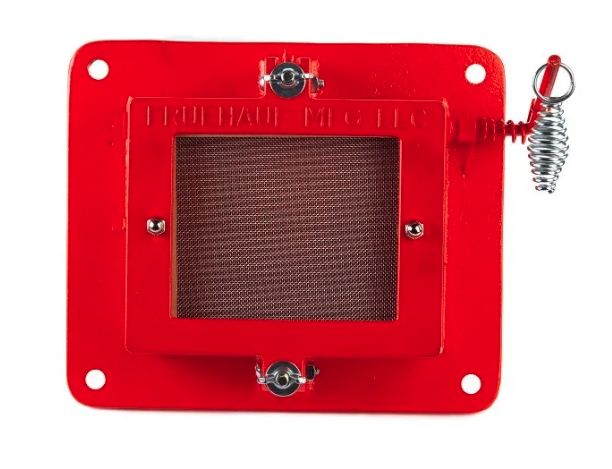

Item Name: Basic Unit - Model Number 11
Description:

The Saf-T-Eye basic unit model number 11 is made of a cast iron body, and assembled with suitable glass and gaskets for its operating environment.



Saf-T-Eye® Observation Ports

Lead Time: Custom units built to order. Typically 3-5 business days depending on unit.
Saf-T-Eye Model Number 11 & 11-DS
Type Item # Viewing
Area
A B C D E F G H I Weight PSI
Rating
Pyrex Glass"P"
Quartz Glass "Q"
Material (Cast Iron, Carbon Steel, SS)

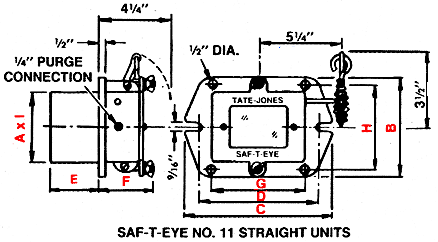

Saf-T-Eye 11 2-3/4 x 3-1/2 4-5/8" 6-1/2" 9-1/2" 7-3/4" 3-1/8" 3-1/2" 6" 5-5/8" 6-1/8" 16 5 Add to RFQ
Saf-T-Eye 11-DS 2-3/4 x 3-1/2 4-1/2" 6-1/2" 9-1/4" 7-1/2" 6" 8-5/8" 6" 5-1/2" 6-1/8" 33 5 Add to RFQ
Glass Options
Type Code Number Thickness Max Intermittent
Temperature
Max Continuous
Temperature
Pyrex Clear (Borosilicate) Glass P 1/4" 554°F 446°F
Quartz Clear Glass Q 1/4" 2048°F 1600°F

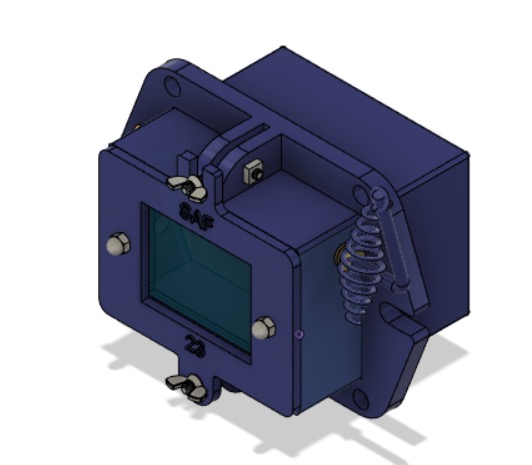

Item Name: Basic Unit - Model Number 15
Description:

The Saf-T-Eye basic unit model number 15 is made of a cast iron body, and assembled with suitable glass and gaskets for its operating environment.



Saf-T-Eye® Observation Ports

Lead Time: Custom units built to order. Typically 3-5 business days depending on unit.
Saf-T-Eye Model Number 15
Type Item # Viewing
Area
A B C E F G H I Weight PSI Rating Pyrex Glass"P"
Quartz Glass "Q"
Material (Cast Iron, Carbon Steel, SS)
Saf-T-Eye 15 4-1/2" x 5-1/2" 6-1/2" 9-1/2" 11-1/4" 3-1/8" 3-1/2" 9-3/4" 8" 6-1/8" 26 5 Add to RFQ
Glass Options
Type Code Number Thickness Max Intermittent
Temperature
Max Continuous
Temperature
Pyrex Clear (Borosilicate) Glass P 1/4" 554°F 446°F
Quartz Clear Glass Q 1/4" 2048°F 1600°F
Item Name: Basic Unit - Model Number 15-309SS
Description:

The Saf-T-Eye basic unit model number 15-309SS is shown here.  The unit is equipped with suitable glass and gaskets for its operating environment.  (Also available from stock in cast iron)



Saf-T-Eye® Observation Ports

Lead Time: Custom units built to order. Typically 3-5 business days depending on unit.
Saf-T-Eye Model Number 15-309SS
Type Item Viewing
Area
A B C E F G H I Weight PSI Rating Pyrex Glass"P"
Quartz Glass "Q"
Material (Cast Iron, Carbon Steel, SS)
Saf-T-Eye 15 4-1/2" x 5-1/2" 6-1/2" 9-1/2" 11-1/4" 3-1/8" 3-1/2" 9-3/4" 8" 6-1/8" 26 5 Add to RFQ
Glass Options
Type Code Number Thickness Max Intermittent
Temperature
Max Continuous
Temperature
Pyrex Clear (Borosilicate) Glass P 1/4" 554°F 446°F
Quartz Clear Glass Q 1/4" 2048°F 1600°F
Item Name: Basic Unit - Model Number 20
Description:

The Saf-T-Eye basic unit model number 20 is made of a stainless steel body and assembled with suitable glass and gaskets for its operating environment. The model No. 20 is currently only available in 309 stainless steel.



Lead Time: Custom units built to order. Typically 3-5 business days depending on unit.
Glass Options
Type Code Number Thickness Max Intermittent
Temperature
Max Continuous
Temperature
Pyrex (Borosilicate) Glass P 1/4" 554°F 446°F
Quartz Glass Q 1/4" 2048°F 1600°F
Saf-T-Eye Model Number 20
Type Item # Viewing
Area
A B C D E F G H I Weight PSI Rating Pyrex Glass"P"
Quartz Glass "Q"
Material (Cast Iron, Carbon Steel, SS)
Saf-T-Eye 20 5 x 9 7" 10" 15-1/4" -- 3-1/8" 3-1/2" 13-3/4" 8-1/2" 11-1/4" 38 5 Add to RFQ

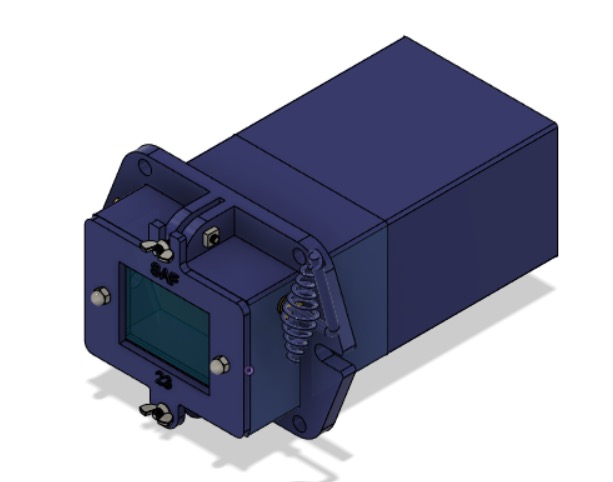

Item Name: Long "E" Dimension Unit - Model 14
Description:

When the vessel has a deeper wall thickness, a longer "E" dimensions is available.  If a special "E" dimension is required, the unit can be modified to accommodate the specification.



Saf-T-Eye® Observation Ports

Lead Time: Custom units built to order. Typically 3-5 business days depending on unit.
Saf-T-Eye Model Number 14
Type Item # Viewing
Area
A B C D E F G H I Weight PSI Rating Pyrex Glass"P"
Quartz Glass "Q"
Material (Cast Iron, Carbon Steel, SS)
Saf-T-Eye 14 2-3/4" x 3-1/2" 4-5/8" 6-1/2" 9-1/2" 7-3/4" 9-1/2" 3-1/2" 6" 5-5/8" 6-1/8" 26 5 Add to RFQ
Glass Options
Type Code Number Thickness Max Intermittent
Temperature
Max Continuous
Temperature
Pyrex Clear (Borosilicate) Glass P 1/4" 554°F 446°F
Quartz Clear Glass Q 1/4" 2048°F 1600°F
