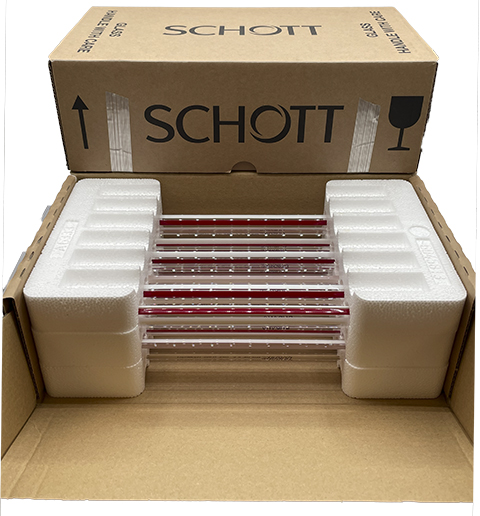

Tubular Gage Glass & Gauge Glass Accessories | Boiler Supplies Redline High Pressure Gauge Glass Bundle
Schott / Duran® and Corning Pyrex® tubular gauge glass is offered as Red Line, High Pressure Clear, Heavy Wall Clear, and Heavy Wall Red Line. Diameters range from 1/2" OD to 3/4" OD. End finishes may be cut, ground, or fire polished depending on application. Pressure ratings range from 90 PSI to 600 PSI depending on end finish, diameter, and length required.
1" OD OR LARGER IS NO LONGER MADE IN REDLINE
These Bundles are sold by the DOZEN (12pcs) at a discounted rate!
Discounts vary depending on quantity:
1-3 Bundles - 10% OFF
4-6 Bundles - 25% OFF
7 Bundles or more - 35% OFF
**Sizes over 36" must request for a quote due to calculating freight charges**
* Please note that dimensions are "OD” and Wall Thickness*
| Part # | Size | Length |
Temperature Up to 150°F @ PSI |
Steam Service up to 425°F @ PSI |
Description | Weight | Price | Qty | |
|---|---|---|---|---|---|---|---|---|---|
| RLHP-588-BDL | 5/8" O.D. | 8" | 370 | 285 |
Redline Tubular Gauge Glass |
5.00 | $237.84 | Add to Cart | |
| RLHP-5810-BDL | 5/8" O.D. | 10" * | 345 | 280 |
Redline Tubular Gauge Glass |
5.00 | $281.04 | Add to Cart | |
| RLHP-5812-BDL | 5/8" O.D. | 12" * | 335 | 280 |
Redline Tubular Gauge Glass |
5.00 | $334.08 | Add to Cart | |
| RLHP-5814-BDL | 5/8" O.D. | 14" * | 325 | 275 |
Redline Tubular Gauge Glass |
5.00 | $386.88 | Add to Cart | |
| RLHP-5816-BDL | 5/8" O.D. | 16" * | 315 | 265 |
Redline Tubular Gauge Glass |
5.00 | $439.80 | Add to Cart | |
| RLHP-5818-BDL | 5/8" O.D. | 18" * | 305 | 265 |
Redline Tubular Gauge Glass |
5.00 | $467.04 | Add to Cart | |
| RLHP-5820-BDL | 5/8" O.D. | 20" * | 290 | 265 |
Redline Tubular Gauge Glass |
5.00 | $604.26 | Add to Cart | |
| RLHP-5824-BDL | 5/8" O.D. | 24" * | 265 | 255 |
Redline Tubular Gauge Glass |
5.00 | $710.10 | Add to Cart | |
| RLHP-5830-BDL | 5/8" O.D. | 30" * | 235 | NOT RECOMMENDED |
Redline Tubular Gauge Glass |
5.00 | $868.62 | Add to Cart | |
| RLHP-5836-BDL | 5/8" O.D. | 36" * | 205 | NOT RECOMMENDED |
Redline Tubular Gauge Glass |
5.00 | $1,027.38 | Add to Cart | |
| RLHP-5848-BDL | 5/8" O.D. | 48" * | 165 | NOT RECOMMENDED |
Redline Tubular Gauge Glass |
5.00 | $1,369.46 | Add to Cart | |
| RLHP-5860-BDL | 5/8" O.D. | 60" * | 125 | NOT RECOMMENDED |
Redline Tubular Gauge Glass |
5.00 | $1,714.10 | Add to Cart | |
| RLHP-5872-BDL | 5/8" O.D. | 72" * | 90 | NOT RECOMMENDED |
Redline Tubular Gauge Glass |
5.00 | $2,154.74 | Add to Cart |
| Part # | Size | Length |
Temperature Up to 150°F @ PSI |
Steam Service up to 425°F @ PSI |
Description | Weight | Price | Qty | |
|---|---|---|---|---|---|---|---|---|---|
| RLHP-348-BDL | 3/4" O.D. | 8" | 390 | 280 |
Redline Tubular Gauge Glass |
5.00 | $245.88 | Add to Cart | |
| RLHP-3410-BDL | 3/4" O.D. | 10" | 340 | 275 |
Redline Tubular Gauge Glass |
5.00 | $316.20 | Add to Cart | |
| RLHP-3412-BDL | 3/4" O.D. | 12" | 330 | 275 |
Redline Tubular Gauge Glass |
5.00 | $378.96 | Add to Cart | |
| RLHP-3414-BDL | 3/4" O.D. | 14" | 320 | 270 |
Redline Tubular Gauge Glass |
5.00 | $430.08 | Add to Cart | |
| RLHP-3416-BDL | 3/4" O.D. | 16" | 310 | 265 |
Redline Tubular Gauge Glass |
5.00 | $484.80 | Add to Cart | |
| RLHP-3418-BDL | 3/4" O.D. | 18" | 300 | 260 |
Redline Tubular Gauge Glass |
5.00 | $537.60 | Add to Cart | |
| RLHP-3420-BDL | 3/4" O.D. | 20" | 285 | 260 |
Redline Tubular Gauge Glass |
5.00 | $665.10 | Add to Cart | |
| RLHP-3424-BDL | 3/4" O.D. | 24" * | 260 | 250 |
Redline Tubular Gauge Glass |
5.00 | $823.62 | Add to Cart | |
| RLHP-3430-BDL | 3/4" O.D. | 30" | 230 | NOT RECOMMENDED |
Redline Tubular Gauge Glass |
5.00 | $992.10 | Add to Cart | |
| RLHP-3436-BDL | 3/4" O.D. | 36" * | 200 | NOT RECOMMENDED |
Redline Tubular Gauge Glass |
5.00 | $1,158.66 | Add to Cart | |
| RLHP-3448-BDL | 3/4" O.D. | 48" * | 160 | NOT RECOMMENDED |
Redline Tubular Gauge Glass |
5.00 | $1,537.82 | Add to Cart | |
| RLHP-3460-BDL | 3/4" O.D. | 60" * | 125 | NOT RECOMMENDED |
Redline Tubular Gauge Glass |
5.00 | $1,960.82 | Add to Cart | |
| RLHP-3472-BDL | 3/4" O.D. | 72" * | 190 | NOT RECOMMENDED |
Redline Tubular Gauge Glass |
5.00 | $2,471.90 | Add to Cart |
| Part # | Size | Length |
Temperature Up to 150°F @ PSI |
Steam Service up to 425°F @ PSI |
Description | Weight | Price | Qty | |
|---|---|---|---|---|---|---|---|---|---|
| RLHP-128-BDL | 1/2" O.D. | 8" | 390 | 300 |
Redline Tubular Gauge Glass |
5.00 | $192.96 | Add to Cart | |
| RLHP-1210-BDL | 1/2" O.D. | 10" | 370 | 295 |
Redline Tubular Gauge Glass |
5.00 | $237.84 | Add to Cart | |
| RLHP-1212-BDL | 1/2" O.D. | 12" | 360 | 295 |
Redline Tubular Gauge Glass |
5.00 | $290.88 | Add to Cart | |
| RLHP-1214-BDL | 1/2" O.D. | 14" | 345 | 290 |
Redline Tubular Gauge Glass |
5.00 | $333.84 | Add to Cart | |
| RLHP-1216-BDL | 1/2" O.D. | 16" | 335 | 285 |
Redline Tubular Gauge Glass |
5.00 | $378.96 | Add to Cart | |
| RLHP-1218-BDL | 1/2" O.D. | 18" | 325 | 280 |
Redline Tubular Gauge Glass |
5.00 | $449.40 | Add to Cart | |
| RLHP-1220-BDL | 1/2" O.D. | 20" | 310 | 280 |
Redline Tubular Gauge Glass |
5.00 | $506.46 | Add to Cart | |
| RLHP-1224-BDL | 1/2" O.D. | 24" * | 280 | 270 |
Redline Tubular Gauge Glass |
5.00 | $629.82 | Add to Cart | |
| RLHP-1230-BDL | 1/2" O.D. | 30" | 250 | NOT RECOMMENDED |
Redline Tubular Gauge Glass |
5.00 | $770.82 | Add to Cart | |
| RLHP-1236-BDL | 1/2" O.D. | 36" * | 250 | NOT RECOMMENDED |
Redline Tubular Gauge Glass |
5.00 | $939.18 | Add to Cart | |
| RLHP-1248-BDL | 1/2" O.D. | 48" * | 175 | NOT RECOMMENDED |
Redline Tubular Gauge Glass |
5.00 | $1,245.10 | Add to Cart | |
| RLHP-1260-BDL | 1/2" O.D. | 60" * | 135 | NOT RECOMMENDED |
Redline Tubular Gauge Glass |
5.00 | $1,581.02 | Add to Cart | |
| RLHP-1272-BDL | 1/2" O.D. | 72" * | 100 | NOT RECOMMENDED |
Redline Tubular Gauge Glass |
5.00 | $1,960.82 | Add to Cart |
