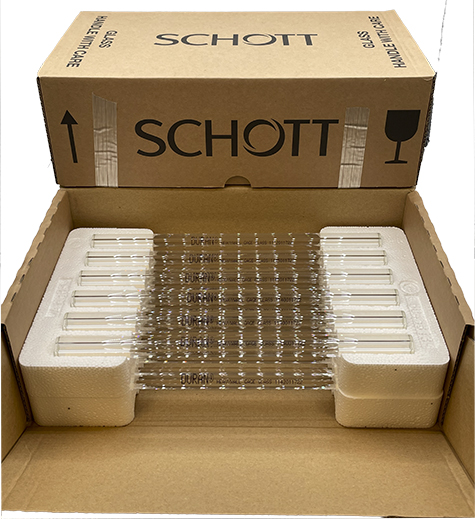

Clear High Pressure Gage Glass Bundle In Stock

Item Name: High Pressure Clear Tubular Gage Glass Bundles
Short description: Clear High Pressure Tubular Gage Glass Bundles
Manufacturer:
DURAN®
Description:
Schott Duran® and Corning Pyrex® tubular gauge glass is offered as Red Line, High Pressure Clear, Heavy Wall Clear, and Heavy Wall Red Line.  Diameters range from 1/2" OD to 1 1/2" OD. End finishes may be cut, ground, or fire polished depending on application.  Pressure ratings range from 90 PSI to 600 PSI depending on end finish, diameter, and length required.


These Bundles are sold by the DOZEN (12pcs) at a discounted rate!

Discounts vary depending on quantity:

1-3 Bundles - 10% OFF

4-6 Bundles - 25% OFF

7 Bundles or more - 35% OFF



**Sizes over 36" must be requested for a quote due to calculating freight charges**


 Longer Lengths over 72" can be purchased by calling 1-800-780-3776.



* Please note that dimensions are "OD” and Wall Thickness*




Shipping Time: 1-3 Business Day
Express ship options available
5/8" OD - All OD of Glass is (+0 , - 1/32") Wall Thickness 3/32" (+1/64")
Part # Size Length Temperature
Up to
150°F @ PSI 		Steam Service up to
425°F @ PSI 		Description Weight Price per Dozen (12pcs) Qty
CLHP-588-BDL 5/8" O.D. 8" 435 340 HP Clear Tubular Gauge Glass 5.00 $135.12 Add to Cart
CLHP-5810-BDL 5/8" O.D. 10" * 420 315 HP Clear Tubular Gauge Glass 5.00 $177.60 Add to Cart
CLHP-5812-BDL 5/8" O.D. 12" * 410 305 HP Clear Tubular Gauge Glass 5.00 $215.16 Add to Cart
CLHP-5814-BDL 5/8" O.D. 14" * 390 295 HP Clear Tubular Gauge Glass 5.00 $240.12 Add to Cart
CLHP-5816-BDL 5/8" O.D. 16" * 375 285 HP Clear Tubular Gauge Glass 5.00 $276.12 Add to Cart
CLHP-5818-BDL 5/8" O.D. 18" * 360 280 HP Clear Tubular Gauge Glass 5.00 $304.32 Add to Cart
CLHP-5820-BDL 5/8" O.D. 20" * 350 270 HP Clear Tubular Gauge Glass 5.00 $377.82 Add to Cart
CLHP-5824-BDL 5/8" O.D. 24" * 320 255 HP Clear Tubular Gauge Glass 5.00 $436.14 Add to Cart
CLHP-5830-BDL 5/8" O.D. 30" 280 NOT RECOMMENDED HP Clear Tubular Gauge Glass 5.00 $536.22 Add to Cart
CLHP-5836-BDL 5/8" O.D. 36" * 245 NOT RECOMMENDED HP Clear Tubular Gauge Glass 5.00 $634.62 Add to Cart
CLHP-5848-BDL 5/8" O.D. 48" * 195 NOT RECOMMENDED HP Clear Tubular Gauge Glass 5.00 $835.10 Add to Cart
CLHP-5860-BDL 5/8" O.D. 60" * 150 NOT RECOMMENDED HP Clear Tubular Gauge Glass 5.00 $1,227.62 Add to Cart
CLHP-5872-BDL 5/8" O.D. 72" * 100 NOT RECOMMENDED HP Clear Tubular Gauge Glass 5.00 $1,533.50 Add to Cart
3/4" OD - All OD of Glass is (+0 , - 1/32") Wall Thickness 7/64" (+1/64")
Part # Size Length Temperature
Up to
150°F @ PSI 		Steam Service up to
425°F @ PSI 		Description Weight Price per Dozen (12pcs) Qty
CLHP-3410-BDL 3/4" O.D. 10" 410 310 HP Clear Tubular Gauge Glass 5.00 $202.08 Add to Cart
CLHP-3412-BDL 3/4" O.D. 12" 400 300 HP Clear Tubular Gauge Glass 5.00 $238.32 Add to Cart
CLHP-3414-BDL 3/4" O.D. 14" 385 290 HP Clear Tubular Gauge Glass 5.00 $264.00 Add to Cart
CLHP-3416-BDL 3/4" O.D. 16" * 370 280 HP Clear Tubular Gauge Glass 5.00 $302.16 Add to Cart
CLHP-3418-BDL 3/4" O.D. 18" 355 275 HP Clear Tubular Gauge Glass 5.00 $309.48 Add to Cart
CLHP-3420-BDL 3/4" O.D. 20" 345 265 HP Clear Tubular Gauge Glass 5.00 $408.42 Add to Cart
CLHP-3424-BDL 3/4" O.D. 24" * 315 250 HP Clear Tubular Gauge Glass 5.00 $489.78 Add to Cart
CLHP-3430-BDL 3/4" O.D. 30" 275 NOT RECOMMENDED HP Clear Tubular Gauge Glass 5.00 $611.70 Add to Cart
CLHP-3436-BDL 3/4" O.D. 36" * 240 NOT RECOMMENDED HP Clear Tubular Gauge Glass 5.00 $708.90 Add to Cart
CLHP-3448-BDL 3/4" O.D. 48" * 190 NOT RECOMMENDED HP Clear Tubular Gauge Glass 5.00 $926.66 Add to Cart
CLHP-3460-BDL 3/4" O.D. 60" * 145 NOT RECOMMENDED HP Clear Tubular Gauge Glass 5.00 $1,190.78 Add to Cart
CLHP-3472-BDL 3/4" O.D. 72" * 100 NOT RECOMMENDED HP Clear Tubular Gauge Glass 5.00 $1,533.50 Add to Cart
1/2" OD - All OD of Glass is (+0 , - 1/32") Wall Thickness 5/64" (+1/64")
Part # Size Length Temperature
Up to
150°F @ PSI 		Steam Service up to
425°F @ PSI 		Description Weight Price per Dozen (12pcs) Qty
CLHP-128-BDL 1/2" O.D. 8" 460 340 HP Clear Tubular Gauge Glass 5.00 $115.44 Add to Cart
CLHP-1210-BDL 1/2" O.D. 10" 445 335 HP Clear Tubular Gauge Glass 5.00 $147.72 Add to Cart
CLHP-1212-BDL 1/2" O.D. 12" 435 325 HP Clear Tubular Gauge Glass 5.00 $177.60 Add to Cart
CLHP-1214-BDL 1/2" O.D. 14" 415 315 HP Clear Tubular Gauge Glass 5.00 $202.08 Add to Cart
CLHP-1216-BDL 1/2" O.D. 16" 400 300 HP Clear Tubular Gauge Glass 5.00 $238.20 Add to Cart
CLHP-1218-BDL 1/2" O.D. 18" 385 295 HP Clear Tubular Gauge Glass 5.00 $262.92 Add to Cart
CLHP-1220-BDL 1/2" O.D. 20" 375 285 HP Clear Tubular Gauge Glass 5.00 $324.18 Add to Cart
CLHP-1224-BDL 1/2" O.D. 24" 340 270 HP Clear Tubular Gauge Glass 5.00 $444.42 Add to Cart
CLHP-1230-BDL 1/2" O.D. 30" 295 NOT RECOMMENDED HP Clear Tubular Gauge Glass 5.00 $469.98 Add to Cart
CLHP-1236-BDL 1/2" O.D. 36" 260 NOT RECOMMENDED HP Clear Tubular Gauge Glass 5.00 $550.14 Add to Cart
CLHP-1248-BDL 1/2" O.D. 48" 205 NOT RECOMMENDED HP Clear Tubular Gauge Glass 5.00 $755.42 Add to Cart
CLHP-1260-BDL 1/2" O.D. 60" 155 NOT RECOMMENDED HP Clear Tubular Gauge Glass 5.00 $907.82 Add to Cart
CLHP-1272-BDL 1/2" O.D. 72" * 110 NOT RECOMMENDED HP Clear Tubular Gauge Glass 5.00 $1,142.30 Add to Cart
1" - All OD of Glass is (+0 , - 1/32") Wall Thickness 1/8" (+ 1/32")
Part # Size Length Temperature
Up to
150°F @ PSI 		Steam Service up to
425°F @ PSI 		Description Weight Price per Dozen (12pcs) Qty
CLHP-110-BDL 1" O.D. 10" 335 NOT RECOMMENDED HP Clear Tubular Gauge Glass 5.00 $309.36 Add to Cart
CLHP-112-BDL 1" O.D. 12" 325 NOT RECOMMENDED HP Clear Tubular Gauge Glass 5.00 $363.12 Add to Cart
CLHP-124-BDL 1" O.D. 24" 285 NOT RECOMMENDED HP Clear Tubular Gauge Glass 5.00 $833.94 Add to Cart
CLHP-136-BDL 1" O.D. 36" 240 NOT RECOMMENDED HP Clear Tubular Gauge Glass 5.00 $1,124.58 Add to Cart
CLHP-148-BDL 1" O.D. 48" 190 NOT RECOMMENDED HP Clear Tubular Gauge Glass 5.00 $1,505.30 Add to Cart
CLHP-160-BDL 1" O.D. 60" 145 NOT RECOMMENDED HP Clear Tubular Gauge Glass 5.00 $1,913.42 Add to Cart
CLHP-172-BDL 1" O.D. 72" 100 NOT RECOMMENDED HP Clear Tubular Gauge Glass 5.00 $2,319.38 Add to Cart
