Tubular Gage Glass & Gauge Glass Accessories | Boiler Supplies Clear Heavy Wall Gage Glass Bundle

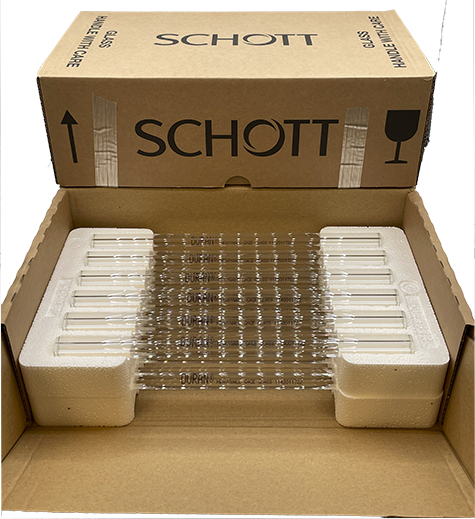

Schott / Duran® and Corning Pyrex® tubular gauge glass is offered as Red Line, High Pressure Clear, Heavy Wall Clear, and Heavy Wall Red Line. Diameters range from 1/2" OD to 1 1/2" OD. End finishes may be cut, ground, or fire polished depending on application. Pressure ratings range from 90 PSI to 600 PSI depending on end finish, diameter, and length required.
These Bundles are sold by the DOZEN (12pcs) at a discounted rate! Discounts vary depending on quantity:
**Sizes over 36" must be requested for a quote due to calculating freight charges, 48" is the maximum length for heavywall glass**
*Please note that dimensions are "OD” and Wall Thickness*
*All Custom Cut Lengths are Non-Returnable*
| Part # | Size | Length |
Temperature Up to 150°F @ PSI |
Steam Service up to 425°F @ PSI |
Description | Weight | Price per Dozen (12pcs) | Qty | |
|---|---|---|---|---|---|---|---|---|---|
| CLHW-5812-BDL | 5/8" O.D. | 12" | 600 | 340 |
Clear Heavy Wall Tubular Gauge Glass |
5.00 | $330.13 | Add to Cart | |
| CLHW-5816-BDL | 5/8" O.D. | 16" | 600 | 325 |
Clear Heavy Wall Tubular Gauge Glass |
5.00 | $671.06 | Add to Cart | |
| CLHW-5820-BDL | 5/8" O.D. | 20" | 600 | 315 |
Clear Heavy Wall Tubular Gauge Glass |
5.00 | $758.33 | Add to Cart | |
| CLHW-5824-BDL | 5/8" O.D. | 24" | 580 | 300 |
Clear Heavy Wall Tubular Gauge Glass |
5.00 | $801.00 | Add to Cart | |
| CLHW-5830-BDL | 5/8" O.D. | 30" | 550 | NOT RECOMMENDED |
Clear Heavy Wall Tubular Gauge Glass |
5.00 | $1,056.02 | Add to Cart | |
| CLHW-5836-BDL | 5/8" O.D. | 36" * | 500 | NOT RECOMMENDED |
Clear Heavy Wall Tubular Gauge Glass |
5.00 | $1,081.35 | Add to Cart | |
| CLHW-5848-BDL | 5/8" O.D. |
48" * (Max) |
340 | NOT RECOMMENDED |
Clear Heavy Wall Tubular Gauge Glass |
5.00 | $1,377.62 | Add to Cart |
| Part # | Size | Length |
Temperature Up to 150°F @ PSI |
Steam Service up to 425°F @ PSI |
Description | Weight | Price per Dozen (12pcs) | Qty | |
|---|---|---|---|---|---|---|---|---|---|
| CLHW-3412-BDL | 3/4" O.D. | 12" | 600 | 340 |
Clear Heavy Wall Tubular Gauge Glass |
5.00 | $374.80 | Add to Cart | |
| CLHW-3416-BDL | 3/4" O.D. | 16" | 600 | 325 |
Clear Heavy Wall Tubular Gauge Glass |
5.00 | $766.00 | Add to Cart | |
| CLHW-3420-BDL | 3/4" O.D. | 20" | 600 | 315 |
Clear Heavy Wall Tubular Gauge Glass |
5.00 | $827.93 | Add to Cart | |
| CLHW-3424-BDL | 3/4" O.D. | 24" | 580 | 300 |
Clear Heavy Wall Tubular Gauge Glass |
5.00 | $853.40 | Add to Cart | |
| CLHW-3430-BDL | 3/4" O.D. | 30" | 550 | NOT RECOMMENDED |
Clear Heavy Wall Tubular Gauge Glass |
5.00 | $1,186.02 | Add to Cart | |
| CLHW-3436-BDL | 3/4" O.D. | 36" * | 500 | NOT RECOMMENDED |
Clear Heavy Wall Tubular Gauge Glass |
5.00 | $1,186.02 | Add to Cart | |
| CLHW-3448-BDL | 3/4" O.D. |
48" * (Max) |
240 | NOT RECOMMENDED |
Clear Heavy Wall Tubular Gauge Glass |
5.00 | $1,551.88 | Add to Cart |
