Spirax / Sarco FT-15 / FT-30 / FT-75 / FT-125 Steam Traps In Stock

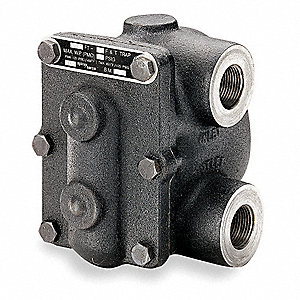

Item Name: Spirax / Sarco Cast Iron Float & Thermostatic Steam Traps FT-15, FT-30, FT-75, FT125
Manufacturer:
Spirax / Sarco
Description:

The Spirax Sarco FT15, FT30, FT75, FT125 steam traps contains a float valve mechanism which modulates to discharge condensate continuously at steam temperature, while non-condensible gases are released by a separate internal balanced pressure thermostatic air vent. Typical applications include all process equipment, particularly when controlled by modulating temperature control valves; unit heaters, air heating coils, heat exchangers and steam main drip stations. The Spirax Sarco cast iron float & thermostatic steam traps can be maintained without disturbing the piping connections.



Typical applications for these traps are all process equipment, particularly when controlled by modulating temperature control valves; unit heaters, air heating coils, heat exchangers and steam main drip stations. Available in sizes 3/4", 1", 1-1/4", 1-1/2" and 2". The Spirax / Sarco FT-15 are constructed with cast iron body & cover and stainless steel internals. Pressures available in this series are 15 psig, 30 psig, 75 psig, and 125 psig.

Shipping Time: 1-3 Business Day
Spirax Sarco FT15, FT30, FT75 and FT125
Part # Connection
Sizes NPT
Max
Operating
Pressure
Construction
FT15-3/4 3/4" 15 psig Cast Iron Body
Stainless Steel Internals
Add to RFQ
FT15-1 1" 15 psig Cast Iron Body
Stainless Steel Internals
Add to RFQ
FT15-1-1/4 1-1/4" 15 psig Cast Iron Body
Stainless Steel Internals
Add to RFQ
FT15-1-1/2 1-1/2" 15 psig Cast Iron Body
Stainless Steel Internals
Add to RFQ
FT15-2 2" 15 psig Cast Iron Body
Stainless Steel Internals
Add to RFQ
FT30-3/4 3/4" 30 psig Cast Iron Body
Stainless Steel Internals
Add to RFQ
FT30-1 1" 30 psig Cast Iron Body
Stainless Steel Internals
Add to RFQ
FT30-1-1/4 1-1/4" 30 psig Cast Iron Body
Stainless Steel Internals
Add to RFQ
FT30-1-1/2 1-1/2" 30 psig Cast Iron Body
Stainless Steel Internals
Add to RFQ
FT30-2 2" 30 psig Cast Iron Body
Stainless Steel Internals
Add to RFQ
FT75-3/4 3/4" 75 psig Cast Iron Body
Stainless Steel Internals
Add to RFQ
FT75-1 1" 75 psig Cast Iron Body
Stainless Steel Internals
Add to RFQ
FT75-1-1/4 1-1/4" 75 psig Cast Iron Body
Stainless Steel Internals
Add to RFQ
FT75-1-1/2 1-1/2" 75 psig Cast Iron Body
Stainless Steel Internals
Add to RFQ
FT75-2 2" 75 psig Cast Iron Body
Stainless Steel Internals
Add to RFQ
FT125-3/4 3/4" 125 psig Cast Iron Body
Stainless Steel Internals
Add to RFQ
FT125-1 1" 125 psig Cast Iron Body
Stainless Steel Internals
Add to RFQ
FT125-1-1/4 1-1/4" 125 psig Cast Iron Body
Stainless Steel Internals
Add to RFQ
FT125-1-1/2 1-1/2" 125 psig Cast Iron Body
Stainless Steel Internals
Add to RFQ
FT125-2 2" 125 psig Cast Iron Body
Stainless Steel Internals
Add to RFQ
