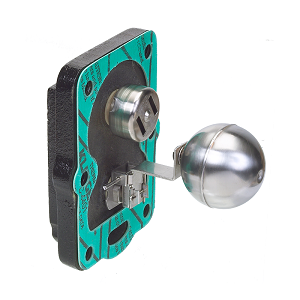

Inverted Bucket & Float and Thermostatic Steam Traps & Repair Kits Inverted Bucket & Float and Thermostatic Repair Kits. Spirax / Sarco Float & Thermostatic Kit
The Spirax / Sarco FT-15, FT-30, FT-75, FT-125 Steam Traps contains a float valve mechanism which modulates to discharge condensate continuously at steam temperature, while non-condensate gases are released by a separate internal balanced pressure thermostatic air vent. Typical applications for these traps are all process equipment, particularly when controlled by modulating temperature control valves; unit heaters, air heating coils, heat exchangers and steam main drip stations. Available in sizes 3/4", 1", 1-1/4", 1-1/2" and 2". The Spirax / Sarco FT-15 are constructed with cast iron body & cover and stainless steel internals. Pressures available in this series are 15 psig, 30 psig, 75 psig, and 125 psig.
| Part # |
Manufacturer Identification (Size) |
Tunstall Replacement (Tunstall No.) |
Tunstall Replacement (Face Plate) |
|
|---|---|---|---|---|
| FT-15-075 | 3/4" | TA-1FP-SA-15 | Yes | Add to RFQ |
| FT-15-100 | 1" | TA-2FP-SA-15 | Yes | Add to RFQ |
| FT-15-125 | 1-1/4" | TA-3FP-SA-15 | Yes | Add to RFQ |
| FT-15-150 | 1-1/2" | TA-4RK-SA-15 | Add to RFQ | |
| FT-15-200 | 2" | TA-5RK-SA-15 | Add to RFQ | |
| FT-30-075 | 3/4" | TA-1FP-SA-30 | Yes | Add to RFQ |
| FT-30-100 | 1" | TA-2FP-SA-30 | Yes | Add to RFQ |
| FT-30-125 | 1-1/4" | TA-3FP-SA-30 | Yes | Add to RFQ |
| FT-30-150 | 1-1/2" | TA-4RK-SA-30 | Add to RFQ | |
| FT-30-200 | 2" | TA-5RK-SA-30 | Add to RFQ | |
| FT-75-075 | 3/4" | TA-1FP-SA-75 | Yes | Add to RFQ |
| FT-75-100 | 1" | TA-2FP-SA-75 | Yes | Add to RFQ |
| FT-75-125 | 1-1/4" | TA-3RK-SA-75 | Add to RFQ | |
| FT-75-150 | 1-1/2" | TA-4RK-SA-75 | Add to RFQ | |
| FT-75-200 | 2" | TA-5RK-SA-75 | Add to RFQ | |
| FT-125-075 | 3/4" | TA-1FP-SA-125 | Yes | Add to RFQ |
| FT-125-100 | 1" | TA-2FP-SA-125 | Yes | Add to RFQ |
| FT-125-125 | 1-1/4" | TA-3RK-SA-125 | Add to RFQ | |
| FT-125-150 | 1-1/2" | TA-4RK-SA-125 | Add to RFQ | |
| FT-125-200 | 2" | TA-5RK-SA-125 | Add to RFQ |
