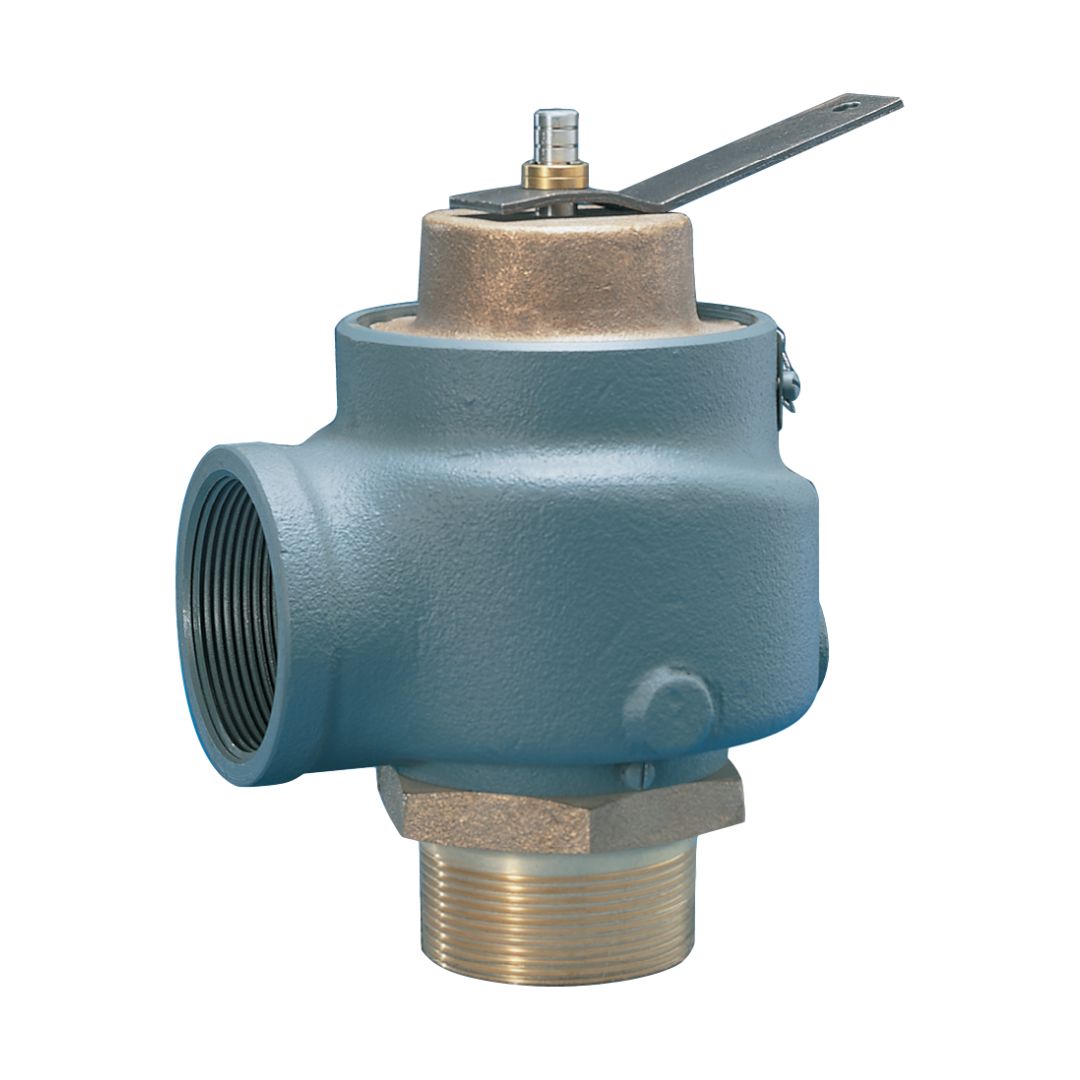

Kunkle Model 930 Safety Valve In Stock

Description:

Kunkle Model 930 is suitable for use on low pressure steam heating boilers to ASME code section IV at 15 psig set pressure. High capacity cast iron safety valve that meets ASME section IV steam standard ‘HV’ and is National Board certified



Valve Features

  • Extra high capacity for industrial, commercial and residential low pressure steam heating boilers.
  • Cast iron body with bronze nozzle, disc and guide.
  • Large seat area/guide area ratio and disc pivot design ensures optimum performance.
  • Seats are lapped for optimum performance.
  • Reversible lift lever for ‘pull-up’ or ‘pull-down’ manual testing.
  • All adjustments factory sealed to prevent tampering or disassembly.
  • Tested and inspected for pressure setting and leakage.

Technical Data

  • ASME Section IV
  • Sizes 2″, 2 1/2″, and 3″
  • Pressure: 15 psig
  • Temperature: 250°F
  • HV Stamp
  •  Low pressure steam heating boilers ASME Code Section IV.



Click on link below for more valves made by Kunkle!



Item Name: Kunkle Model 930 Safety Valve
Short description: Kunkle Model 930 Safety Valve
Manufacturer:
Kunkle
Description:

Safety Valve Features and Benefits

• Extra high capacity for industrial, commercial and residential low pressure steam heating boilers.

• Large seat area/guide area ratio, along with disc pivot design ensures optimum valve performance.

• Lapped valve seats for optimum performance.

Low pressure steam heating boilers ASME Code Section IV.



PLEASE FILL OUT "SET PRESSURE (PSI)" & "AIR, LIQUID OR STEAM" BEFORE ADDING ITEM TO CART

Lead Time: In Stock. Available for immediate shipment.
Specifications
Part # Size Set Pressure Air or Liquid or Steam Description Wt.
lb
Price Qty
0930-H01-GC 2" Kunkle Model 930 Safety Valve 10.00 $324.70 Add to Cart
0930-J01-GC 2-1/2" Kunkle Model 930 Safety Valve 14.00 $598.00 Add to Cart
0930-K01-GC 3" Kunkle Model 930 Safety Valve 21.00 $800.00 Add to Cart
