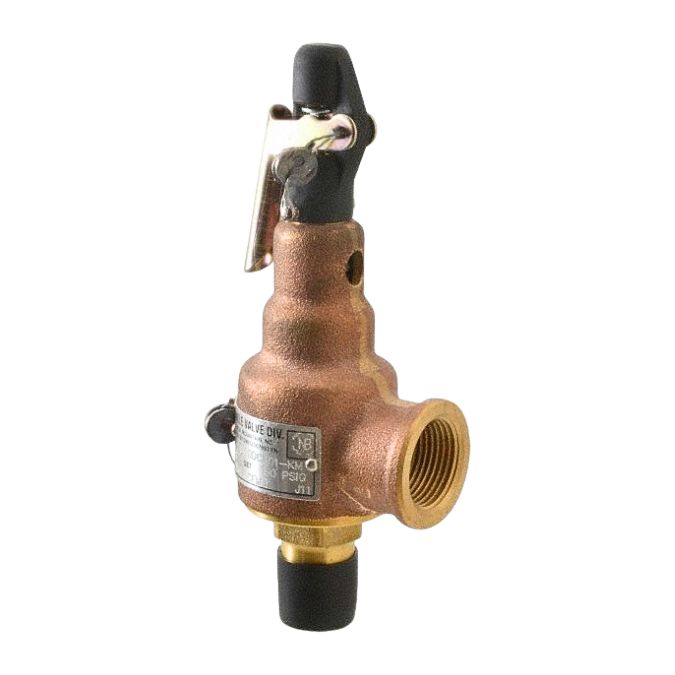

Kunkle Series 6000 Safety Valve In Stock

Kunkle Series 6000 are suitable for use on steam boilers and generators, reciprocating or rotary, portable or stationary air/gas compressors, intercoolers and aftercoolers. Also for pressure vessels containing steam, air or non-hazardous gas and on pressure reducing stations. Bronze safety valves to ASME section I and VIII, steam, ‘V’ and ‘UV’; section VIII, air/gas, ‘UV’ National Board certified including models to ASME section IV, steam ‘HV’. PED certified for non-hazardous gas



Model 6010: Side outlet. Full nozzle design with bronze/brass trim.

Model 6021: Same as model 6010 with Teflon® (PFA) disc insert.

Model 6030: Same as model 6010 except stainless steel trim (nozzle and disc).

Model 6182: Top outlet. Full nozzle design with bronze/brass trim.

Model 6283: Over-sized side outlet. Full nozzle design bronze/brass trim.



Valve Features

  • O-ring seats available for exceptional leakfree performance, reduced maintenance cost, multiple cycles with tight shutoff and improved seating integrity.
  • Heavy duty casting.
  • Wide hex on valve nozzle provides clearance for easy installation.
  • Seats lapped to optical flatness.
  • Dual control rings offer easy adjustability for precise opening with minimum pre-open or simmer and exact blowdown control.
  • Pivot between disc and spring corrects misalignment and compensates for spring side thrust.
  • Grooved piston type disc reduces sliding area and friction.
  • Heavy duty lift lever assembly.
  • Each valve tested and inspected for pressure setting and leakage.



Techncal Data

  • Connections: Threaded NPT
  • Temperature Range: -60° to 425°F (-51° to 219°C)
  • Pressure range: 3 to 300 psig (0.2 to 20.7 barg)
  • Code: ASME I, IV, VIII and PED





Click on link below for more valves made by Kunkle!



Item Name: Kunkle Series 6000 Safety Valve
Short description: Kunkle Series 6000 Safety Valve
Manufacturer:
Kunkle
Description:

Kunkle Model 6010 Safety Valve: Side outlet. Full nozzle design with bronze/brass trim for exceptional leak-free performance.



Pressure and Temperature Limits:

  • Kunkle Models 6010, 6021, 6182, 6283: Section I Steam 15 to 250 psig [1.0 to 17.2 barg] -60° to 406°F [-51° to 208°C]
  • Non-code and Section VIII Steam Air/Gas: 3 to 250 psig [0.2 to 17.2 barg] -60° to 406°F [-51 to 208°C]
  • Kunkle Model 6030: Section I Steam 15 to 300 psig [1.0 to 20.7 barg] -60° to 425°F [-51 to 208°C]
  • Non-code and Section VIII Steam Air/Gas: 3 to 300 psig [0.2 to 20.7 barg] -60° to 425°F [-51 to 218°C]



PLEASE FILL OUT "SET PRESSURE (PSI)" & "AIR OR STEAM" BEFORE ADDING ITEM TO CART



Lead Time: In Stock. Available for immediate shipment.
Specifications
Part # Size Valve Code Set Pressure Air or Steam Description Wt.
lb
Price Qty
6010DCM01 1/2" inlet x 3/4"
outlet
V Code / Section 1 Kunkle Model 6010 Safety Valve 3.00 $277.85 Add to Cart
6010DDM01 3/4" inlet x 3/4"
outlet
V Code / Section 1 Kunkle Model 6010 Safety Valve 4.00 $282.45 Add to Cart
6010EDM01 3/4" inlet x 1"
outlet
V Code / Section 1 Kunkle Model 6010 Safety Valve 4.00 $311.60 Add to Cart
6010EEM01 1" inlet x 1"
outlet
V Code / Section 1 Kunkle Model 6010 Safety Valve 4.00 $332.25 Add to Cart
6010FEM01 1" inlet x 1-1/4"
outlet
V Code / Section 1 Kunkle Model 6010 Safety Valve 6.00 $356.20 Add to Cart
6010FFM01 1-1/4" inlet x 1-1/4"
outlet
V Code / Section 1 Kunkle Model 6010 Safety Valve 6.00 $405.10 Add to Cart
6010GFM01 1-1/4" inlet x 1-1/2"
outlet
V Code / Section 1 Kunkle Model 6010 Safety Valve 6.00 $458.00 Add to Cart
6010GGM01 1-1/2" inlet x 1-1/2"
outlet
V Code / Section 1 Kunkle Model 6010 Safety Valve 8.00 $487.60 Add to Cart
6010HGM01 1-1/2" inlet x 2"
outlet
V Code / Section 1 Kunkle Model 6010 Safety Valve 10.00 $549.45 Add to Cart
6010HHM01 2" inlet x 2"
outlet
V Code / Section 1 Kunkle Model 6010 Safety Valve 10.00 $775.00 Add to Cart
6010JHM01 2" inlet x 2-1/2"
outlet
V Code / Section 1 Kunkle Model 6010 Safety Valve 19.00 $759.75 Add to Cart
6010JJM01 2-1/2" inlet x 2-1/2"
outlet
V Code / Section 1 Kunkle Model 6010 Safety Valve 19.00 $1,037.65 Add to Cart
6182DCM01 1/2" V Code / Section 1 Kunkle Model 6182 Safety Valve 3.00 $264.90 Add to Cart
6182EDM01 3/4" V Code / Section 1 Kunkle Model 6182 Safety Valve 4.00 $296.40 Add to Cart
6182FEM01 1" V Code / Section 1 Kunkle Model 6182 Safety Valve 5.00 $338.65 Add to Cart
6182GFM01 1-1/4" V Code / Section 1 Kunkle Model 6182 Safety Valve 7.00 $437.40 Add to Cart
6182HGM01 1-1/2" V Code / Section 1 Kunkle Model 6182 Safety Valve 10.00 $523.20 Add to Cart
6182JHM01 2" V Code / Section 1 Kunkle Model 6182 Safety Valve 17.00 $726.05 Add to Cart
6283EDM01 3/4" inlet x 1-1/4"
outlet
V Code / Section 1 Kunkle Model 6283 Safety Valve 5.00 $329.90 Add to Cart
6283FEM01 1" inlet x 1-1/2"
outlet
V Code / Section 1 Kunkle Model 6283 Safety Valve 6.00 $376.80 Add to Cart
6283GFM01 1-1/4" inlet x 2"
outlet
V Code / Section 1 Kunkle Model 6283 Safety Valve 8.00 $483.00 Add to Cart
6283HGM01 1-1/2" inlet x 2-1/2"
outlet
V Code / Section 1 Kunkle Model 6283 Safety Valve 11.00 $578.60 Add to Cart
6283JHM01 2" inlet x 3"
outlet
V Code / Section 1 Kunkle Model 6283 Safety Valve 19.00 $803.05 Add to Cart
6021DCT01 1/2" inlet x 3/4"
outlet
V Code / Section 1 Kunkle Model 6021 Safety Valve 3.00 $304.10 Add to Cart
6021DDT01 3/4" inlet x 3/4"
outlet
V Code / Section 1 Kunkle Model 6021 Safety Valve 3.00 $309.30 Add to Cart
6021EDT01 3/4" inlet x 1"
outlet
V Code / Section 1 Kunkle Model 6021 Safety Valve 4.00 $342.20 Add to Cart
6021EET01 1" inlet x 1"
outlet
V Code / Section 1 Kunkle Model 6021 Safety Valve 5.00 $364.90 Add to Cart
6021FET01 1" inlet x 1-1/4"
outlet
V Code / Section 1 Kunkle Model 6021 Safety Valve 6.00 $390.70 Add to Cart
6021FFT01 1-1/4" inlet x 1-1/4"
outlet
V Code / Section 1 Kunkle Model 6021 Safety Valve 6.00 $445.35 Add to Cart
6021GFT01 1-1/4" inlet x 1-1/2"
outlet
V Code / Section 1 Kunkle Model 6021 Safety Valve 8.00 $502.60 Add to Cart
6021GGT01 1-1/2" inlet x 1-1/2"
outlet
V Code / Section 1 Kunkle Model 6021 Safety Valve 8.00 $534.00 Add to Cart
6021HGT01 1-1/2" inlet x 2"
outlet
V Code / Section 1 Kunkle Model 6021 Safety Valve 10.00 $602.35 Add to Cart
6021HHT01 2" inlet x 2"
outlet
V Code / Section 1 Kunkle Model 6021 Safety Valve 10.00 $798.95 Add to Cart
6021JHT01 2" inlet x 2-1/2"
outlet
V Code / Section 1 Kunkle Model 6021 Safety Valve 19.00 $839.15 Add to Cart
6021JJT01 2-1/2" inlet x 2-1/2"
outlet
V Code / Section 1 Kunkle Model 6021 Safety Valve 19.00 $1,140.75 Add to Cart
6030DCM01 1/2" inlet x 3/4"
outlet
V Code / Section 1 Kunkle Model 6030 Safety Valve 3.00 $606.70 Add to Cart
6030EDM01 3/4" inlet x 1"
outlet
V Code / Section 1 Kunkle Model 6030 Safety Valve 4.00 $695.85 Add to Cart
6030FEM01 1" inlet x 1-1/4"
outlet
V Code / Section 1 Kunkle Model 6030 Safety Valve 6.00 $892.75 Add to Cart
6030GFM01 1-1/4" inlet x 1-1/2"
outlet
V Code / Section 1 Kunkle Model 6030 Safety Valve 8.00 $1,131.90 Add to Cart
6030HGM01 1-1/2" inlet x 2"
outlet
V Code / Section 1 Kunkle Model 6030 Safety Valve 10.00 $1,294.80 Add to Cart
6030JHM01 2" inlet 2-1/2"
outlet
V Code / Section 1 Kunkle Model 6030 Safety Valve 19.00 $1,611.60 Add to Cart
