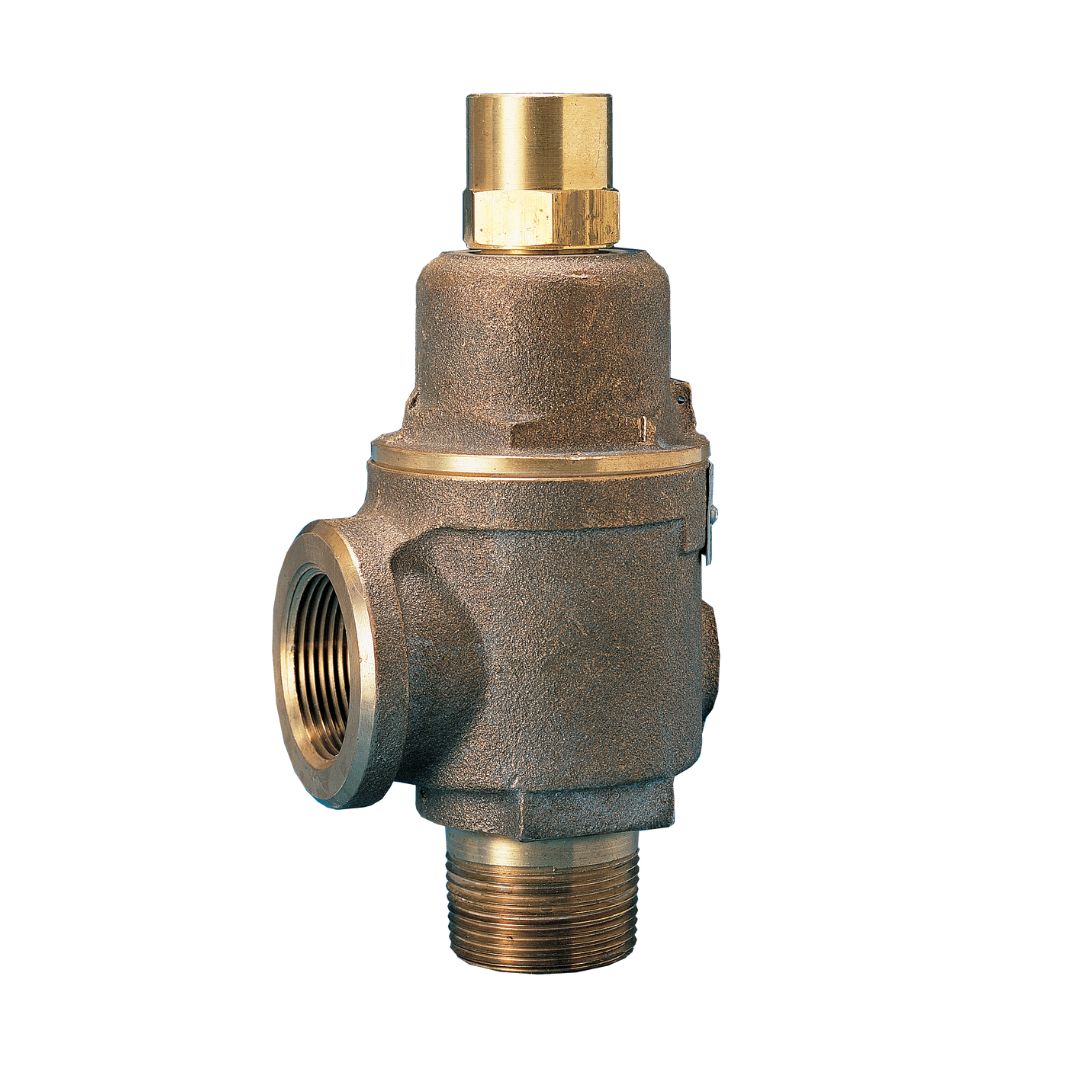

Kunkle Model 20 Safety Valve In Stock

Description:

Kunkle Model 20 has a range of valves suitable for overpressure relief and protection of pumps, tanks, lines and hydraulic systems; pressure regulation and continuous by-pass relief. Extra-heavy rugged construction non-code bronze liquid relief valves with a variety of model options to meet specific applications



Valve Features

  • Inlet and outlet connections cast integral with body for easy inspection and servicing without disconnecting piping.
  • Available with optional female NPT inlet or flanged inlet and outlet connections.
  • Beveled seats lapped for optimum performance.
  • Stainless steel spring for optimum corrosion resistance.
  • Spherical pivot between disc and spring corrects misalignment and compensates for spring side thrust.
  • Tested and inspected for pressure setting and leakage.

Technical Data

  • Sizes 1/2″ to 3″
  • Pressures from 1 to 300 psig
  • Temperatures from -60°F to 406°F
  • Non-code liquid relief ONLY

Applications

  • Overpressure relief, pressure regulation, and continuous bypass relief of pumps, tanks, lines, and hydraulic systems
  • Applications include portable or stationary air/gas compressors, pressure vessels, and steam-processing equipment



Click on link below for more valves made by Kunkle!





Item#: Model 20
Item Name: Kunkle Model 20 Safety Valve
Short description: Kunkle Model 20 Safety Valve
Manufacturer:
Kunkle
Description:

PLEASE FILL OUT "SET PRESSURE (PSI)" BEFORE ADDING ITEM TO CART

Lead Time: In Stock. Available for immediate shipment.
Specifications
Part # Size Set Pressure Description Weight Price Qty
0020-C01 1/2" Kunkle Model 20 Safety Valve 4.00 $288.70 Add to Cart
0020-D01 3/4" Kunkle Model 20 Safety Valve 4.00 $288.70 Add to Cart
0020-E01 1" Kunkle Model 20 Safety Valve 5.00 $336.45 Add to Cart
0020-F01 1-1/4" Kunkle Model 20 Safety Valve 7.00 $434.30 Add to Cart
0020-G01 1-1/2" Kunkle Model 20 Safety Valve 8.00 $519.85 Add to Cart
0020-H01 2" Kunkle Model 20 Safety Valve 13.00 $782.45 Add to Cart
0020-J01 2-1/2" Kunkle Model 20 Safety Valve 19.00 $1,241.50 Add to Cart
0020-K01 3" Kunkle Model 20 Safety Valve 28.00 $2,116.45 Add to Cart
