Kunkle Model 300 Safety Valve In Stock

Description:

Suitable for use on steam boilers and generators, pressure reducing stations, reciprocating or rotary air/gas compressors and for pressure vessels including tanks, receivers, intercoolers, oil/gas separators and lines. Cast steel, exposed spring valves that meet ASME section I for steam and ASME section VIII for air, gas and steam services





Valve Features

• Heavy duty construction of high quality cast steel with stainless steel full-nozzle trim for optimum performance. • Bolted yoke design for easy maintenance. • Steel yoke incorporates a cover-shield for guiding surfaces and provides for fully exposed spring. • Seats lapped to optical flatness for tight shutoff. • Dual control rings offer easy adjustability for precision opening with minimum pre-open or simmer and exact blowdown control. • Heavy duty lift lever assembly. • All adjustments are factory sealed to help prevent tampering or disassembly. • Each valve tested and inspected for pressure setting and leakage. • Gags available.



Click on link below for more valves made by Kunkle!



Item Name: Kunkle Model 300 Safety Valve
Short description: Kunkle Model 300 Safety Valve
Manufacturer:
Kunkle
Description:

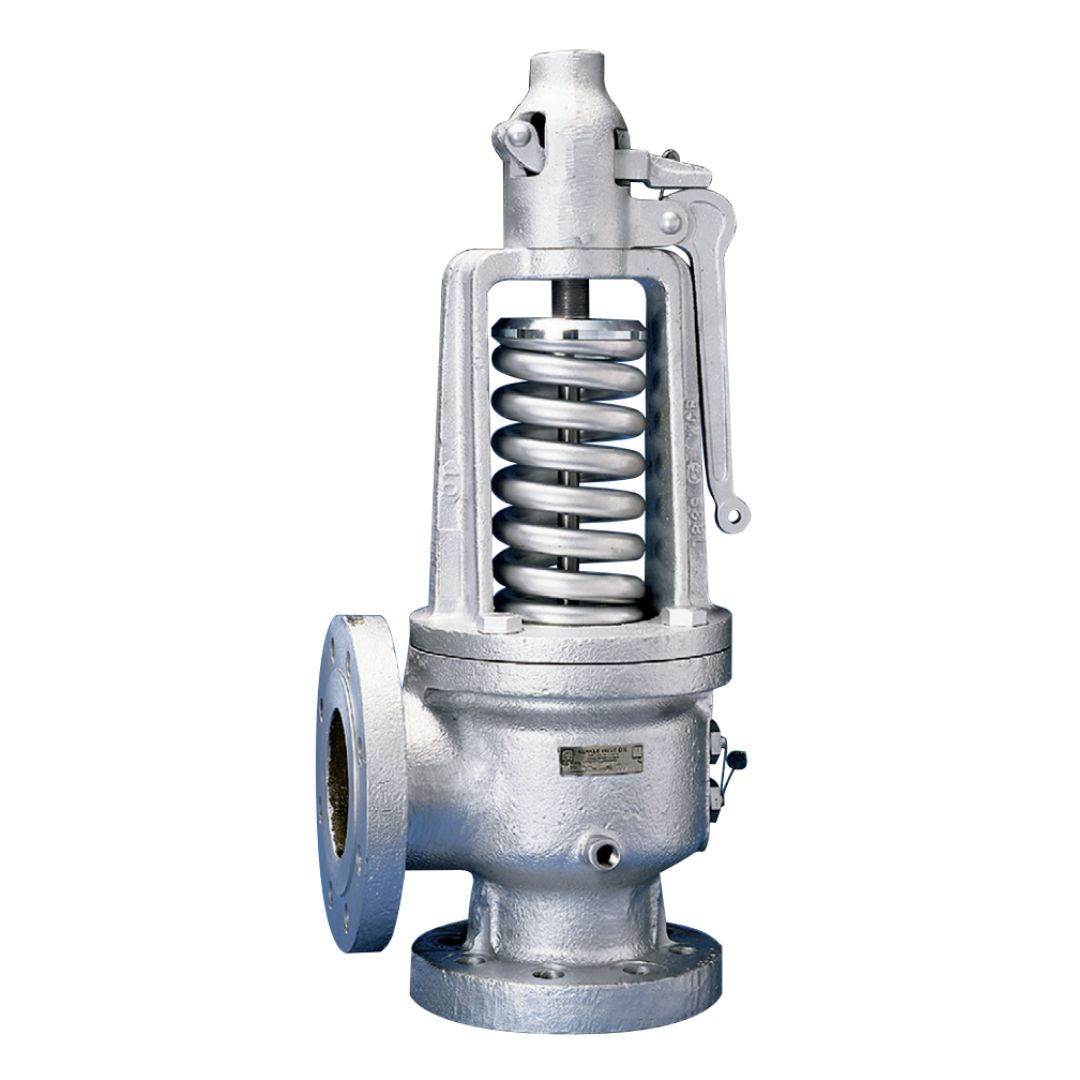

Model 300 Description Cast steel, exposed spring, full nozzle with stainless steel trim. ANSI 300# inlet flange and 150# outlet flange.



Kunkle Model 300 Features and Benefits

  • Heavy duty construction of high quality cast steel with SS full-nozzle trim for optimum performance.
  • Bolted yoke design for easy maintenance.
  • Steel yoke incorporates a cover-shield for guiding surfaces and provides for fully exposed spring. ​



PLEASE FILL OUT "SET PRESSURE (PSI) & "AIR OR STEAM" BEFORE ADDING ITEM TO CART

Lead Time: In Stock. Available for immediate shipment.
Specifications
Part # Size Description Weight Price Set Pressure Air or Steam Qty
300LFF01 1-1/4" Kunkle Model 300 Safety Valve 39.00 $3,720.10 Add to Cart
300LGF01 1-1/4" Kunkle Model 300 Safety Valve 41.00 $3,841.75 Add to Cart
300LHG01 1-1/2" Kunkle Model 300 Safety Valve 62.00 $4,280.40 Add to Cart
300LJG01 1-1/2" Kunkle Model 300 Safety Valve 77.00 $5,469.60 Add to Cart
300LKH01 2" Kunkle Model 300 Safety Valve 97.00 $7,698.45 Add to Cart
300LLJ01 2-1/2" Kunkle Model 300 Safety Valve 136.00 $9,851.50 Add to Cart
300LMK01 3" Kunkle Model 300 Safety Valve 162.00 $12,256.20 Add to Cart
300LNM01 4" Kunkle Model 300 Safety Valve 234.00 $14,303.05 Add to Cart
300LPM01 4" Kunkle Model 300 Safety Valve 230.00 $17,209.25 Add to Cart
300LQP01 6" Kunkle Model 300 Safety Valve 406.00 $24,503.60 Add to Cart
