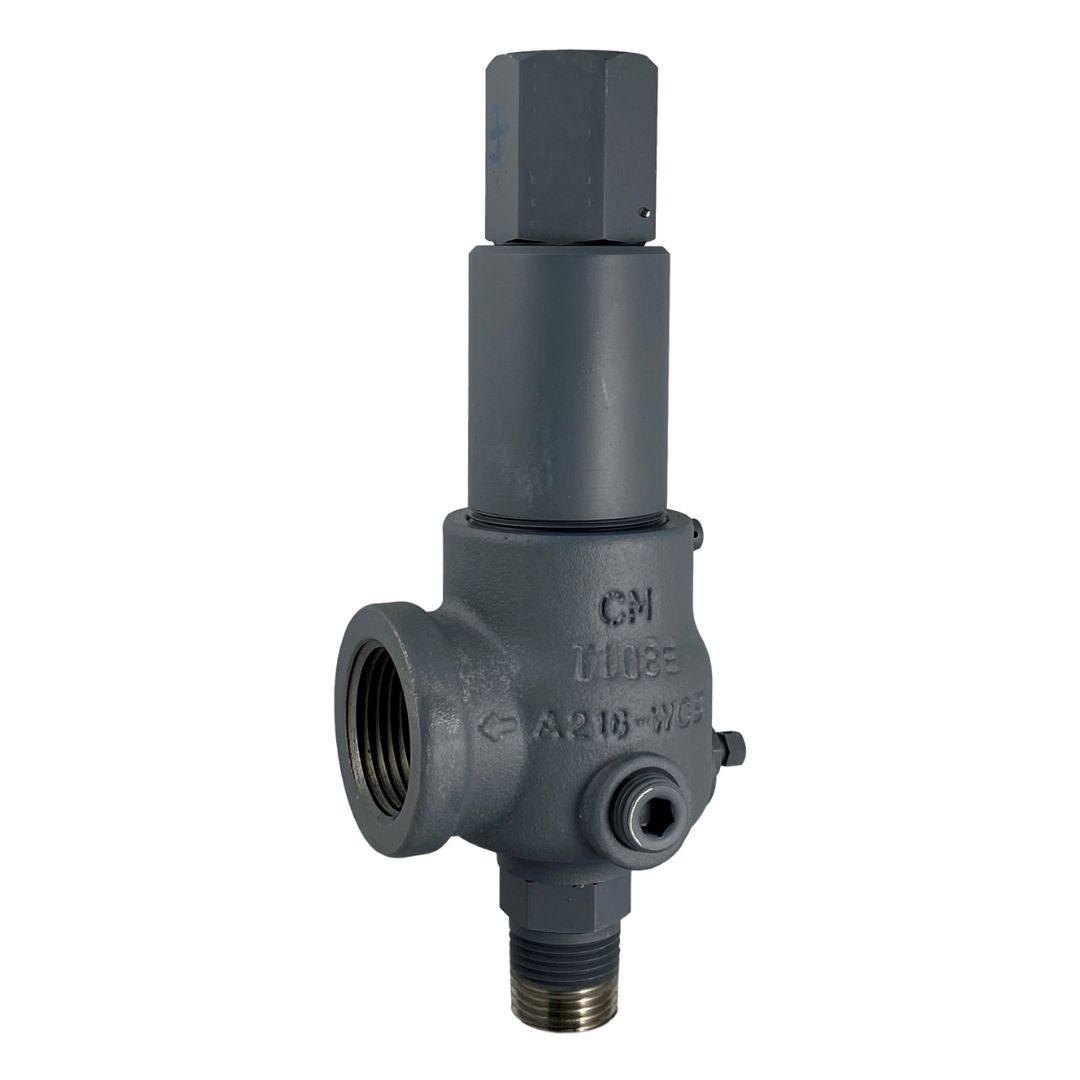

Kunkle Model 910 and 911 Safety Valves In Stock

Manufacturer:
Kunkle
Description:

Kunkle Model 910 & 911 are suitable for air/gas compressors, liquid filled pressure vessels/systems, high temperature/ pressure hot water boilers, for pressure vessels containing air, gas or steam and process and industrial applications requiring steel/stainless steel construction. Also for vacuum service. Bronze, steel and stainless steel safety relief valves for air, gas, steam, liquid and vacuum service that meet ASME Section VIII, ‘UV’; Section I, ‘V’, are National Board certified and PED certified for non-hazardous gas



Valve Features

  • Heavy duty cast valve bodies.
  • Seats lapped to optical flatness.
  • Available with resilient soft seats for superior leak-free performance.
  • Standard SS spring for temperatures to 550°F (288°C). Optional alloy spring to 800°F (427°C).
  • Threaded cap standard (back pressure tight). Maximum back pressure 50 psig [3.4 barg].1
  • Hex on valve nozzle provides for easy installation.
  • Warn ring offers easy adjustability.
  • Pivoting disc design offers exceptional seat alignment.
  • Guide to nozzle ratio reduces friction.
  • Full nozzle design for optimum flow performance.
  • Threaded side outlet for piped off discharge to eliminate fugitive emissions.
  • Each valve tested and inspected for pressure setting and leakage.



Technical Data

  • Connections: Threaded NPT, BSPT, flanged or Tri-clover
  • Temperature range: -320° to 800°F (-195° to 427°C)
  • Pressure range: 3 to 1400 psig (0.2 to 96.5 barg)
  • Vacuum range: 6" to 29" HG (200 to 1000 mbarg)
  • Code: ASME I, VIII and PED



Click here for more valves made by Kunkle!



Item Name: Kunkle Safety Relief Valve Models 910 & 911
Short description: Kunkle Safety Relief Valve Models 910 & 911
Description:

For other lever options, including capped and plain please call 1-800-780-3776







PLEASE FILL OUT "SET PRESSURE (PSI)" & "AIR OR STEAM" BEFORE ADDING ITEM TO CART

Lead Time: In Stock. Available for immediate shipment.
Specifications
Part # Size Standard Set Pressure Air or Liquid or Steam Description Weight Price Qty
910-BDCM01 1/2" Threaded Cap Kunkle Model 910 Safety Valves 4.00 $1,273.60 Add to Cart
910-BDDM01 3/4" Threaded Cap Kunkle Model 910 Safety Valves 5.00 $1,402.10 Add to Cart
910-BEDM01 3/4" Threaded Cap Kunkle Model 910 Safety Valves 5.00 $1,451.05 Add to Cart
910-BFEM01 1" Threaded Cap Kunkle Model 910 Safety Valves 7.00 $1,522.65 Add to Cart
910-BGFM01 1-1/4" Threaded Cap Kunkle Model 910 Safety Valves 10.00 $2,240.15 Add to Cart
910-BHGM01 1-1/2" Threaded Cap Kunkle Model 910 Safety Valves 13.00 $2,788.15 Add to Cart
910-BJHM01 2" Threaded Cap Kunkle Model 910 Safety Valves 17.00 $4,031.95 Add to Cart
910-BDEM01 1" Threaded Cap Kunkle Model 910 Safety Valves 5.00 $1,427.10 Add to Cart
911-BDDM01 3/4" Threaded Cap Kunkle Model 911 Safety Valves 4.00 $2,293.05 Add to Cart
911-BEDM01 3/4" Threaded Cap Kunkle Model 911 Safety Valves 5.00 $2,415.75 Add to Cart
911-BFEM01 1" Threaded Cap Kunkle Model 911 Safety Valves 7.00 $2,535.00 Add to Cart
911-BGFM01 1-1/4" Threaded Cap Kunkle Model 911 Safety Valves 10.00 $3,725.75 Add to Cart
911-BHGM01 1-1/2" Threaded Cap Kunkle Model 911 Safety Valves 13.00 $4,628.35 Add to Cart
911-BJHM01 2" Threaded Cap Kunkle Model 911 Safety Valves 17.00 $6,250.80 Add to Cart
911-BDCM01 1/2" Threaded Cap Kunkle Model 911 Safety Valves 4.00 $2,262.15 Add to Cart
911-BDEM01 1" Threaded Cap Kunkle Model 911 Safety Valves 5.00 $2,374.50 Add to Cart
