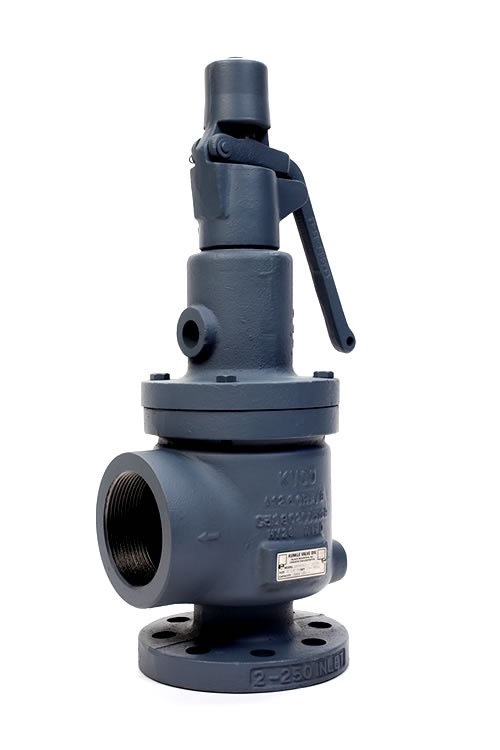

Kunkle Model 6252 Safety Valve In Stock

Manufacturer:
Kunkle
Description:

Kunkle Model 6252 is suitable for use on steam boilers and generators, pressure reducing stations, reciprocating or rotary air/gas compressors and for pressure vessels including tanks, receivers, intercoolers, oil/gas separators and lines. Cast iron ASME section I steam and section VIII, air, steam and gas ‘UV’ National Board certified safety valves including model 6254 to ASME section IV ‘HV’, PED certified for non-hazardous gas



Model 6252: Cast iron, enclosed spring, SS trim.



Valve Features

  • Heavy duty high quality cast iron construction with stainless steel semi-nozzle, trim and disc.
  • Bolted bonnet design for easy maintenance.
  • Seats lapped to optical flatness.
  • Dual control rings offer easy adjustability for precision opening with minimum pre-open or simmer and exact blowdown control.
  • Heavy duty lift lever assembly.
  • All adjustments factory sealed to prevent tampering or disassembly.
  • Each valve tested and inspected for pressure setting and leakage.
  • Valves available National Board certified to ASME sections I, VIII and IV, and PED certified for non-hazardous gas.

Technical Data

  • Connections: FNPT or flanged
  • Temperature range: -20° to 406°F (-29° to 208°C)
  • Pressure range: 10 to 250 psig (0.7 to 17.2 barg)
  • Code: ASME I, IV, VIII and PED



Click on link below for more valves made by Kunkle!



Item Name: Kunkle Model 6252 Safety Valve
Description:

• Heavy duty construction of high quality cast iron with Stainless Steel (SS) semi-nozzle trim and disc. • Bolted bonnet design for easy maintenance. • Seats lapped to optical flatness. • Dual control rings offer easy adjustability for precision opening with minimum preopen or simmer and exact blowdown control. • Heavy duty lift lever assembly. • All adjustments are factory sealed to prevent tampering or disassembly. • Each Kunkle valve is tested and inspected for pressure setting and leakage



PLEASE FILL OUT "SET PRESSURE (PSI)" & "AIR OR STEAM" BEFORE ADDING ITEM TO CART

Lead Time: In Stock. Available for immediate shipment.
Specifications
Part # Size Valve Code Set Pressure Air or Steam Description Wt.
lb
Price Qty
6252AJG01 1-1/2" inlet x 2-1/2"
outlet
V Code / Section 1 Kunkle Model 6252 Safety Valve 43.00 $1,949.45 Add to Cart
6252FJG01 1-1/2" inlet x 2-1/2"
outlet
V Code / Section 1 Kunkle Model 6252 Safety Valve 43.00 $1,949.45 Add to Cart
6252FJH01 2" inlet x 2-1/2"
outlet
V Code / Section 1 Kunkle Model 6252 Safety Valve 45.00 $2,192.30 Add to Cart
6252FJJ01 2-1/2" inlet x 2-1/2"
outlet
V Code / Section 1 Kunkle Model 6252 Safety Valve 48.00 $2,240.15 Add to Cart
6252AKH01 2" inlet x 3"
outlet
V Code / Section 1 Kunkle Model 6252 Safety Valve 46.00 $2,213.90 Add to Cart
6252FKH01 2" inlet x 3"
outlet
V Code / Section 1 Kunkle Model 6252 Safety Valve 55.00 $2,213.90 Add to Cart
6252FKJ01 2-1/2" inlet x 3"
outlet
V Code / Section 1 Kunkle Model 6252 Safety Valve 55.00 $2,470.05 Add to Cart
6252FKK01 3" inlet x 3"
outlet
V Code / Section 1 Kunkle Model 6252 Safety Valve 58.00 $2,517.80 Add to Cart
6252ALJ01 2-1/2" inlet x 4"
outlet
V Code / Section 1 Kunkle Model 6252 Safety Valve 128.00 $2,943.25 Add to Cart
6252FLJ01 2-1/2" inlet x 4"
outlet
V Code / Section 1 Kunkle Model 6252 Safety Valve 136.00 $2,943.25 Add to Cart
6252FLK01 3" inlet x 4"
outlet
V Code / Section 1 Kunkle Model 6252 Safety Valve 140.00 $3,208.20 Add to Cart
6252FLM01 4" inlet x 4"
outlet
V Code / Section 1 Kunkle Model 6252 Safety Valve 151.00 $3,392.75 Add to Cart
6252AMK01 3" inlet x 4"
outlet
V Code / Section 1 Kunkle Model 6252 Safety Valve 144.00 $3,756.95 Add to Cart
6252FMK01 3" inlet x 4"
outlet
V Code / Section 1 Kunkle Model 6252 Safety Valve 154.00 $3,756.95 Add to Cart
6252FMM01 4" inlet x 4"
outlet
V Code / Section 1 Kunkle Model 6252 Safety Valve 161.00 $4,117.50 Add to Cart
6252KNM01 4" inlet x 6"
outlet
V Code / Section 1 Kunkle Model 6252 Safety Valve 253.00 $6,257.25 Add to Cart
6252KPM01 4" inlet x 6"
outlet
V Code / Section 1 Kunkle Model 6252 Safety Valve 253.00 $8,178.30 Add to Cart
6252KQP01 6" inlet x 8"
outlet
V Code / Section 1 Kunkle Model 6252 Safety Valve 551.00 $12,622.95 Add to Cart
6252KRP01 6" inlet x 8"
outlet
V Code / Section 1 Kunkle Model 6252 Safety Valve 565.00 $16,840.15 Add to Cart
