Kunkle Model 215V and 337 Safety Valves In Stock

Manufacturer:
Kunkle
Description:

Kunkle Model 215V is suitable for the protection of high volume vacuum pumps, conveying systems and light gauge tanks. Kunkle Model 337 for the protection of low to medium pressure high volume blowers, compressors, conveying systems and bulk hauling trailers/equipment.



Features and Benefits

• Large nozzle design provides high capacity. • Flat bronze valve seats are lapped for optimum performance. • Warn ring offers easy adjustability for precise opening with minimum pre-open or simmer. • Pivot between disc and spring corrects misalignment and compensates for spring side thrust. • Model 215V has seal cap for vacuum service. • Model 337 has 'lift-pin' lift device for easy manual testing. • Bronze nozzle and disc as standard. Optional SS trim available. • Each valve tested and inspected for pressure setting and leakage



Click on link below for more valves made by Kunkle!

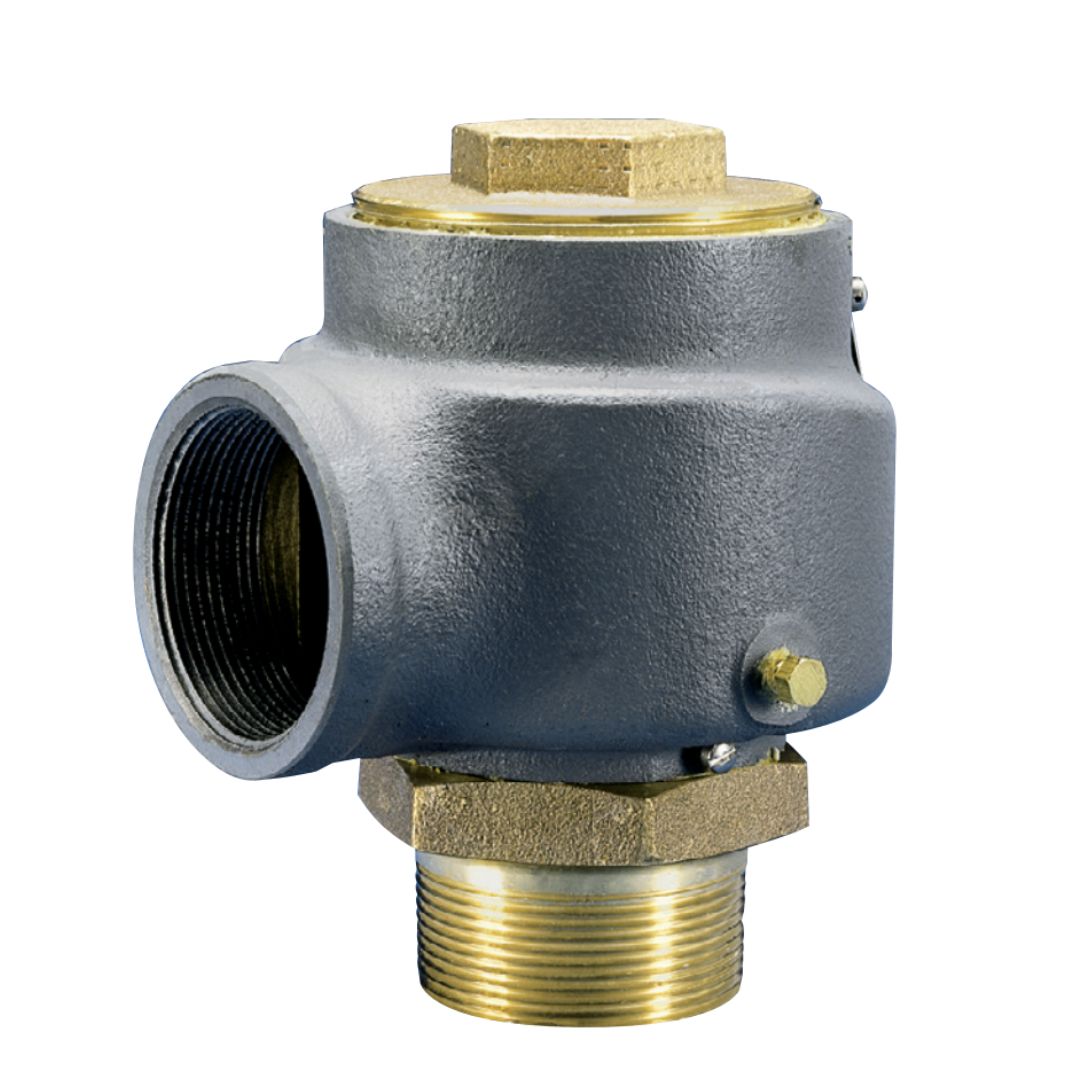

Item Name: Kunkle Model 215V Safety Valves
Short description: Kunkle Model 215V Safety Valves
Description:

PLEASE FILL OUT "SET PRESSURE (INCHES OF HG)" BEFORE ADDING ITEM TO CART

Lead Time: In Stock. Available for immediate shipment.
Specifications
Part # Size Description Weight Price Set Pressure in "Inches of HG" Qty
215V-H01AQE 2" Kunkle Model 215V Safety Valves 10.00 $459.75 Add to Cart
215V-J01AQE 2-1/2" Kunkle Model 215V Safety Valves 15.00 $777.30 Add to Cart
215V-K01AQE 3" Kunkle Model 215V Safety Valves 23.00 $1,003.05 Add to Cart

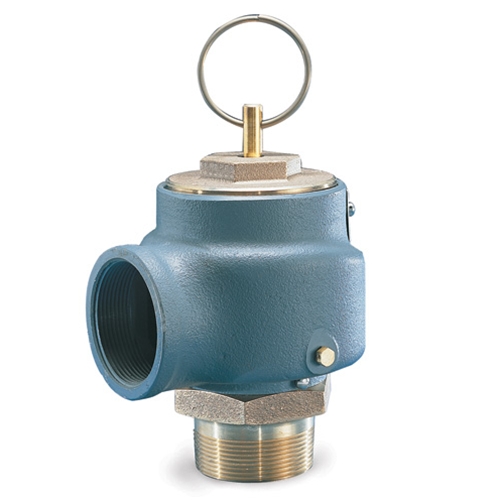

Item Name: Kunkle Model 337 Safety Valves
Short description: Kunkle Model 337 Safety Valves
Description:

Model 337 has "pull-ring" lift device for easy manual testing ·Every valve is 100% tested/inspected for pressure setting, blowdown and leakage. ·All adjustments are factory sealed to prevent tampering or disassembly. Option ·SS trim. (nozzle and disc) (Variation 03)



PLEASE FILL OUT "SET PRESSURE (PSI)" BEFORE ADDING ITEM TO CART

Lead Time: In Stock. Available for immediate shipment.
Specifications
Part # Size Description Weight Price Set Pressure Qty
0337-H01AKE 2" Kunkle Model 337 Safety Valves 10.00 $442.80 Add to Cart
0337-H01ANE 2" Kunkle Model 337 Safety Valves 10.00 $442.80 Add to Cart
0337-J01ANE 2-1/2" Kunkle Model 337 Safety Valves 15.00 $746.65 Add to Cart
0337-J01AKE 2-1/2" Kunkle Model 337 Safety Valves 15.00 $746.95 Add to Cart
0337-K01ANE 3" Kunkle Model 337 Safety Valves 23.00 $968.00 Add to Cart
0337-K01AKE 3" Kunkle Model 337 Safety Valves 23.00 $968.00 Add to Cart
