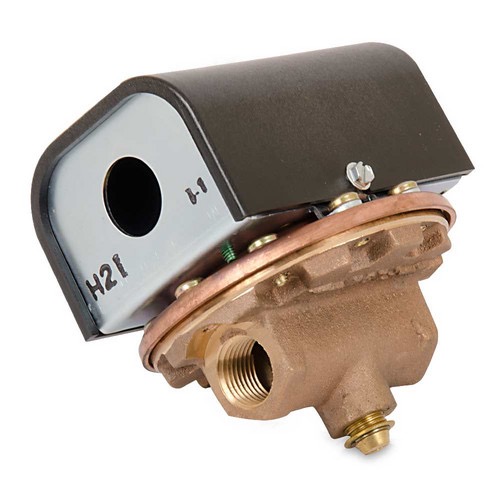

McDonnell Miller Series FS1 In Stock

Manufacturer:
McDonnell Miller
Description:

High Sensitivity Liquid Flow For general purpose applications where high sensitivity is required and moderate or low flow rates are encountered such as air conditioning, heating and hydronic systems, water, oil, some vicious liquids and oils in process work. High flow capacity. 1/2" NPT. Switch compartment is completely sealed. Minimum temperature 32°F Maximum temperature 225°F Maximum operating pressure 100 psi NOTE: Do not use liquid flow switches on systems with flow greater than 10 feet per second Values are +- 10%

Item Name: McDonnell Miller FS1
Short description: McDonnell Miller FS1
Lead Time: Most items In Stock ready to ship!
Ordering Information
Model# Part# Description Weight A B C D E F G H J Price Qty
FS1 113200 High sensitivity flow switch - 1/2" NPT body 5.00 3 3/4" 2 5/8" 1/2" 7/8" 3 13/16" 3 3/16" 4 7/16" 1 1/4" 1/2" $214.21 Add to Cart
FS1-G 113250 FS1w/ gold plated contacts
$Call
5.00 3 3/4" 2 5/8" 1/2" 7/8" 3 13/16" 3 3/16" 4 7/16" 1 1/4" 1/2"
FS1-J 113550 FS1 w/ BSPT connections 5.50 3 3/4" 2 5/8" 1/2" 7/8" 3 13/16" 3 3/16" 4 7/16" 1 1/4" 1/2" $214.21 Add to Cart
FS1-L 113560 FS1 set @ 1.7 gpm 5.00 3 3/4" 2 5/8" 1/2" 7/8" 3 13/16" 3 3/16" 4 7/16" 1 1/4" 1/2" $218.40 Add to Cart
FS1-W 113601 FS1 w/ NEMA 4x enclosure 5.50 3 3/4" 2 5/8" 1/2" 7/8" 3 13/16" 3 3/16" 4 7/16" 1 1/4" 1/2" $239.41 Add to Cart
FS1-J-E 113551 Obsolete - 113550 May be a replacement 5.50 3 3/4" 2 5/8" 1/2" 7/8" 3 13/16" 3 3/16" 4 7/16" 1 1/4" 1/2"
FS1-W-E 113602 FS1-W CE conformance
$Call
5.00 3 3/4" 2 5/8" 1/2" 7/8" 3 13/16" 3 3/16" 4 7/16" 1 1/4" 1/2"
Flow Rates (Values are +- 10%)
Settings Flow gpm No Flow gpm Max. Flow Rate gpm w/o paddle damage
Factory or minimum 0.41 0.24 9.48
Maximum 1.81 1.28 9.48
Electrical Ratings
Voltage Motor Switch Rating(Amperes) 120 VDC .5 Amp Full Load Motor Switch Rating(Amperes) 120 VDC .5 Amp Locked Rotor Pilot duty
120 VAC 7.4 44.4 125 VA at 120 or 240 VAC
240 VAC 3.7 22.2 125 VA at 120 or 240 VAC
