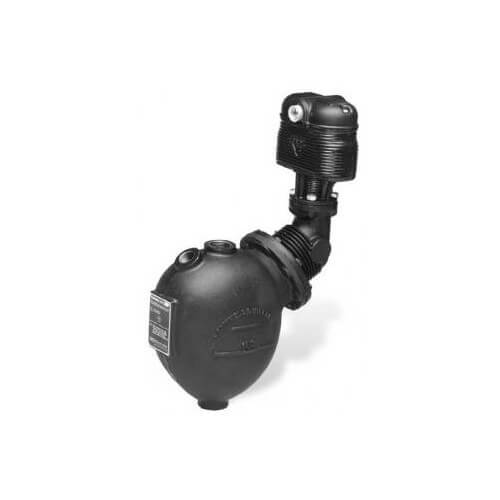

McDonnell Miller Series 93 In Stock

Manufacturer:
McDonnell Miller
Description:

Low Water Cut-Off /Pump Controllers For commercial, and industrial, low or high pressure steam boilers. Maintains consistent water level regardless of pressure. No. 5 switch. Magnetic repulsion eliminates need for bellows. 1" NPT connections. Maximum pressure 150 psi. 8 Bolt Hole Pattern

Item Name: McDonnell Miller Series 93
Short description: McDonnell Miller Series 93
Lead Time: Most items In Stock ready to ship!
Specifications - Replacement Heads
Part # Model # Description Weight Price Qty

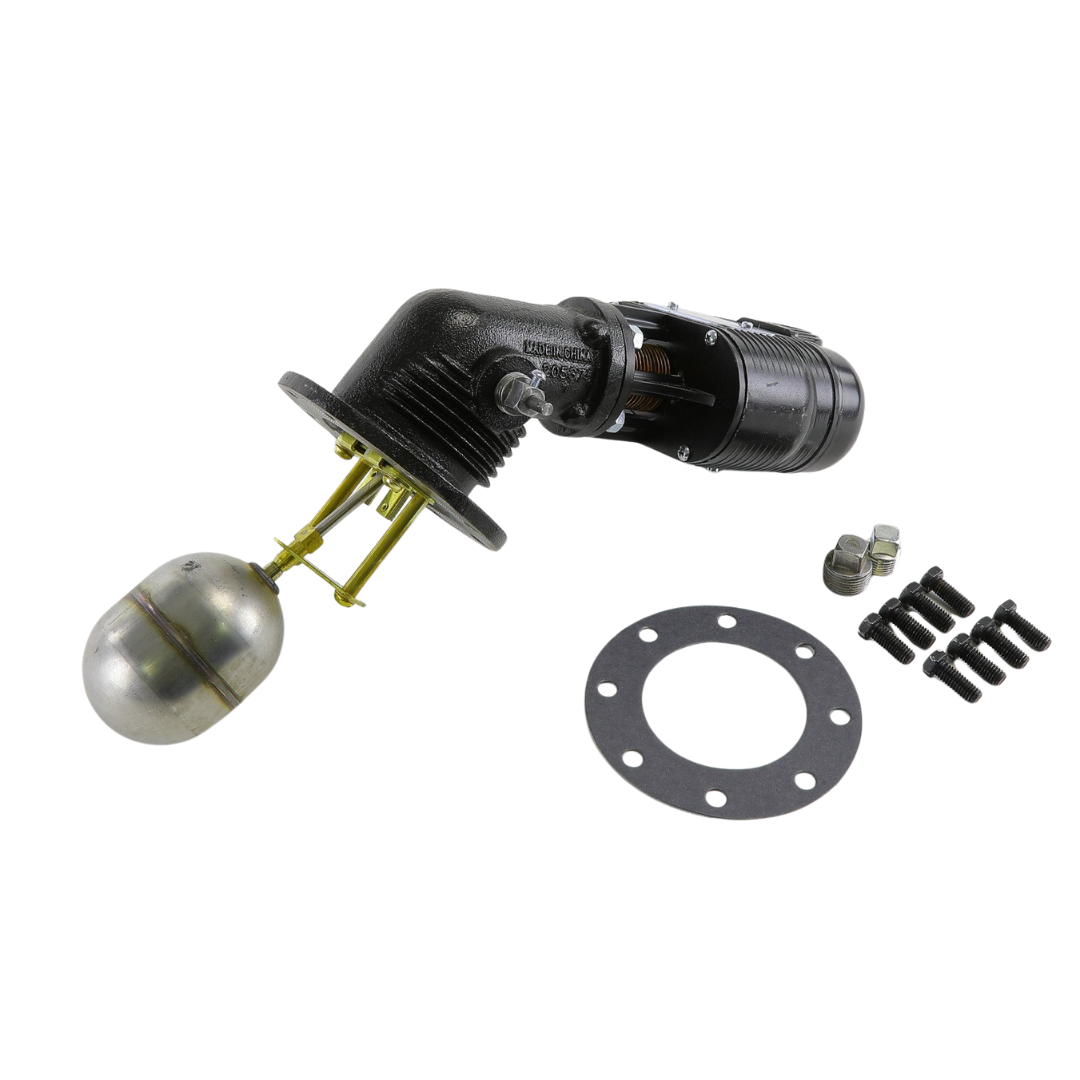

162400 93-HD McDonnell Miller 93-HD Head Mechanism w/ No.5 Switch 17.00 $1,065.50 Add to Cart
162600 93-M-HD McDonnell Miller 93-M-HD w/ manual reset 18.00 $1,181.25 Add to Cart

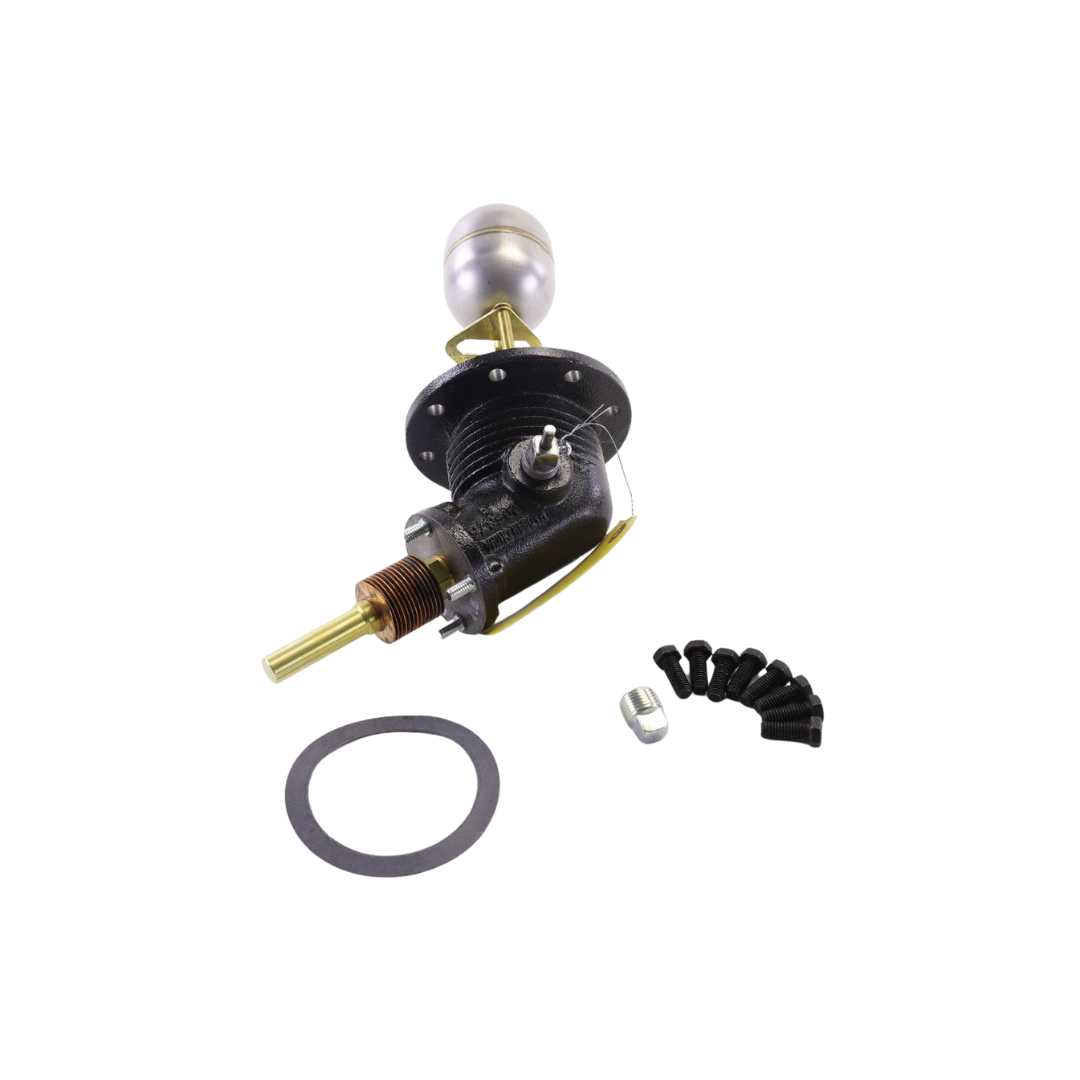

162402 93-HDLS McDonnell Miller 93-HDLS Head without switch 17.00 $658.50 Add to Cart
Specifications - Complete Units
Part # Model # Description Weight Price Qty

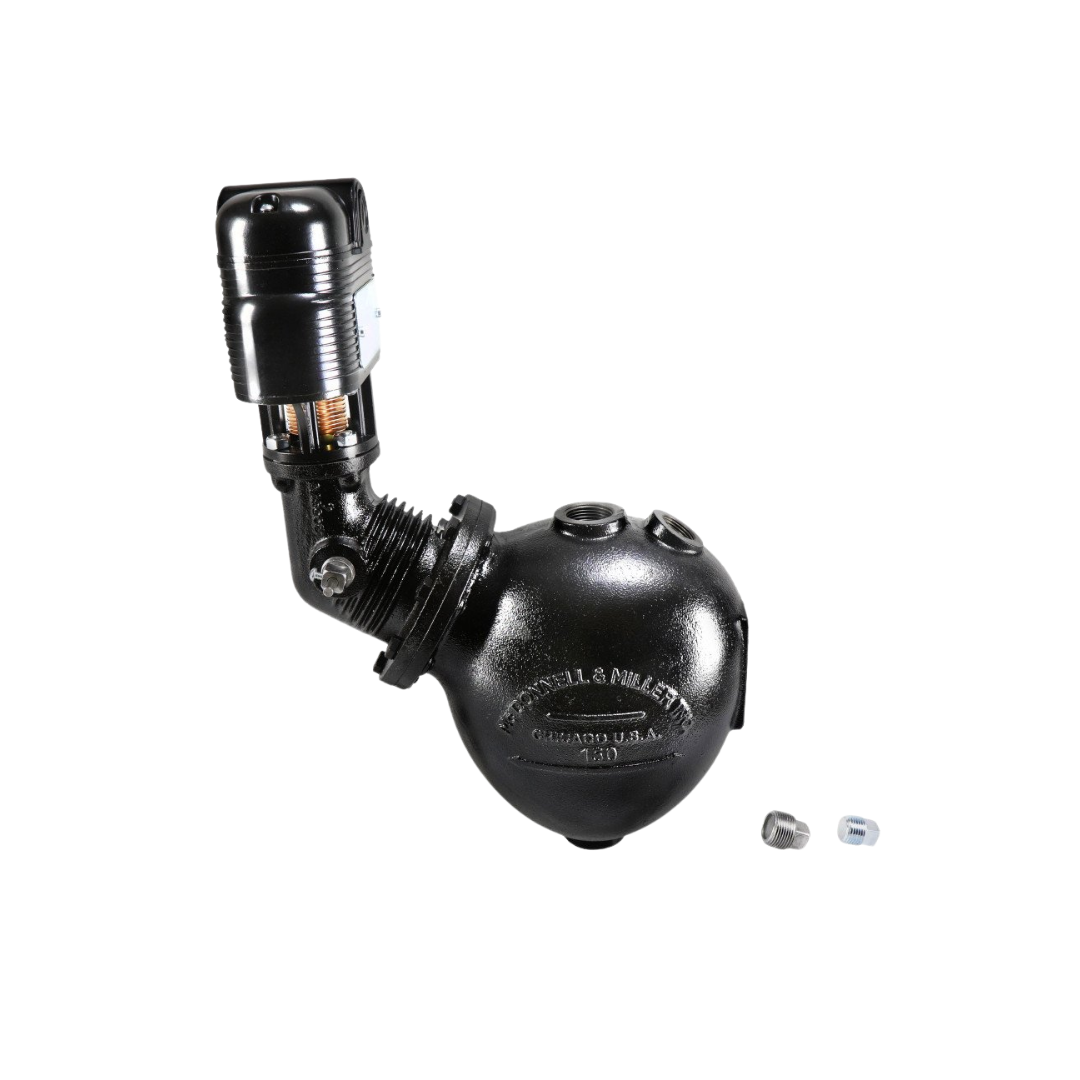

162300 93 McDonnell Miller 93 Low water cut-off/pump controller w/ No. 5 switch 38.00 $1,109.25 Add to Cart

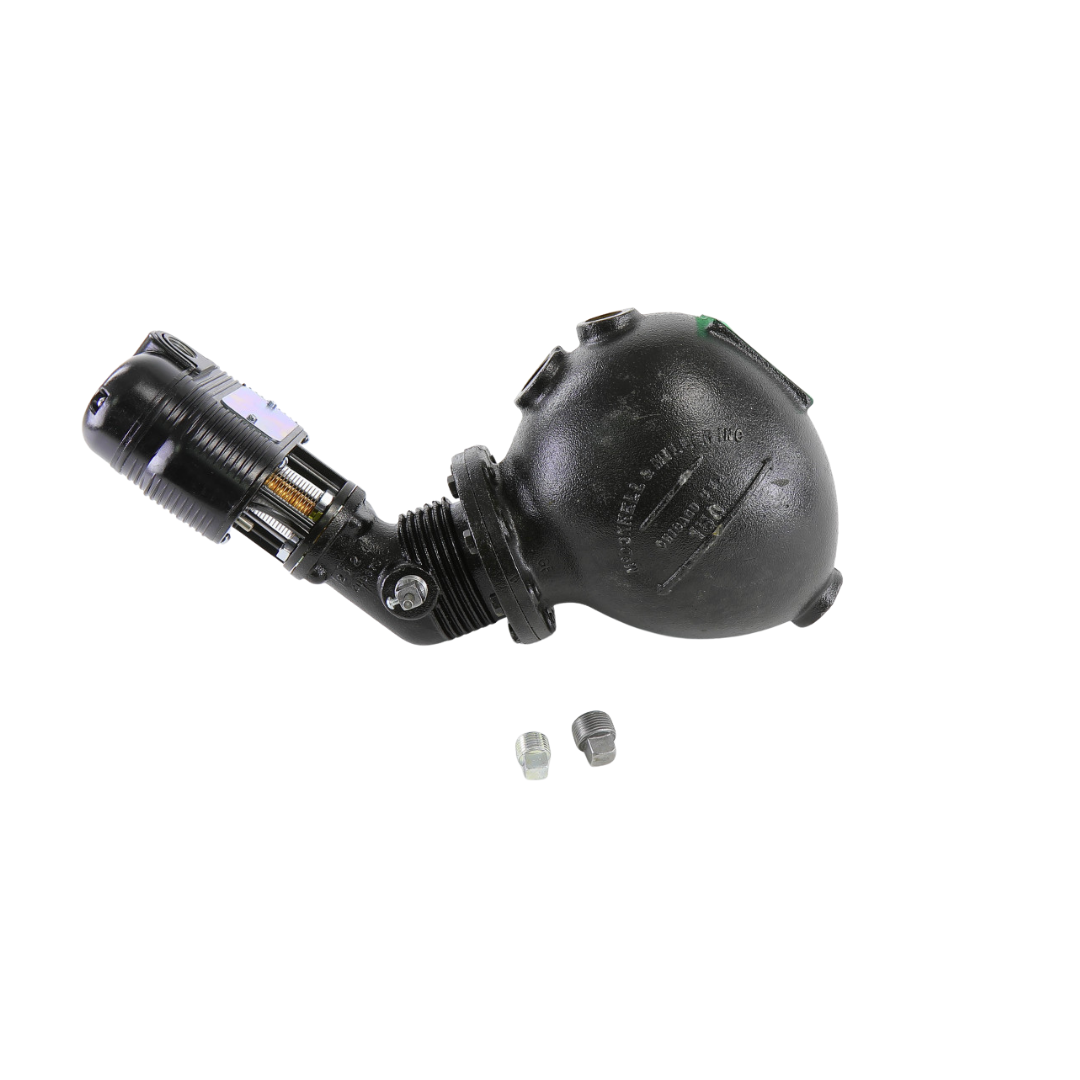

162500 93-M McDonnell Miller 93-M w/ manual reset 38.00 $1,213.00 Add to Cart
162525 93-MJ McDonnell Miller 93-MJ w/ BSPT threads 38.00

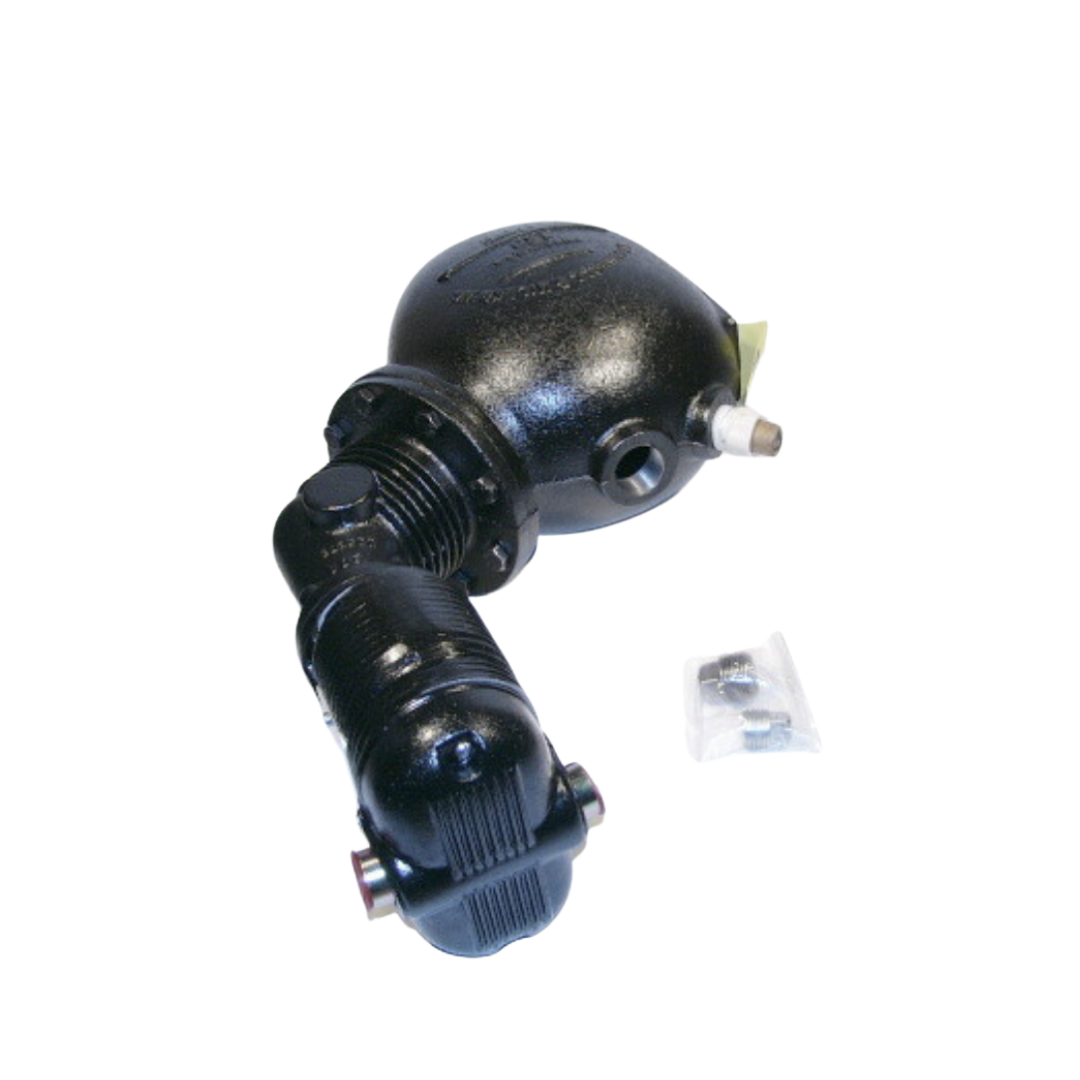

163000 93-7B McDonnell Miller 93-7B w/ No. 7B switch 38.50 $1,564.25 Add to Cart
163100 93-7B-M McDonnell Miller 93-7B-M w/ manual switch 38.50 $1,612.00 Add to Cart
Specifications - Replacement Parts
Part # Model # Description Weight Price Qty
345700 SA91-60 McDonnell Miller SA91-60 Float 3.00 $207.50 Add to Cart
325400 150-14 McDonnell Miller 150-14 Gasket (6 pack) 3.00 $40.00 Add to Cart
110300 5 McDonnell Miller #5 Electric switch for 93, 193, 94, 194 6.00 $622.50 Add to Cart
110400 5-M McDonnell Miller 5-M switch w/ manual reset 6.00 $622.50 Add to Cart
110800 7B McDonnell Miller 7B Electric switch/proportioning control 6.00 $1,089.50 Add to Cart
110900 7B-M McDonnell Miller 7M-M w/ manual reset 6.00 $1,089.50 Add to Cart
Electrical Ratings
Pilot duty
345 VA at 120 or 240 VAC
