Boiler Controls - McDonnell Miller, Honeywell & Fireye | Boiler Supplies McDonnell Miller Controls McDonnell Miller Series 53
Mechanical Water Feeder For low pressure steam and hot water boilers larger than 5,000 sq. ft. with hot or cold water feed. Optional features - No. 2 switch, manual reset, float block Proportional feed action. Maximum water supply pressure 150 psi. Maximum pressure 75 psi.
| Model# | Part# | Description | Weight | Price | Qty | |
|---|---|---|---|---|---|---|

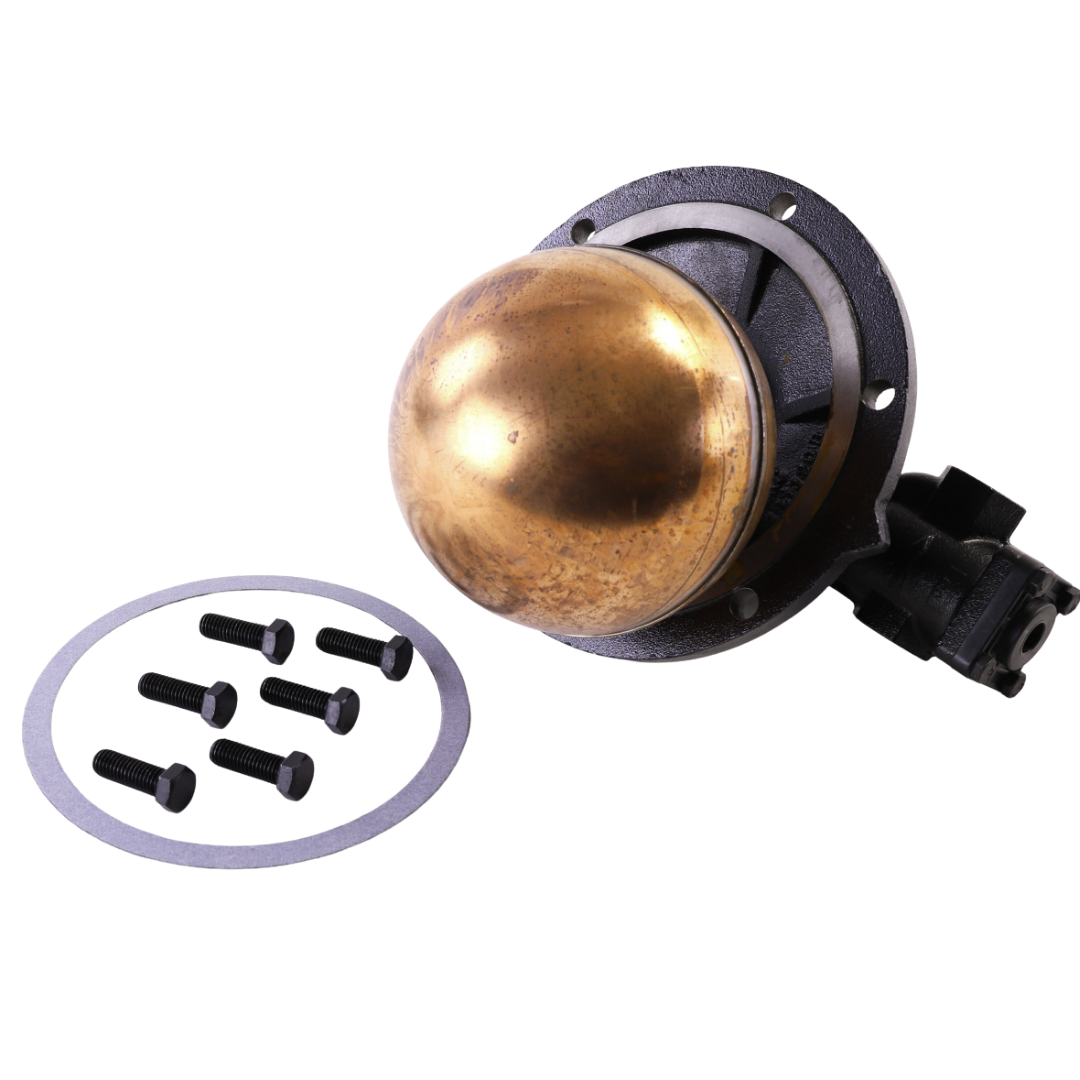

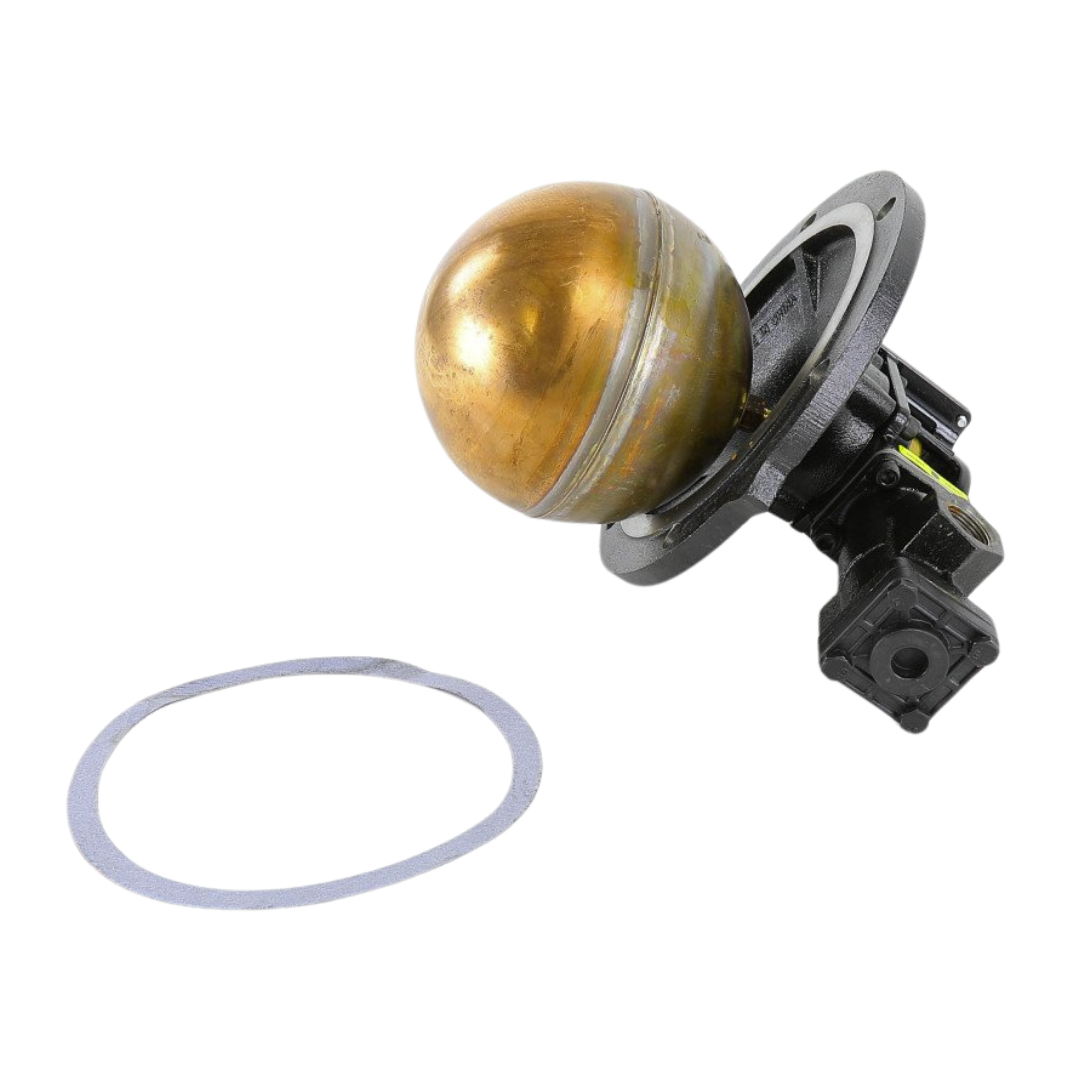

| 53-HD | 137000 | Replacement Head for 53 | 22.00 | $977.95 | Add to Cart Dimensional Chart | |
| 53-2-HD | 137300 | Replacement Head for 53-2 | 22.50 | Dimensional Chart |
| Model# | Part# | Description | Weight | A | B | C | D | E | F | Price | Qty | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 53 | 136900 | Mechanical water feeder | 41.00 | 1" | 8 1/8" | 10 3/8" | 5 3/4" | 1" | 3/4" | $1,101.50 | Add to Cart Dimensional Chart | |
| 53-2 | 137100 | 53 w/ No. 2 switch | 41.00 | 1" | 8 1/8" | 10 3/8" | 5 3/4" | 1" | 3/4" | $1,228.95 | Add to Cart Dimensional Chart | |
| 53-2-M | 137200 | 53-2 w/ manual reset | 41.00 | 1" | 8 1/8" | 10 3/8" | 5 3/4" | 1" | 3/4" | $1,228.95 | Add to Cart Dimensional Chart |
| Voltage | Motor Switch Rating(Amperes) 120 VDC .5 Amp Full Load | Motor Switch Rating(Amperes) 120 VDC .5 Amp Locked Rotor | Pilot duty |
|---|---|---|---|
| 120 VAC | 10.2 | 61.2 | 125VA at 120 or 240 VAC 60Hz |
| 240 VAC | 5.1 | 30.6 | 125VA at 120 or 240 VAC 60Hz |
