McDonnell Miller Series 157 In Stock

Manufacturer:
McDonnell Miller
Description:

McDonnell Miller Series 157 Low Water Cut-Off

Features and Benefits

  • For commercial and industrial low or high pressure boiler applications
  • For boilers of any steaming capacity
  • Monel bellows provides corrosion resistance
  • Snap action switches for high temperature service
    • 1 Single pole, single throw switch for pump control
    • 1 Single pole, double throw switch for low water
  • Cut-off and alarm actuation

Optional Features

  • Manual reset
  • 2 Single pole, single throw switches
  • 2 Single pole, double throw switches
  • Float block
  • BSPT threads
  • Maximum pressure 150 psi (10.5 kg/cm2)
  • Model 150S-MD Maximum differential operation – Prevents nuisance burner shutdowns in low pressure applications



Item Name: McDonnell Miller Series 157
Short description: McDonnell Miller Series 157
Lead Time: Most items In Stock ready to ship!
Replacement Heads
Model# Part# Description Weight Price Qty

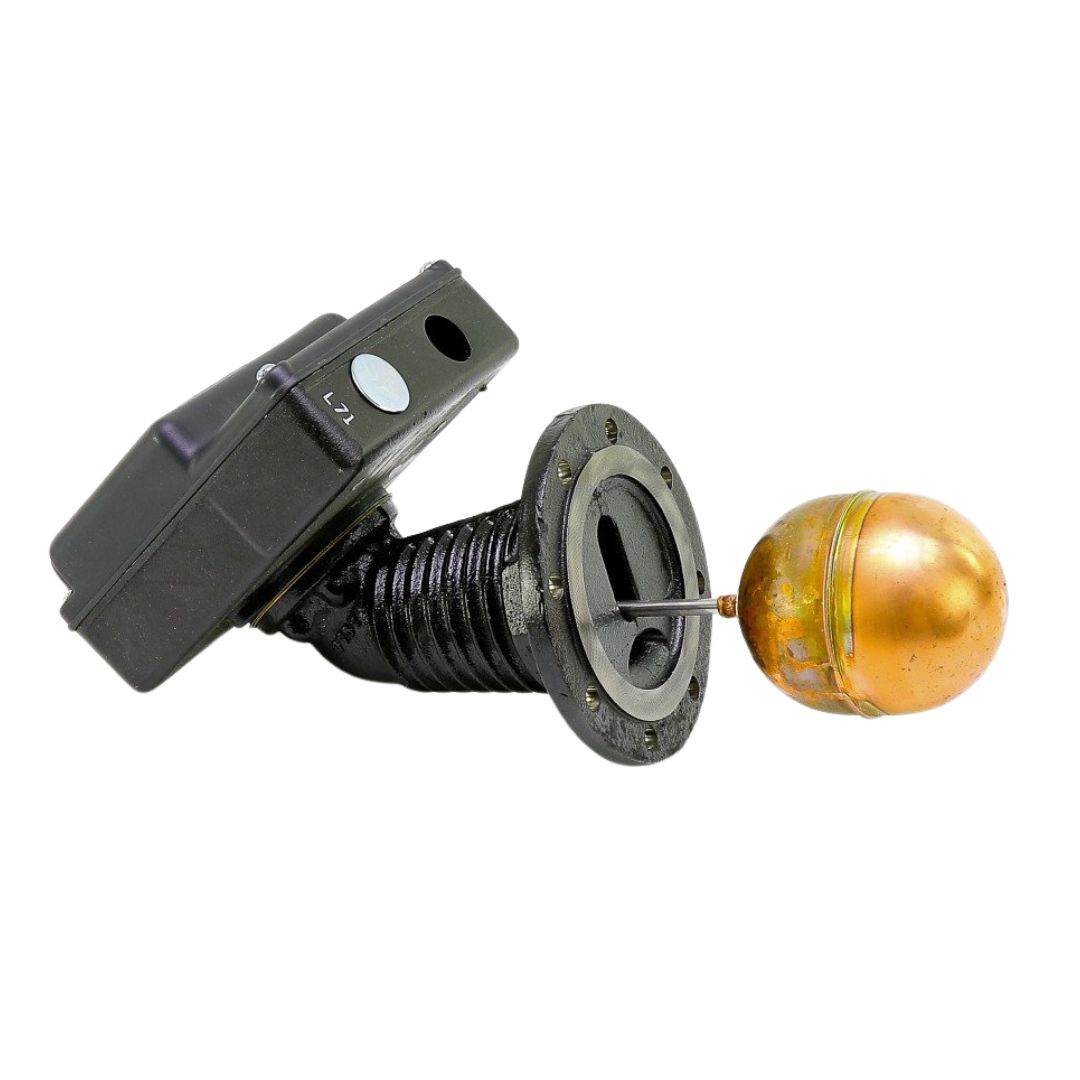

150S-HD 173003 Head Mechanism - Replaces 150-HD and 150E-HD 13.50 $584.60 Add to Cart
150S-M-HD 173203 150S-M-HD w/ manual reset - Replaces 150-M-HD 14.00 $584.60 Add to Cart
150-E-HD 171640 Obsolete - Replace with 150S-HD 14.00 $584.60 Add to Cart
150-E-M-HD 171650 Obsolete - Replace with 150S-M-HD if over 50 psi or 150S-M-MD-HD if less than 50 psi 14.00
Complete McDonnell Miller Units
Model# Part# Description Weight Price Qty

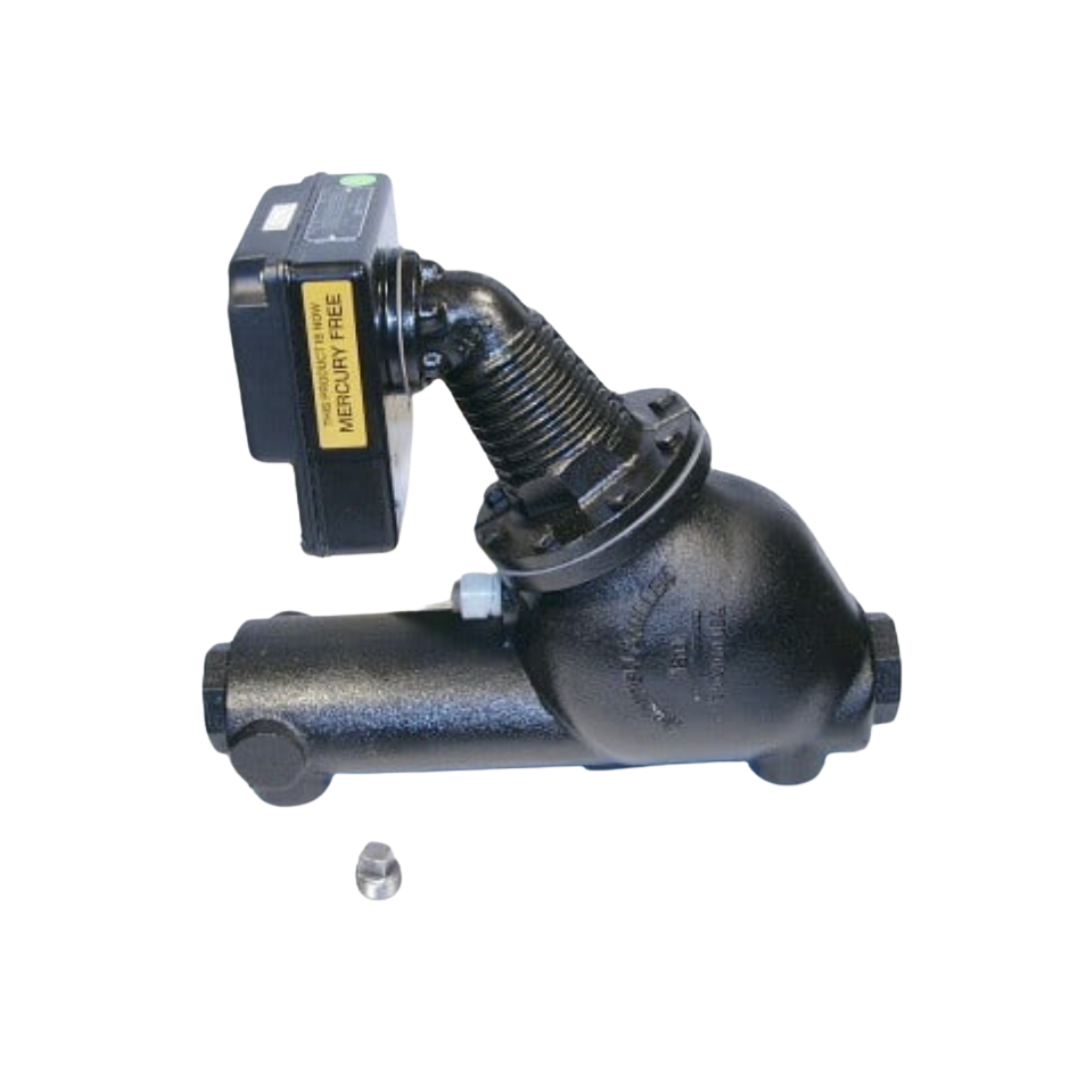

157S 173502 157 Low water cut-off w/ water column 43.00 $840.05 Add to Cart

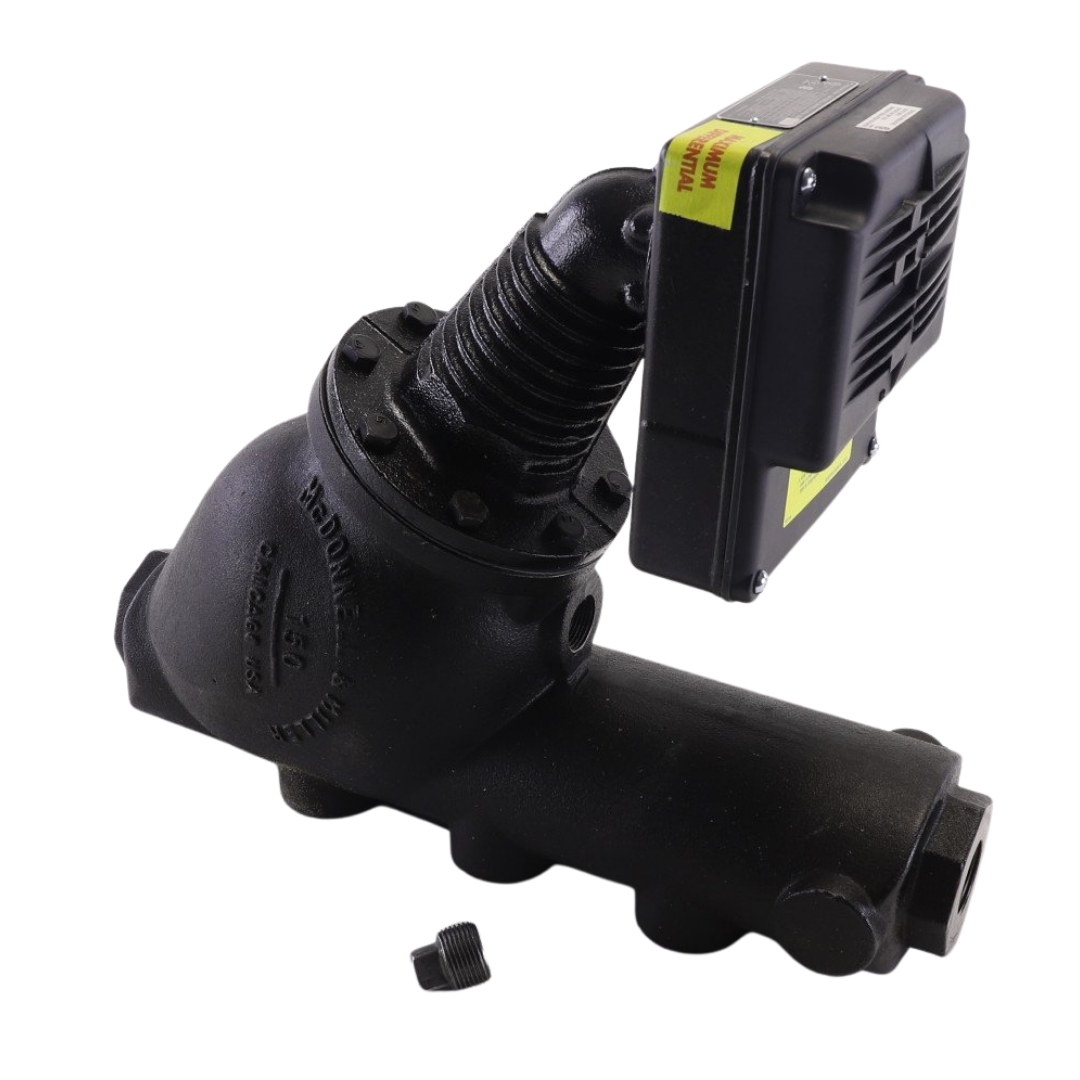

157-MD 173600 157 w/ maximum differential 43.00 $1,082.50 Add to Cart

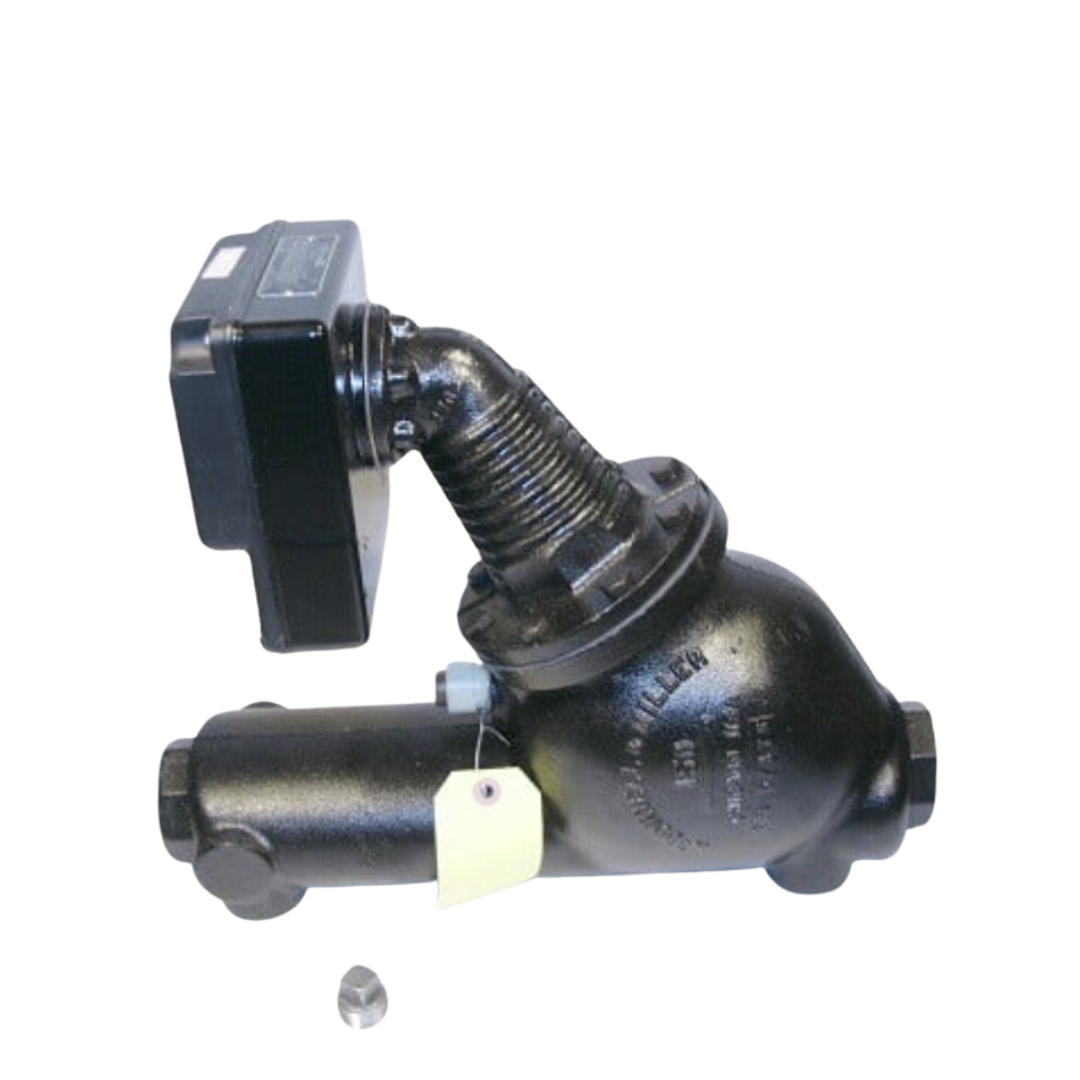

157-A 173700 157 w/ alternate tapping
$Call
43.00
157-A-M 173800 Obsolete - Replace with 157S-AM 43.00

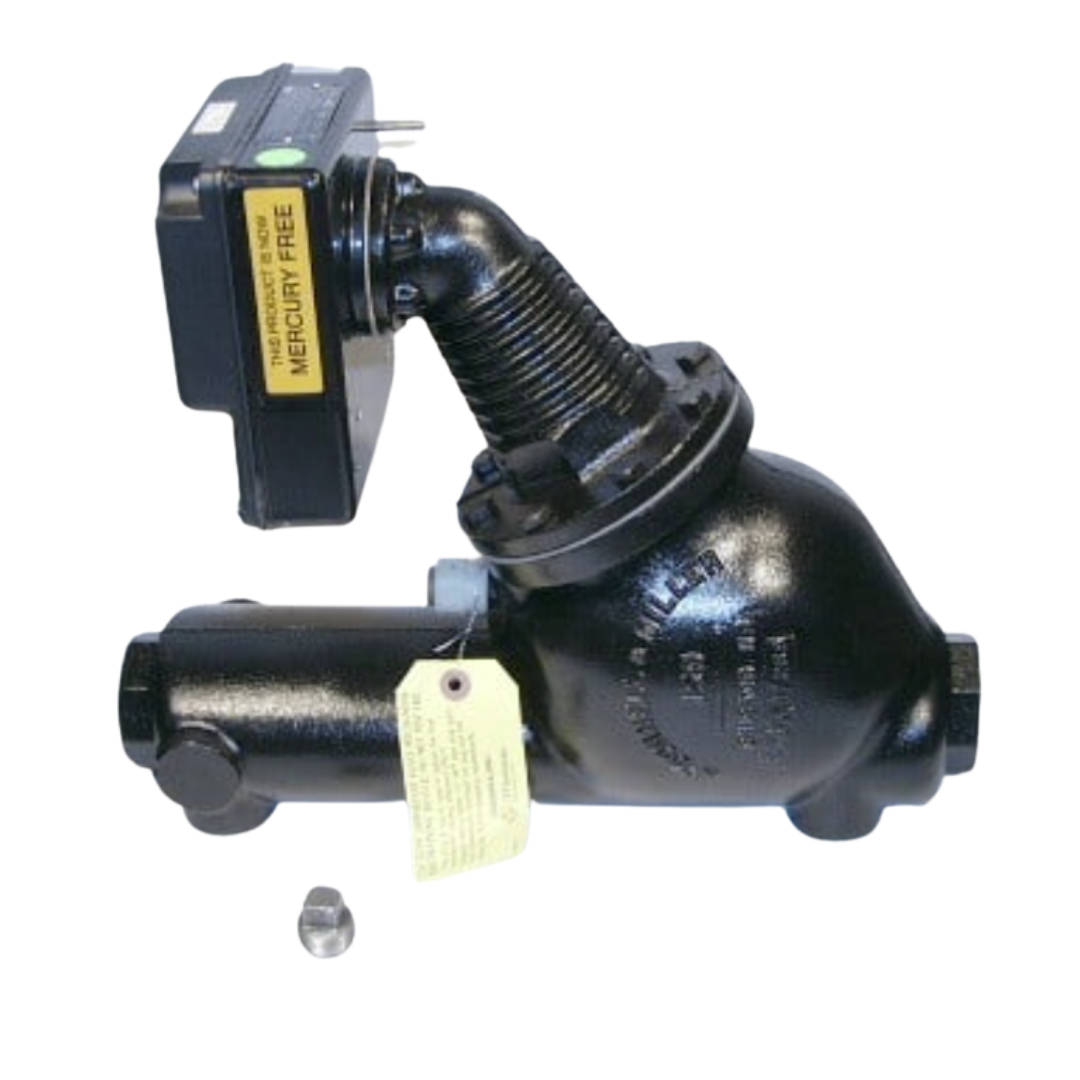

157-M 175400 157-M 157 LWCO W/Manual Reset 43.00 $1,082.50 Add to Cart

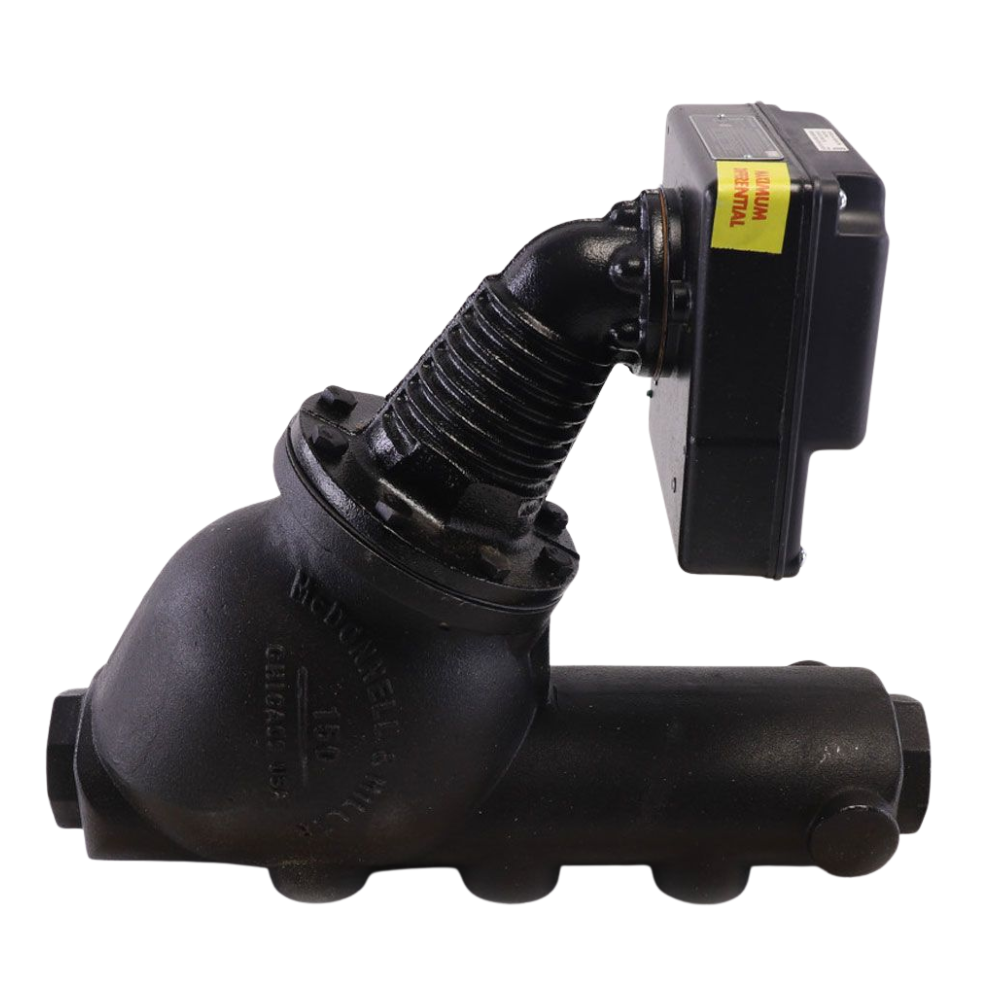

157-M-MD 175410 157-M w/ maximum differential
$Call
43.00
157-R 176200 (Replaced by 176220) 157 w/ alternate tapping 45.00 $956.95 Add to Cart
157-R-M 177300 (Replaced by 172817) 157-R w/ manual reset 45.00 $1,212.40 Add to Cart
157-RBP-MD 176501 Obsolete - Replace with 157S-RBP-MD
$Call
53.00
157-RL 176900 Obsolete - Replace with 157S-RL control w/alternate tapping 45.00
157E-RL-M 171636 157-RL w/ manual reset 45.00 $926.65 Add to Cart
Replacement Parts
Model# Part# Description Weight Price Qty
MCMSWA150S 310462 Snap Switch for 150S,
157S contains both 2 & 3 wire switch
3.00 $229.50 Add to Cart
SA150-125 348300 Mercury Switch, 2 wire (Repalce the Head that has the Snap Type Switch) 3.00
SA150M-124 348200 Switch, 3 wire w/ Manual reset - Obsolete - Replace with 150S-M-HD 3.00
SA150-124 348100 Mercury Switch, 3 wire (Repalce the Head that has the Snap Type Switch) 3.00
SA150-106R 347900 Bellows Assembly 3.00 $168.90 Add to Cart
EA-157-S 354106 Short electrode for 157-RBP 3.00 $151.55 Add to Cart
SA150-11 347600 Float and Rod 3.00 $177.55 Add to Cart
150-14H 325500 Head gasket (for raised face head flange, 8 holes), 6 pack 3.00 $40.00 Add to Cart
EA-157-L 354107 Long electrode for 157-RBP 3.00 $151.55 Add to Cart
PCH-G-A-2 179150 Probe level control (OBSOLETE NO REPLACEMENT) 5.00
SA150M-436 348900 Cover for mercury switch, manual reset only 3.00 $80.55 Add to Cart
SA150-436 326950 Cover for all other models 3.00 $55.45 Add to Cart
Dimensions
Model A B C D E F G H J K L
157 1 1/2 13 3/8 2 5/16 4 15/16 11 3/4 16 11.5 3.5 3/4 5 7/8
157-A 1 1/4 3/4 13 3/8 2 5/16 4 15/16 11 3/4 16 11.5 3.5 3/4 5 7/8
157-R 1 1/2 13 3/8 2 1/4 5 7/8 11 3/4 17 11.5 3.5 3/4 5 7/8
157-RL 1 1/4 1/2 13 9/16 3 1/2 5 7/8 11 3/4 17 12.75 3.5 3/4 5 7/8
Electrical Ratings
Voltage Motor Switch Rating(Amperes) 120 VDC .5 Amp Full Load Motor Switch Rating(Amperes) 120 VDC .5 Amp Locked Rotor Pilot duty
120 VAC 7.4 44.4 125 VA at 120 or 240 VAC
240 VAC 3.7 22.2 125 VA at 120 or 240 VAC
