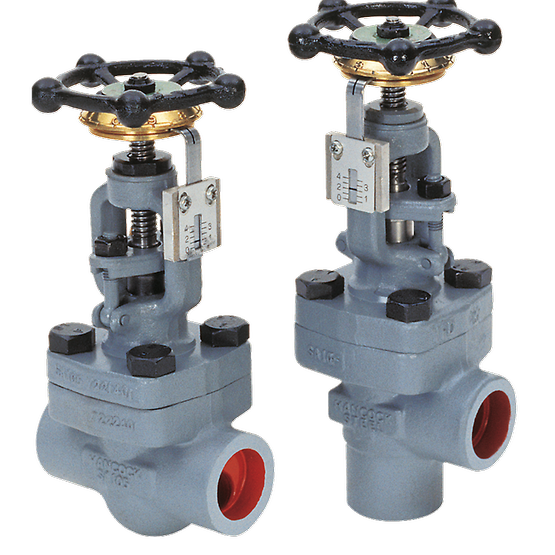

Hancock Type 5525/5535 Flow Control Continuous Blowdown Valves In Stock

Manufacturer:
Hancock
Description:

Flow control valves combination valve and flow control instrument with special micrometer and pointer to set valve within 1/100 of a handwheel turn.

  • Features: Available in class 800 ANSI pressure classes, threaded (FNPT), and socket weld
  • Micrometer dial indicator is standard equipment to ensure accurate repeatable control settings
  • Valves are available with quadruple V-Port discs to ensure optimum controllability and flow
  • All internal surfaces are accurately machined to provide maximum performance
  • Renewable seat rings made from hardened stainless steel and faced with Stellite
  • The disc is hardened, ground and lapped for accurate, leak free sealing
  • Standard material is carbon steel body (ASME SA105) with 13% chrome stainless steel trim
  • GRAFOIL packing is standard
  • Code compliance with ASME/ANSI B16.34 and the ASME Boiler and Pressure Vessel Code, Section I

 General Applications: - Boilers, compressors, steam condensers, pumps, steam lines, feed water regulator bypass vents, liquid level control piping, flash tanks, soot blower connections, turbine generators, Dowtherm, instrumentation, gauge shut-off.



Short description: Hancock Blowdown Valve
Lead Time: Expedite Available From Factory . Normal Shipment 3 to 5 Days
Type "S" Threaded
Part # Size 4 V-Port Description Weight
5525S 1/2" 1.00 Type "S" Threaded
(Globe Body)
5 Add to RFQ
5535S 1/2" 1.00 Type "S" Threaded
(Angle Body)
5 Add to RFQ
5525S 3/4" 2.00 Type "S" Threaded
(Globe Body)
5-1/4 Add to RFQ
5535S 3/4" 2.00 Type "S" Threaded
(Angle Body)
5-1/4 Add to RFQ
5525S 1" 4.00 Type "S" Threaded
(Globe Body)
8-1/2 Add to RFQ
5535S 1" 4.00 Type "S" Threaded
(Angle Body)
8-1/2 Add to RFQ
5525S 1-1/2" 10.40 Type "S" Threaded
(Globe Body)
17-1/2 Add to RFQ
5535S 1-1/2" 10.40 Type "S" Threaded
(Angle Body)
17-1/2 Add to RFQ
5525S 2" 14.00 Type "S" Threaded
(Globe Body)
27 Add to RFQ
5535S 2" 14.00 Type "S" Threaded
(Angle Body)
27 Add to RFQ
Type "W" Socket Weld
Part # Size 4 V-Port Description Weight
5525W 1/2" 1.00 Type "W" Socket Weld
(Globe Body)
5 Add to RFQ
5535W 1/2" 1.00 Type "W" Socket Weld
(Angle Body)
5 Add to RFQ
5525W 3/4" 2.00 Type "W" Socket Weld
(Globe Body)
5-1/4 Add to RFQ
5535W 3/4" 2.00 Type "W" Socket Weld
(Angle Body)
5-1/4 Add to RFQ
5525W 1" 4.00 Type "W" Socket Weld
(Globe Body)
8-1/2 Add to RFQ
5535W 1" 4.00 Type "W" Socket Weld
(Angle Body)
8-1/2 Add to RFQ
5525W 1-1/2" 10.40 Type "W" Socket Weld
(Globe Body)
17-1/2 Add to RFQ
5535W 1-1/2" 10.40 Type "W" Socket Weld
(Angle Body)
17-1/2 Add to RFQ
5525W 2" 14.00 Type "W" Socket Weld
(Globe Body)
27 Add to RFQ
5535W 2" 14.00 Type "W" Socket Weld
(Angle Body)
27 Add to RFQ
