Everlasting Slow Opening Valves 250 lb. In Stock

Manufacturer:
Everlasting
Description:

CLICK ON LINK BELOW FOR MORE EVERLASTING VALVES!

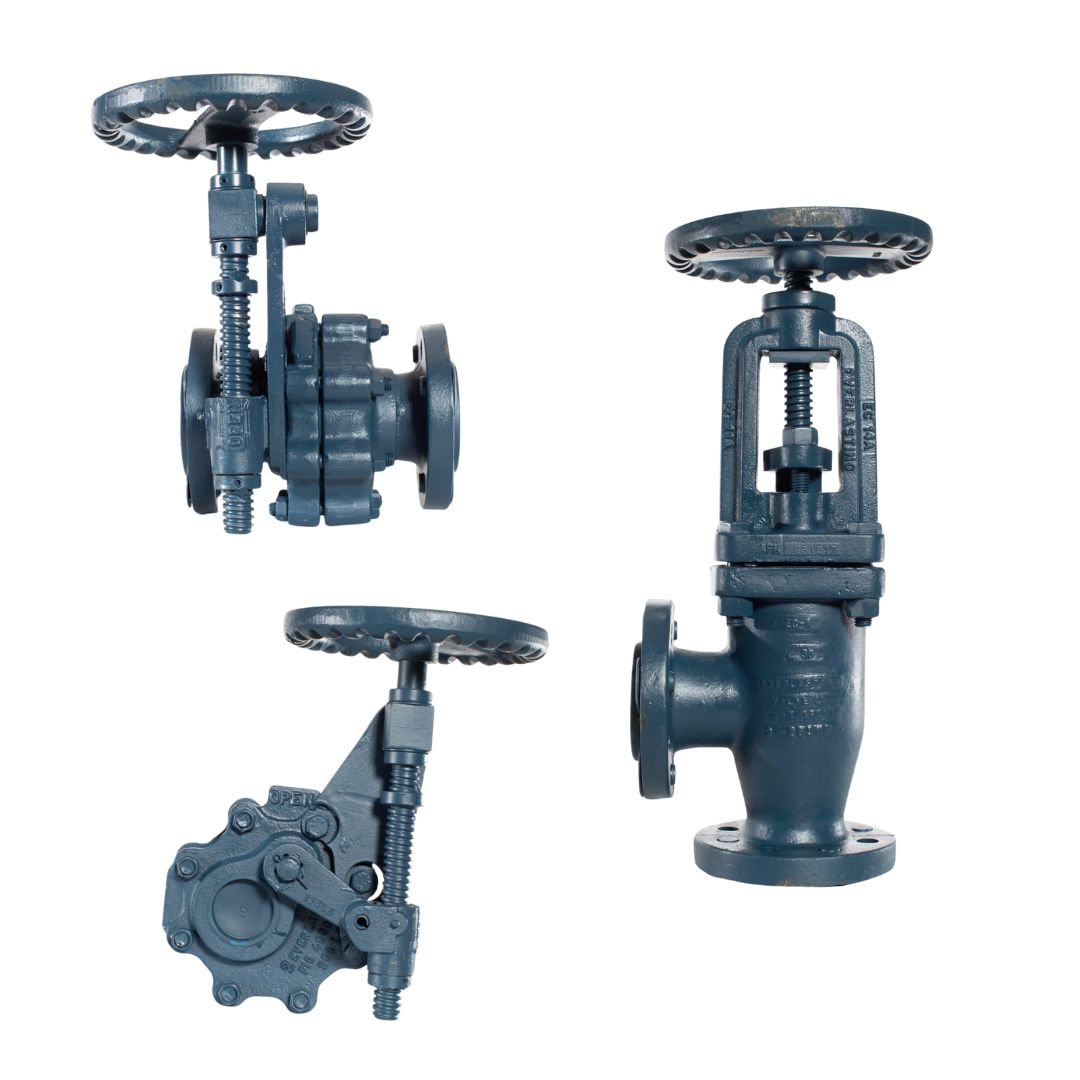

Everlasting Valves were developed for steam boiler blow down nearly 100 years ago for abrasive solids. The packaged steam boiler industry has standardized on the everlasting valve rotating flat disc boiler blow off valve. This boiler blow down valve is available in quick opening, slow opening straight and angle configurations. They are manual on-off valves that effectively blow down sludge formed in steam boilers.



The 4060 & 6561 Series valves are ISO 9001 Certified handwheel Operated Blowdown Valve that has a Straight-through flow design freaturing leak proof seal and disc that has self lapping & self wiping action that will not hang up on Boiler scale.



Boiler Blow Down Valves are based on ASME boiler and pressure vessel section 1 codes and ANSI B16.31 power piping codes. Application include steam boiler blow down, surface blow down, water column drain, and shut-off, and stop valves.

Item Name: Everlasting Figure 4060-A
Description:

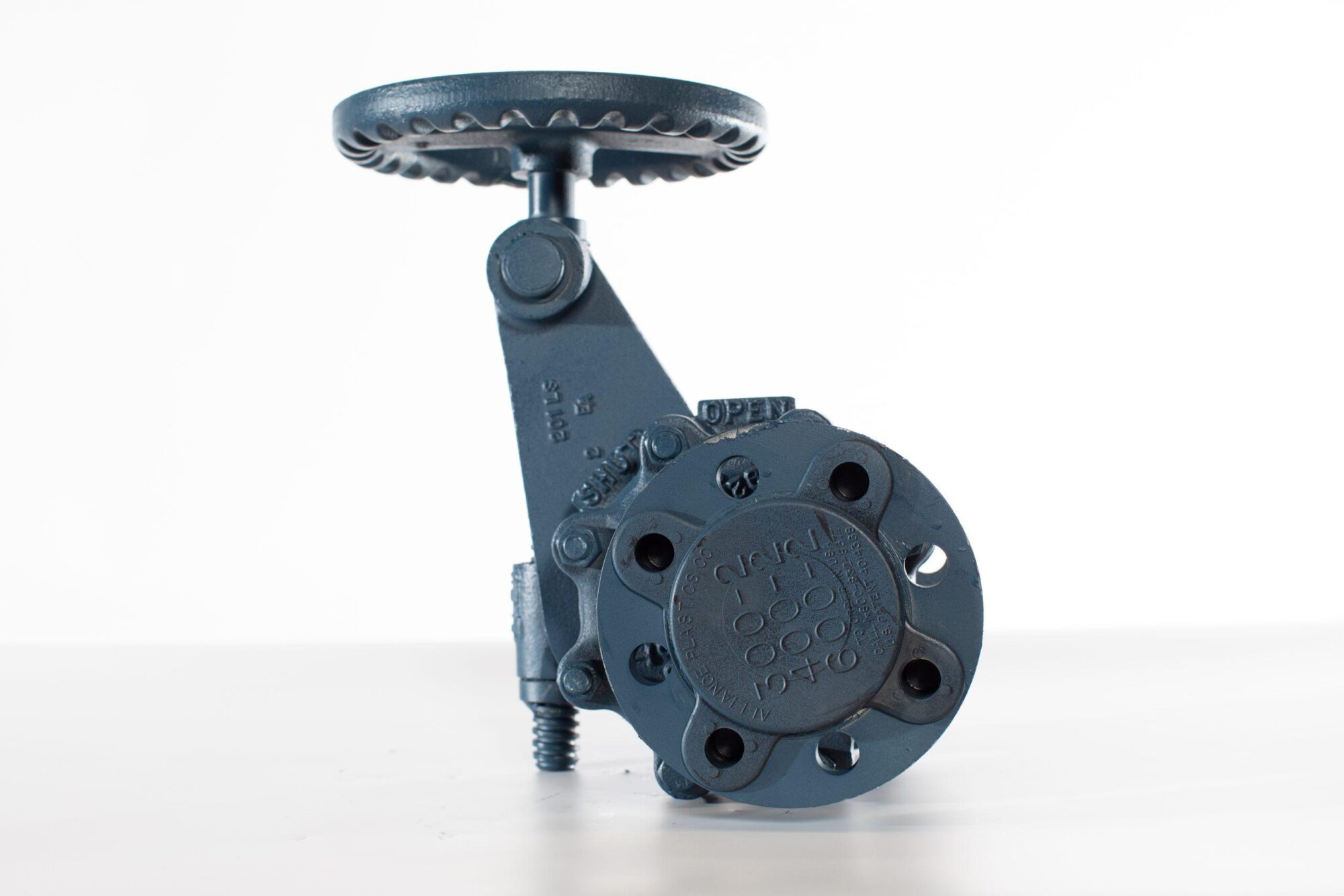

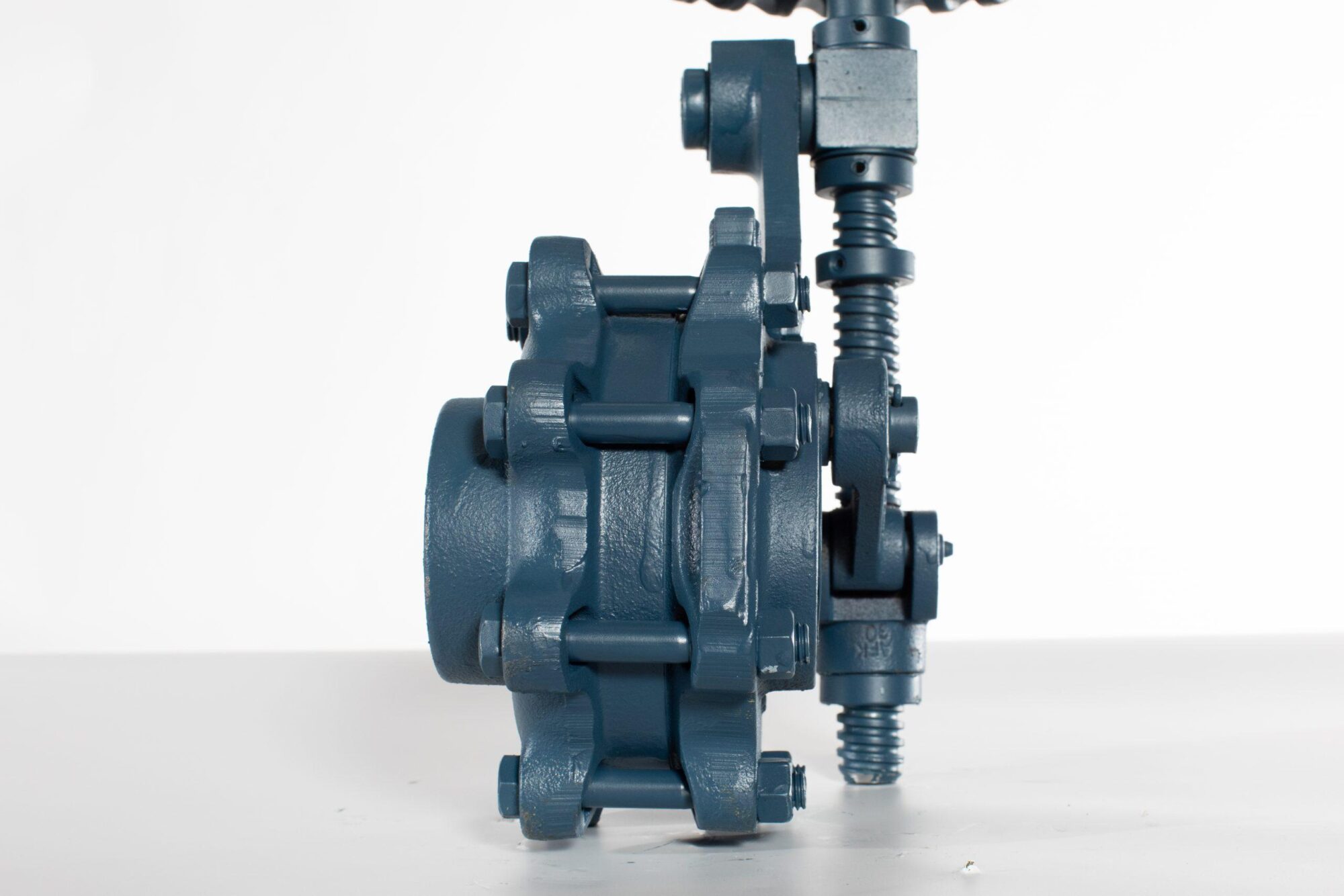

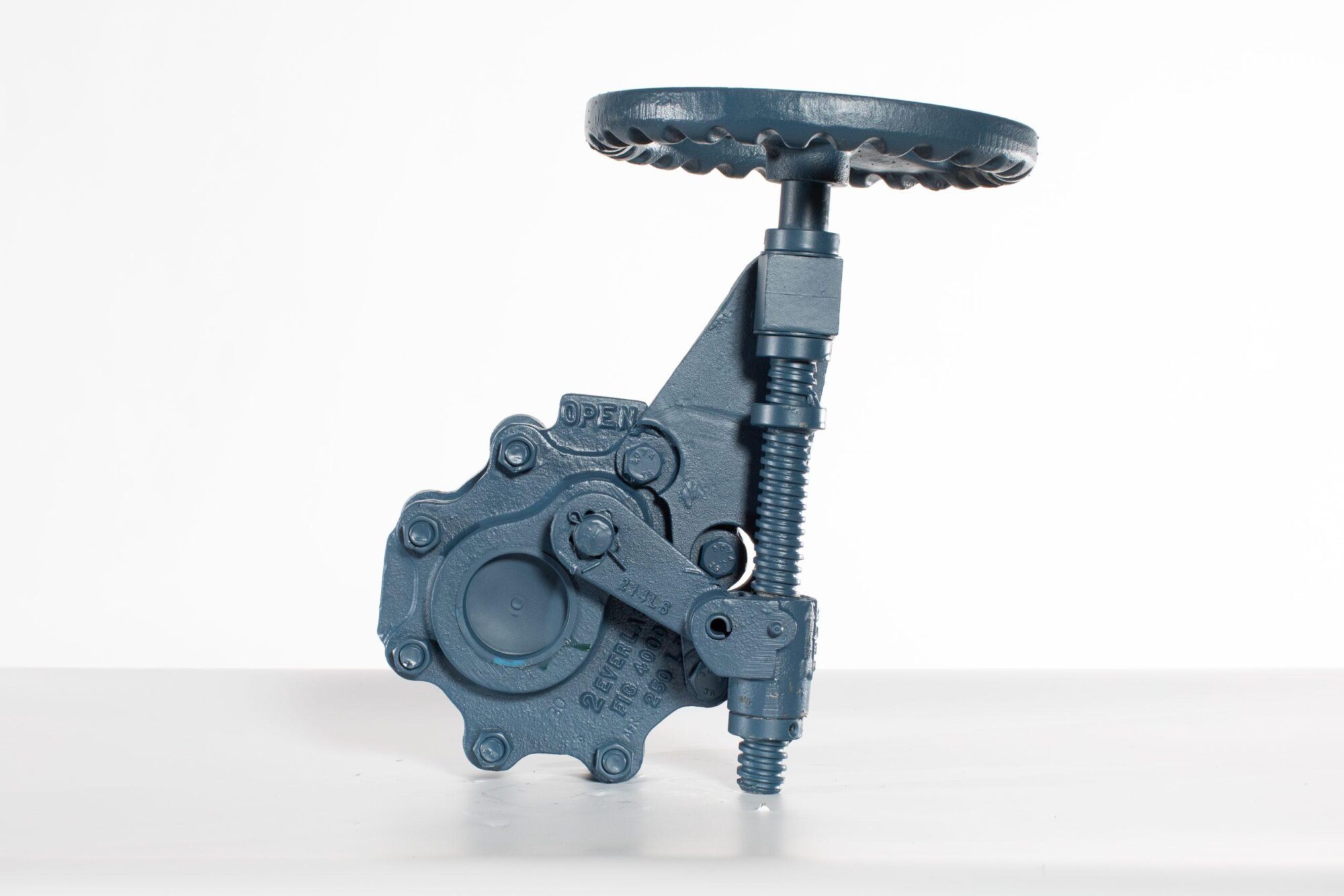

Fig. # 4060-A Iron Body, Screw End, Wheel Operated.

Everlasting Valves were developed for steam boiler blow down nearly 100 years ago for abrasive solids. The packaged steam boiler industry has standardized on the everlasting valve rotating flat disc boiler blow off valve. This boiler blow down valve is available in quick opening, slow opening straight and angle configurations. They are manual on-off valves that effectively blow down sludge formed in steam boilers.

Lead Time: Typical delivery 3-5 days. Expedite options available for NEXT DAY AIR Shipments Only.
Specifications
A.S.A. Valve Class Max. Blow-Off Pressure A.S.M.E. Code Size Weight, lbs. F H J N S W Price
250 lb. 200 psi 1" 27 3-5/8 8 13 9 5 9 $1,123.15 Add to RFQ
250 lb. 200 psi 1 1/4" 28 3-5/8 8 13 9-1/2 5 9 $1,207.45 Add to RFQ
250 lb. 200 psi 1 1/2" 38 4-1/2 10 14 12 5-1/2 9 $1,295.03 Add to RFQ
250 lb. 200 psi 2" 42 4-5/8 10-1/2 14 12-1/2 5-1/2 9 $1,540.24 Add to RFQ
250 lb. 200 psi 2 1/2" 61 5-1/4 10-1/2 15-1/2 13-1/2 5-1/2 12 $2,027.38 Add to RFQ
Item Name: Everlasting Figure 4061-A
Description:

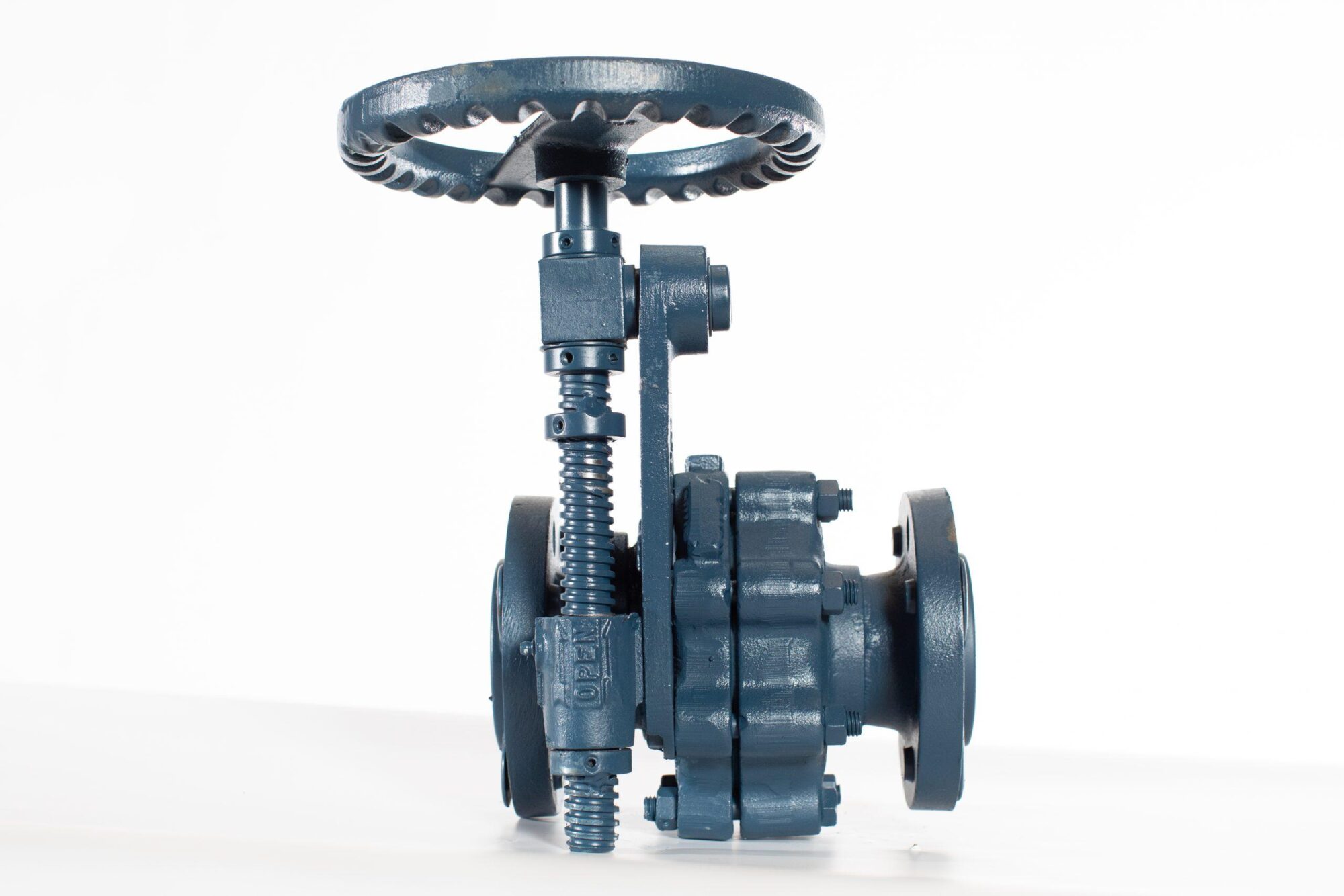

Fig. # 4061-A Iron Body, Flanged, Straight Wheel Operated.

Everlasting Valves were developed for steam boiler blow down nearly 100 years ago for abrasive solids. The packaged steam boiler industry has standardized on the everlasting valve rotating flat disc boiler blow off valve. This boiler blow down valve is available in quick opening, slow opening straight and angle configurations. They are manual on-off valves that effectively blow down sludge formed in steam boilers.

Lead Time: Typical delivery 3-5 days. Expedite options available for NEXT DAY AIR Shipments Only.
Everlasting Figure 4061-A
A.S.A. Valve Class Max. Blow-Off Pressure A.S.M.E. Code Size Weight, lbs. B H J N S W Price
250 lb. 200 psi 1 1/2" 48 8-3/8 10 14 12 5-1/2 9 $1,532.59 Add to RFQ
250 lb. 200 psi 2" 57 9 10-1/2 14 12-1/2 5-1/2 9 $1,704.44 Add to RFQ
250 lb. 200 psi 2 1/2" 86 10-3/8 10-1/2 15-1/2 13-1/2 5-1/2 12 $2,230.99 Add to RFQ

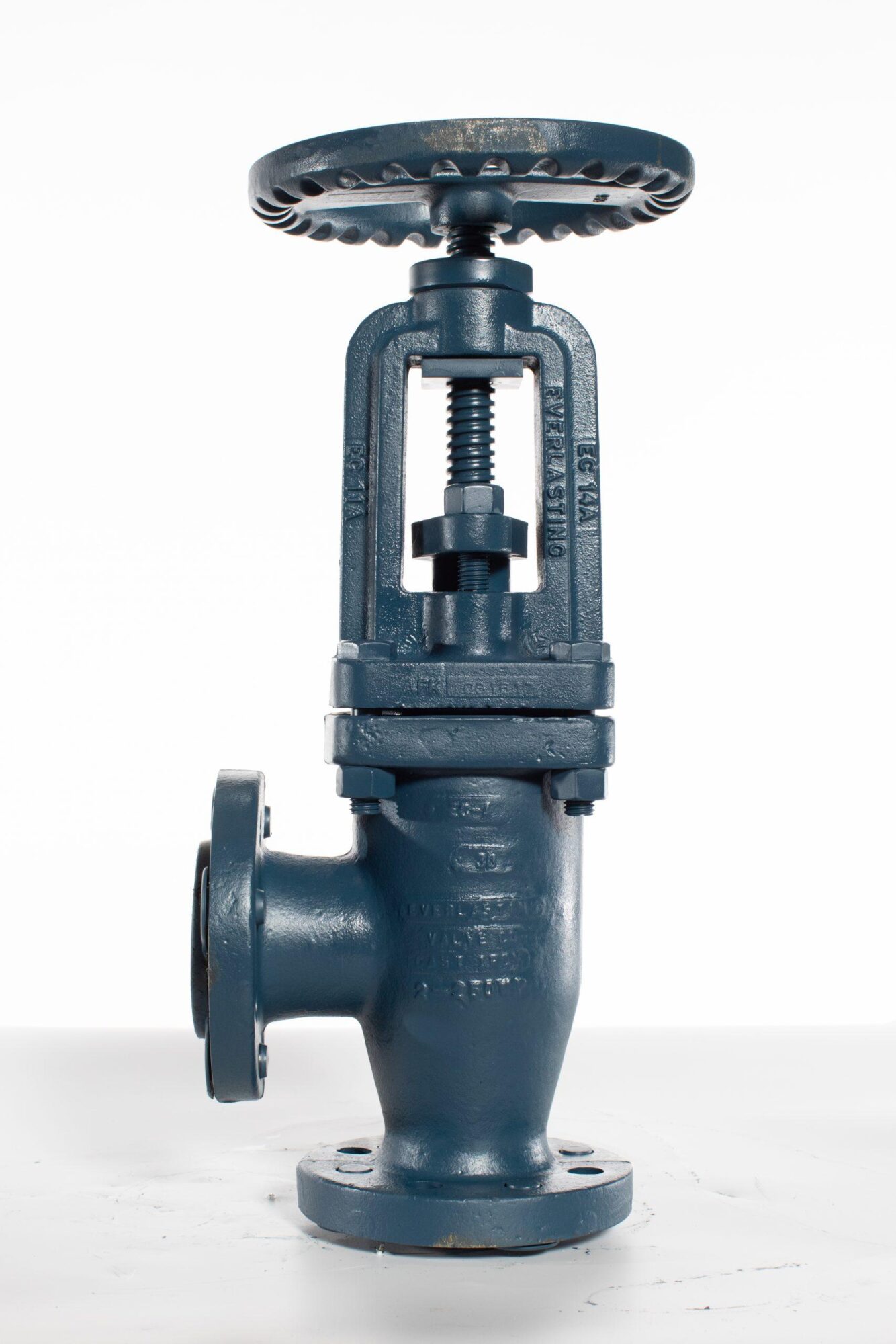

Item Name: Everlasting Figure B6561
Description:

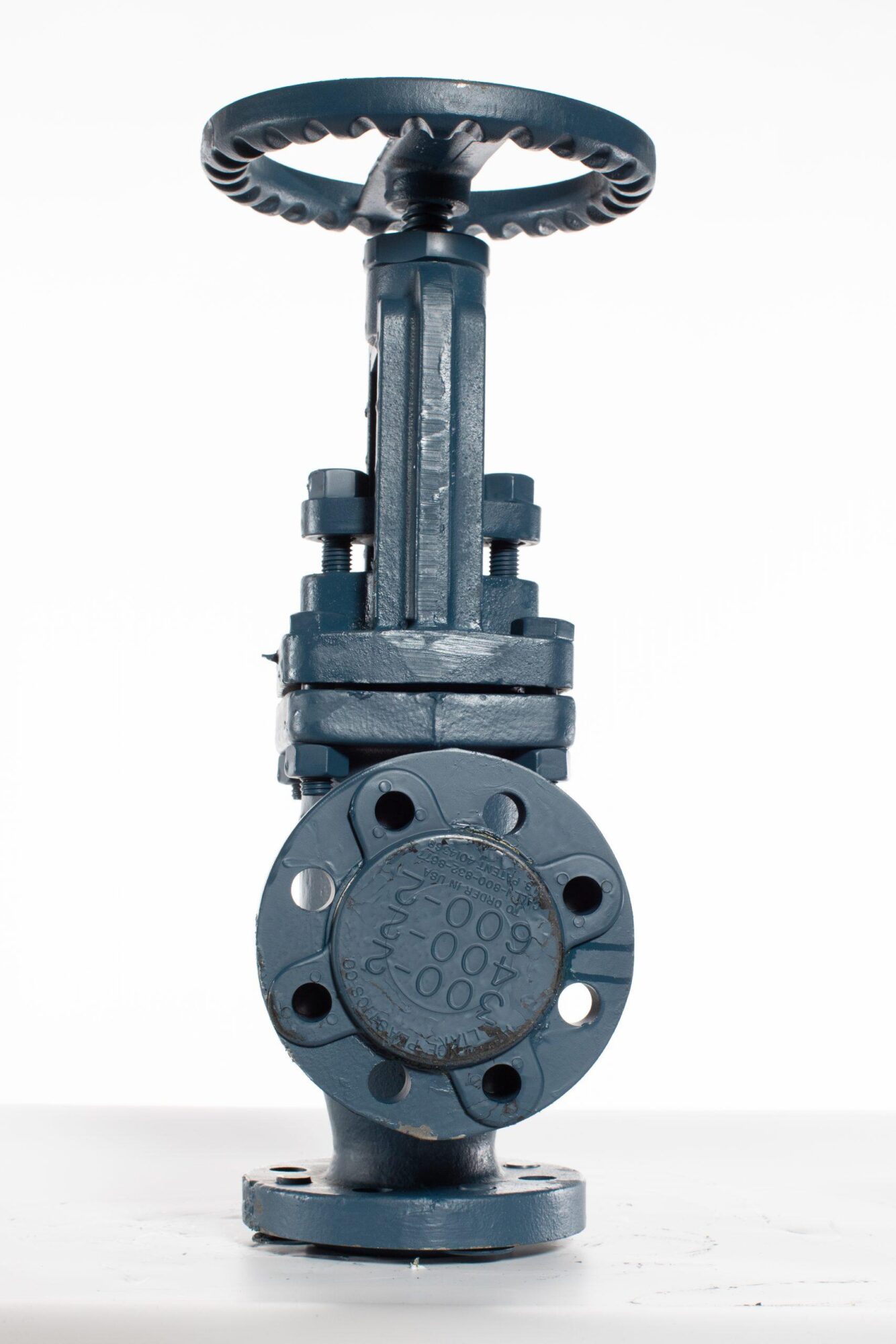

Fig # B6561 - Angle Fig # B6571 - Stwy "Y" Iron Body, Flanged, F & D 250 lbs.

Lead Time: Typical delivery 3-5 days. Expedite options available for NEXT DAY AIR Shipments Only.
Everlasting Figure B6561
A.S.A. Valve Class Max. Blow-Off Pressure A.S.M.E. Code Size Weight, lbs. E G H- Shut H- Open Price
250 lb. 200 psi 1 1/2" 75 4-1/4 5 14 1/2 16-1/2 $1,717.58 Add to RFQ
250 lb. 200 psi 2" 80 5 5-1/2 15 3/8 17 7/8 $1,945.28 Add to RFQ
250 lb. 200 psi 2 1/2" 95 6 5-3/4 16-3/8 19-3/8 $2,565.97 Add to RFQ

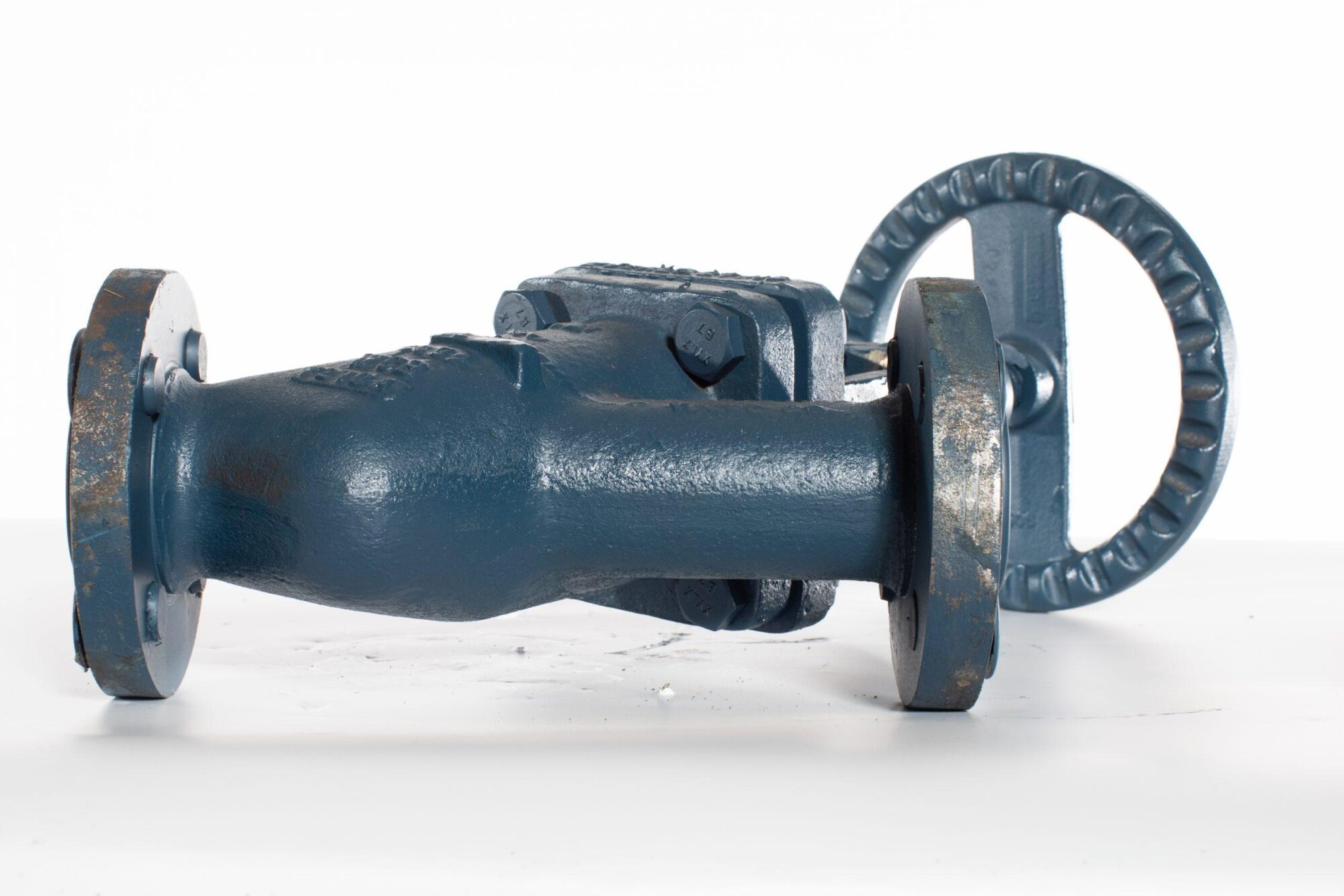

Item Name: Everlasting Figure B6571
Description:

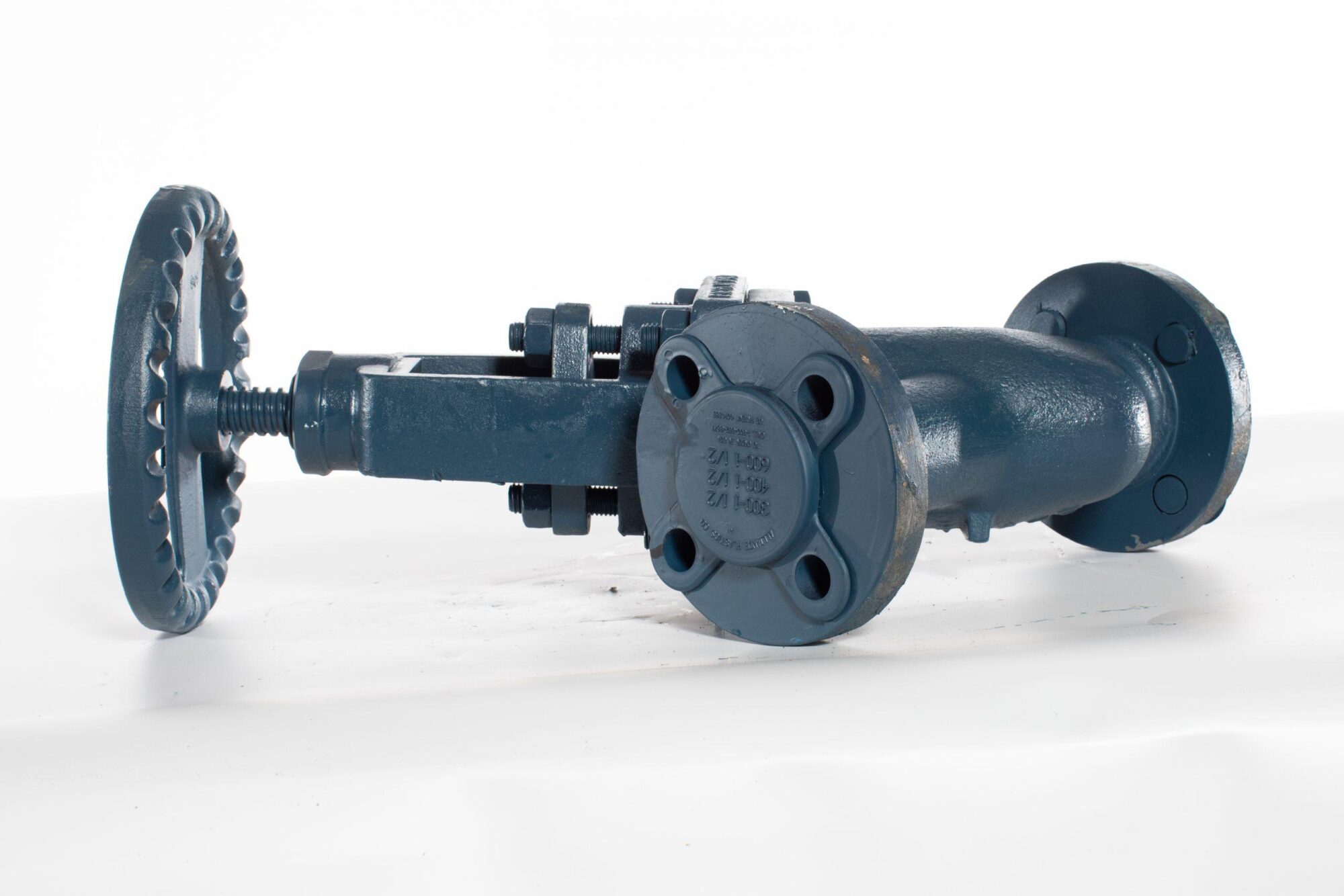

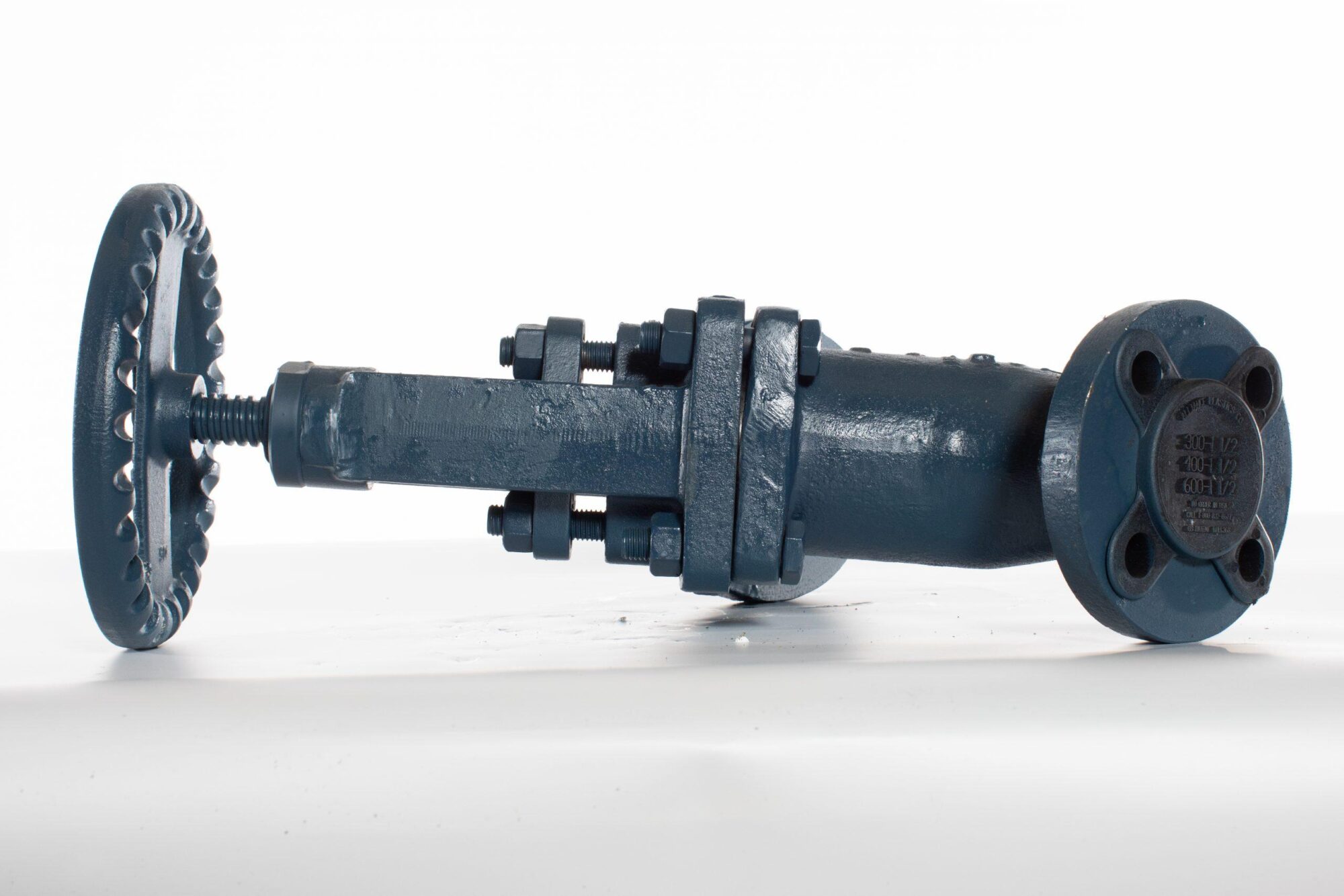

Fig # B6561 - Angle Fig # B6571 - Stwy "Y" Iron Body, Flanged, F & D 250 lbs.

Lead Time: Typical delivery 3-5 days. Expedite options available for NEXT DAY AIR Shipments Only.
Everlasting Figure B6571
A.S.A. Valve Class Max. Blow-Off Pressure A.S.M.E. Code Size Weight, lbs. B H- Open X- Open Price
250 lb. 200 psi 1 1/2" 75 12-1/4 15-3/4 6-5/8 $1,717.58 Add to RFQ
250 lb. 200 psi 2" 80 12-3/4 17-1/4 7-3/8 $1,945.28 Add to RFQ
250 lb. 200 psi 2 1/2" 95 14-1/4 18-1/2 7-5/8 $2,565.97 Add to RFQ
