Airflow Condensate Return Units in Stock | Boiler Supplies
Additional Information

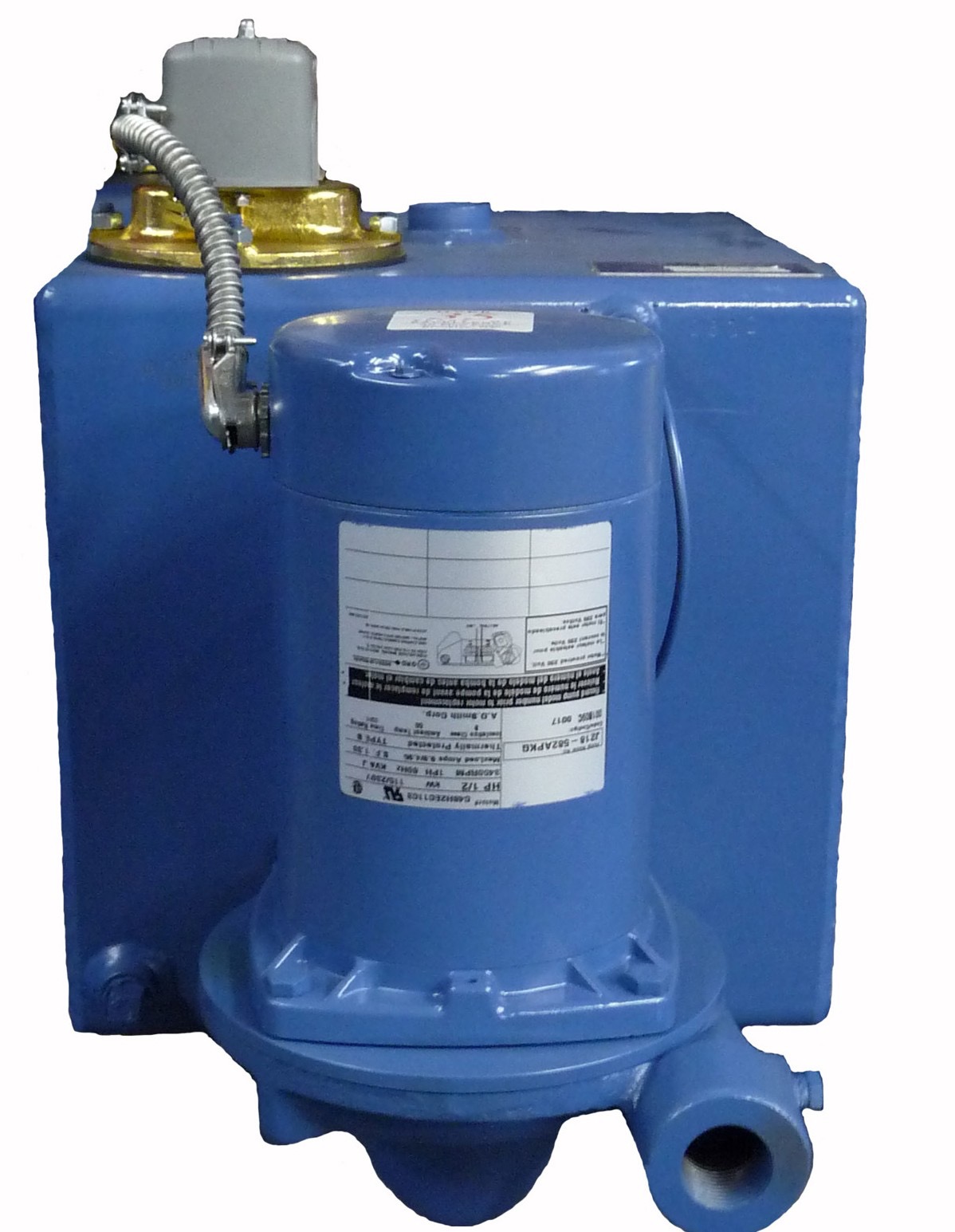

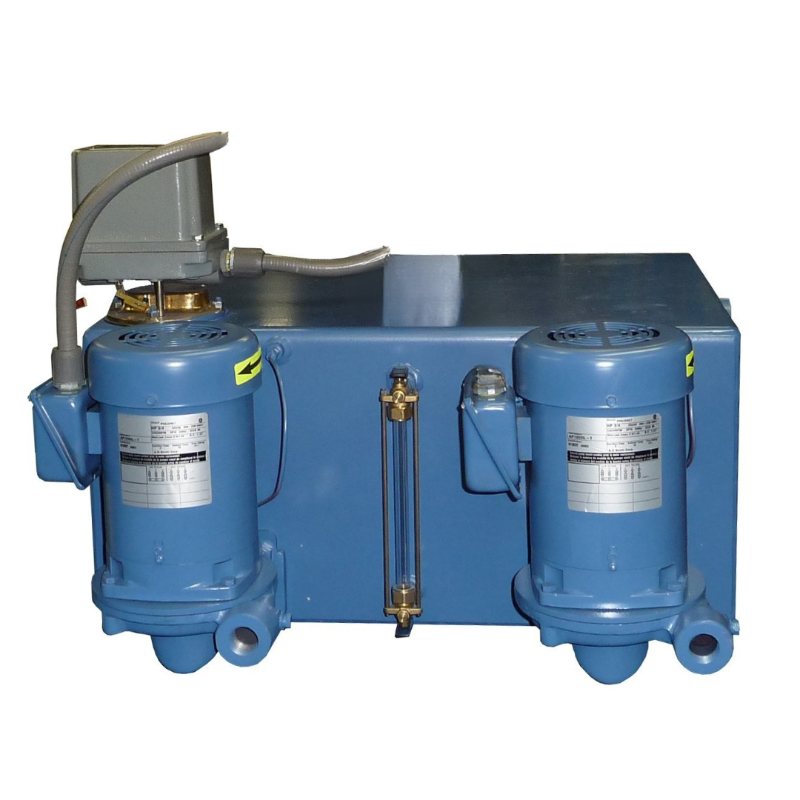

Avaiable in small Economical units from 10 Gallon Tanks up to 500 Gallon units are good for temperatures up to 210ºF made of 1/4" welded corten steel (copper bearing) receivers coated and painted. - Stainless steel receivers available on all models as options. - Two intake ports on each receivers to simplify installation. - Heavy duty open drip proof motors with canopy, designed and engineered for continuous duty, ball bearings pre lubricated for maintenance free operated, shaft is threaded stainless steel, capacitor start, induction run, built in thermal overload protection, separate enclosed room for switching components. - Maximum Limits : Working pressure (1/2 H.P. thru 2 1/2 H.P.) 100 psi Liquid temperatures 250 degrees F. - 1/2 HP - 2-1/2 HP available. - Single or three phase pump. - TEFC and ODP Motors available. - Starter Available. - Up to 2-1/2 HP models available, call for details on higher HP models.

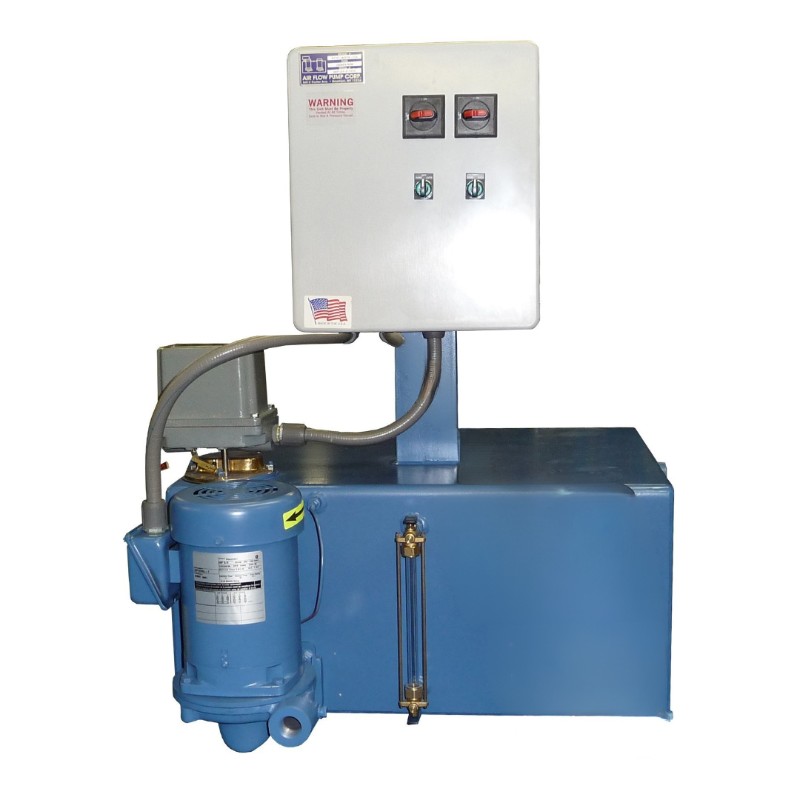

Units are floor-mounted style and designed for up to 20,000 square foot EDR and discharge pressures up to 40 psig. Units are available in either simplex or duplex configurations with many other options including gauge glass, thermometer, control panel; motors are 3500 RPM, single or three phase. Pumps typically equipped with industry standard motors . Higher temperature seals are available upon request.
Here at Boilersupplies.com every boiler feed & condensate system we offer has passed rigorous tests to meet the highest standards in the industry, ensuring that they are second to none. Approximately 95% of our boiler feed systems are available for shipping within 24 hours for your convenience. Our tanks are constructed from ¼" & ½" thick Corten Steel or Stainless steel to withstand any task. Our pumps are comprised of US Motors, ODP motors are standard with TEFC available, John Crane seals and silicon brass impellers. We use Square D components in our control panels and for the float switches to provide consistently reliable service. We have a wide range of sizes for boiler feed pump systems. Our smallest is a 20 gallon feed water system and our largest is a 1000 gallon feed water system. Because of our exceptional assembly system, we are the only manufacturer capable of pre-assembling a boiler feed pump tank before shipping. Be sure to check out each of our boiler feed pump systems to see their blueprint, performance charts and more.
All of our Boiler feed units are expertly crafted to meet the customer's specifications. We also Sta-Rite and Berkeley pumps. If you have any questions about our products, we'd love to hear from you. Our staff has over 25 years of experience in the pump industry and would be more than happy to assist you regarding our selection of boiler feed, condensate systems and water boosters. If your needs require a custom solution, we'd be happy to build a system to your specifications.
As well as our Condensate Return System lines have passed rigorous tests to meet premier standards in the industry, and are second to none. 95% of our Condensate Systems ship within 24 hours.Our Manufacture Air Flow Pump constructs there tanks from .25in and .5in thick Hot Rolled Steel and (stainless steel also available). Whether you need a durable pump for boiler feedwater delivery, water boosting pumps, or a dependable condensate system- we provide for all your needs.
