40 Gallon Boiler Condensate Return Pumps :
Avaiable in small Economical units from 10 Gallon Tanks up to 500 Gallon units are good for temperatures up to 210ºF made of 1/4" welded corten steel (copper bearing) receivers coated and painted. - Stainless steel receivers available on all models as options. - Two intake ports on each receivers to simplify installation. - Heavy duty open drip proof motors with canopy, designed and engineered for continuous duty, ball bearings pre lubricated for maintenance free operated, shaft is threaded stainless steel, capacitor start, induction run, built in thermal overload protection, separate enclosed room for switching components. - Maximum Limits : Working pressure (1/2 H.P. thru 2 1/2 H.P.) 100 psi Liquid temperatures 250 degrees F. - 1/2 HP - 2-1/2 HP available. - Single or three phase pump. - TEFC and ODP Motors available. - Starter Available. - Up to 2-1/2 HP models available, call for details on higher HP models.
Units are floor-mounted style and designed for up to 20,000 square foot EDR and discharge pressures up to 40 psig. Units are available in either simplex or duplex configurations with many other options including gauge glass, thermometer, control panel; motors are 3500 RPM, single or three phase. Pumps typically equipped with industry standard motors . Higher temperature seals are available upon request.

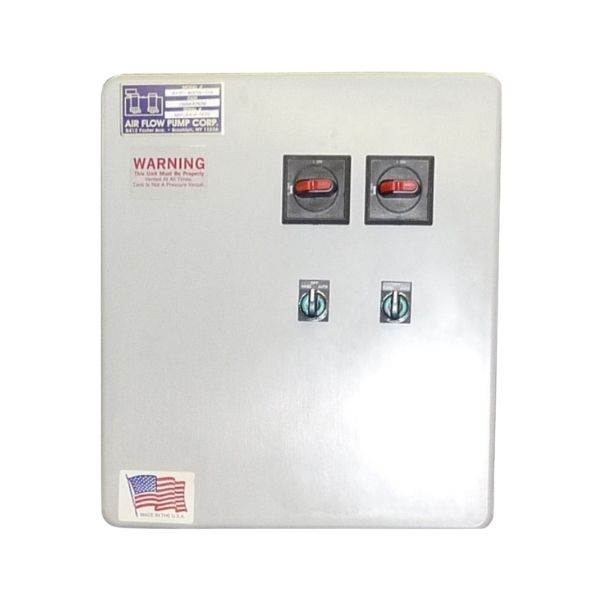

Features: - Isolation valves situated between the pump and receiver - Simplex or Duplex custom control panel available - Single phase and three phase pumps available - Simplex and duplex pump setup - TEFC and ODP Motors available - Liquid Level gauge glass assembly - Thermometer Control Panel: - Simplex Panels . Square D NEMA rated starter . Hand Off Auto Switch . Overload and Single Phase Protection . Optional Fused Disconnect - Duplex Control Panel . Duplex Square D NEMA rated starters . Hand Off Auto Switch . Overload and Single Phase Protection . Optional Fused disconnects . Optional electronic alternation . Optional pilot running lights - Duplex Boiler Feed Panel . Duplex Square D NEMA rated starter . Hand Off Auto Switches . Pilot Running Lights . Fusible Disconnects . Terminal Strip . 110 V Power Source for Solenoid valve . Optional electronic alternation
Part # | Type |
Rec. Capacity |
Discharge Size, in. |
Motor Power |
GPM - Discharge PSI (Ft. Hd.) |
Optional Control Panel |
||
---|---|---|---|---|---|---|---|---|
|

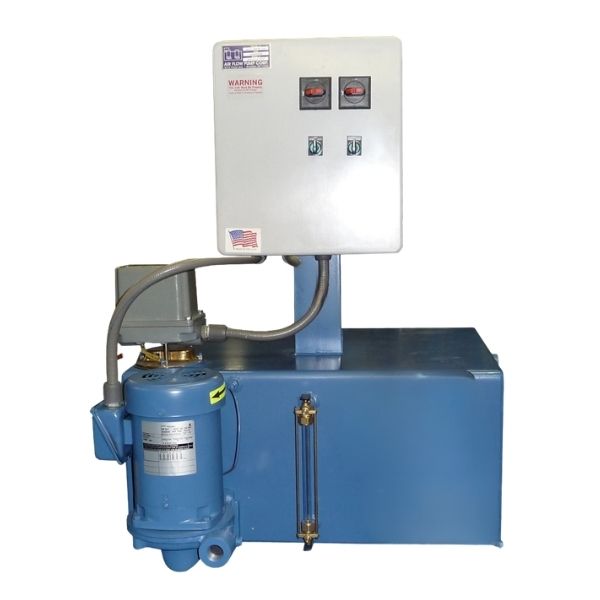

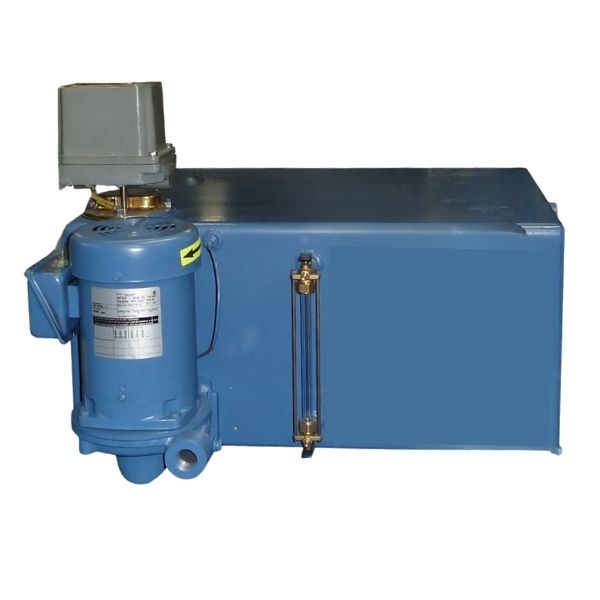

AFP-40S-C | Simplex | 40 gal | 1 | 1/2 hp |
35 gpm - 10 PSI (23.1 Ft. Hd.) 28 gpm - 20 PSI (46.2 Ft. Hd.) 15 gpm - 30 PSI (69.3 Ft. Hd.) |
Duplex Boiler Feed Panel Duplex Control Panel Simplex Panels |
Add to RFQ Dimensional Chart |
|

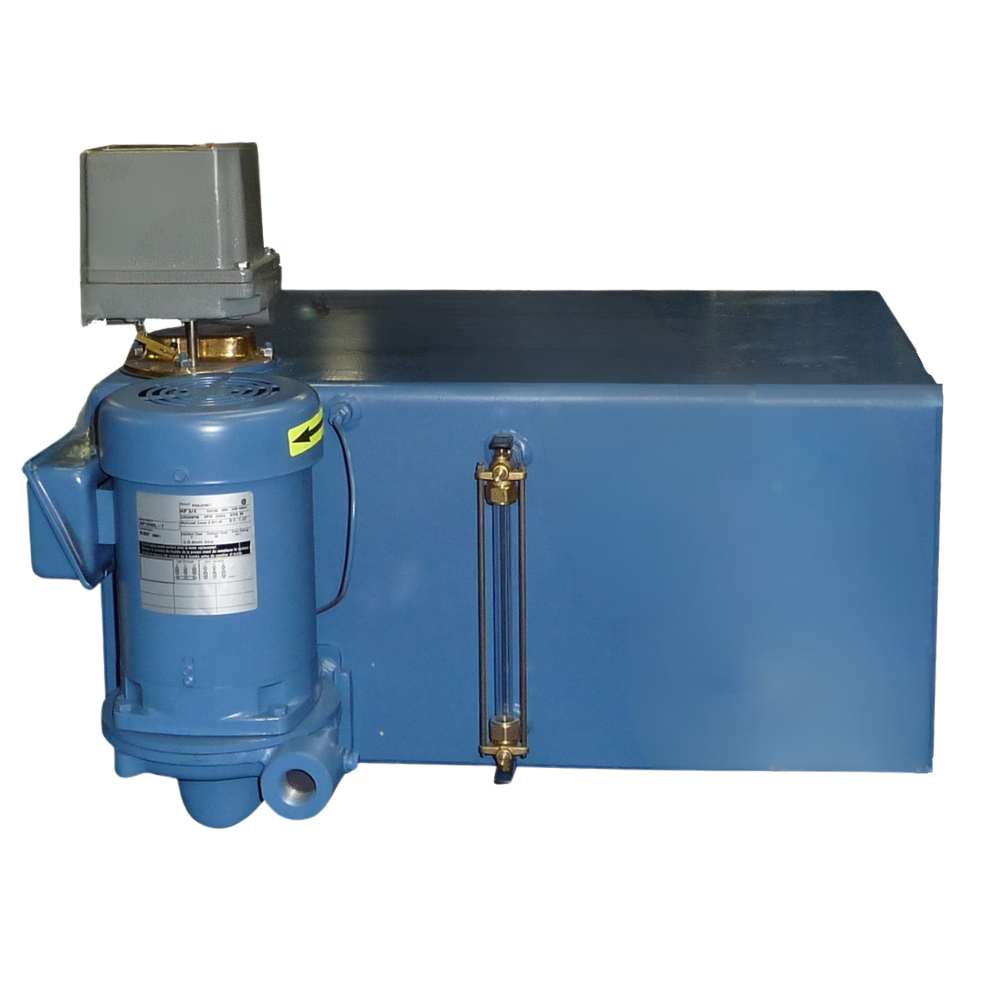

AFP-40S-D | Simplex | 40 gal | 1 | 3/4 hp |
54 gpm - 10 PSI (23.1 Ft. Hd.) 36 gpm - 20 PSI (46.2 Ft. Hd.) 27 gpm - 30 PSI (69.3 Ft. Hd.) 10 gpm - 40 PSI (92.4 Ft. Hd.) |
Duplex Boiler Feed Panel Duplex Control Panel Simplex Panels |
Add to RFQ Dimensional Chart |
|
AFP-40S-E | Simplex | 40 gal | 1 | 1 hp |
58 gpm - 10 PSI (23.1 Ft. Hd.) 50 gpm - 20 PSI (46.2 Ft. Hd.) 40 gpm - 30 PSI (69.3 Ft. Hd.) 25 gpm - 40 PSI (92.4 Ft. Hd.) |
Duplex Boiler Feed Panel Duplex Control Panel Simplex Panels |
Add to RFQ Dimensional Chart |
|
AFP-40S-F | Simplex | 40 gal | 1 | 1 1/2 hp |
69 gpm - 10 PSI (23.1 Ft. Hd.) 62 gpm - 20 PSI (46.2 Ft. Hd.) 50 gpm - 30 PSI (69.3 Ft. Hd.) 35 gpm - 40 PSI (92.4 Ft. Hd.) |
Duplex Boiler Feed Panel Duplex Control Panel Simplex Panels |
Add to RFQ Dimensional Chart |
|
AFP-40S-G | Simplex | 40 gal | 1 1/2 | 2 hp |
82 gpm - 10 PSI (23.1 Ft. Hd.) 75 gpm - 20 PSI (46.2 Ft. Hd.) 64 gpm - 30 PSI (69.3 Ft. Hd.) 39 gpm - 40 PSI (92.4 Ft. Hd.) |
Duplex Boiler Feed Panel Duplex Control Panel Simplex Panels |
Add to RFQ Dimensional Chart |
|

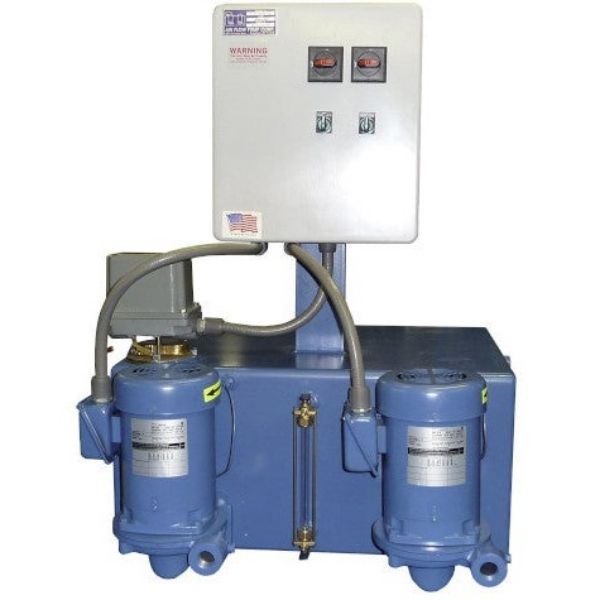

AFP-40DS-C | Duplex | 40 gal | 1 | 1/2 hp |
35 gpm - 10 PSI (23.1 Ft. Hd.) 28 gpm - 20 PSI (46.2 Ft. Hd.) 15 gpm - 30 PSI (69.3 Ft. Hd.) |
Duplex Boiler Feed Panel Duplex Control Panel Simplex Panels |
Add to RFQ Dimensional Chart |
|
AFP-40DS-D | Duplex | 40 gal | 1 | 3/4 hp |
54 gpm - 10 PSI (23.1 Ft. Hd.) 36 gpm - 20 PSI (46.2 Ft. Hd.) 27 gpm - 30 PSI (69.3 Ft. Hd.) 10 gpm - 40 PSI (92.4 Ft. Hd.) |
Duplex Boiler Feed Panel Duplex Control Panel Simplex Panels |
Add to RFQ Dimensional Chart |
|

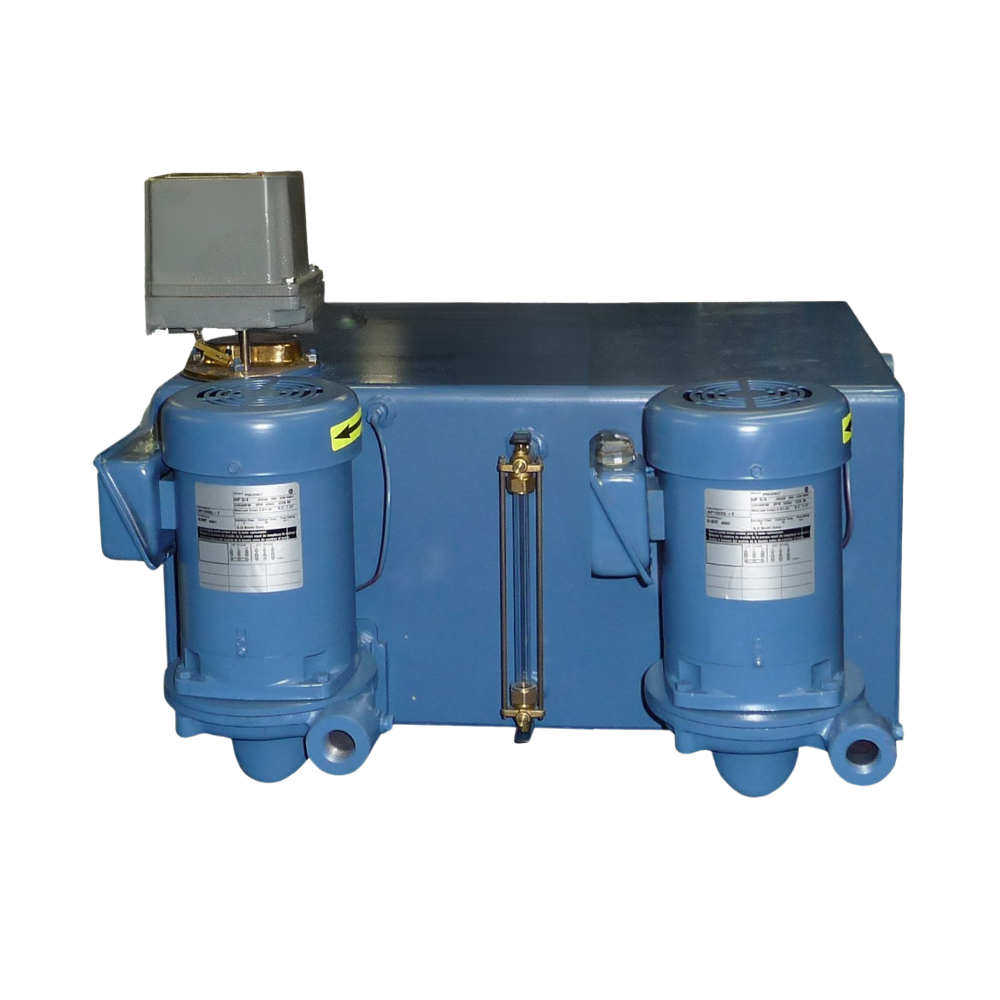

AFP-40DS-E | Duplex | 40 gal | 1 | 1 hp |
58 gpm - 10 PSI (23.1 Ft. Hd.) 50 gpm - 20 PSI (46.2 Ft. Hd.) 40 gpm - 30 PSI (69.3 Ft. Hd.) 25 gpm - 40 PSI (92.4 Ft. Hd.) |
Duplex Boiler Feed Panel Duplex Control Panel Simplex Panels |
Add to RFQ Dimensional Chart |
|
AFP-40DS-F | Duplex | 40 gal | 1 | 1 1/2 hp |
69 gpm - 10 PSI (23.1 Ft. Hd.) 62 gpm - 20 PSI (46.2 Ft. Hd.) 50 gpm - 30 PSI (69.3 Ft. Hd.) 35 gpm - 40 PSI (92.4 Ft. Hd.) |
Duplex Boiler Feed Panel Duplex Control Panel Simplex Panels |
Add to RFQ Dimensional Chart |
|
AFP-40DS-G | Duplex | 40 gal | 1 1/2 | 2 hp |
82 gpm - 10 PSI (23.1 Ft. Hd.) 75 gpm - 20 PSI (46.2 Ft. Hd.) 64 gpm - 30 PSI (69.3 Ft. Hd.) 39 gpm - 40 PSI (92.4 Ft. Hd.) |
Duplex Boiler Feed Panel Duplex Control Panel Simplex Panels |
Add to RFQ Dimensional Chart |
|
AFP-40DS-H | Duplex | 40 gal | 1 1/2 | 2 1/2 hp |
90 gpm - 10 PSI (23.1 Ft. Hd.) 82 gpm - 20 PSI (46.2 Ft. Hd.) 70 gpm - 30 PSI (69.3 Ft. Hd.) 56 gpm - 40 PSI (92.4 Ft. Hd.) |
Duplex Boiler Feed Panel Duplex Control Panel Simplex Panels |
Add to RFQ Dimensional Chart |
