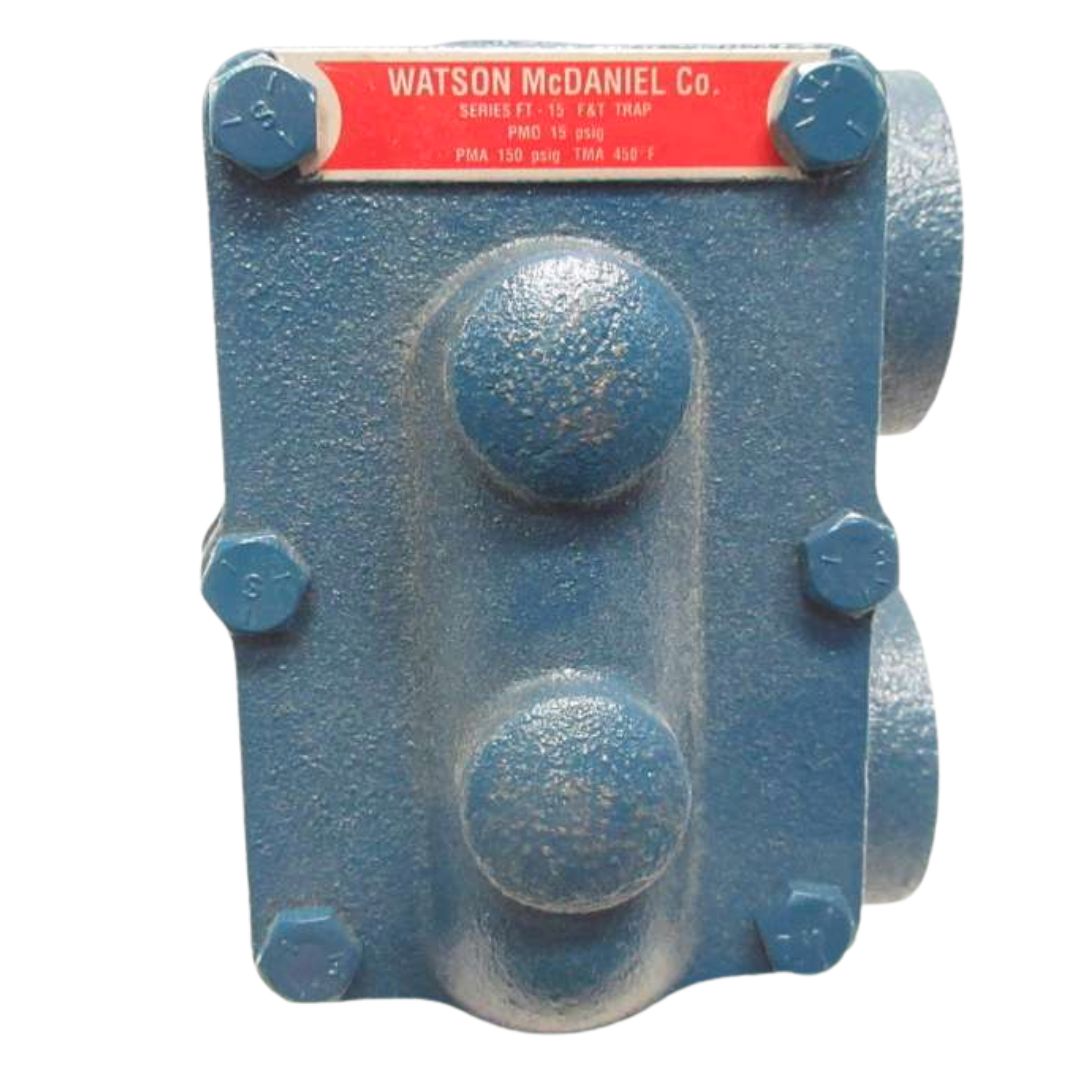

Inverted Bucket & Float and Thermostatic Steam Traps & Repair Kits Watson McDaniel Steam Trap Series Watson McDaniel WFT Series Float & Thermostatic Steam Traps
The Watson McDaniel: WFT Series with parallel port connections were specifically designed for removing condensate and air from HVAC and industrial process applications such as unit heaters, pressing machines, heat exchangers and coils. They contain a high-quality welded stainless steel thermostatic air vent and stainless steel mechanism. The WFT Series are fully repairable while the trap remains in-line and are available in 3/4” thru 2" NPT connections.
Applications: Series WFT Steam Traps are designed to freely remove large quantities of condensate and non condensables in steam systems. Services Unit & Space Heaters | Water Heaters | Pressing Machines | Steam Process Equipment | Draining Mains & Risers-Low-Pressure | Heat Exchangers | Coils Design Pressure/Temperature Rating Saturated steam temperature Maximum Allow Temperature (TMA): 450°F Materials 1 - Body - Cast Iron 2 - Cover - Cast Iron 3 - Gasket - Garlock 3400 4 - Cover Screws - Steel, GR 5 5 - Float - 304 SS 6 - Internals - 300 Series SS 7 - Thermostat - SS 8 - Valve Seat - 17-4 PH SS 9 - Valve Disc - 420F SS
| Part # |
Connection NPT |
Max Oper Press |
Cross Reference List (Spirax Sarco) |
Cross Reference List (Armstrong) |
Cross Reference List (Hoffman) |
|
|---|---|---|---|---|---|---|
| WFT-015-13-N | 3/4" | 15 | FT-15 | 15B3 | FT015H | Add to RFQ |
| WFT-015-14-N | 1" | 15 | FT-15 | 15B4 | FT015H | Add to RFQ |
| WFT-015-15-N 1 | 1-1/4" | 15 | FT-15 | 15B5 | FT015H | Add to RFQ |
| WFT-015-16-N | 1-1/2" | 15 | FT-15 | 15B6 | FT015H, FT015C | Add to RFQ |
| WFT-015-17-N | 2" | 15 | FT-15 | 15B8 | FT015H, FT015C | Add to RFQ |
| WFT-030-13-N | 3/4" | 30 | FT-30 | 30B3, 30A3 | FT030H | Add to RFQ |
| WFT-030-14-N | 1" | 30 | FT-30 | 30B4, 30A4 | FT030H | Add to RFQ |
| WFT-030-15-N | 1-1/4" | 30 | FT-30 | 30B5, 30A5 | FT030H | Add to RFQ |
| WFT-030-16-N | 1-1/2" | 30 | FT-30 | 30B6, 30A6 | FT030H, FT030C | Add to RFQ |
| WFT-030-17-N | 2" | 30 | FT-30 | 30B8, 30 A8 | FT030H, FT030C | Add to RFQ |
| WFT-075-13-N | 3/4" | 75 | FT-75 | 75A3 | FT075 | Add to RFQ |
| WFT-075-14-N | 1" | 75 | FT-75 | 75A4 | FT075 | Add to RFQ |
| WFT-075-15-N | 1-1/4" | 75 | FT-75 | 75A5 | FT075C | Add to RFQ |
| WFT-075-16-N | 1-1/2" | 75 | FT-75 | 75A6 | FT075C | Add to RFQ |
| WFT-075-17-N | 2" | 75 | FT-75 | 75A8 | FT075C | Add to RFQ |
| WFT-125-13-N | 3/4" | 125 | FT-125 | 125A3 | FT125 | Add to RFQ |
| WFT-125-14-N | 1" | 125 | FT-125 | 125A4 | FT125 | Add to RFQ |
| WFT-125-15-N | 1-1/4" | 125 | FT-125 | 125A5 | FT125C | Add to RFQ |
| WFT-125-16-N | 1-1/2" | 125 | FT-125 | 125A6 | FT125C | Add to RFQ |
| WFT-125-17-N | 2" | 125 | FT-125 | 125A8 | FT125C | Add to RFQ |
| WFT-175-13-N | 3/4" | 175 | FT-150 | 175A3 | FT715 | Add to RFQ |
| WFT-175-14-N | 1" | 175 | FT-150 | 175A4 | FT715 | Add to RFQ |
| WFT-175-15-N | 1-1/4" | 175 | FT-150 | 175A5 | FT715C | Add to RFQ |
| WFT-175-16-N | 1-1/2" | 175 | FT-150 | 175A6 | FT715C | Add to RFQ |
| WFT-175-17-N | 2" | 175 | 175A8 | FT715C | Add to RFQ | |
| WFT-250-13-N | 3/4" | 250 | FT-200 | Add to RFQ | ||
| WFT-250-14-N | 1" | 250 | FT-200 | Add to RFQ | ||
| WFT-250-15-N | 1-1/4" | 250 | FT-200 | Add to RFQ | ||
| WFT-250-16-N | 1-1/2" | 250 | FT-200 | Add to RFQ | ||
| WFT-250-17-N | 2" | 250 | Add to RFQ |
