Boiler Blowdown Valves | Boiler Supplies Tasco Continuous Metering Blowdown Valves Tasco Continuous Metering Blowdown Valves
The Tasco Flocontrol valve is a combination valve and flow control instrument equipped with a special micrometer dial and pointer which enables the operator to set the valve opening to within one hundredth of a turn of the hand wheel. Any desired setting can be instantly duplicated; each valve is fitted with a scientifically designed V-port valve disc, insuring proportional flow throughout the entire lift of the stem. A hand-operated valve with a straight-line flow characteristic with a separate shut-off seating surface removed from the controlling V-Ports, the necessity of using a second valve for shut-off purposed is eliminated! Tasco Flocontrol valves insure uniform quality by closer control of temperature and flow, save steam and fuel on process work and save money by reducing maintenance.
**Items to be returned must be approved by Power Plus International, and may be subjected to a restocking fee**
| Part # |
Pipe Size |
Model | Description | Wt | Price | Qty | |
|---|---|---|---|---|---|---|---|

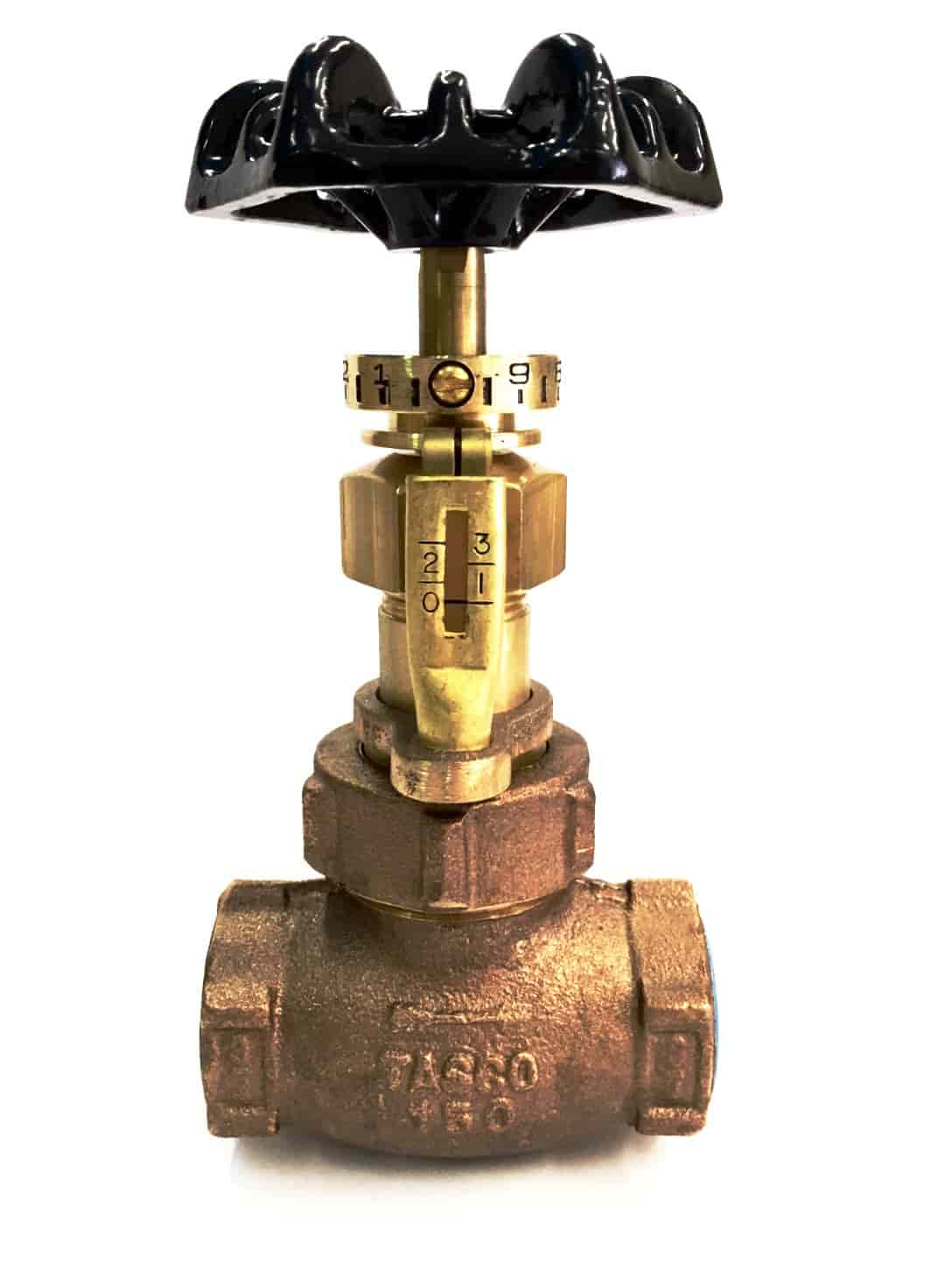

| 4445-25G | 1/4" | 4445 | 1/4" Tasco Valve Model 4445 (Globe) | 4.00 | $515.18 | Add to Cart | |
| 4445-375G | 3/8" | 4445 | 3/8" Tasco Valve Model 4445 (Globe) | 4.00 | $541.77 | Add to Cart | |
| 4445-50G | 1/2" | 4445 | 1/2" Tasco Valve Model 4445 (Globe) | 4.00 | $586.09 | Add to Cart | |
| 4445-75G | 3/4" | 4445 | 3/4" Tasco Valve Model 4445 (Globe) | 4.00 | $655.91 | Add to Cart | |
| 4445-100G | 1" | 4445 | 1" Tasco Valve Model 4445 (Globe) | 4.00 | $1,398.28 | Add to Cart | |
| 4445-125G | 1 1/4" | 4445 | 1-1/4" Tasco Valve Model 4445 (Globe) | 6.00 | $2,139.56 | Add to Cart | |
| 4445-150G | 1 1/2" | 4445 | 1-1/2" Tasco Valve Model 4445 (Globe) | 8.00 | $2,852.02 | Add to Cart | |
| 4445-200G | 2" | 4445 | 2" Tasco Valve Model 4445 (Globe) | 13.00 | $3,992.19 | Add to Cart |
**The 1/4" Tasco model #4455 has been discontinued**
Alternative option is the 1/4" Tasco Model #4595 with a minimal difference in Centerline to Face dimensions of 1/32nd of an inch or .0312"
| Part # |
Pipe Size |
Model | Description | Wt | Price | Qty | |
|---|---|---|---|---|---|---|---|

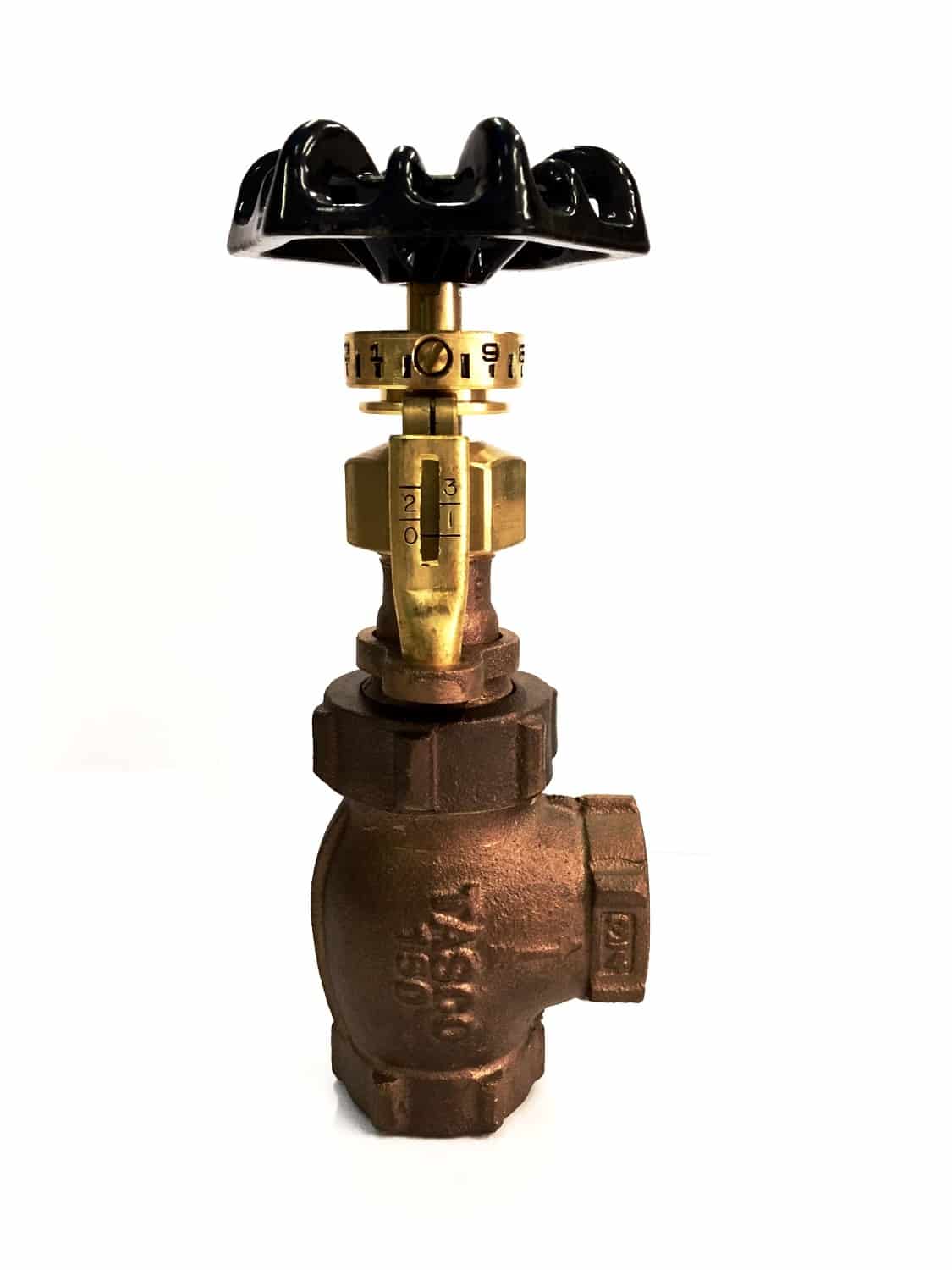

| 4455-375A | 3/8" | 4455 | 3/8" Tasco Valve Model 4455 (Angle) | 4.00 | $541.77 | Add to Cart | |
| 4455-50A | 1/2" | 4455 | 1/2" Tasco Valve Model 4455 (Angle) | 4.00 | $586.09 | Add to Cart | |
| 4455-75A | 3/4" | 4455 | 3/4" Tasco Valve Model 4455 (Angle) | 4.00 | $655.91 | Add to Cart | |
| 4455-100A | 1" | 4455 | 1" Tasco Valve Model 4455 (Angle) | 4.00 | $1,398.28 | Add to Cart | |
| 4455-125A | 1 1/4" | 4455 | 1-1/4" Tasco Valve Model 4455 (Angle) | 6.00 | $2,139.56 | Add to Cart | |
| 4455-150A | 1 1/2" | 4455 | 1-1/2" Tasco Valve Model 4455 (Angle) | 8.00 | $2,852.02 | Add to Cart | |
| 4455-200A | 2" | 4455 | 2" Tasco Valve Model 4455 (Angle) | 13.00 | $4,077.51 | Add to Cart |
| Part # |
Pipe Size |
Model | Description | Wt | Price | Qty | |
|---|---|---|---|---|---|---|---|
| 4585-25G | 1/4" | 4585 | 1/4" Tasco Valve Model 4585 (Globe) | 4.00 | $541.77 | Add to Cart | |
| 4585-375G | 3/8" | 4585 | 3/8" Tasco Valve Model 4585 (Globe) | 4.00 | $557.28 | Add to Cart | |
| 4585-50G | 1/2" | 4585 | 1/2" Tasco Valve Model 4585 (Globe) | 4.00 | $643.72 | Add to Cart | |
| 4585-75G | 3/4" | 4585 | 3/4" Tasco Valve Model 4585 (Globe) | 4.00 | $798.83 | Add to Cart | |
| 4585-100G | 1" | 4585 | 1" Tasco Valve Model 4585 (Globe) | 6.00 | $1,783.87 | Add to Cart | |
| 4585-125G | 1 1/4" | 4585 | 1-1/4" Tasco Valve Model 4585 (Globe) | 9.00 | $2,495.23 | Add to Cart | |
| 4585-150G | 1 1/2" | 4585 | 1-1/2" Tasco Valve Model 4585 (Globe) | 11.00 | $3,992.19 | Add to Cart | |
| 4585-200G | 2" | 4585 | 2" Tasco Valve Model 4585 (Globe) | 20.00 | $5,702.99 | Add to Cart |
| Part # |
Pipe Size |
Model | Description | Wt | Price | Qty | |
|---|---|---|---|---|---|---|---|
| 4595-25A | 1/4" | 4595 | 1/4" Tasco Valve Model 4595 (Angle) | 4.00 | $541.77 | Add to Cart | |
| 4595-375A | 3/8" | 4595 | 3/8" Tasco Valve Model 4595 (Angle) | 4.00 | $557.28 | Add to Cart | |
| 4595-50A | 1/2" | 4595 | 1/2" Tasco Valve Model 4595 (Angle) | 4.00 | $643.72 | Add to Cart | |
| 4595-75A | 3/4" | 4595 | 3/4" Tasco Valve Model 4595 (Angle) | 4.00 | $798.83 | Add to Cart | |
| 4595-100A | 1" | 4595 | 1" Tasco Valve Model 4595 (Angle) | 6.00 | $1,783.87 | Add to Cart | |
| 4595-125A | 1 1/4" | 4595 | 1-1/4" Tasco Valve Model 4595 (Angle) | 9.00 | $2,495.23 | Add to Cart | |
| 4595-150A | 1 1/2" | 4595 | 1-1/2" Tasco Valve Model 4595 (Angle) | 11.00 | $3,992.19 | Add to Cart | |
| 4595-200A | 2" | 4595 | 2" Tasco Valve Model 4595 (Angle) | 20.00 | $5,702.99 | Add to Cart |
