Taco Liquid to Liquid Tube Bundle In Stock

​How Tube Bundles Work:

Tube bundles are replaceable coils inside the shell of the Heat Exchanger. This is the most common part that fails and most often the U-tubes can be vulnerable to corrosion and failure. The tube bundle coil can be manufactured with many types of materials including copper, CuNi, stainless steel along with naval brass and carbon steel.

Boilersupplies.com manufactures an aftermarket replacement tube bundle coil for all Taco Shell & Tube units, as well as, Storage Tanks that will meet all industry specifications.



Other Manufacturers We Build Are:

Bell & GossettArmstrong, Alco, American StandardCemlineOld DominionTacoPatterson KelleyITT Standard Exchange, RecoThrush Heat Exchanger USA.


Measuring Tube Bundle Coil Still in the Heat Exchanger:

Most of the time we can duplicate your tube bundle based off the model number alone. In some cases where a tag is missing, unreadable etc., we may need some dimensions & pictures of this Shell & Tube unit to determine how many passes it has and the nominal width and length. We recommend using one of our blank drawings located in the Request For Quote for recording exact measurements.


Item Name: Taco Liquid to Liquid Replacement Tube Bundles
Manufacturer:
Taco®
Shipping Time: 1-3 Business Day
Specifications
Model # Pass Type Diameter,
inches
Tube Sheet Material Tube Material
E4204L-RTB 2 Pass 4 Carbon Steel Copper Tubing (3/4" OD) .049 Add to RFQ
E4206L-RTB 2 Pass 4 Carbon Steel Copper Tubing (3/4" OD) .049 Add to RFQ
E4208L-RTB 2 Pass 4 Carbon Steel Copper Tubing (3/4" OD) .049 Add to RFQ
E4210L-RTB 2 Pass 4 Carbon Steel Copper Tubing (3/4" OD) .049 Add to RFQ
E4212L-RTB 2 Pass 4 Carbon Steel Copper Tubing (3/4" OD) .049 Add to RFQ
E4214L-RTB 2 Pass 4 Carbon Steel Copper Tubing (3/4" OD) .049 Add to RFQ
E4216L-RTB 2 Pass 4 Carbon Steel Copper Tubing (3/4" OD) .049 Add to RFQ
E4218L-RTB 2 Pass 4 Carbon Steel Copper Tubing (3/4" OD) .049 Add to RFQ
E4220L-RTB 2 Pass 4 Carbon Steel Copper Tubing (3/4" OD) .049 Add to RFQ
G4404L-RTB 4 Pass 4 Carbon Steel Copper Tubing (3/4" OD) .049 Add to RFQ
G4406L-RTB 4 Pass 4 Carbon Steel Copper Tubing (3/4" OD) .049 Add to RFQ
G4408L-RTB 4 Pass 4 Carbon Steel Copper Tubing (3/4" OD) .049 Add to RFQ
G4410L-RTB 4 Pass 4 Carbon Steel Copper Tubing (3/4" OD) .049 Add to RFQ
G4412L-RTB 4 Pass 4 Carbon Steel Copper Tubing (3/4" OD) .049 Add to RFQ
G4414L-RTB 4 Pass 4 Carbon Steel Copper Tubing (3/4" OD) .049 Add to RFQ
G4416L-RTB 4 Pass 4 Carbon Steel Copper Tubing (3/4" OD) .049 Add to RFQ
G4418L-RTB 4 Pass 4 Carbon Steel Copper Tubing (3/4" OD) .049 Add to RFQ
G4420L-RTB 4 Pass 4 Carbon Steel Copper Tubing (3/4" OD) .049 Add to RFQ
E6204L-RTB 2 Pass 6 Carbon Steel Copper Tubing (3/4" OD) .049 Add to RFQ
E6206L-RTB 2 Pass 6 Carbon Steel Copper Tubing (3/4" OD) .049 Add to RFQ
E6208L-RTB 2 Pass 6 Carbon Steel Copper Tubing (3/4" OD) .049 Add to RFQ
E6210L-RTB 2 Pass 6 Carbon Steel Copper Tubing (3/4" OD) .049 Add to RFQ
E6212L-RTB 2 Pass 6 Carbon Steel Copper Tubing (3/4" OD) .049 Add to RFQ
E6214L-RTB 2 Pass 6 Carbon Steel Copper Tubing (3/4" OD) .049 Add to RFQ
E6216L-RTB 2 Pass 6 Carbon Steel Copper Tubing (3/4" OD) .049 Add to RFQ
E6218L-RTB 2 Pass 6 Carbon Steel Copper Tubing (3/4" OD) .049 Add to RFQ
E6220L-RTB 2 Pass 6 Carbon Steel Copper Tubing (3/4" OD) .049 Add to RFQ
G6404L-RTB 4 Pass 6 Carbon Steel Copper Tubing (3/4" OD) .049 Add to RFQ
G6406L-RTB 4 Pass 6 Carbon Steel Copper Tubing (3/4" OD) .049 Add to RFQ
G6408L-RTB 4 Pass 6 Carbon Steel Copper Tubing (3/4" OD) .049 Add to RFQ
G6410L-RTB 4 Pass 6 Carbon Steel Copper Tubing (3/4" OD) .049 Add to RFQ
G6412L-RTB 4 Pass 6 Carbon Steel Copper Tubing (3/4" OD) .049 Add to RFQ
G6414L-RTB 4 Pass 6 Carbon Steel Copper Tubing (3/4" OD) .049 Add to RFQ
G6416L-RTB 4 Pass 6 Carbon Steel Copper Tubing (3/4" OD) .049 Add to RFQ
G6418L-RTB 4 Pass 6 Carbon Steel Copper Tubing (3/4" OD) .049 Add to RFQ
G6420L-RTB 4 Pass 6 Carbon Steel Copper Tubing (3/4" OD) .049 Add to RFQ
E8204L-RTB 2 Pass 8 Carbon Steel Copper Tubing (3/4" OD) .049 Add to RFQ
E8206L-RTB 2 Pass 8 Carbon Steel Copper Tubing (3/4" OD) .049 Add to RFQ
E8208L-RTB 2 Pass 8 Carbon Steel Copper Tubing (3/4" OD) .049 Add to RFQ
E8210L-RTB 2 Pass 8 Carbon Steel Copper Tubing (3/4" OD) .049 Add to RFQ
E8212L-RTB 2 Pass 8 Carbon Steel Copper Tubing (3/4" OD) .049 Add to RFQ
E8214L-RTB 2 Pass 8 Carbon Steel Copper Tubing (3/4" OD) .049 Add to RFQ
E8216L-RTB 2 Pass 8 Carbon Steel Copper Tubing (3/4" OD) .049 Add to RFQ
E8218L-RTB 2 Pass 8 Carbon Steel Copper Tubing (3/4" OD) .049 Add to RFQ
E8220L-RTB 2 Pass 8 Carbon Steel Copper Tubing (3/4" OD) .049 Add to RFQ
G8404L-RTB 4 Pass 8 Carbon Steel Copper Tubing (3/4" OD) .049 Add to RFQ
G8406L-RTB 4 Pass 8 Carbon Steel Copper Tubing (3/4" OD) .049 Add to RFQ
G8408L-RTB 4 Pass 8 Carbon Steel Copper Tubing (3/4" OD) .049 Add to RFQ
G8410L-RTB 4 Pass 8 Carbon Steel Copper Tubing (3/4" OD) .049 Add to RFQ
G8412L-RTB 4 Pass 8 Carbon Steel Copper Tubing (3/4" OD) .049 Add to RFQ
G8414L-RTB 4 Pass 8 Carbon Steel Copper Tubing (3/4" OD) .049 Add to RFQ
G8416L-RTB 4 Pass 8 Carbon Steel Copper Tubing (3/4" OD) .049 Add to RFQ
G8418L-RTB 4 Pass 8 Carbon Steel Copper Tubing (3/4" OD) .049 Add to RFQ
G8420L-RTB 4 Pass 8 Carbon Steel Copper Tubing (3/4" OD) .049 Add to RFQ
E10204L-RTB 2 Pass 10 Carbon Steel Copper Tubing (3/4" OD) .049 Add to RFQ
E10206L-RTB 2 Pass 10 Carbon Steel Copper Tubing (3/4" OD) .049 Add to RFQ
E10208L-RTB 2 Pass 10 Carbon Steel Copper Tubing (3/4" OD) .049 Add to RFQ
E10210L-RTB 2 Pass 10 Carbon Steel Copper Tubing (3/4" OD) .049 Add to RFQ
E10212L-RTB 2 Pass 10 Carbon Steel Copper Tubing (3/4" OD) .049 Add to RFQ
E10214L-RTB 2 Pass 10 Carbon Steel Copper Tubing (3/4" OD) .049 Add to RFQ
E10216L-RTB 2 Pass 10 Carbon Steel Copper Tubing (3/4" OD) .049 Add to RFQ
E10218L-RTB 2 Pass 10 Carbon Steel Copper Tubing (3/4" OD) .049 Add to RFQ
E10220L-RTB 2 Pass 10 Carbon Steel Copper Tubing (3/4" OD) .049 Add to RFQ
G10404L-RTB 4 Pass 10 Carbon Steel Copper Tubing (3/4" OD) .049 Add to RFQ
G10406L-RTB 4 Pass 10 Carbon Steel Copper Tubing (3/4" OD) .049 Add to RFQ
G10408L-RTB 4 Pass 10 Carbon Steel Copper Tubing (3/4" OD) .049 Add to RFQ
G10410L-RTB 4 Pass 10 Carbon Steel Copper Tubing (3/4" OD) .049 Add to RFQ
G10412L-RTB 4 Pass 10 Carbon Steel Copper Tubing (3/4" OD) .049 Add to RFQ
G10414L-RTB 4 Pass 10 Carbon Steel Copper Tubing (3/4" OD) .049 Add to RFQ
G10416L-RTB 4 Pass 10 Carbon Steel Copper Tubing (3/4" OD) .049 Add to RFQ
G10418L-RTB 4 Pass 10 Carbon Steel Copper Tubing (3/4" OD) .049 Add to RFQ
G10420L-RTB 4 Pass 10 Carbon Steel Copper Tubing (3/4" OD) .049 Add to RFQ

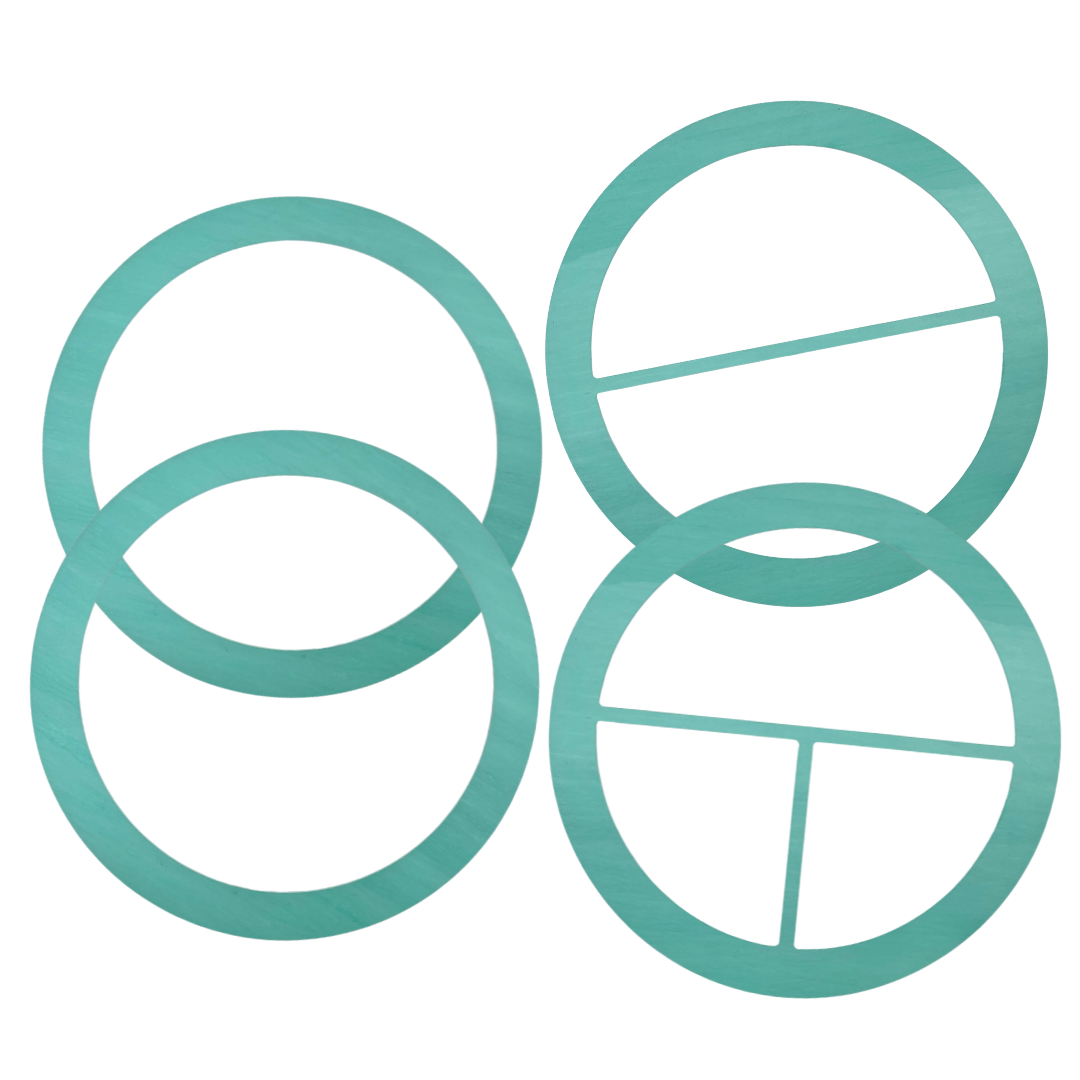

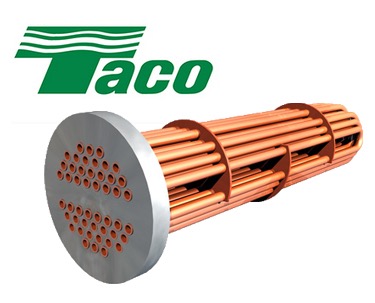

Other Recommended Products:
