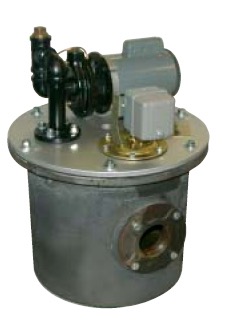

Sterling 3700 Series Condensate Pump In Stock

Manufacturer:
Sterling
Description:

Maximum capacity, minimum Motor load for long life and Superior efficiency The Sterlco® 3700 Series is constructed of a heavy cast-iron tank that can be located flush with floor level, in a pit, or above floor. The pump and motor unit and float switch are mounted on top of a removable tank cover, away from moisture and easily accessible. All units have horizontal centrifugal pumps bronze fitted, with integrally mounted ball bearing motors. Duplex units are available in all ratings. They consist of one tank and float switch and two complete pump and motor units (Mechanical Alternator-Optional). Duplex units 3700 Series Duplex Pumps may be furnished with next size larger tank (dimensions A and B). When mechanical alternator is required, the next larger tank may be used. The mechanical alternator causes pumps to operate alternately. Wear is equalized and, if one unit fails to start, the other motor will continue to operate. Both motors will start if there is a sudden flood of condensate that one unit cannot handle. Sterlco® Boiler Feed Pumps set new standards of performance. Reliable and efficient, each unit features heavy gauge, 3/16" steel receivers for long operating life. In addition, 3450 RPM motors assure maximum efficiency while maintaining minimum motor horsepower. Available in a wide range of sizes, these U.S. made pumps have just the right accessories and options to meet your unique needs. Oversize tanks available : 20" dia. x 36" deep - 49 Gallon Capacity | 24" dia. x 36" deep - 70 Gallon Capacity | 24" dia. x 36" deep - 70 Gallon Capacity

Item Name: Sterling 3700 Series Condensate Pump
Description:

Features: • Simplex or duplex construction • Foot valve and trapped arrangement of pump inlet connection provide double assurance that pump will not lose prime • Capacities from 2000 to 20000 sq. ft. E.D.R. • Discharge pressures 20 or 30 PSI • Heavy-duty two pole float switch • All foot valves are equipped with inlet strainers • Optional make-up water valve furnished in place of a float switch

Lead Time: Expedite Quick Ship Times Available upon Request with Standard Shipping 3 to 4 Weeks.
Specifications
Item # Type Capacity (EDR), ft² Dis. Pressure, psi. Pump Capacity Motor Power Shipping Weight, lbs. Tank Capacity Diameter A Diameter B Pipe Thread C Pipe Thread D Oversize Tank Options
3722A Simplex 2000 20 3 gpm 1/2 hp 285 14 gal 16 in. 16 in. 3 3/4 20" dia. x 36" deep - 49 Gallon Capacity
24" dia. x 36" deep - 70 Gallon Capacity
30" dia. x 36" deep - 110 Gallon Capacity
Add to RFQ Dimensional Chart
3732A Simplex 2000 30 3 gpm 1/2 hp 285 14 gal 16 in. 16 in. 3 1 1/2 20" dia. x 36" deep - 49 Gallon Capacity
24" dia. x 36" deep - 70 Gallon Capacity
30" dia. x 36" deep - 110 Gallon Capacity
Add to RFQ Dimensional Chart
3724A Simplex 4000 20 6 gpm 1/2 hp 285 14 gal 16 in. 16 in. 3 3/4 20" dia. x 36" deep - 49 Gallon Capacity
24" dia. x 36" deep - 70 Gallon Capacity
30" dia. x 36" deep - 110 Gallon Capacity
Add to RFQ Dimensional Chart
3734A Simplex 4000 30 6 gpm 1/2 hp 285 14 gal 16 in. 16 in. 3 1 1/2 20" dia. x 36" deep - 49 Gallon Capacity
24" dia. x 36" deep - 70 Gallon Capacity
30" dia. x 36" deep - 110 Gallon Capacity
Add to RFQ Dimensional Chart
3726A Simplex 6000 20 9 gpm 1/2 hp 360 20 gal 18 in. 18 in. 3 3/4 20" dia. x 36" deep - 49 Gallon Capacity
24" dia. x 36" deep - 70 Gallon Capacity
30" dia. x 36" deep - 110 Gallon Capacity
Add to RFQ Dimensional Chart
3736A Simplex 6000 30 9 gpm 1/2 hp 375 20 gal 18 in. 18 in. 3 1 1/2 20" dia. x 36" deep - 49 Gallon Capacity
24" dia. x 36" deep - 70 Gallon Capacity
30" dia. x 36" deep - 110 Gallon Capacity
Add to RFQ Dimensional Chart
3728A Simplex 8000 20 12 gpm 1/2 hp 375 20 gal 18 in. 18 in. 3 3/4 20" dia. x 36" deep - 49 Gallon Capacity
24" dia. x 36" deep - 70 Gallon Capacity
30" dia. x 36" deep - 110 Gallon Capacity
Add to RFQ Dimensional Chart
3738A Simplex 8000 30 12 gpm 1/2 hp 375 20 gal 18 in. 18 in. 3 1 1/2 20" dia. x 36" deep - 49 Gallon Capacity
24" dia. x 36" deep - 70 Gallon Capacity
30" dia. x 36" deep - 110 Gallon Capacity
Add to RFQ Dimensional Chart
37210A Simplex 10000 20 15 gpm 1/2 hp 400 27 gal 20 in. 20 in. 4 3/4 20" dia. x 36" deep - 49 Gallon Capacity
24" dia. x 36" deep - 70 Gallon Capacity
30" dia. x 36" deep - 110 Gallon Capacity
Add to RFQ Dimensional Chart
37310A Simplex 10000 30 15 gpm 3/4 hp 400 27 gal 20 in. 20 in. 4 1 1/2 20" dia. x 36" deep - 49 Gallon Capacity
24" dia. x 36" deep - 70 Gallon Capacity
30" dia. x 36" deep - 110 Gallon Capacity
Add to RFQ Dimensional Chart
37212A Simplex 12000 20 18 gpm 1/2 hp 400 27 gal 20 in. 20 in. 4 3/4 20" dia. x 36" deep - 49 Gallon Capacity
24" dia. x 36" deep - 70 Gallon Capacity
30" dia. x 36" deep - 110 Gallon Capacity
Add to RFQ Dimensional Chart
37312A Simplex 12000 30 18 gpm 3/4 hp 400 27 gal 20 in. 20 in. 4 1 1/2 20" dia. x 36" deep - 49 Gallon Capacity
24" dia. x 36" deep - 70 Gallon Capacity
30" dia. x 36" deep - 110 Gallon Capacity
Add to RFQ Dimensional Chart
37216A Simplex 16000 20 24 gpm 3/4 hp 425 33 gal 20 in. 24 in. 4 3/4 20" dia. x 36" deep - 49 Gallon Capacity
24" dia. x 36" deep - 70 Gallon Capacity
30" dia. x 36" deep - 110 Gallon Capacity
Add to RFQ Dimensional Chart
37316A Simplex 16000 30 24 gpm 3/4 hp 430 33 gal 20 in. 24 in. 4 1 1/2 20" dia. x 36" deep - 49 Gallon Capacity
24" dia. x 36" deep - 70 Gallon Capacity
30" dia. x 36" deep - 110 Gallon Capacity
Add to RFQ Dimensional Chart
37220A Simplex 20000 20 30 gpm 3/4 hp 425 33 gal 20 in. 24 in. 4 1 1/2 20" dia. x 36" deep - 49 Gallon Capacity
24" dia. x 36" deep - 70 Gallon Capacity
30" dia. x 36" deep - 110 Gallon Capacity
Add to RFQ Dimensional Chart
37320A Simplex 20000 30 30 gpm 1 hp 430 33 gal 20 in. 24 in. 4 1 1/2 20" dia. x 36" deep - 49 Gallon Capacity
24" dia. x 36" deep - 70 Gallon Capacity
30" dia. x 36" deep - 110 Gallon Capacity
Add to RFQ Dimensional Chart
3722AD Duplex 2000 20 3 gpm 1/2 hp 345 14 gal 16 in. 16 in. 3 3/4 20" dia. x 36" deep - 49 Gallon Capacity
24" dia. x 36" deep - 70 Gallon Capacity
30" dia. x 36" deep - 110 Gallon Capacity
Add to RFQ Dimensional Chart
3732AD Duplex 2000 30 3 gpm 1/2 hp 345 14 gal 16 in. 16 in. 3 1 1/2 20" dia. x 36" deep - 49 Gallon Capacity
24" dia. x 36" deep - 70 Gallon Capacity
30" dia. x 36" deep - 110 Gallon Capacity
Add to RFQ Dimensional Chart
3724AD Duplex 4000 20 6 gpm 1/2 hp 345 14 gal 16 in. 16 in. 3 3/4 20" dia. x 36" deep - 49 Gallon Capacity
24" dia. x 36" deep - 70 Gallon Capacity
30" dia. x 36" deep - 110 Gallon Capacity
Add to RFQ Dimensional Chart
3734AD Duplex 4000 30 6 gpm 1/2 hp 345 14 gal 16 in. 16 in. 3 1 1/2 20" dia. x 36" deep - 49 Gallon Capacity
24" dia. x 36" deep - 70 Gallon Capacity
30" dia. x 36" deep - 110 Gallon Capacity
Add to RFQ Dimensional Chart
3726AD Duplex 6000 20 9 gpm 1/2 hp 420 20 gal 18 in. 18 in. 3 3/4 20" dia. x 36" deep - 49 Gallon Capacity
24" dia. x 36" deep - 70 Gallon Capacity
30" dia. x 36" deep - 110 Gallon Capacity
Add to RFQ Dimensional Chart
3736AD Duplex 6000 30 9 gpm 1/2 hp 435 20 gal 18 in. 18 in. 3 1 1/2 20" dia. x 36" deep - 49 Gallon Capacity
24" dia. x 36" deep - 70 Gallon Capacity
30" dia. x 36" deep - 110 Gallon Capacity
Add to RFQ Dimensional Chart
3728AD Duplex 8000 20 12 gpm 1/2 hp 435 20 gal 18 in. 18 in. 3 3/4 20" dia. x 36" deep - 49 Gallon Capacity
24" dia. x 36" deep - 70 Gallon Capacity
30" dia. x 36" deep - 110 Gallon Capacity
Add to RFQ Dimensional Chart
3738AD Duplex 8000 30 12 gpm 1/2 hp 435 20 gal 18 in. 18 in. 3 1 1/2 20" dia. x 36" deep - 49 Gallon Capacity
24" dia. x 36" deep - 70 Gallon Capacity
30" dia. x 36" deep - 110 Gallon Capacity
Add to RFQ Dimensional Chart
37210AD Duplex 10000 20 15 gpm 1/2 hp 460 27 gal 20 in. 20 in. 4 3/4 20" dia. x 36" deep - 49 Gallon Capacity
24" dia. x 36" deep - 70 Gallon Capacity
30" dia. x 36" deep - 110 Gallon Capacity
Add to RFQ Dimensional Chart
37310AD Duplex 10000 30 15 gpm 3/4 hp 460 27 gal 20 in. 20 in. 4 1 1/2 20" dia. x 36" deep - 49 Gallon Capacity
24" dia. x 36" deep - 70 Gallon Capacity
30" dia. x 36" deep - 110 Gallon Capacity
Add to RFQ Dimensional Chart
37212AD Duplex 12000 20 18 gpm 1/2 hp 460 27 gal 20 in. 20 in. 4 3/4 20" dia. x 36" deep - 49 Gallon Capacity
24" dia. x 36" deep - 70 Gallon Capacity
30" dia. x 36" deep - 110 Gallon Capacity
Add to RFQ Dimensional Chart
37312AD Duplex 12000 30 18 gpm 3/4 hp 460 27 gal 20 in. 20 in. 4 1 1/2 20" dia. x 36" deep - 49 Gallon Capacity
24" dia. x 36" deep - 70 Gallon Capacity
30" dia. x 36" deep - 110 Gallon Capacity
Add to RFQ Dimensional Chart
37216AD Duplex 16000 20 24 gpm 3/4 hp 485 33 gal 20 in. 24 in. 4 3/4 20" dia. x 36" deep - 49 Gallon Capacity
24" dia. x 36" deep - 70 Gallon Capacity
30" dia. x 36" deep - 110 Gallon Capacity
Add to RFQ Dimensional Chart
37316AD Duplex 16000 30 24 gpm 3/4 hp 490 33 gal 20 in. 24 in. 4 1 1/2 20" dia. x 36" deep - 49 Gallon Capacity
24" dia. x 36" deep - 70 Gallon Capacity
30" dia. x 36" deep - 110 Gallon Capacity
Add to RFQ Dimensional Chart
37220AD Duplex 20000 20 30 gpm 3/4 hp 485 33 gal 20 in. 24 in. 4 1 1/2 20" dia. x 36" deep - 49 Gallon Capacity
24" dia. x 36" deep - 70 Gallon Capacity
30" dia. x 36" deep - 110 Gallon Capacity
Add to RFQ Dimensional Chart
37320AD Duplex 20000 30 30 gpm 1 hp 490 33 gal 20 in. 24 in. 4 1 1/2 20" dia. x 36" deep - 49 Gallon Capacity
24" dia. x 36" deep - 70 Gallon Capacity
30" dia. x 36" deep - 110 Gallon Capacity
Add to RFQ Dimensional Chart
