Observation Ports, Sight Flow Indicators & Blast Gate Valves | Boiler Supplies Kenco Sight Flow Indicators Kenco Sight Windows for Boilers

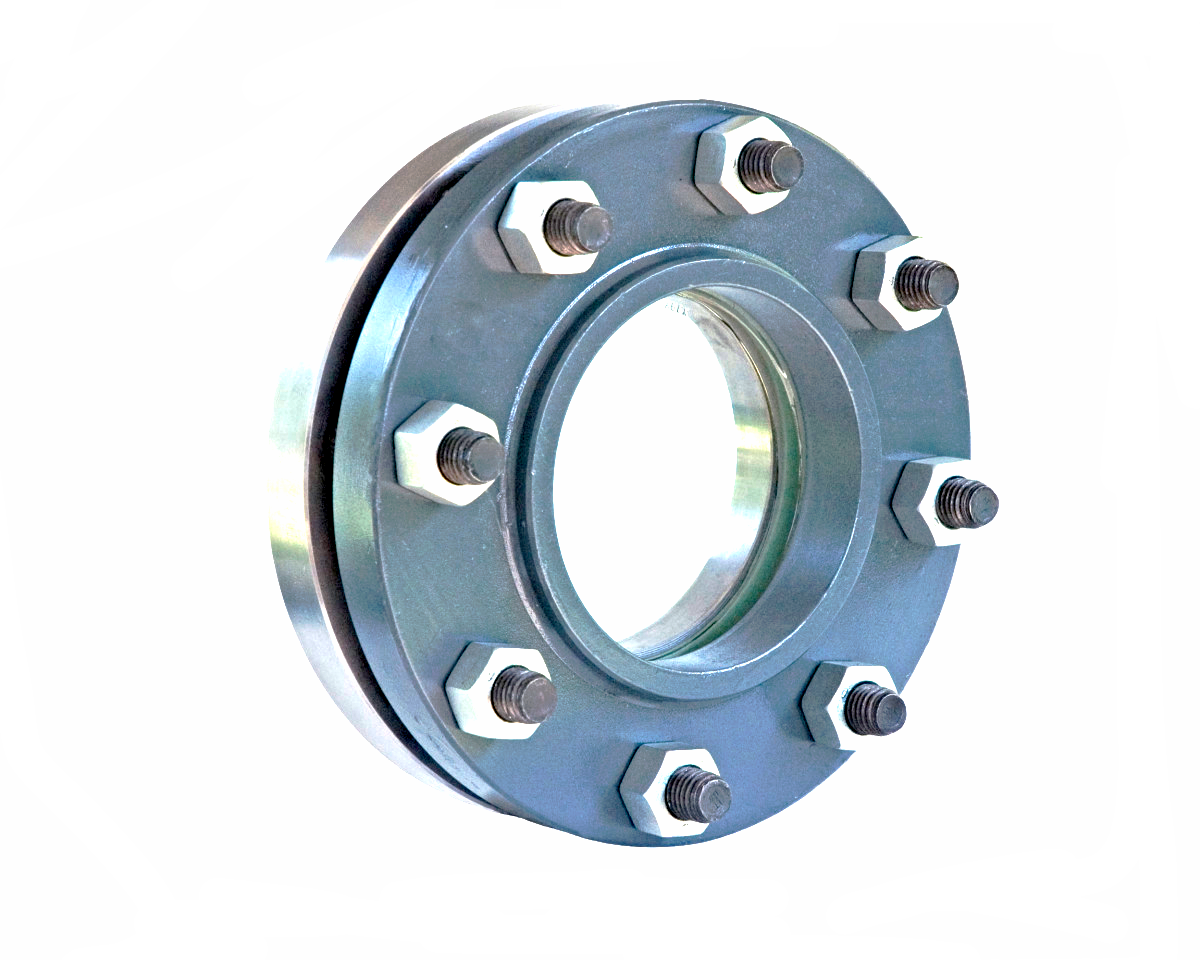

Kenco Sight Windows provide a direct view of process liquids, offering an effective and economical solution for monitoring the interiors of tanks, pressure vessels, and piping systems. Also known as Sight Glasses, these windows allow for the observation of fluid clarity, color, level, and flow. They are often designed to be replaceable or removable for easy maintenance.
Key Features:
| Item # | Size |
Stud Quantity |
Stud Size |
A (Standard) |
A (ANSI) |
B | C | D | E | Description | |
|---|---|---|---|---|---|---|---|---|---|---|---|

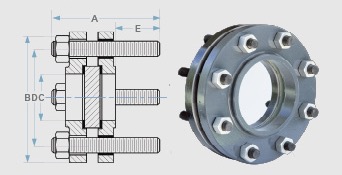

| BFW-100 | 1" | 4 | 1/2-13 | 3.75 | 3.75 | 4.25 | 1.38 | 3.13 | 1.50 | Bolted Flange Window | Add to RFQ |
| BFW-150 | 1.5" | 4 | 1/2-13 | 4.25 | 4.25 | 5.00 | 1.97 | 3.88 | 1.63 | Bolted Flange Window | Add to RFQ |
| BFW-200 | 2" | 4 | 5/8-11 | 4.75 | 4.88 | 6.00 | 2.46 | 4.75 | 4 | Bolted Flange Window | Add to RFQ |
| BFW-300 | 3" | 4 | 5/8-11 | 5.38 | 5.38 | 7.50 | 3.60 | 6.00 | 1.94 | Bolted Flange Window | Add to RFQ |
| BFW-400 | 4" | 8 | 5/8-11 | 5.38 | 5.38 | 9.00 | 4.60 | 7.50 | 1.94 | Bolted Flange Window | Add to RFQ |
| BFW-600 | 6" | 8 | 3/4-10 | 5.88 | 6.38 | 11.00 | 6.75 | 9.5 | 2.19 | Bolted Flange Window | Add to RFQ |
| BFW-800 | 8" | 8 | 3/4-10 | 6.50 | 7.00 | 13.50 | 8.75 | 11.75 | 2.31 | Bolted Flange Window | Add to RFQ |
| Item # | Size |
A (Standard) |
A (ANSI) |
B | C | Description | |
|---|---|---|---|---|---|---|---|

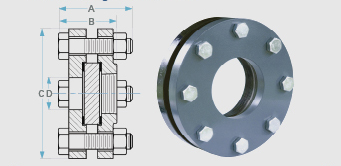

| FPW-100 | 1" | 2.41 | 2.41 | 4.25 | 1.38 | Flat Plate Window | Add to RFQ |
| FPW-150 | 1.5" | 2.78 | 2.78 | 5.00 | 1.97 | Flat Plate Window | Add to RFQ |
| FPW-200 | 2" | 3.09 | 3.09 | 6.00 | 2.46 | Flat Plate Window | Add to RFQ |
| FPW-300 | 3" | 3.53 | 3.53 | 7.50 | 3.60 | Flat Plate Window | Add to RFQ |
| FPW-400 | 4" | 3.53 | 3.53 | 9.00 | 4.60 | Flat Plate Window | Add to RFQ |
| FPW-600 | 6" | 3.84 | 4.34 | 11.00 | 6.75 | Flat Plate Window | Add to RFQ |
| FPW-800 | 8" | 4.47 | 4.97 | 13.50 | 8.75 | Flat Plate Window | Add to RFQ |
| Item # | Size |
A (Standard) |
A (ANSI) |
B (Standard) |
B (ANSI) |
C | D | Description | |
|---|---|---|---|---|---|---|---|---|---|

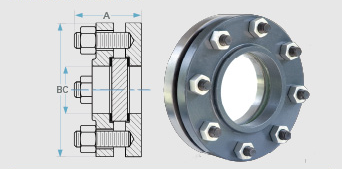

| TFW-100 | 1" | 2.61 | 2.61 | 1.80" | 1.80" | 4.25" | 1.05" | Threaded Flange Window | Add to RFQ |
| TFW-150 | 1.5" | 2.86 | 2.86 | 2.24 | 2.24 | 5.00 | 1.61 | Threaded Flange Window | Add to RFQ |
| TFW-200 | 2" | 3.19 | 3.44 | 2.51 | 2.63 | 6.00 | 2.07 | Threaded Flange Window | Add to RFQ |
| TFW-300 | 3" | 3.94 | 3.94 | 3.19 | 3.19 | 9.00 | 4.03 | Threaded Flange Window | Add to RFQ |
| TFW-400 | 4" | 3.94 | 3.94 | 3.19 | 3.19 | 9.00 | 4.03 | Threaded Flange Window | Add to RFQ |
| TFW-600 | 6" | 4.27 | 4.77 | 3.59 | 4.09 | 11.00 | 6.07 | Threaded Flange Window | Add to RFQ |
| TFW-800 | 8" | 4.52 | 5.02 | 4.09 | 4.59 | 13.50 | 7.98 | Threaded Flange Window | Add to RFQ |
| Item # | Size |
A (Standard) |
A (ANSI) |
B | C | D | Description | |
|---|---|---|---|---|---|---|---|---|

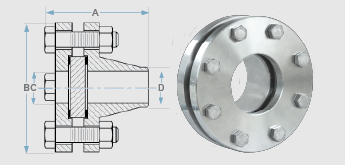

| WNW-100 | 1" | 3.31 | 3.31 | 4.25 | 1.05 | 1.32 | Weld Neck Window | Add to RFQ |
| WNW-150 | 1.5" | 3.81 | 3.81 | 5.00 | 1.61 | 1.90 | Weld Neck Window | Add to RFQ |
| WNW-200 | 2" | 4.06 | 4.19 | 6.00 | 2.07 | 2.38 | Weld Neck Window | Add to RFQ |
| WNW-300 | 3" | 4.69 | 4.69 | 7.50 | 3.07 | 3.50 | Weld Neck Window | Add to RFQ |
| WNW-400 | 4" | 4.94 | 4.94 | 9.00 | 4.03 | 4.50 | Weld Neck Window | Add to RFQ |
| WNW-600 | 6" | 5.58 | 6.06 | 11.00 | 6.07 | 6.63 | Weld Neck Window | Add to RFQ |
| WNW-800 | 8" | 6.44 | 6.94 | 13.50 | 7.98 | 8.63 | Weld Neck Window | Add to RFQ |
