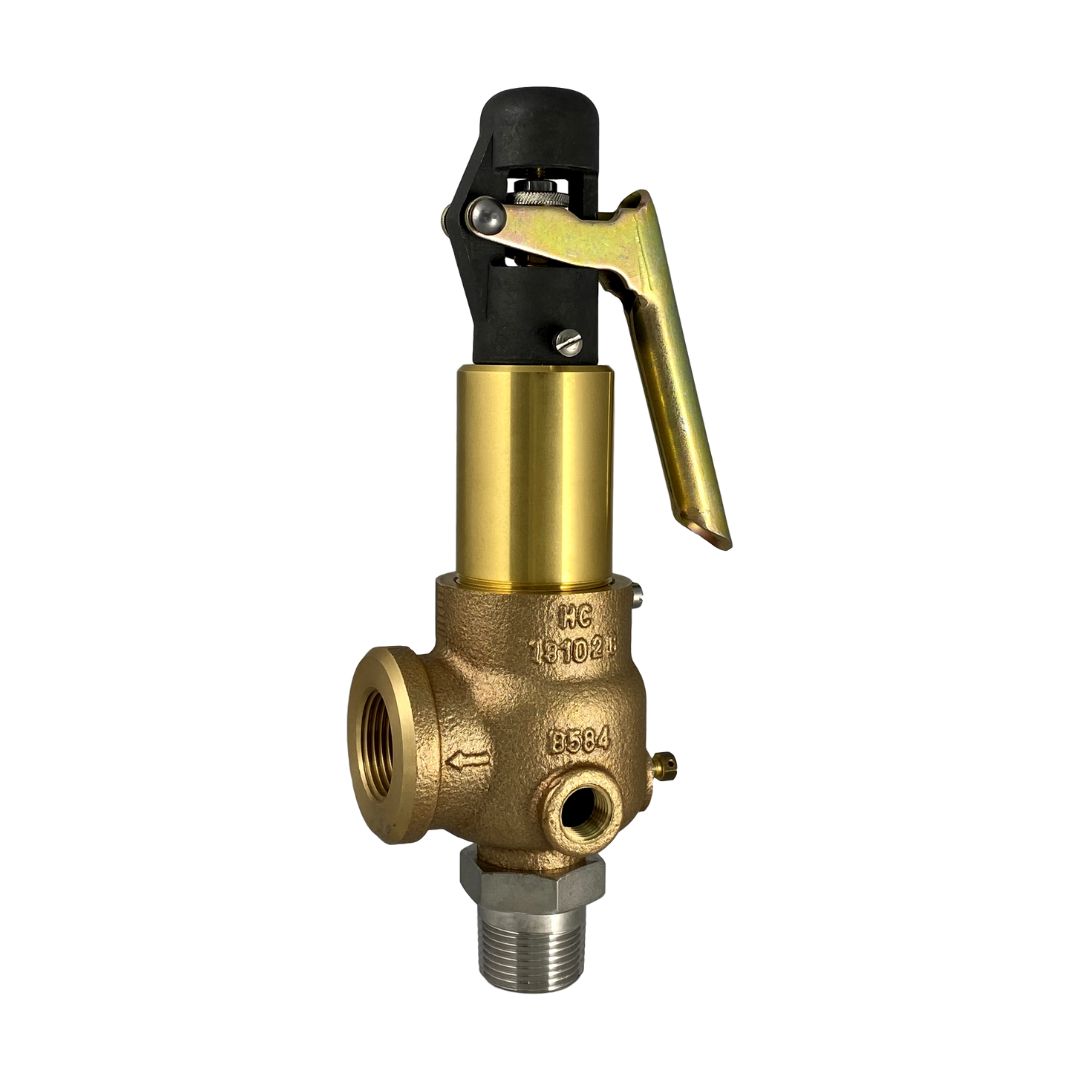

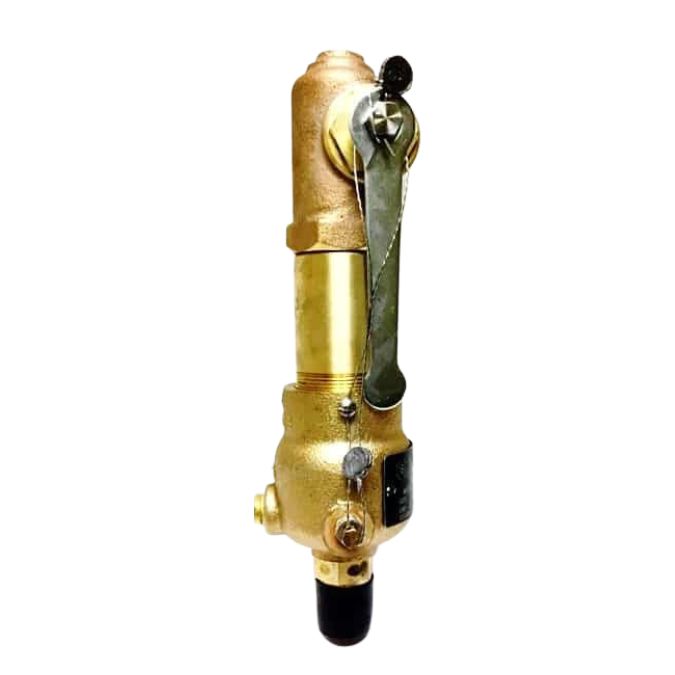

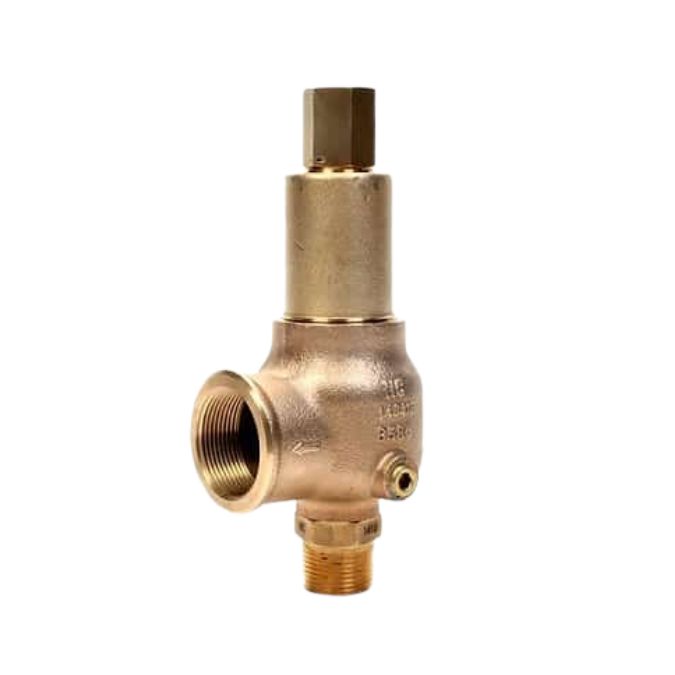

Kunkle Model 913 Safety Valve In Stock

Manufacturer:
Kunkle
Description:

Kunkle Valve Pressure and Temperature Limits

Models 912, 913 – Steam 3 to 250 psig [-20 to 17 barg]1 -60° to 406°F [-51° to 208°C]

Model 913 – Air/Gas/Liquid 3 to 900 psig [-20 to 62 barg] -60° to 406°F [-51° to 208°C] Vacuum – 6- through 29-inch HG [200 through 1000 mbarg] – 300°F [149°C]​

Maximum back pressure 50 psig [3 barg] -threaded cap and packed lever. ASME Section VIII, air/steam/gas/liquid, “UV” National Board certified. Also available for vacuum service. PED certified for non-hazardous gas.

Model 913: Full nozzle design. Bronze/brass body and bonnet. 316 stainless steel trim.



Product Features

  • Available with soft seat
  • Threaded cap is standard (back pressure tight)
  • Hex on valve nozzle provides for easy installation
  • Warn ring offers easy adjustability
  • Pivoting disc design corrects misalignment and offers exceptional performance
  • Guide to nozzle ratio reduces friction
  • Full nozzle design for optimum flow performance
  • Threaded side outlet for piped off discharge to eliminate fugitive emissions



Click on link below for more valves made by Kunkle!



Item Name: Kunkle Valves 913 Plain Lever
Description:

PLEASE FILL OUT "SET PRESSURE (PSI)" FOR "AIR, OR STEAM" BEFORE ADDING ITEM TO CART
Lead Time: Most Items In Stock. Available for immediate shipment.
Specifications
Part # Size Set Pressure Air or Steam
Plain Lever 		Description Weight Price Qty
913-BDCM03 1/2" Inlet x 3/4"
Outlet 		Kunkle Model 913 Plain Lever 4.00 $540.30 Add to Cart
913-BDDM03 3/4" inlet x 3/4"
Outlet 		Kunkle Model 913 Plain Lever 4.00 $567.50 Add to Cart
913-BDEM03 1" inlet x 1"
Outlet 		Kunkle Model 913 Plain Lever 4.00 $618.90 Add to Cart
913-BEDM03 3/4" inlet x 1-1/4"
Outlet 		Kunkle Model 913 Plain Lever 6.00 $728.50 Add to Cart
913-BEFM03 1-1/4" inlet x 1-1/4"
Outlet 		Kunkle Model 913 Plain Lever 6.00 $794.50 Add to Cart
913-BFEM03 1" inlet x 1-1/2"
Outlet 		Kunkle Model 913 Plain Lever 8.00 $877.90 Add to Cart
913-BFGM03 1-1/2" inlet x 1-1/2"
Outlet 		Kunkle Model 913 Plain Lever 10.00 $969.10 Add to Cart
913-BGFM03 1-1/4" inlet x 2"
Outlet 		Kunkle Model 913 Plain Lever 10.00 $1,235.80 Add to Cart
913-BGHM03 2 inlet" x 2"
Outlet 		Kunkle Model 913 Plain Lever 10.00 $1,436.60 Add to Cart
913-BHGM03 1-1/2" inlet x 2-1/2"
Outlet 		Kunkle Model 913 Plain Lever 18.00 $1,704.30 Add to Cart
913-BJHM03 2" inlet x 3"
Outlet 		Kunkle Model 913 Plain Lever 18.00 $2,302.80 Add to Cart
Item Name: Kunkle Valves 913 Packed Lever
Description:

PLEASE FILL OUT "SET PRESSURE (PSI)" & "AIR, LIQUID OR STEAM" BEFORE ADDING ITEM TO CART
Lead Time: Most Items In Stock. Available for immediate shipment.
Specifications
Part # Size Set Pressure Air or Liquid or Steam
Packed Lever 		Description Weight Price Qty
913-BDCM06 1/2" inlet x 3/4"
Outlet 		Kunkle Model 913 Packed Lever 4.00 $619.90 Add to Cart
913-BDDM06 3/4" inlet x 3/4"
Outlet 		Kunkle Model 913 Packed Lever 4.00 $647.00 Add to Cart
913-BDEM06 1" inlet x 1"
Outlet 		Kunkle Model 913 Packed Lever 4.00 $698.40 Add to Cart
913-BEDM06 3/4" inlet x 1-1/4"
Outlet 		Kunkle Model 913 Packed Lever 6.00 $801.30 Add to Cart
913-BEFM06 1-1/4" inlet x 1-1/4"
Outlet 		Kunkle Model 913 Packed Lever 6.00 $867.20 Add to Cart
913-BFEM06 1" inlet x 1-1/2"
Outlet 		Kunkle Model 913 Packed Lever 8.00 $941.90 Add to Cart
913-BFGM06 1-1/2" inlet x 1-1/2"
Outlet 		Kunkle Model 913 Packed Lever 10.00 $1,033.10 Add to Cart
913-BGFM06 1-1/4" inlet x 2"
Outlet 		Kunkle Model 913 Packed Lever 10.00 $1,280.40 Add to Cart
913-BGHM06 2 inlet" x 2"
Outlet 		Kunkle Model 913 Packed Lever 10.00 $1,481.20 Add to Cart
913-BHGM06 1-1/2" inlet x 2-1/2"
Outlet 		Kunkle Valves 913 Packed Lever 18.00 $1,731.50 Add to Cart
913-BJHM06 2" inlet x 3"
Outlet 		Kunkle Valves 913 Packed Lever 18.00 $2,311.60 Add to Cart
Item Name: Kunkle Valves 913 Capped Lever (LIQUID SERVICE ONLY)
Short description: Kunkle Valves 913 Capped Lever (LIQUID SERVICE ONLY)
Lead Time: Most Items In Stock. Available for immediate shipment.
Specifications
Part # Size Set Pressure Description Weight Price Qty
913-BDCM01 1/2" inlet x 3/4"
Outlet 		Kunkle Model 913 Capped Lever (LIQUID SERVICE ONLY) 4.00 $475.30 Add to Cart
913-BDEM01 1" inlet x 1"
Outlet 		Kunkle Model 913 Capped Lever (LIQUID SERVICE ONLY) 4.00 $502.50 Add to Cart
913-BDDM01 3/4" inlet x 1-1/4"
Outlet 		Kunkle Model 913 Capped Lever (LIQUID SERVICE ONLY) 4.00 $502.50 Add to Cart
913-BDEM01 1-1/4" inlet x 1-1/4"
Outlet 		Kunkle Model 913 Capped Lever (LIQUID SERVICE ONLY) 4.00 $553.90 Add to Cart
913-BEDM01 1" inlet x 1-1/2"
Outlet 		Kunkle Model 913 Capped Lever (LIQUID SERVICE ONLY) 6.00 $650.90 Add to Cart
913-BEFM01 1-1/2" inlet x 1-1/2"
Outlet 		Kunkle Model 913 Capped Lever (LIQUID SERVICE ONLY) 6.00 $716.90 Add to Cart
913-BFEM01 1-1/4" inlet x 2"
Outlet 		Kunkle Model 913 Capped Lever (LIQUID SERVICE ONLY) 8.00 $780.90 Add to Cart
913-BFGM01 2 inlet" x 2"
Outlet 		Kunkle Model 913 Capped Lever (LIQUID SERVICE ONLY) 10.00 $872.10 Add to Cart
913-BGFM01 1-1/2" inlet x 2-1/2"
Outlet 		Kunkle Model 913 Capped Lever (LIQUID SERVICE ONLY) 10.00 $1,107.80 Add to Cart
913-BGHM01 2" inlet x 3"
Outlet 		Kunkle Model 913 Capped Lever (LIQUID SERVICE ONLY) 10.00 $1,308.60 Add to Cart
913-BHGM01 3/4" inlet x 3/4"
Outlet 		Kunkle Model 913 Capped Lever (LIQUID SERVICE ONLY) 18.00 $1,542.40 Add to Cart
913-BJHM01 3/4" inlet x 1"
Outlet 		Kunkle Model 913 Capped Lever (LIQUID SERVICE ONLY) 18.00 $2,109.80 Add to Cart
