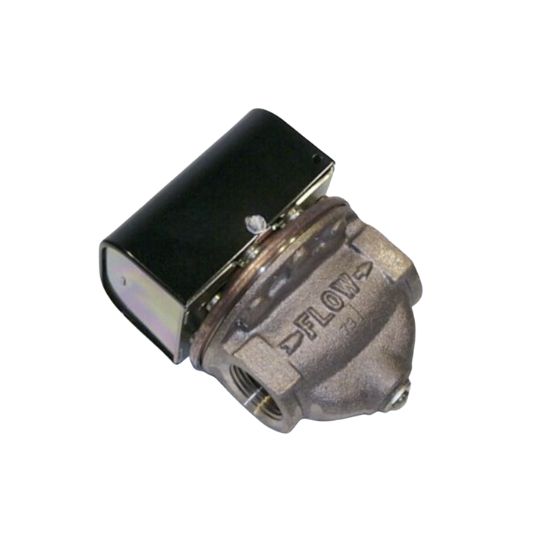

Boiler Controls - McDonnell Miller, Honeywell & Fireye | Boiler Supplies McDonnell Miller Controls McDonnell Miller Series FS6
High Sensitivity Liquid Flow For heavy duty applications where high sensitivity is required, such as water treatment systems, cooling systems for electronic circuits, compressors, booster pumps, and bearings and other applications that need instant switching. Very high flow capacity. Actuates at extremely low flow rate. Minimum temperature 32°F Maximum temperature 225°F Maximum operating pressure 100 psi NOTE: Do not use liquid flow switches on systems with flow greater than 10 feet per second Values are +- 10%
| Model# | Part# | Description | Weight | A | B | C | D | E | F | G | Price | Qty | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

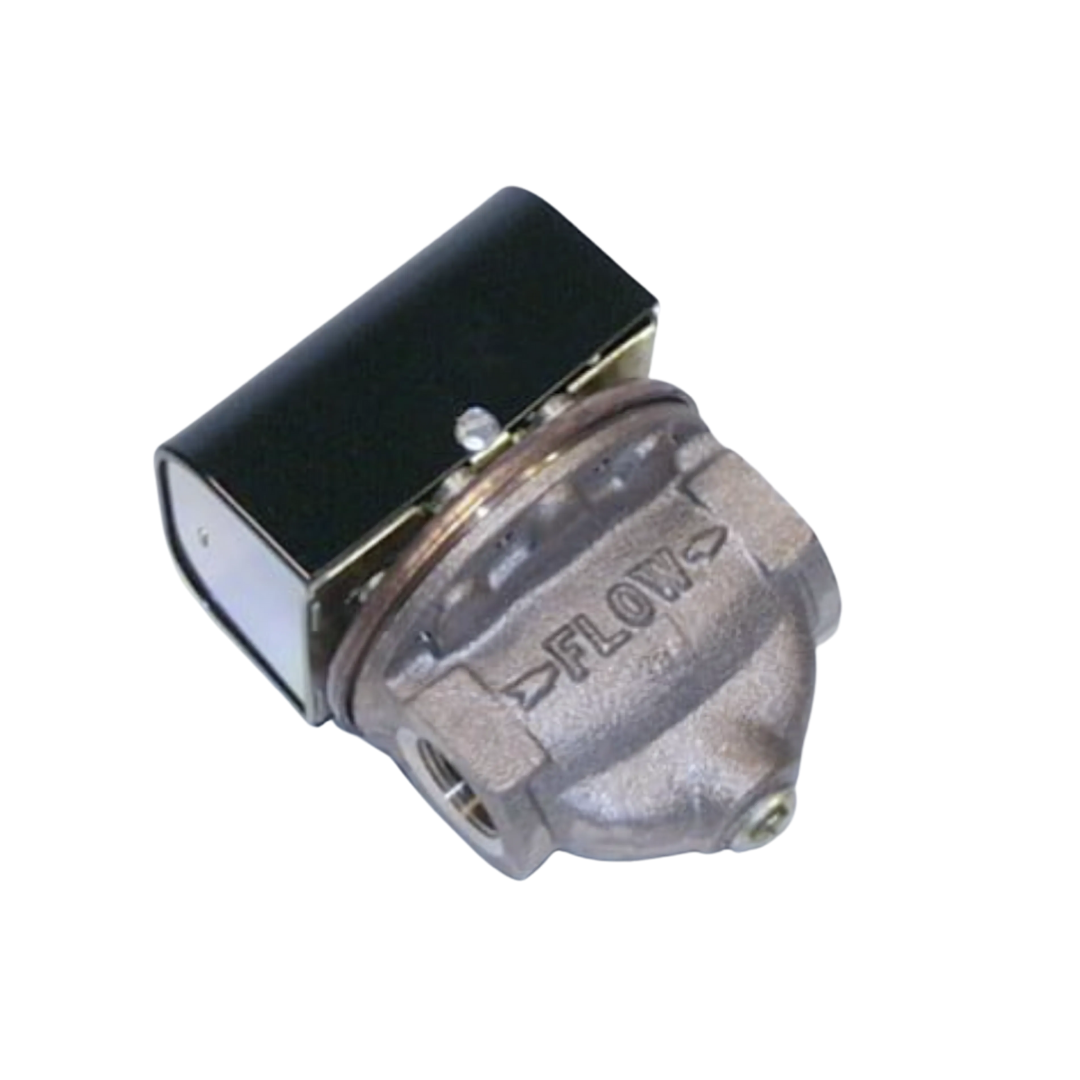

| FS6-3/4 | 115400 | High sensitivity flow switch 3/4" NPT body | 6.50 | 3 1/2" | 3 23/32" | 3 3/8" | 3/4 or 1" | 7/8" | 3 3/4" | 2" | $342.10 | Add to Cart | |
| FS6-J-3/4 | 115550 |
FS6-3/4 w/ BSPT pipe threads $Call |
6.50 | 3 1/2" | 3 23/32" | 3 3/8" | 3/4 or 1" | 7/8" | 3 3/4" | 2" | $333.45 | Add to Cart | |

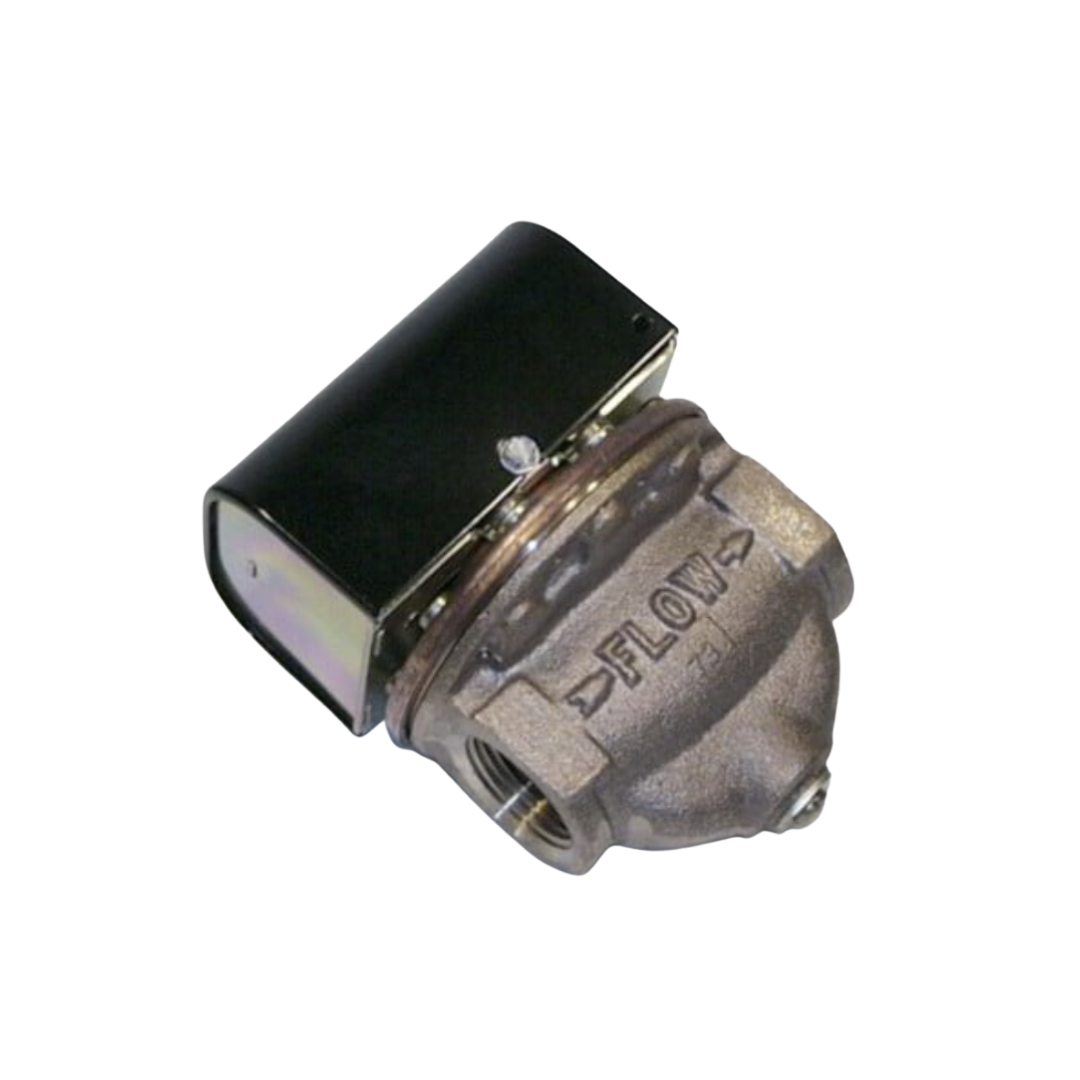

| FS6-1 | 115600 | High sensitivity flow switch 1" NPT body | 6.50 | 3 1/2" | 3 23/32" | 3 3/8" | 3/4 or 1" | 7/8" | 3 3/4" | 2" | $342.10 | Add to Cart | |
| FS6-W-3/4 | 115651 | FS6-3/4 w/ NEMA 4x enclosure | 6.50 | 3 1/2" | 3 23/32" | 3 3/8" | 3/4 or 1" | 7/8" | 3 3/4" | 2" | $389.75 | Add to Cart | |
| FS6-WJ-3/4 | 115653 |
FS6-W- 3/4 w/ BSPT connections $Call |
6.50 | 3 1/2" | 3 23/32" | 3 3/8" | 3/4 or 1" | 7/8" | 3 3/4" | 2" | $389.75 | Add to Cart | |
| FS6-W-1 | 115652 | FS6-1 w/ NEMA 4x enclosure | 6.50 | 3 1/2" | 3 23/32" | 3 3/8" | 3/4 or 1" | 7/8" | 3 3/4" | 2" | $389.75 | Add to Cart |
| Size NPT in. | Settings | Flow gpm | No Flow gpm | Max. Flow Rate gpm w/o paddle damage |
|---|---|---|---|---|
| 3/4 or 1 | Factory or minimum | 0.12 | 0.06 | 16.62 |
| 3/4 or 1 | Maximum | 2.5 | 1.5 | 16.62 |
| Voltage | Motor Switch Rating(Amperes) 120 VDC .5 Amp Full Load | Motor Switch Rating(Amperes) 120 VDC .5 Amp Locked Rotor | Pilot duty |
|---|---|---|---|
| 120 VAC | 7.4 | 44.4 | 125 VA at 120 or 240 VAC |
| 240 VAC | 3.7 | 22.2 | 125 VA at 120 or 240 VAC |
