Boiler Controls - McDonnell Miller, Honeywell & Fireye | Boiler Supplies McDonnell Miller Controls McDonnell Miller Series FS5

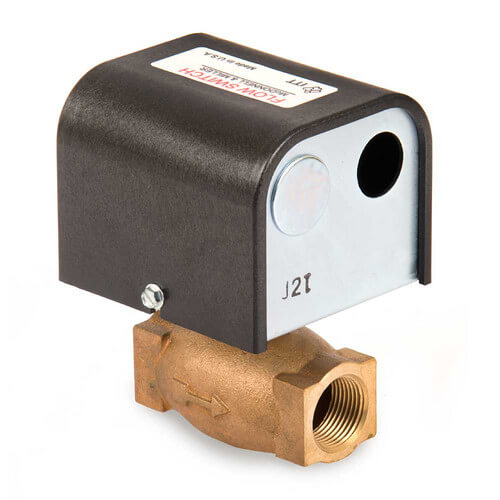

General Purpose Liquid Flow For general purpose applications requiring low flow rate sensitivity. In-line configuration eliminates need for a pipe tee. Single pole, double throw snap switch. Sensitivity adjusting screw makes flow adjustment easy. Optional features - BSPT threads. Minimum temperature 32°F Maximum temperature 225°F - Stainless Steel Models 250°F - Brass Maximum operating pressure 150 psi Values +- 10%
| Part # | Model # | Description | Weight | |
|---|---|---|---|---|

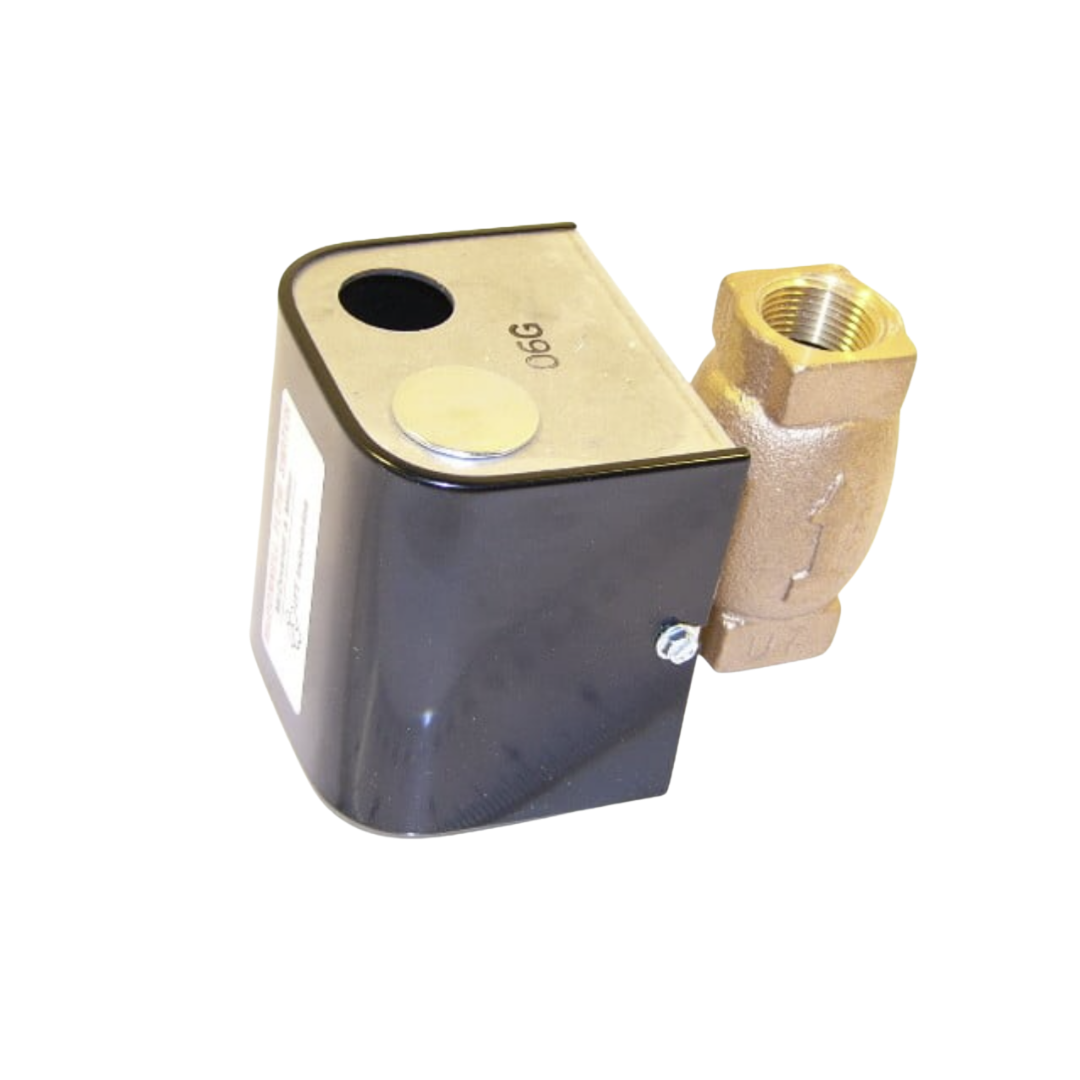

| 114760 | FS5-3/4 | McDonnell Miller FS5-3/4 General Purpose flow switch 3/4" NPT | 4.50 | Add to RFQ |
| 114763 | FS5-D-3/4 | McDonnell Miller FS5-D-3/4 w/ 2 SPDT switches | 4.50 | Add to RFQ |
| 114765 | FS5-J-3/4 | McDonnell Miller FS5-J-3/4 w/ BSPT connections | 4.50 | Add to RFQ |

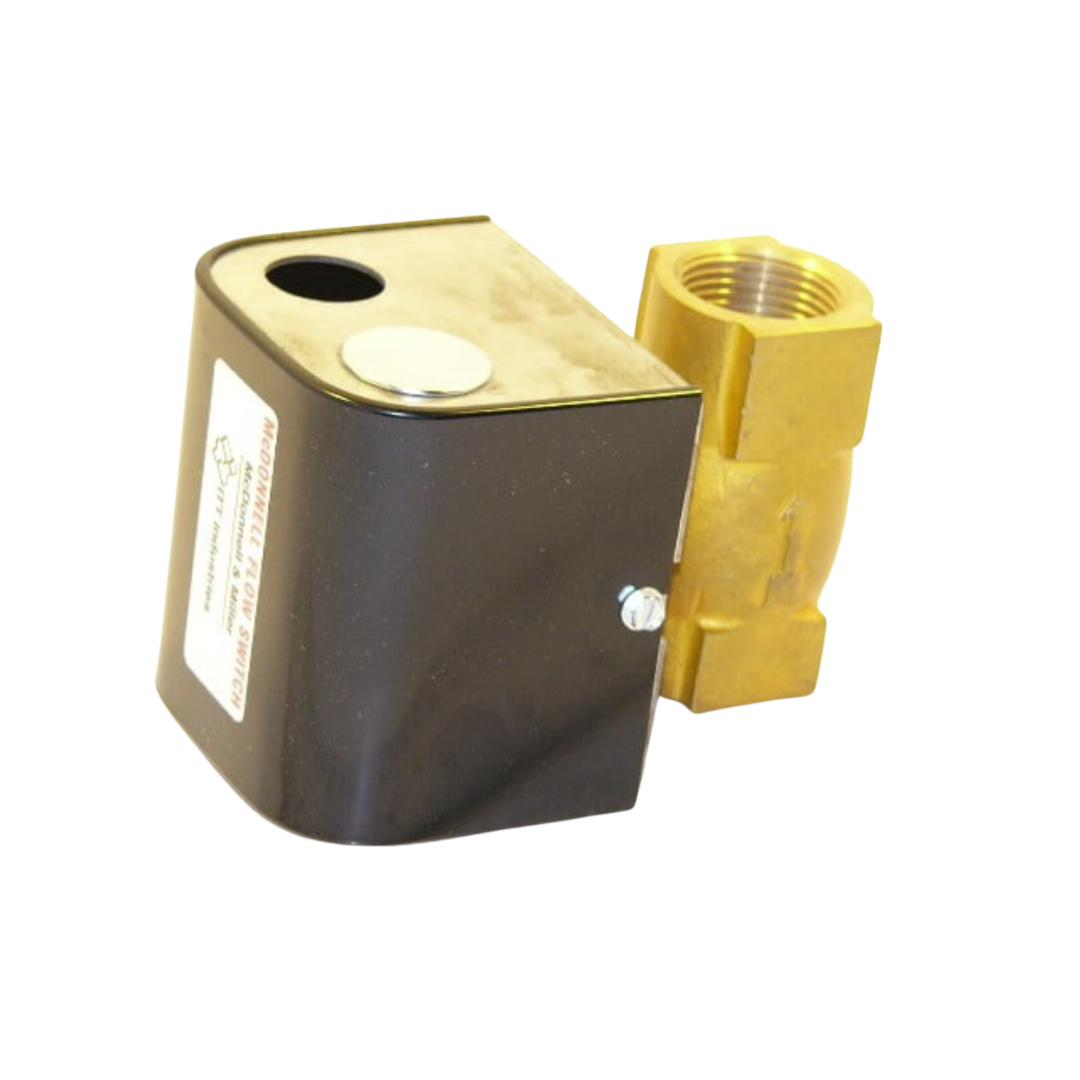

| 114780 | FS5-1 | McDonnell Miller FS5-1 General Purpose flow switch 1" NPT | 4.50 | Add to RFQ |

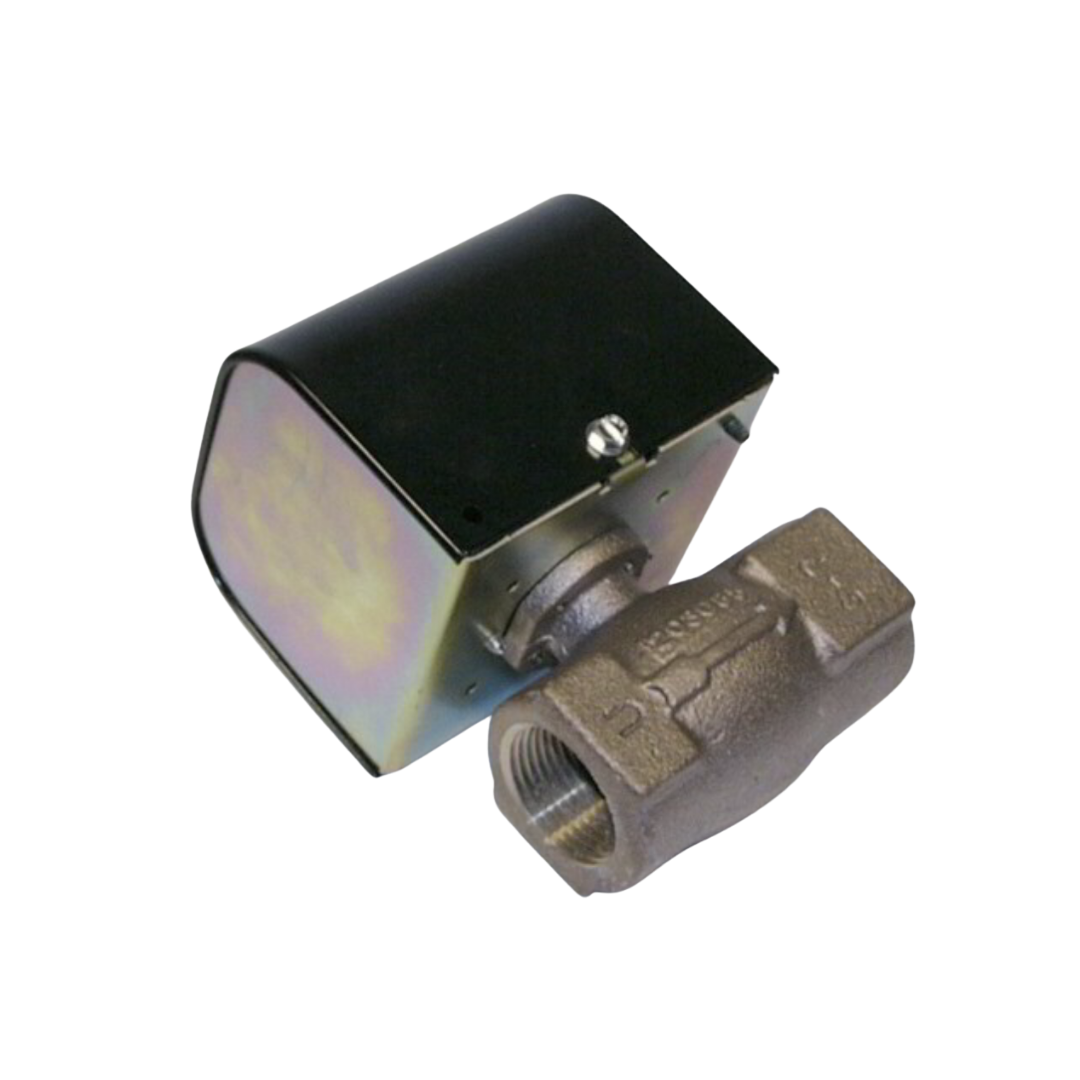

| 114783 | FS5-D-1 | McDonnell Miller FS5-D-1 w/ 2 SPDT switches | 4.50 | Add to RFQ |

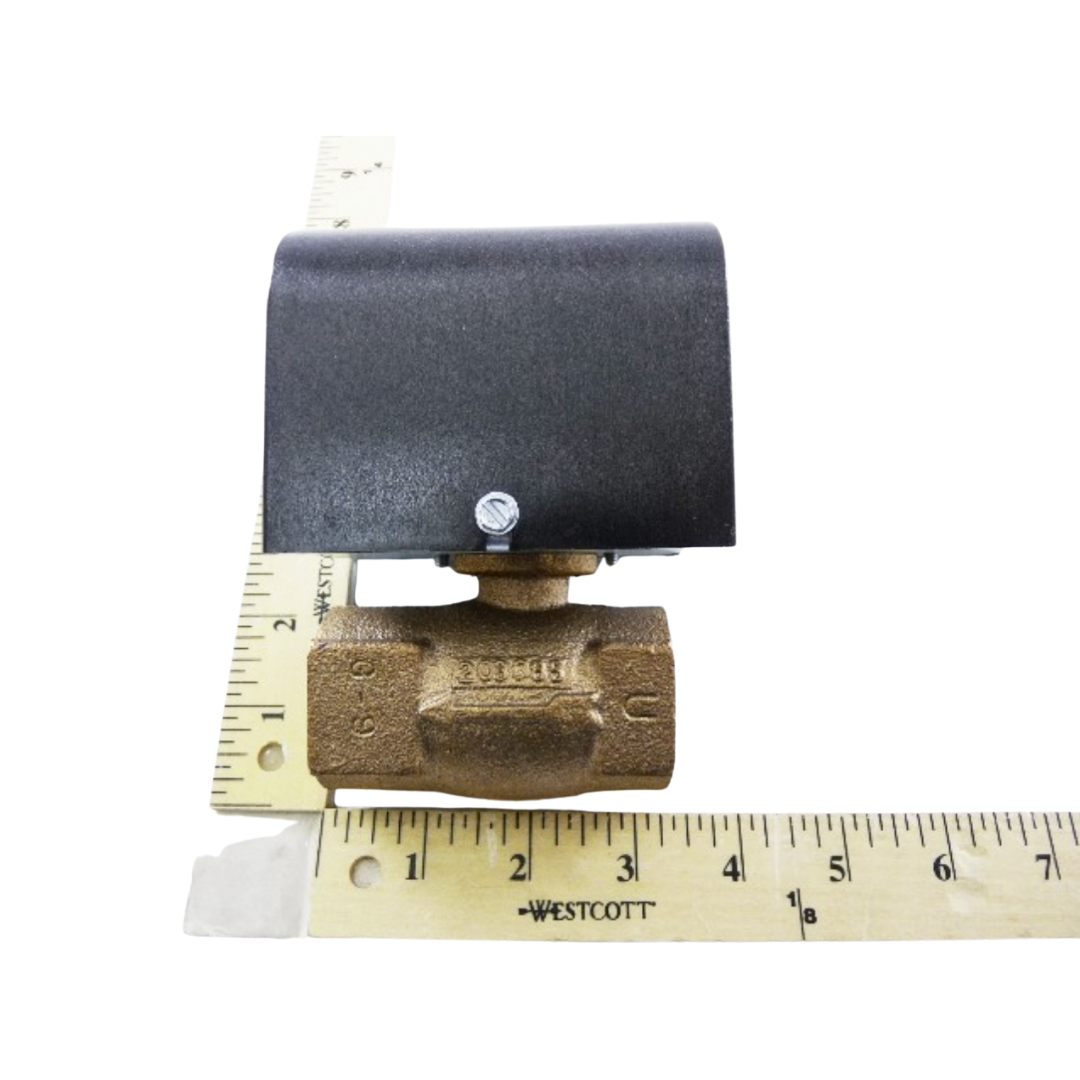

| 114785 | FS5-J-1 | McDonnell Miller FS5-J-1 w/ BSPT connections | 4.50 | Add to RFQ |

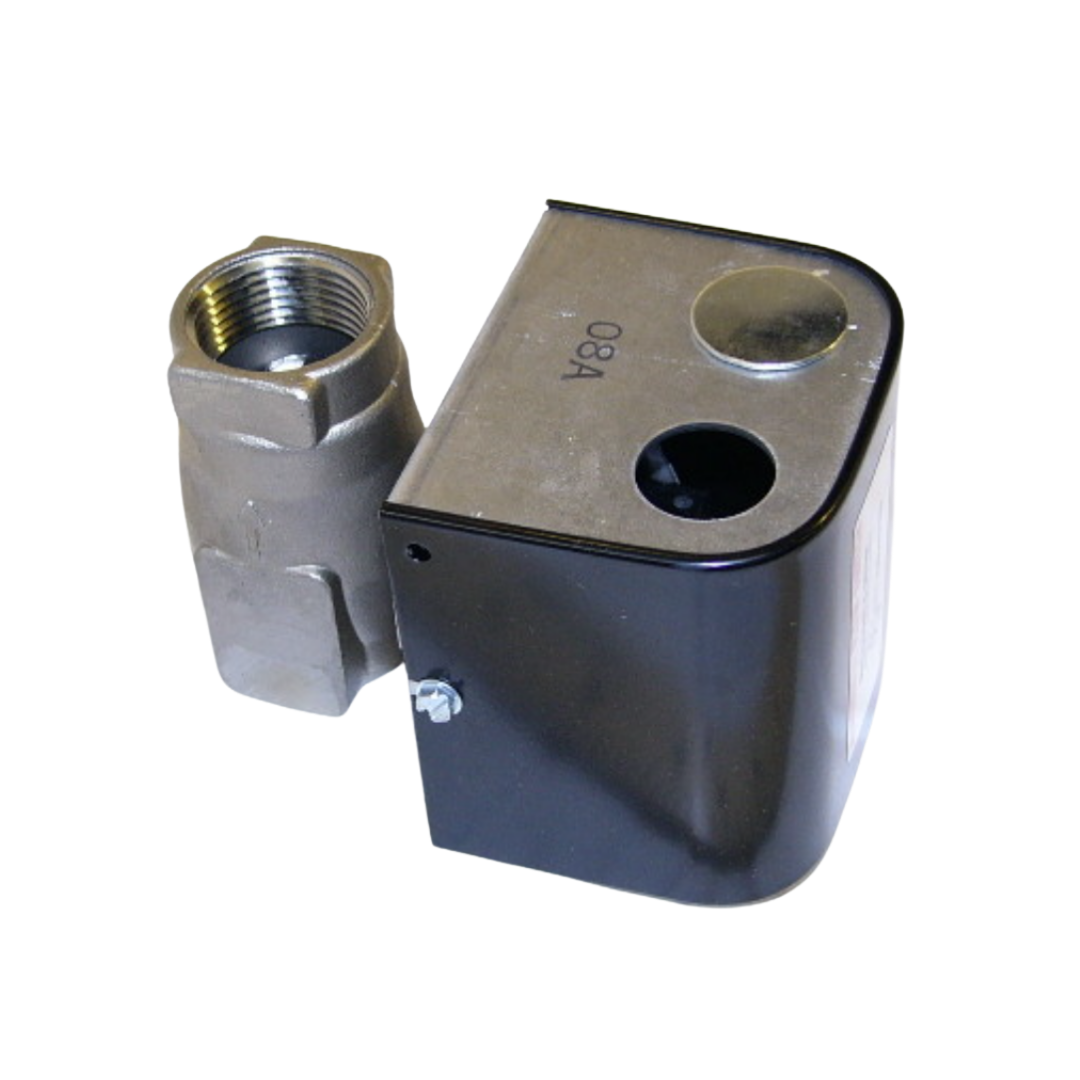

| 114795 | FS5-S-1 | McDonnell Miller FS5-S-1 w/ SS body | 4.50 | Add to RFQ |
| 114793 | FS5-DS-1 | McDonnell Miller FS5-DS-1 w/ SS body, 2 SPDT switches | 4.50 | Add to RFQ |
| 114766 | FS5-J-3/4-E | McDonnell Miller FS5-J-3/4-E conformance rated | 4.50 | Add to RFQ |
| 114787 | FS5-J-1-E | McDonnell Miller FS5-J-1-E conformance rated | 4.50 | Add to RFQ |
|
Pipe Size NPT in. |
Settings |
Flow gpm |
No Flow gpm |
Max. Flow Rate gpm w/o paddle damage |
|
|---|---|---|---|---|---|
| 3/4 or 1 | Factory or minimum | 1.5 | 1.1 | 16.62 | Add to RFQ |
| 3/4 or 1 | Maximum | 15 | 10 | 27 | Add to RFQ |
| Voltage |
Motor Switch Rating(Amperes) 120 VDC .5 Amp Full Load |
Motor Switch Rating(Amperes) 120 VDC .5 Amp Locked Rotor |
Pilot duty | |
|---|---|---|---|---|
| 120 VAC | 7.4 | 44.4 | 125 VA at 120 or 240 VAC | Add to RFQ |
| 240 VAC | 3.7 | 22.2 | 125 VA at 120 or 240 VAC | Add to RFQ |
