High Sensitivity Liquid Flow For general purpose applications where high sensitivity is required and moderate or low flow rates are encountered such as air conditioning, heating and hydronic systems, water, oil, some vicious liquids and oils in process work. High flow capacity. 1/2" NPT. Switch compartment is completely sealed. Minimum temperature 32°F Maximum temperature 225°F Maximum operating pressure 100 psi NOTE: Do not use liquid flow switches on systems with flow greater than 10 feet per second Values are +- 10%
Part # | Model # | Description | Weight | |
---|---|---|---|---|

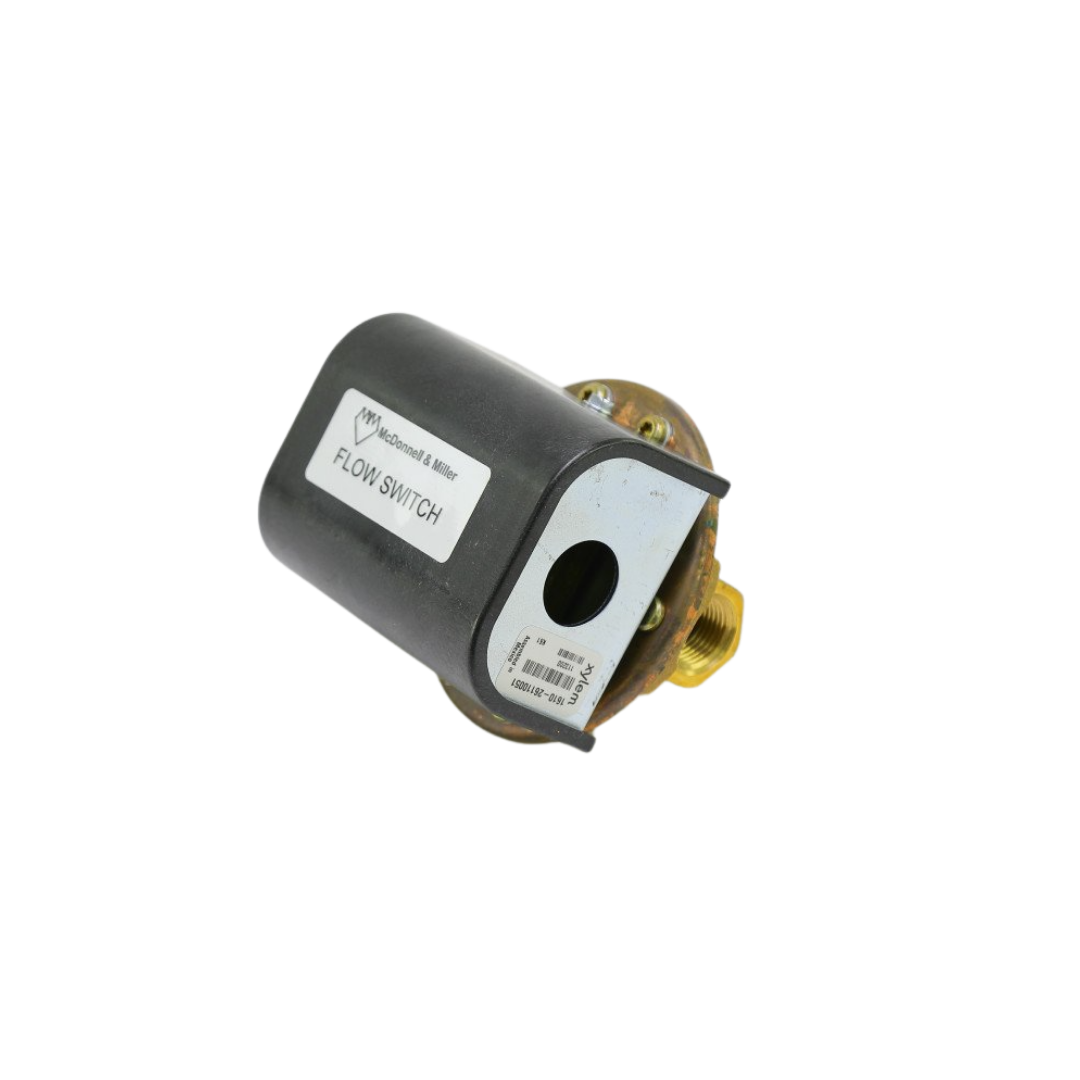

113200 | FS1 | McDonnell Miller FS1 High sensitivity flow switch - 1/2" NPT body | 5.00 | Add to RFQ |
113250 | FS1-G | McDonnell Miller FS1-G with gold plated contacts | 5.00 | Add to RFQ |

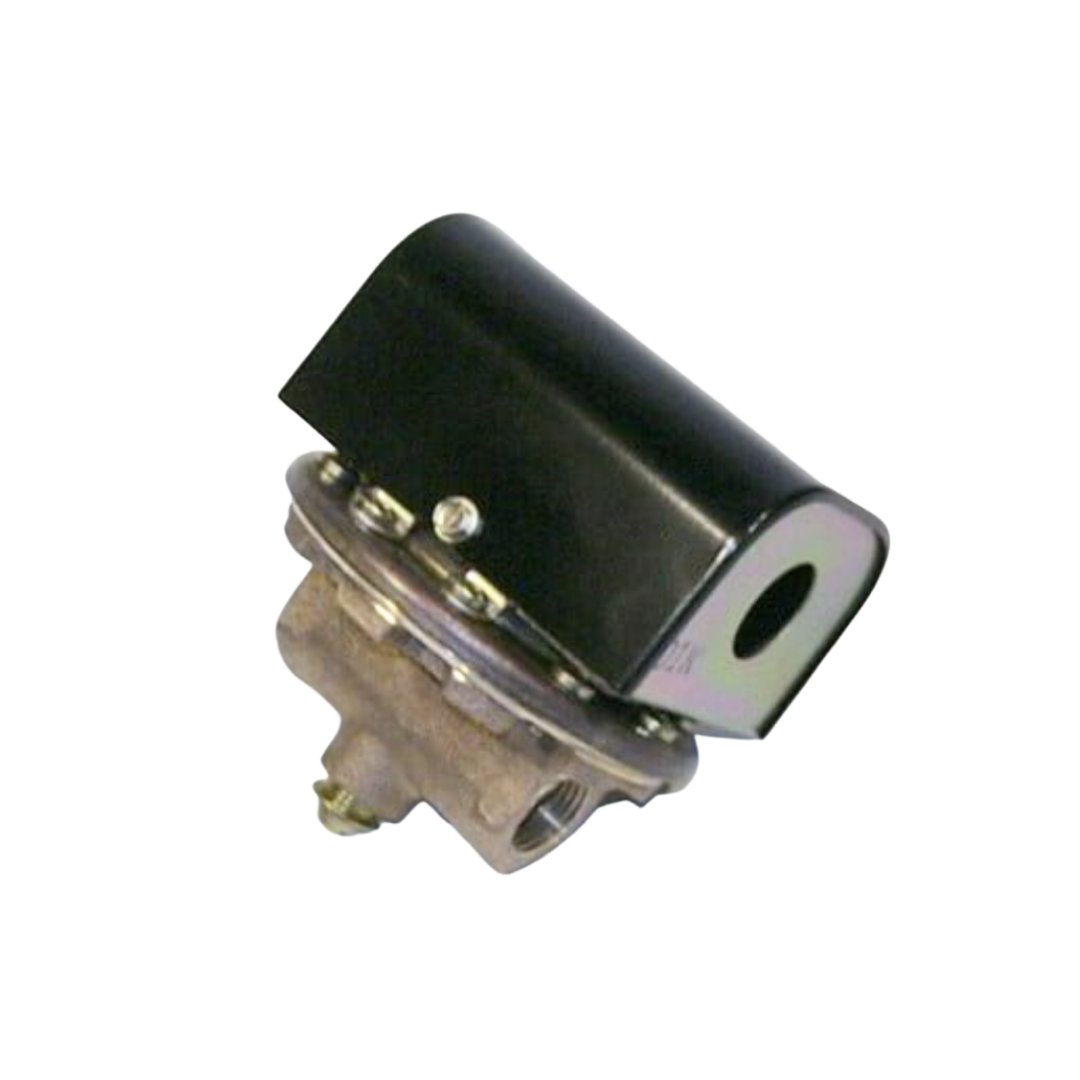

113550 | FS1-J | McDonnell Miller FS1-J w/ BSPT connections | 5.00 | Add to RFQ |
113560 | FS1-L | McDonnell Miller FS1-L set @ 1.7 gpm | 5.00 | Add to RFQ |

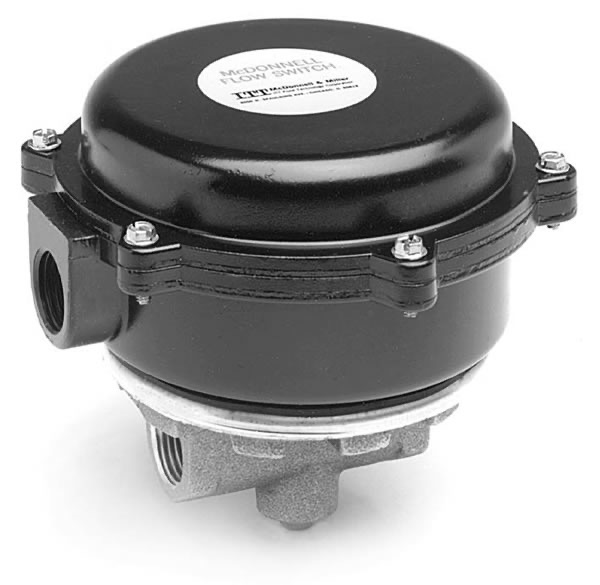

113601 | FS1-W | McDonnell Miller FS1-W w/ NEMA 4x enclosure | 5.50 | Add to RFQ |
113602 | FS1-W-E | McDonnell Miller FS1-W-E CE conformance | 5.00 | Add to RFQ |
Settings |
Flow gpm |
No Flow gpm |
Max. Flow Rate gpm w/o paddle damage |
|
---|---|---|---|---|
Factory or minimum | 0.41 | 0.24 | 9.48 | Add to RFQ |
Maximum | 1.81 | 1.28 | 9.48 | Add to RFQ |
Voltage |
Motor Switch Rating(Amperes) 120 VDC .5 Amp Full Load |
Motor Switch Rating(Amperes) 120 VDC .5 Amp Locked Rotor |
Pilot duty | |
---|---|---|---|---|
120 VAC | 7.4 | 44.4 | 125 VA at 120 or 240 VAC | Add to RFQ |
240 VAC | 3.7 | 22.2 | 125 VA at 120 or 240 VAC | Add to RFQ |
