Boiler Controls - McDonnell Miller, Honeywell & Fireye | Boiler Supplies McDonnell Miller Controls McDonnell Miller Series 94

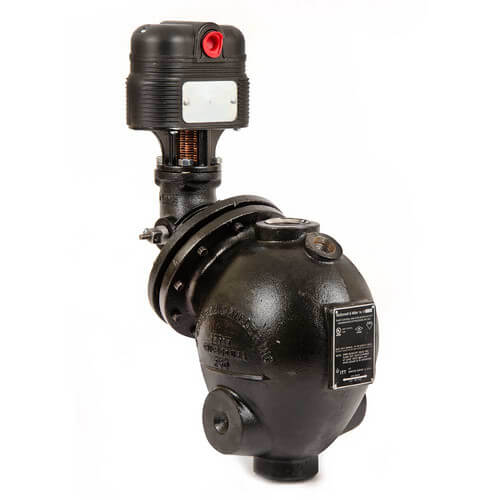

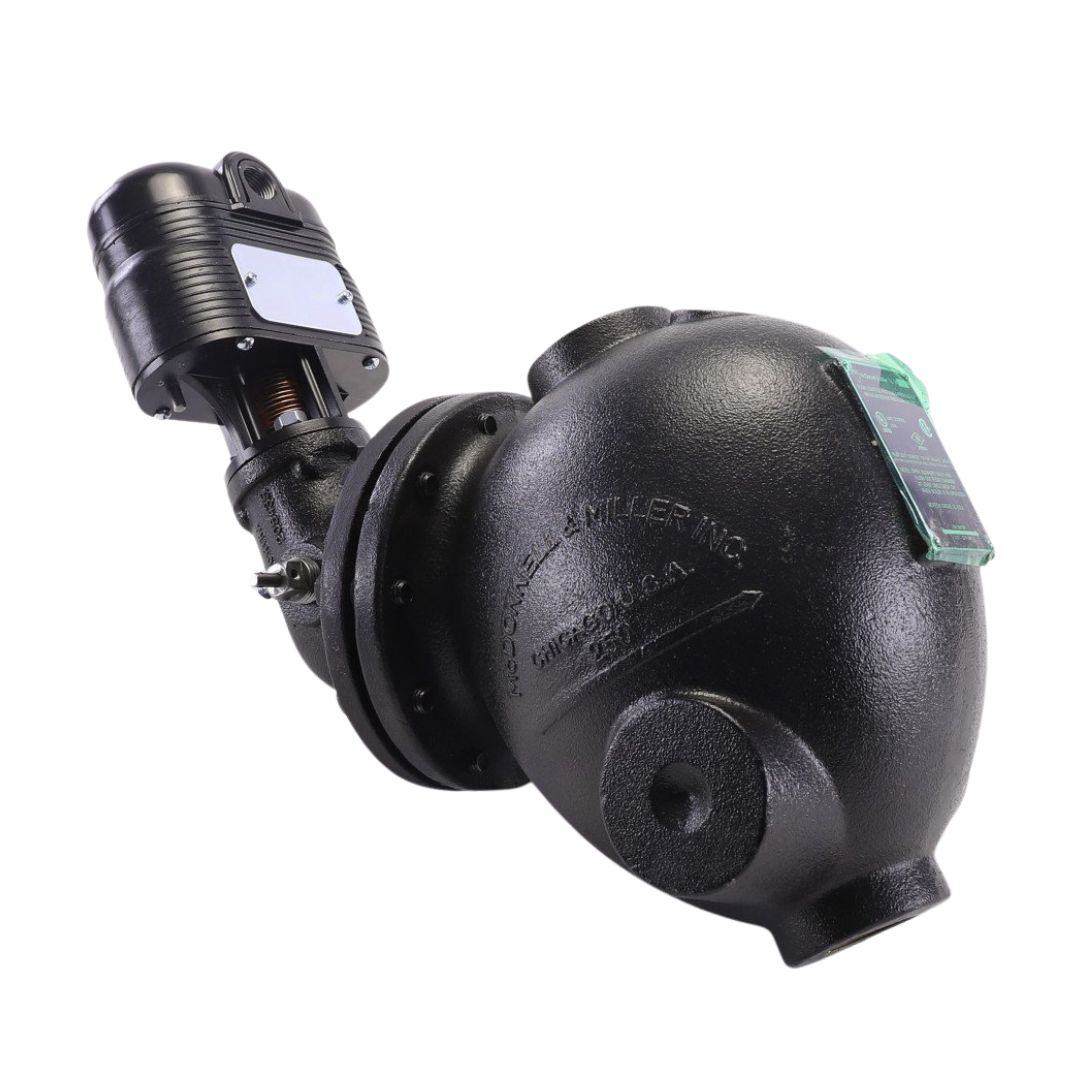

McDonnell Miller Series 94 Low Water Cut-Off /Pump Controllers For commercial, and industrial, low or high pressure steam boilers. Maintains consistent water level regardless of pressure. No. 5 switch. Magnetic repulsion eliminates need for bellows. 1 1/4" NPT connections Maximum pressure 250 psi. 10 Bolt Hole Pattern
| Model# | Part# | Description | Weight | Price | Qty | |
|---|---|---|---|---|---|---|

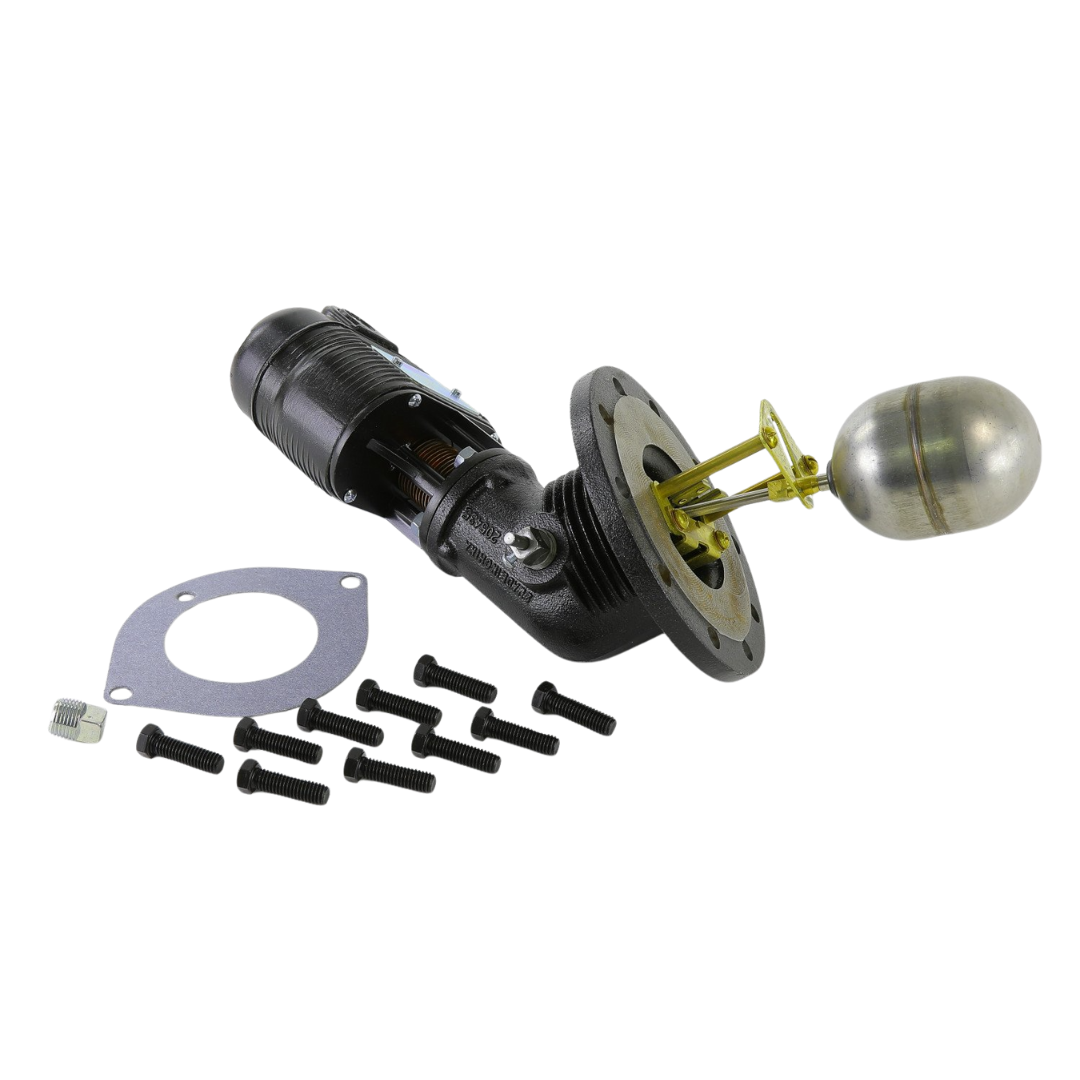

| 94-HD | 165300 | Head Mechanism w/ No.5 Switch | 22.00 | $1,190.75 | Add to Cart | |

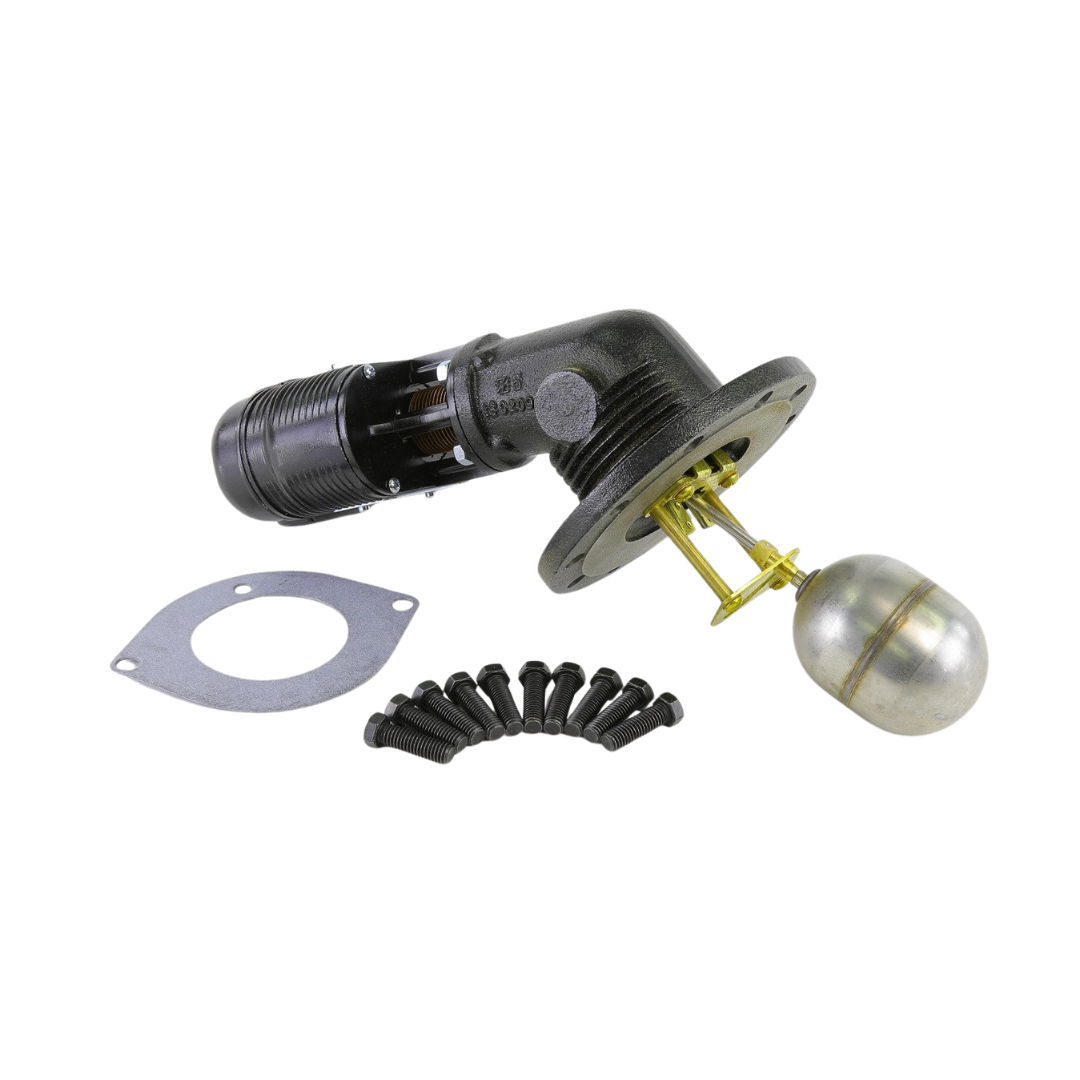

| 94-M-HD | 166000 | 94-HD w/ manual reset | 23.00 | $1,190.75 | Add to Cart | |

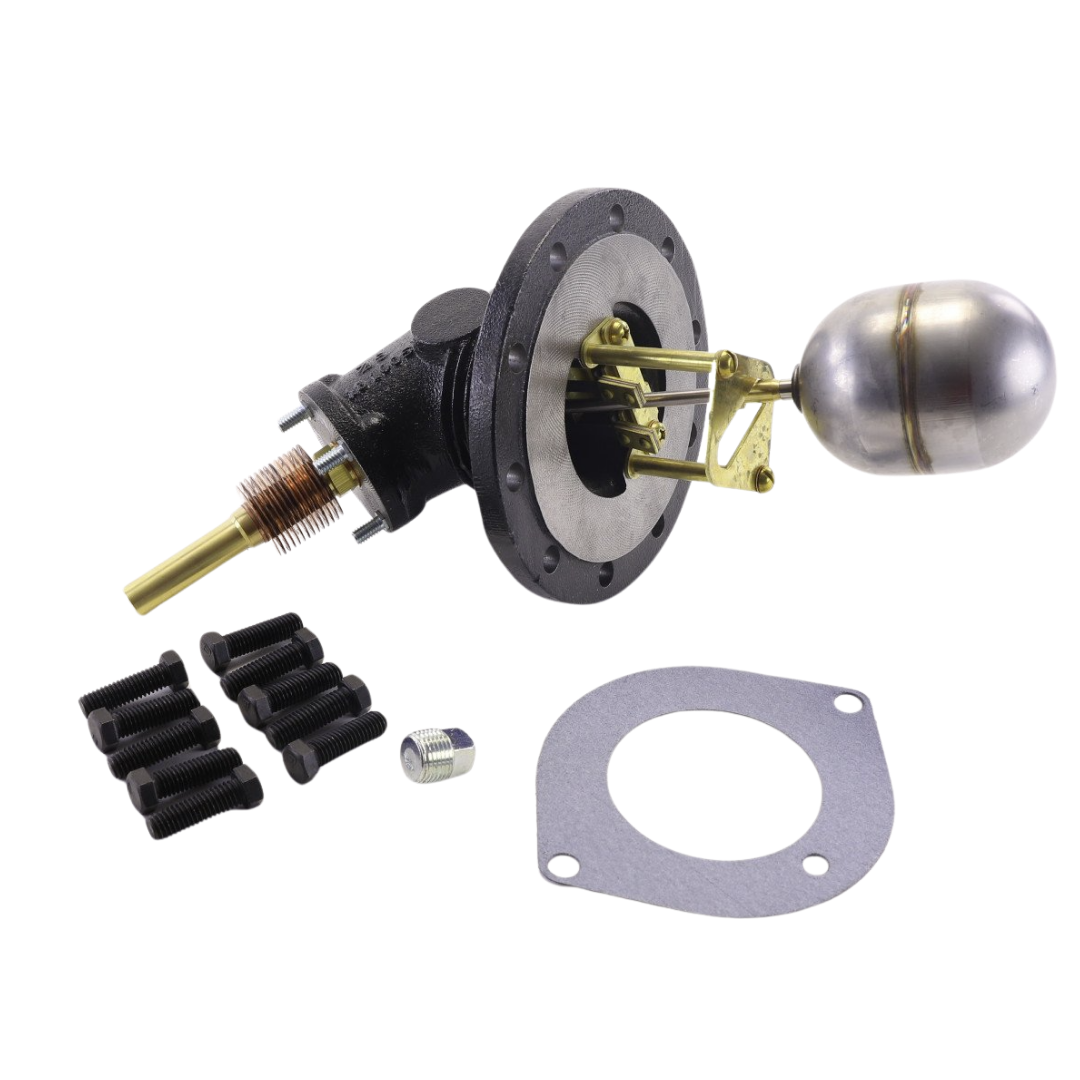

| 94-HDLS | 165302 | Head without switch | 17.00 | $610.55 | Add to Cart |
| Model# | Part# | Description | Weight | Price | Qty | |
|---|---|---|---|---|---|---|

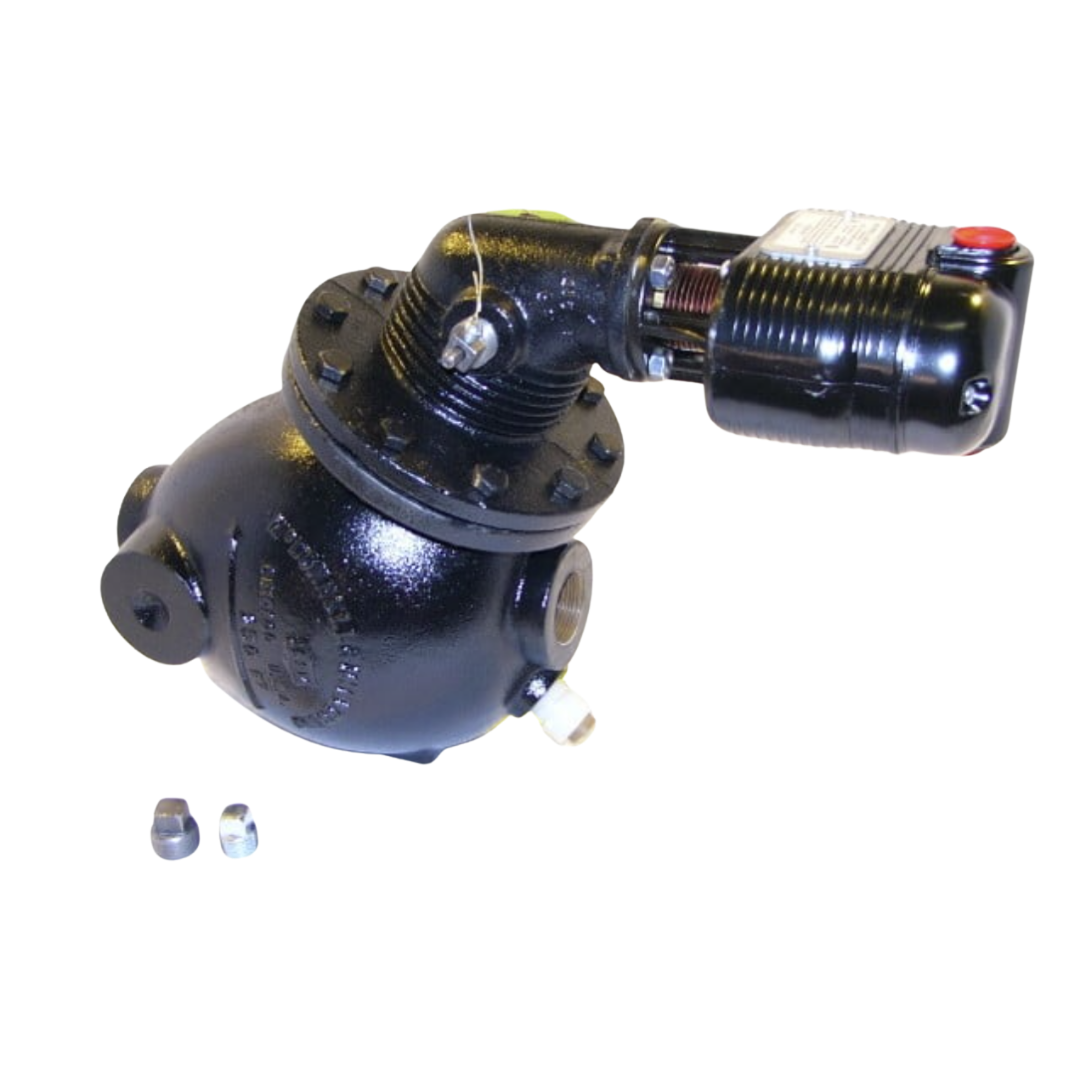

| 94 | 165200 | Combination low water cut-off/pump control/No.5 switch | 55.00 | $1,260.00 | Add to Cart | |

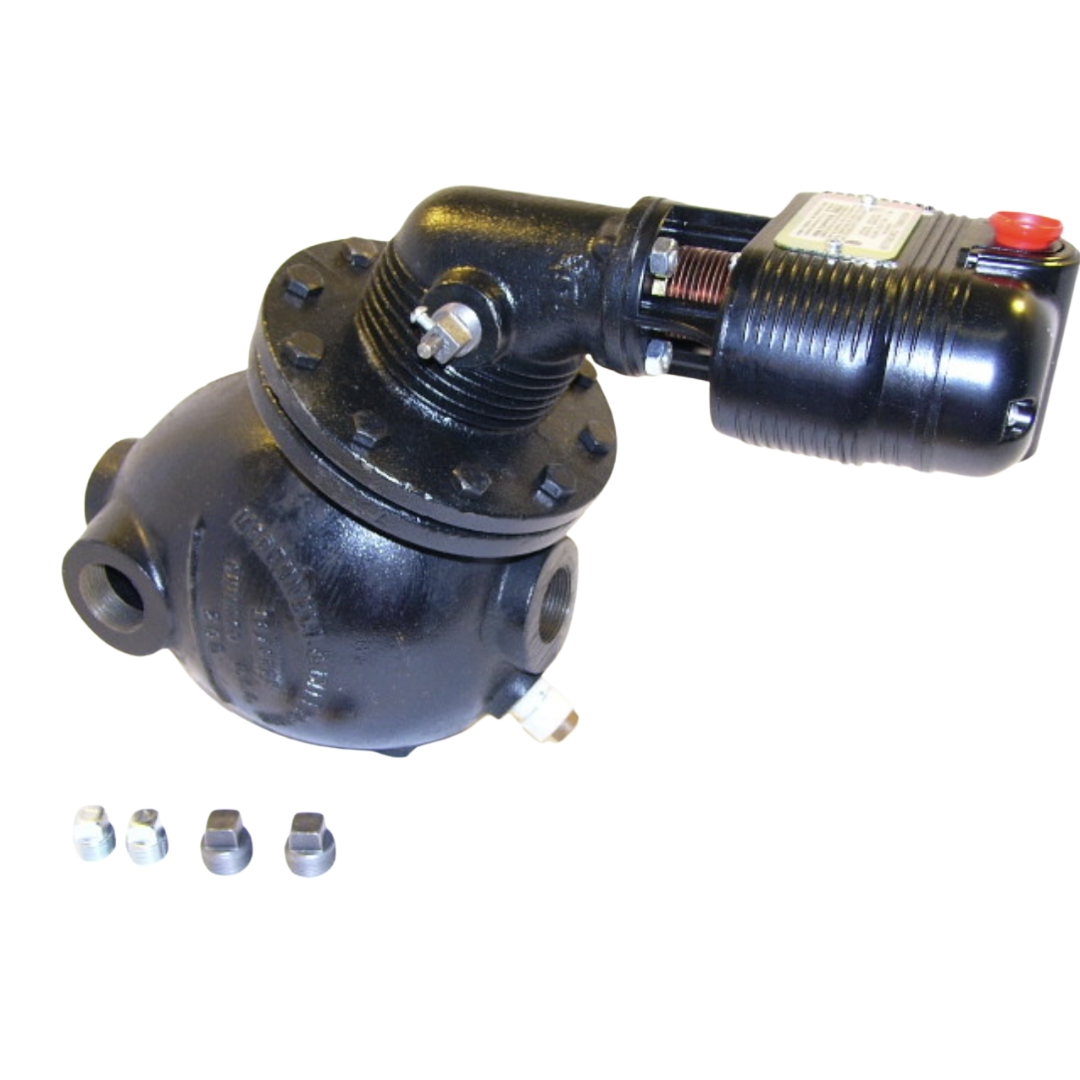

| 94-A | 165500 | 94 w/ alternate tappings | 53.00 | $1,260.00 | Add to Cart | |
| 94-AM | 165800 | 94-A w/ manual reset | 53.00 | $1,260.00 | Add to Cart | |
| 94-A-7B | 165700 |
94-AM w/ No. 7B Switch $Call |
55.00 | |||
| 94-J | 165850 |
94 w/ BSPT threads $Call |
55.00 | $1,182.90 | Add to Cart | |
| 94-J-7B | 165875 |
94-7B w/ BSPT threads $Call |
55.00 | |||

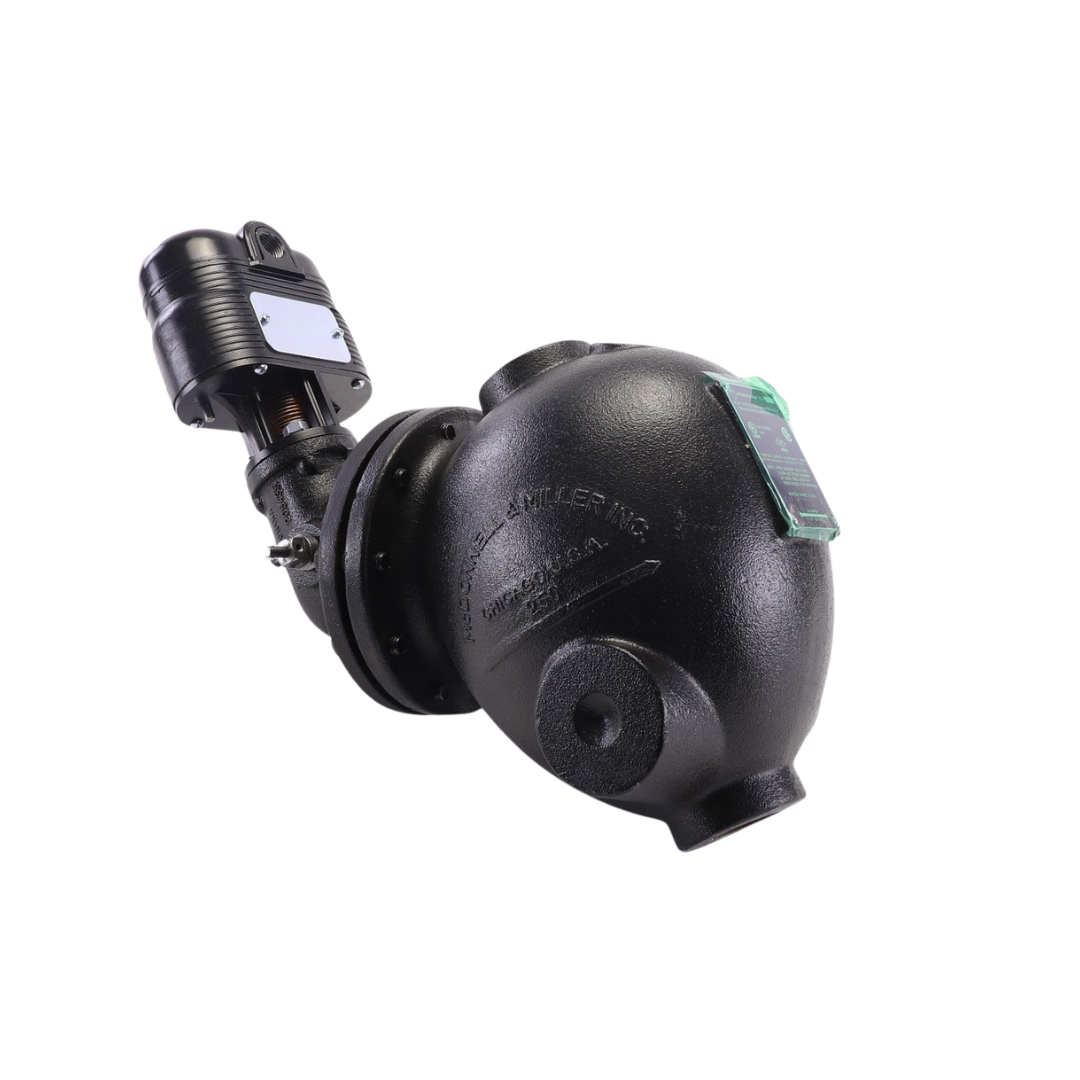

| 94-M | 165900 | w/ manual reset | 55.00 | $1,260.00 | Add to Cart | |

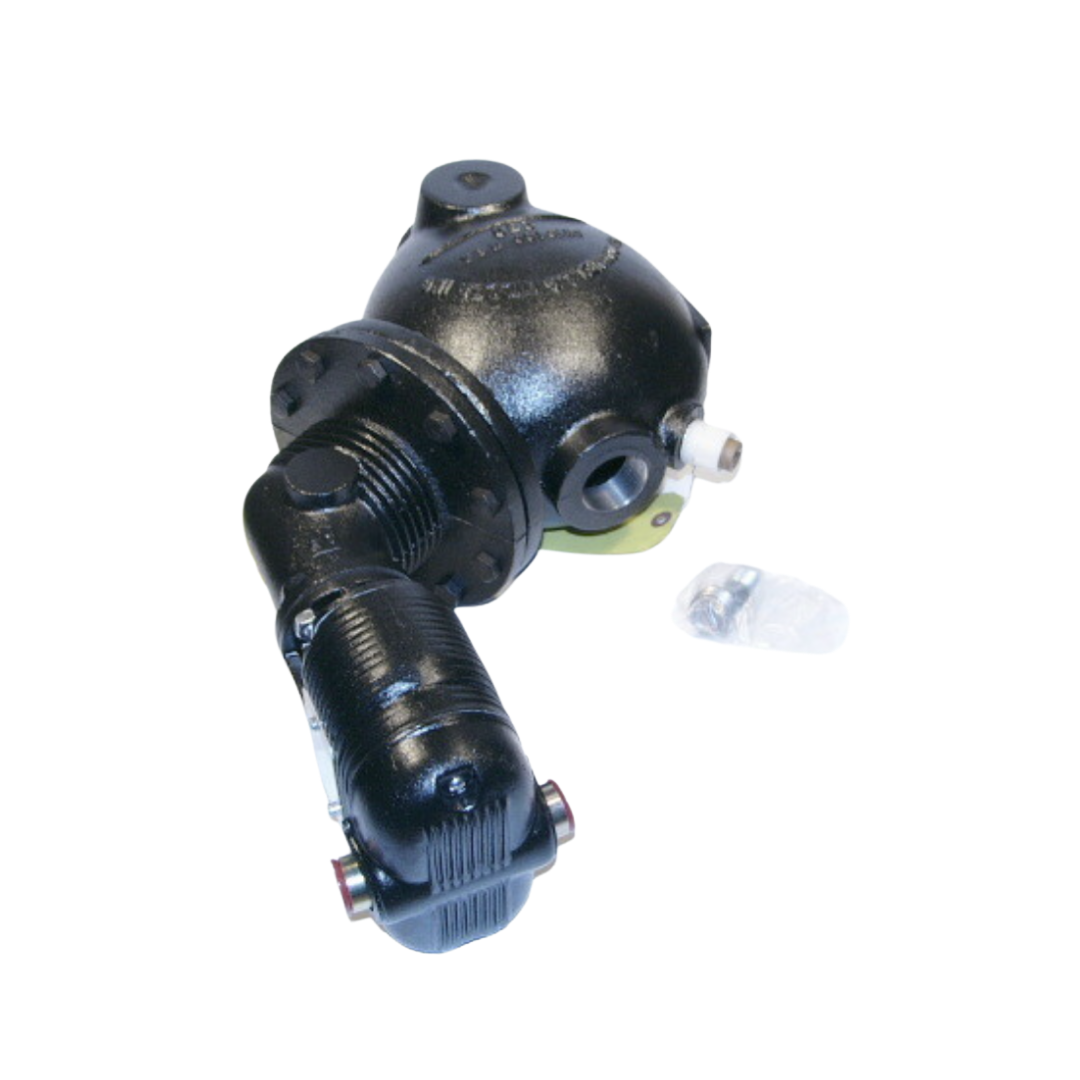

| 94-7B | 166300 | 94 w/ No. 7B switch | 55.00 | $1,714.65 | Add to Cart |
| Model# | Part# | Description | Weight | Price | Qty | |
|---|---|---|---|---|---|---|

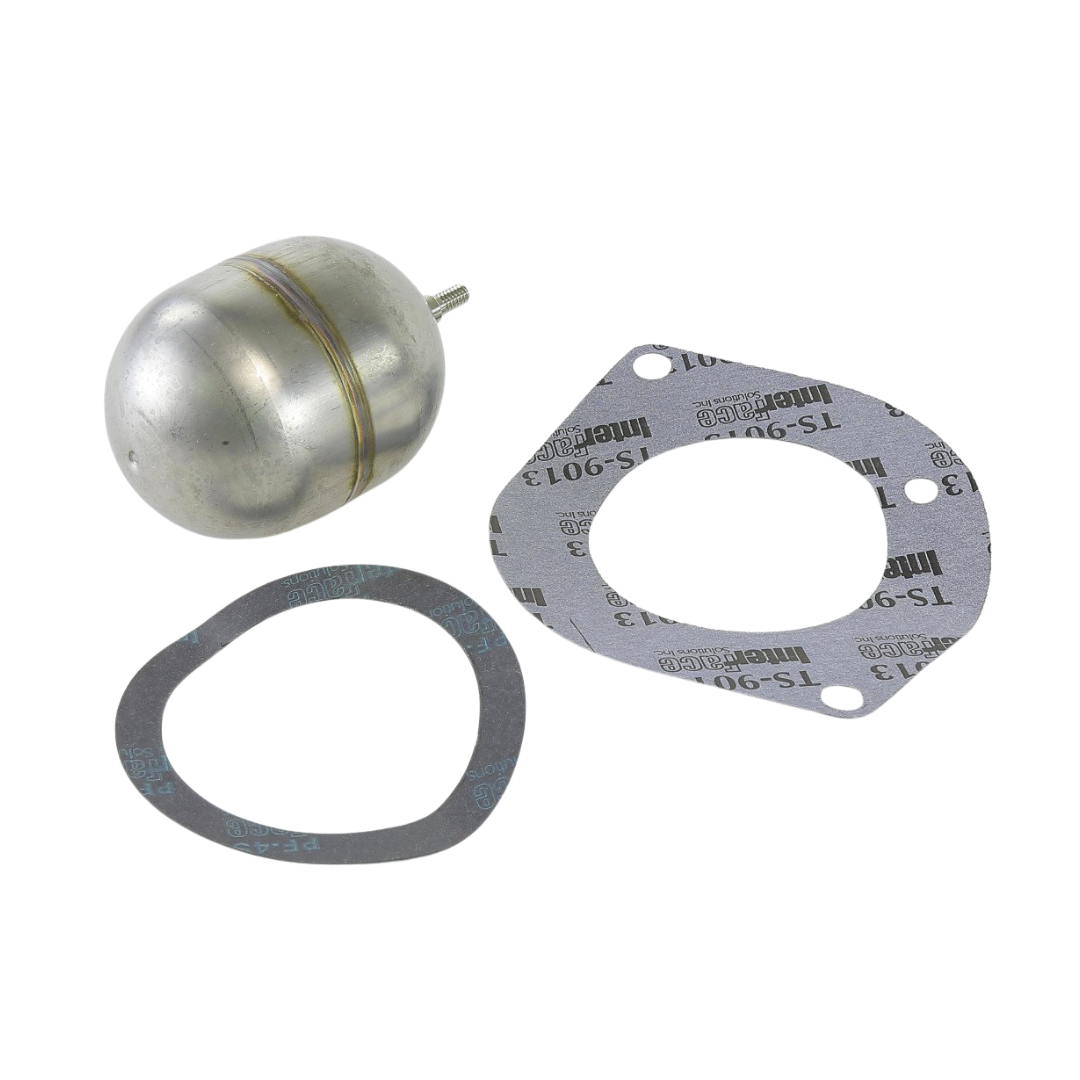

| SA91-60 | 345700 | Float | 3.00 | $181.90 | Add to Cart | |

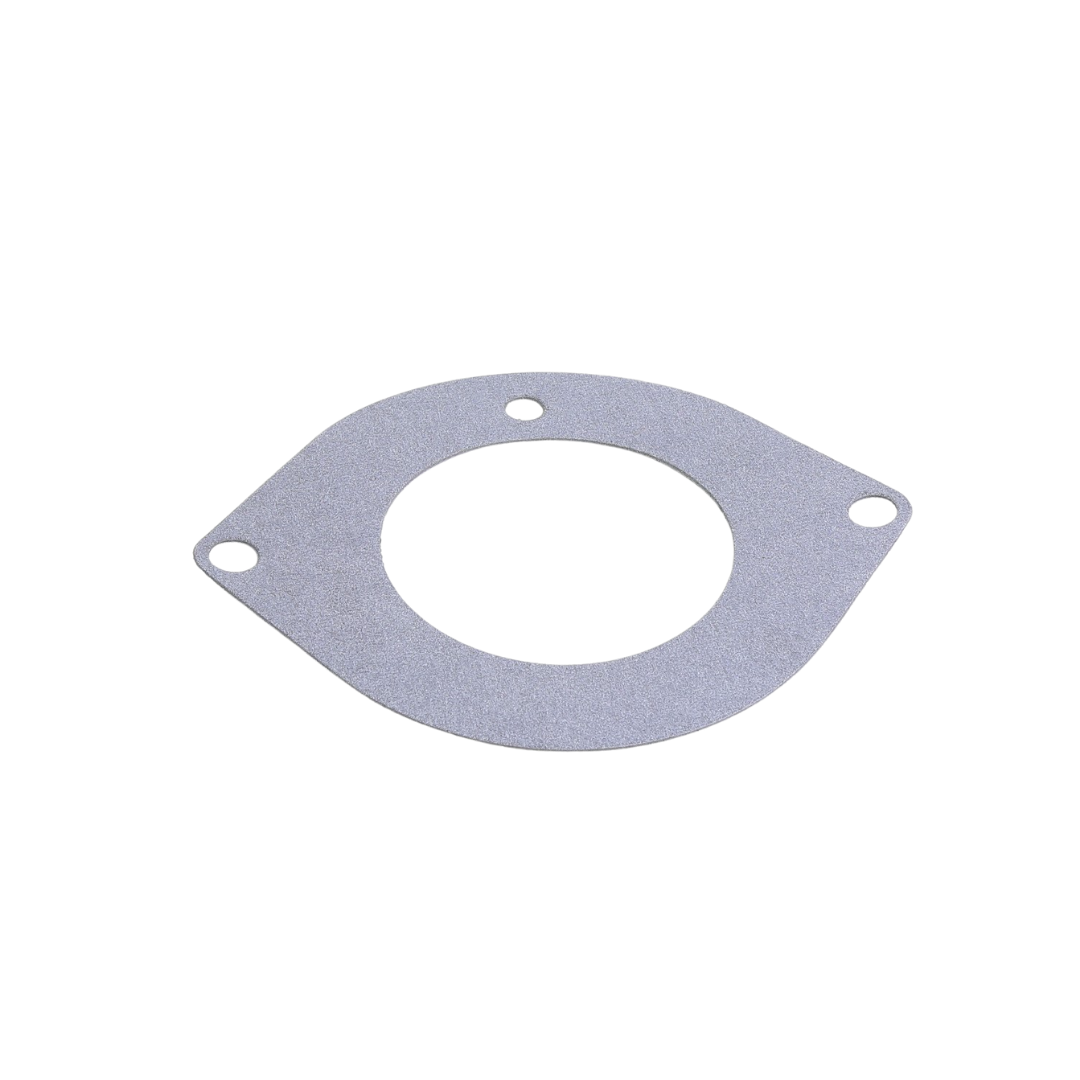

| 92-68 | 323300 | Gasket (6 pack) | 3.00 | $43.50 | Add to Cart | |

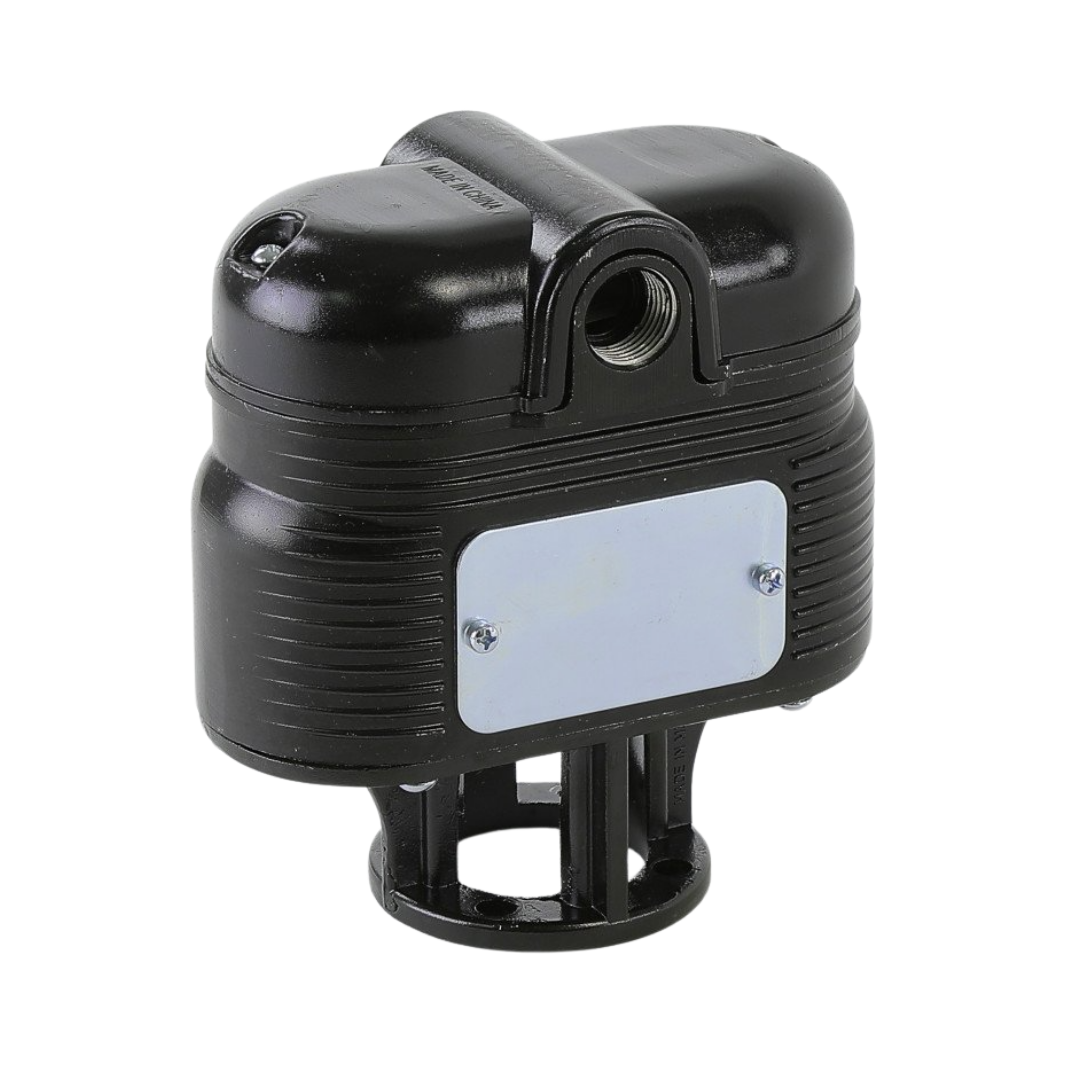

| 5 | 110300 | Electric switch | 6.00 | $575.90 | Add to Cart | |

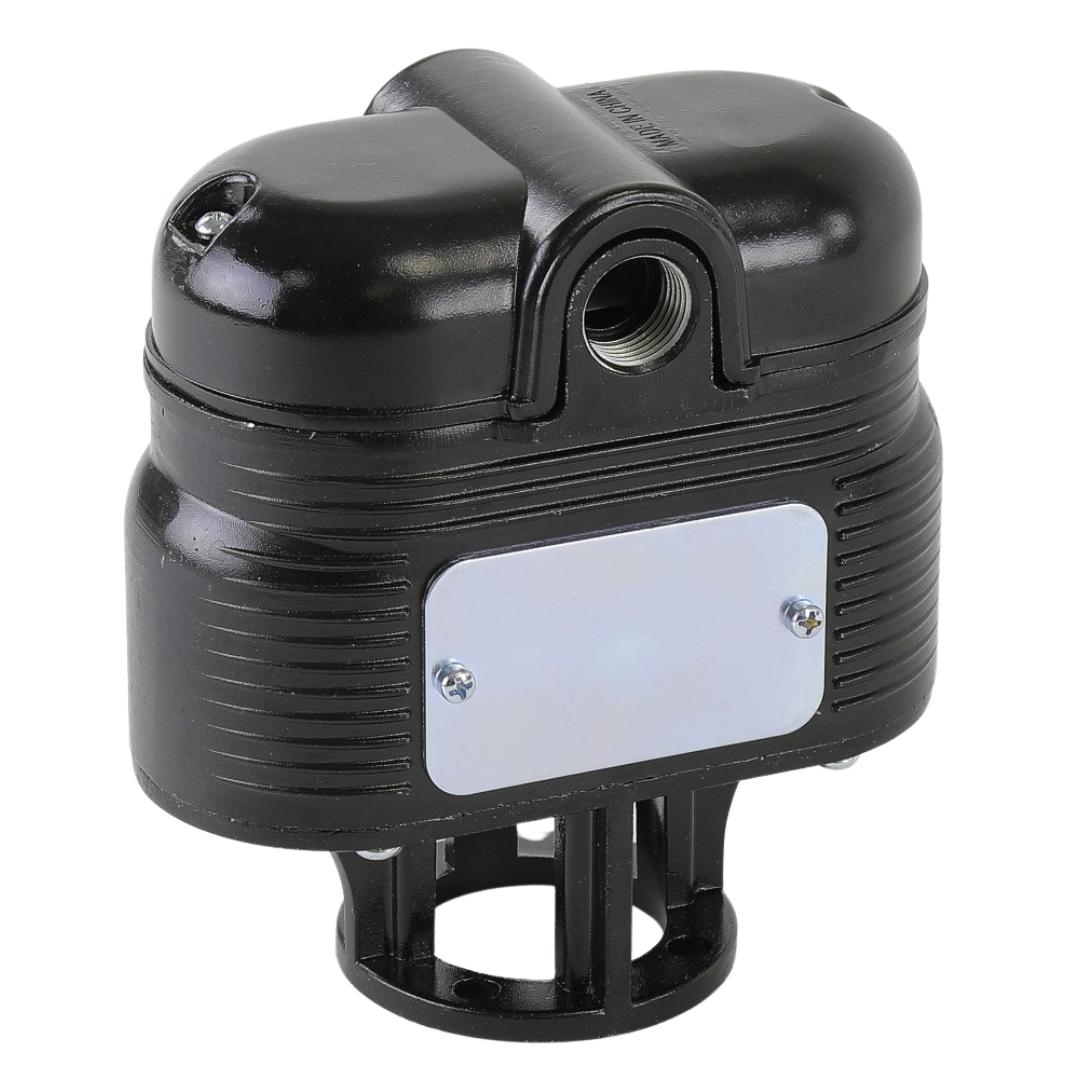

| 5-M | 110400 | No. 5 switch w/ manual reset | 6.00 | $575.90 | Add to Cart | |

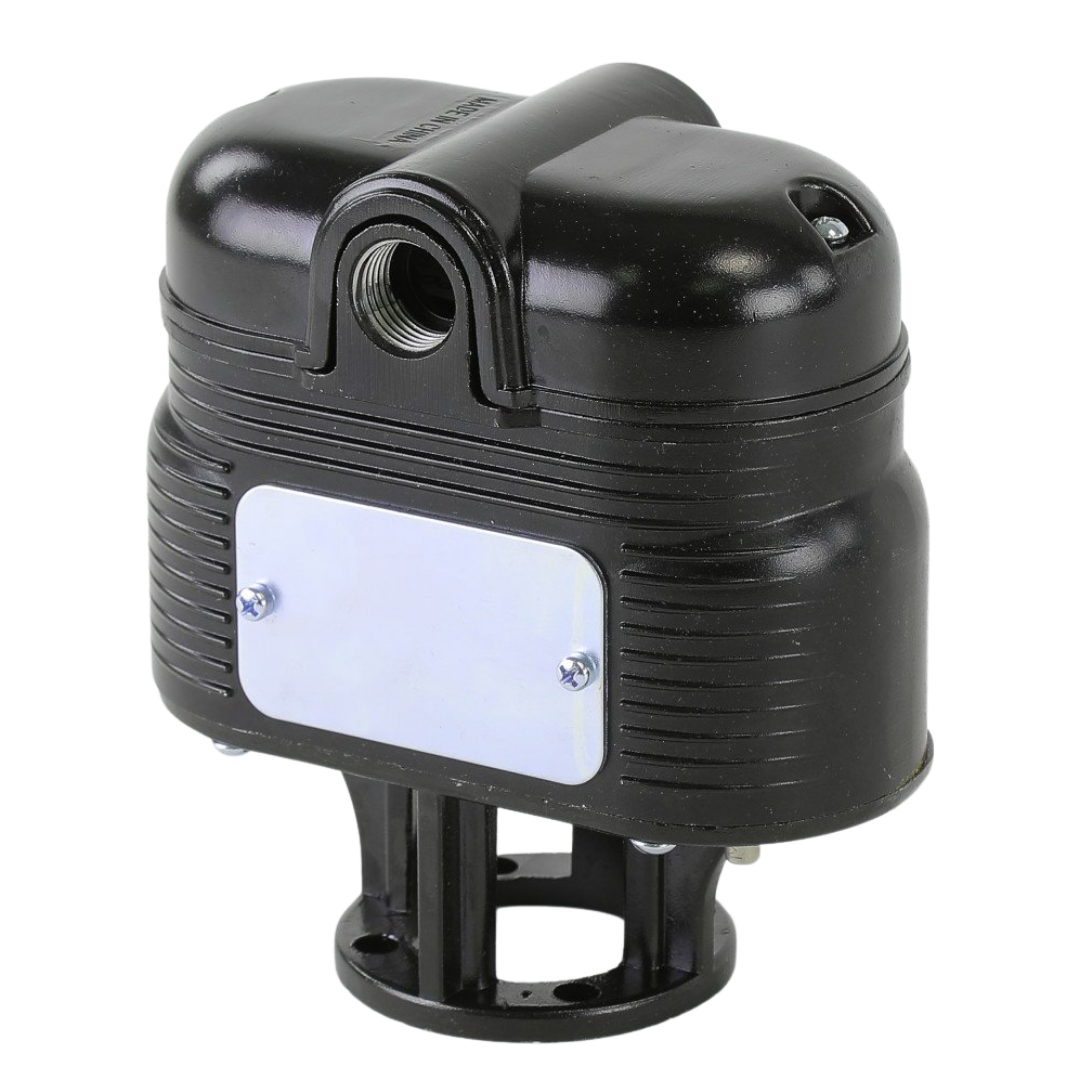

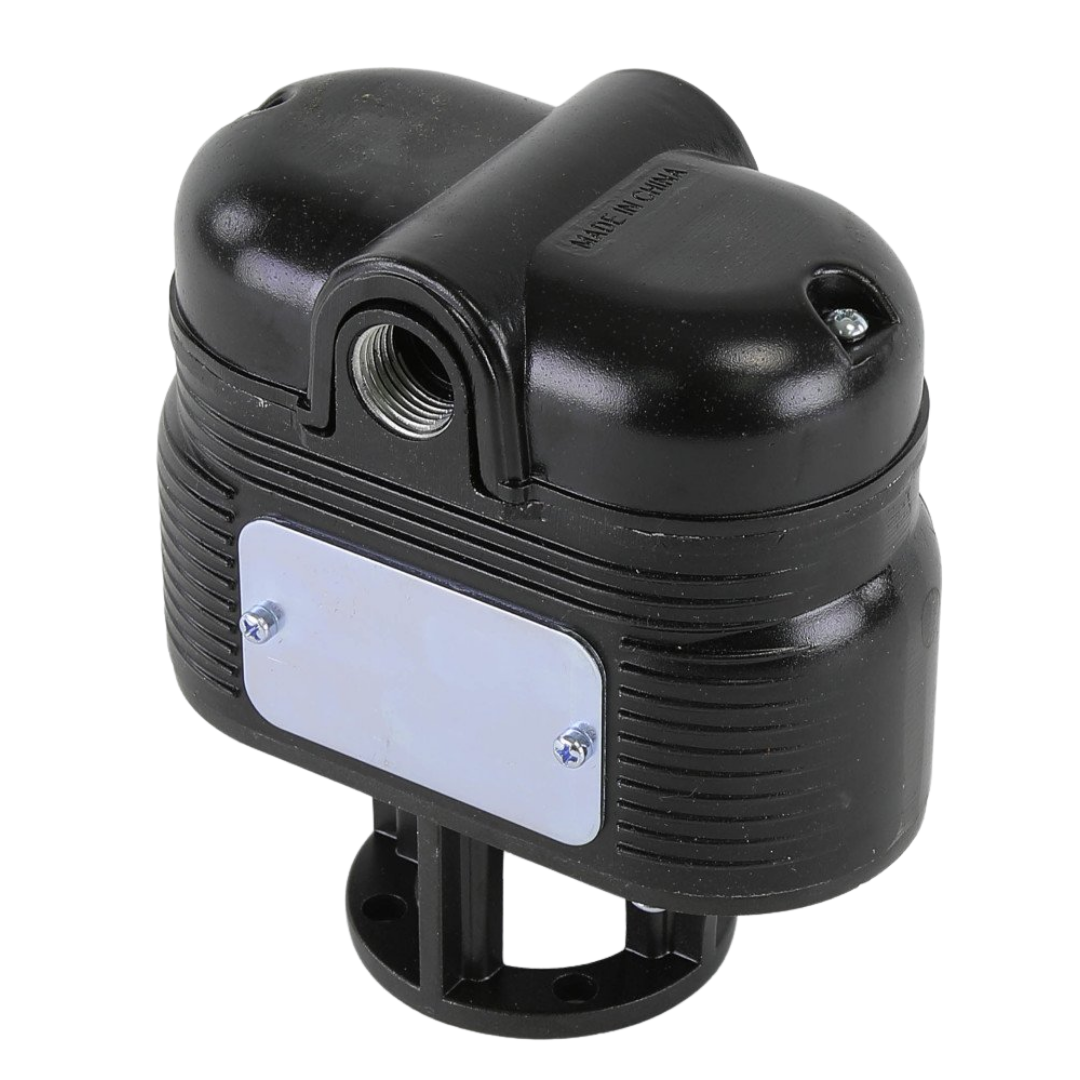

| 7B | 110800 | Electric switch/proportioning control | 6.00 | $1,000.25 | Add to Cart | |
| 7B-M | 110900 | No. 7b w/ manual reset | 6.00 | $1,000.25 | Add to Cart |
| Model# | A | B | C | D | E | F | G | H | J | K | L | M | N |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 94 | 6 | 7 | 10 9/16 | 18 13/16 | 5 7/8 | 4 11/16 | 8 3/4 | 12 15/16 | 1/2 | 1 1/4 | 1 1/4 | - | - |
| 94-A | 6 | 7 | 10 9/16 | 18 13/16 | 5 7/8 | 4 11/16 | 8 3/4 | 12 15/16 | 1/2 | 1 1/4 | 1 1/4 | 2 1/16 | 1 1/4 |
| Pilot duty |
|---|
| 345 VA at 120 or 240 VAC |
