McDonnell Miller Series 67 In Stock

Manufacturer:
McDonnell Miller
Description:

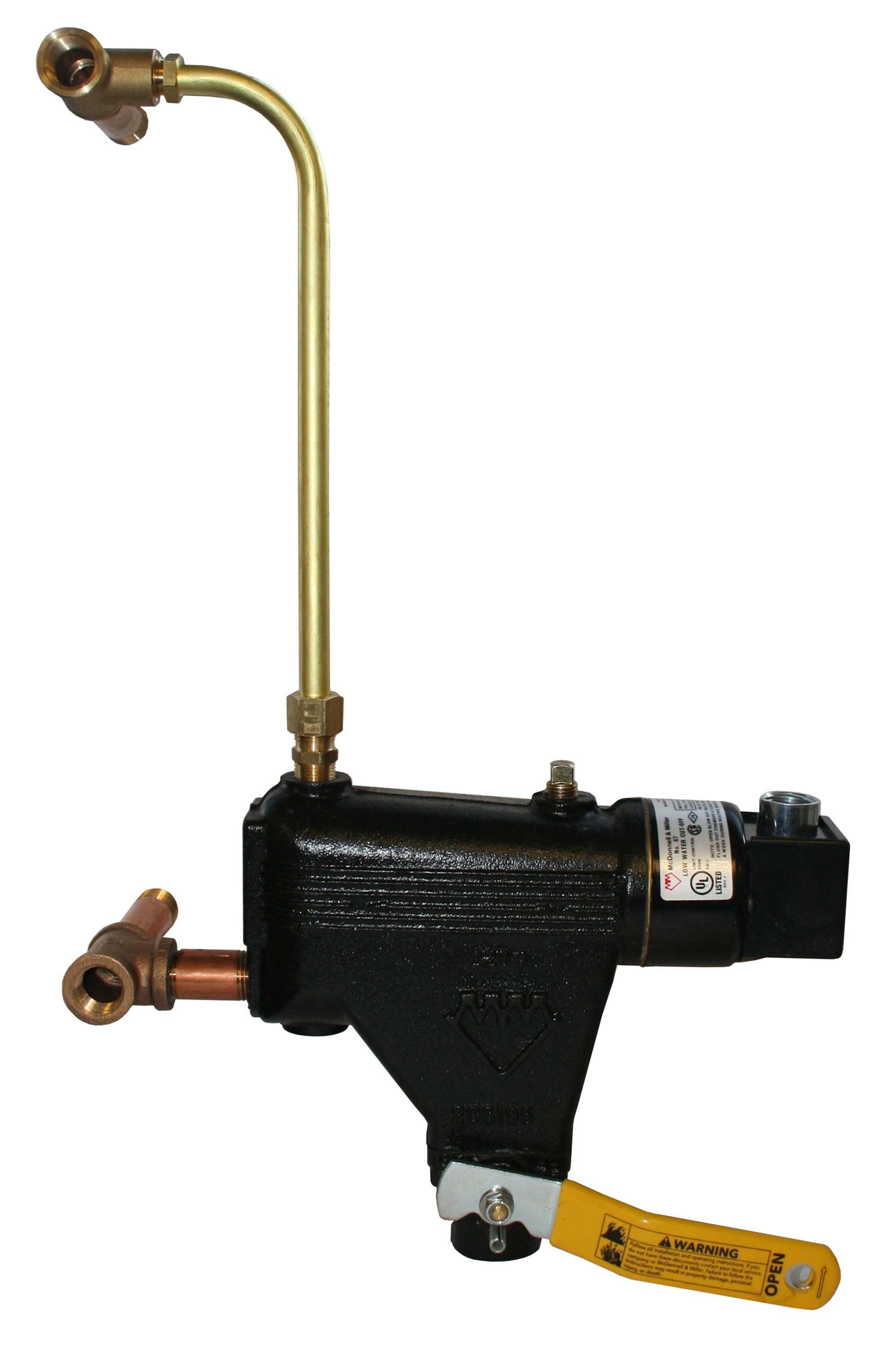

McDonnell Miller Series 67 Low water cut-off

Features and Benefits



  • • For residential and commercial applications
  • • For boilers of any steaming capacity
  • • Quick hook-up fittings provided
  • Lever-operated, full port ball valve for easy blow down
  • Adjustable BX outlet for easy installation
  • Dual precision switches for dependable operation of the
  • low water cut-off and alarm or electric water feeder
  • Optional features
  • – Low voltage switches for self-generating millivolt
  • circuits
  • – Manual reset switch
  • Large float chamber
  • Maximum steam pressure 20 psi (1.4 kg/cm2)
Item Name: McDonnell Miller Series 67
Short description: McDonnell Miller Series 67
Lead Time: Most items In Stock ready to ship!
Ordering Information
Model# Part# Description Weight A Min. A Max. B C D E F G H J K L M N Price Qty
67 149400 Low water cut-off 12.00 6 1/2" 14" 1 3/4" 4 3/4" 3 3/8" 1 1/8" 3/8" 3/4" 5 1/2" 1/4" 9 23/32" 3 9/16" 2 1/2" 2 13/16" $310.81 Add to Cart
67-G 149600 67 for millivolt service 12.00 6 1/2" 14" 1 3/4" 4 3/4" 3 3/8" 1 1/8" 3/8" 3/4" 5 1/2" 1/4" 9 23/32" 3 9/16" 2 1/2" 2 13/16" $310.81 Add to Cart
67-LQHU 149500 67 w/o quick hook-up fittings 10.00 6 1/2" 14" 1 3/4" 4 3/4" 3 3/8" 1 1/8" 3/8" 3/4" 5 1/2" 1/4" 9 23/32" 3 9/16" 2 1/2" 2 13/16" $252.00 Add to Cart
67-M 149700 67 w/ manual reset 12.00 6 1/2" 14" 1 3/4" 4 3/4" 3 3/8" 1 1/8" 3/8" 3/4" 5 1/2" 1/4" 9 23/32" 3 9/16" 2 1/2" 2 13/16" $352.80 Add to Cart
67-T 153250 67 w/ 1/2" NPT brass union
$Call
12.00 6 1/2" 14" 1 3/4" 4 3/4" 3 3/8" 1 1/8" 3/8" 3/4" 5 1/2" 1/4" 9 23/32" 3 9/16" 2 1/2" 2 13/16"
67-LQHU 153825 Replacement Head Mechanism 3.50 6 1/2" 14" 1 3/4" 4 3/4" 3 3/8" 1 1/8" 3/8" 3/4" 5 1/2" 1/4" 9 23/32" 3 9/16" 2 1/2" 2 13/16" $239.41 Add to Cart
67-G 153850 Head Mechanism for Millivolt Service 4.50 6 1/2" 14" 1 3/4" 4 3/4" 3 3/8" 1 1/8" 3/8" 3/4" 5 1/2" 1/4" 9 23/32" 3 9/16" 2 1/2" 2 13/16" $239.41 Add to Cart
Replacement Parts
Model# Part# Description Weight Price Qty
14-B 310447 Blow down valve 3.50 $94.94 Add to Cart
11 309100 Switch 3.50 $142.81 Add to Cart
11-M 309151 Switch w/ Manual Reset 3.50 $176.41 Add to Cart
11-MV 309200 Switch for Millivolt service 3.50 $151.20 Add to Cart
Electrical Ratings
Voltage Motor Switch Rating(Amperes) 120 VDC .5 Amp Full Load Motor Switch Rating(Amperes) 120 VDC .5 Amp Locked Rotor Pilot duty
120 VAC 7.4 44.4 125 VA at 120 or 240 VAC
240 VAC 3.7 22.2 125 VA at 120 or 240 VAC
