Boiler Controls - McDonnell Miller, Honeywell & Fireye | Boiler Supplies McDonnell Miller Controls McDonnell Miller Series 63
McDonnell Miller Series 63 low water cut-off for residential, commercial, and industrial applications. Heavy duty construction and this unit also includes a no. 2 switch. Optional manual reset available.
Features and Benefits
| Model# | Part# | Description | Weight | Price | Qty | |
|---|---|---|---|---|---|---|

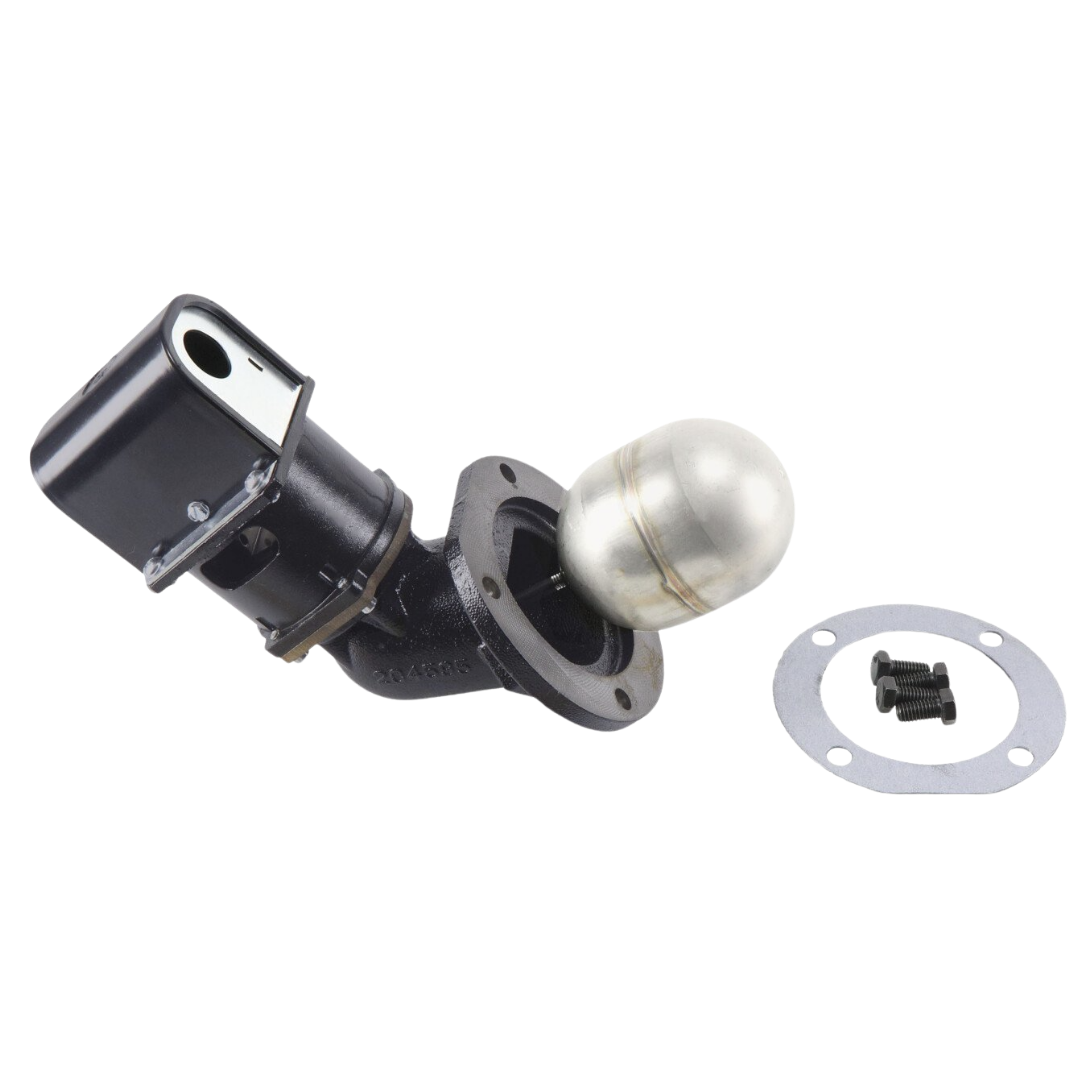

| 63-HD | 142600 | Head Mechanism w/ No. 2 Switch | 9.00 | $394.81 | Add to Cart | |

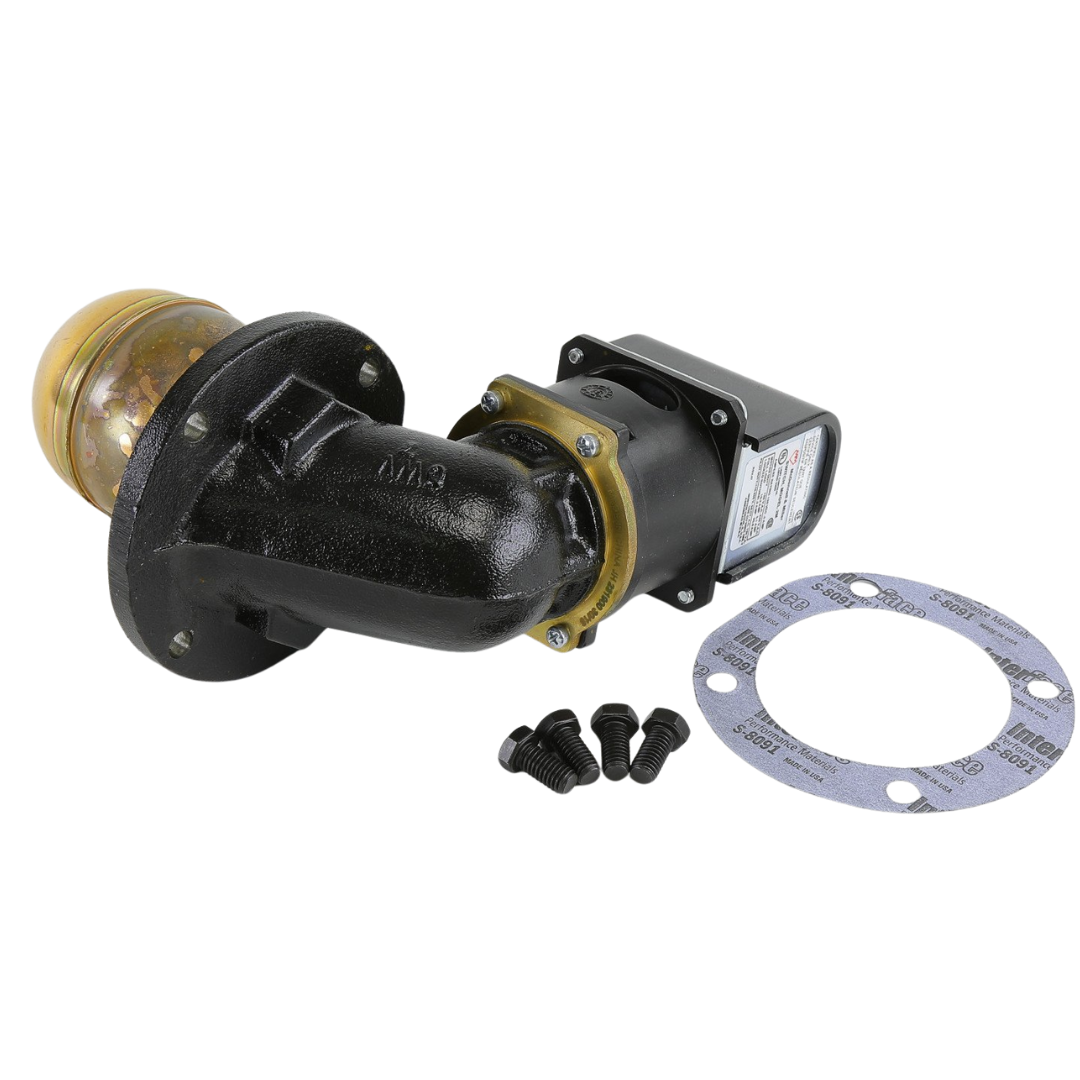

| 63-M-HD | 143200 | 63-HD w/ manual reset | 9.00 | $394.81 | Add to Cart |
| Model# | Part# | Description | Weight | A | B | C | D | E | F | G | H | I | Price | Qty | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

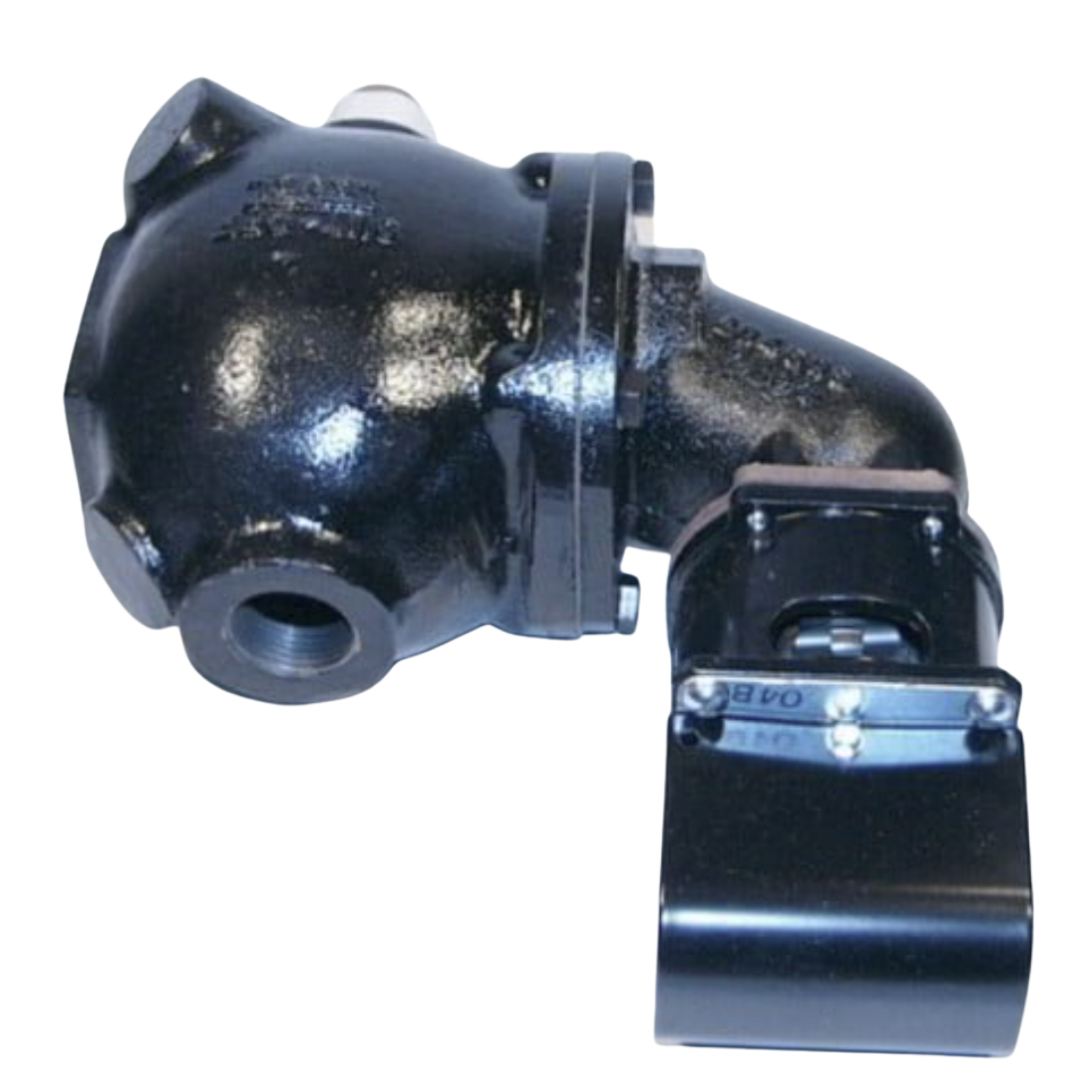

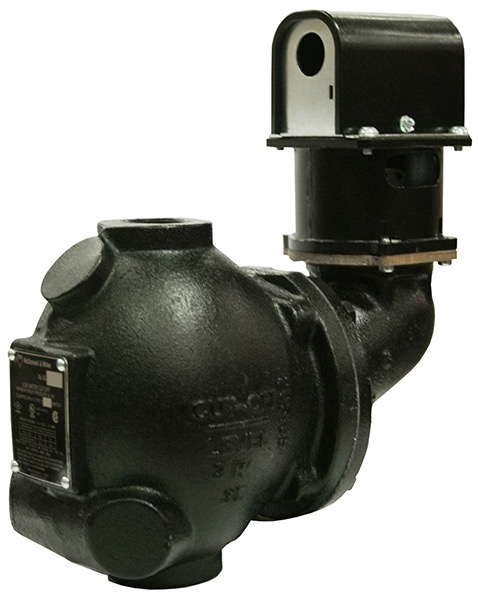

| 63 | 142400 | Low water Cut-off | 15.50 | 1" | 6 1/2" | 2 9/16" | 1" | 5 5/32" | 9 3/8" | 3 1/8" | 10 1/2" | 5 1/8" | $420.00 | Add to Cart | |
| 63-B | 142700 | 63 w/ Float Block | 17.00 | 1" | 6 1/2" | 2 9/16" | 1" | 5 5/32" | 9 3/8" | 3 1/8" | 10 1/2" | 5 1/8" | $441.01 | Add to Cart | |
| 63-M | 143100 | 63 w/ Float Block & manual reset | 17.00 | 1" | 6 1/2" | 2 9/16" | 1" | 5 5/32" | 9 3/8" | 3 1/8" | 10 1/2" | 5 1/8" | $411.61 | Add to Cart | |
| 63-E | 142500 |
63 w/ BSPT threads $Call |
16.00 | 1" | 6 1/2" | 2 9/16" | 1" | 5 5/32" | 9 3/8" | 3 1/8" | 10 1/2" | 5 1/8" | |||
| 63-EM | 142800 |
63-E w/ manual reset $Call |
16.00 | 1" | 6 1/2" | 2 9/16" | 1" | 5 5/32" | 9 3/8" | 3 1/8" | 10 1/2" | 5 1/8" | |||
| 63-EP | 142850 |
63-E w/ 1" NPT plug $Call |
16.00 | 1" | 6 1/2" | 2 9/16" | 1" | 5 5/32" | 9 3/8" | 3 1/8" | 10 1/2" | 5 1/8" | |||
| E-28 | 142900 |
63 w/ DPDT switch $Call |
16.00 | 1" | 6 1/2" | 2 9/16" | 1" | 5 5/32" | 9 3/8" | 3 1/8" | 10 1/2" | 5 1/8" |
| Model# | Part# | Description | Weight | Price | Qty | |
|---|---|---|---|---|---|---|

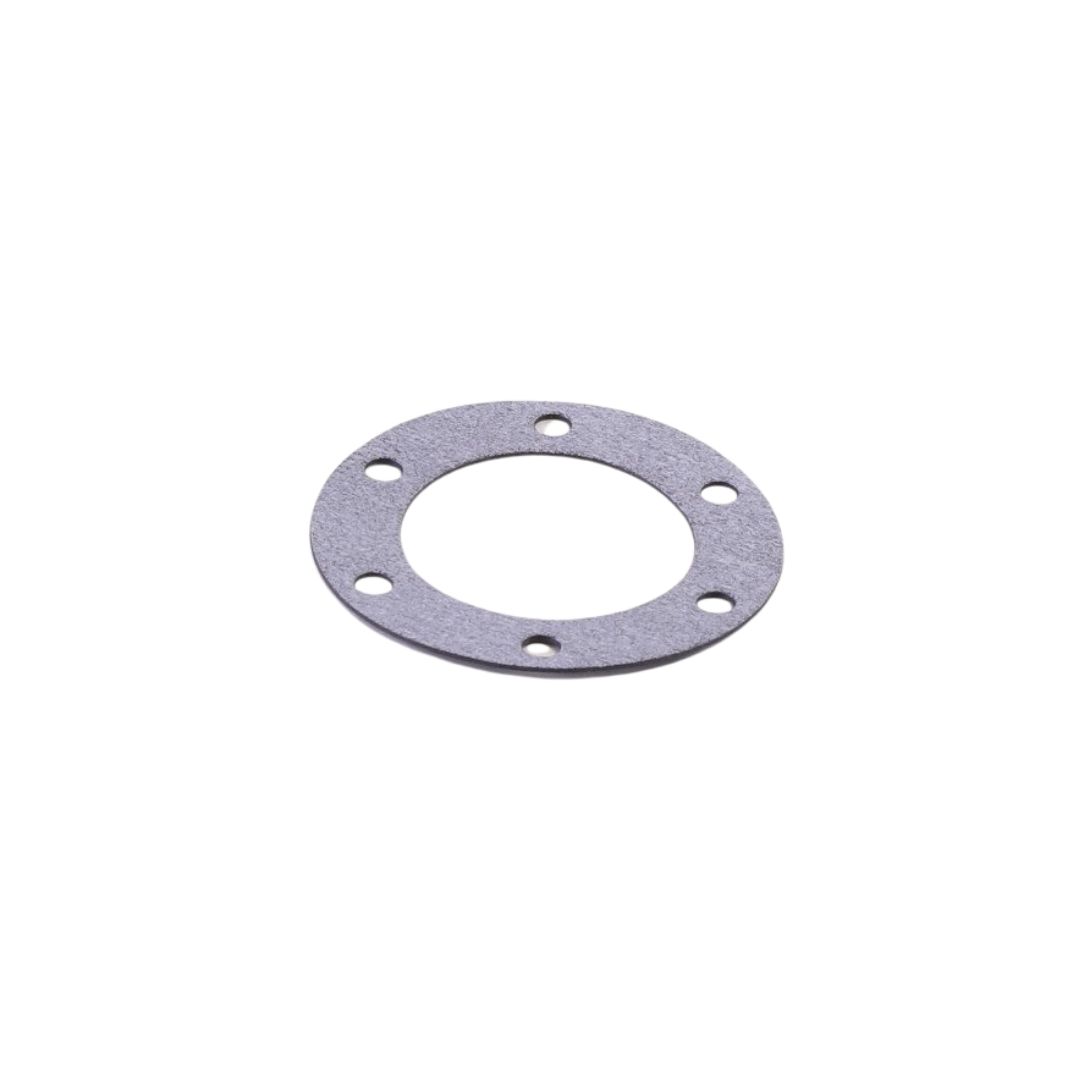

| CO-11 | 302500 | Siphon Gasket (6 Pack) | 3.00 | $31.83 | Add to Cart | |
| CO-12 | 302600 | Head Gasket (6 Pack) | 3.00 | $38.00 | Add to Cart | |
| 2 | 110000 | #2 Low water cut-off switch | 3.00 | $126.01 | Add to Cart | |
| 2-M | 110100 | #2 w/ Manual Reset | 3.00 | $126.01 | Add to Cart |
| Voltage | Motor Switch Rating(Amperes) 120 VDC .5 Amp Full Load | Motor Switch Rating(Amperes) 120 VDC .5 Amp Locked Rotor | Pilot duty |
|---|---|---|---|
| 120 VAC | 10.2 | 61.2 | 125 VA at 120 or 240 VAC 60Hz |
| 240 VAC | 5.1 | 30.6 | 125 VA at 120 or 240 VAC 60Hz |
