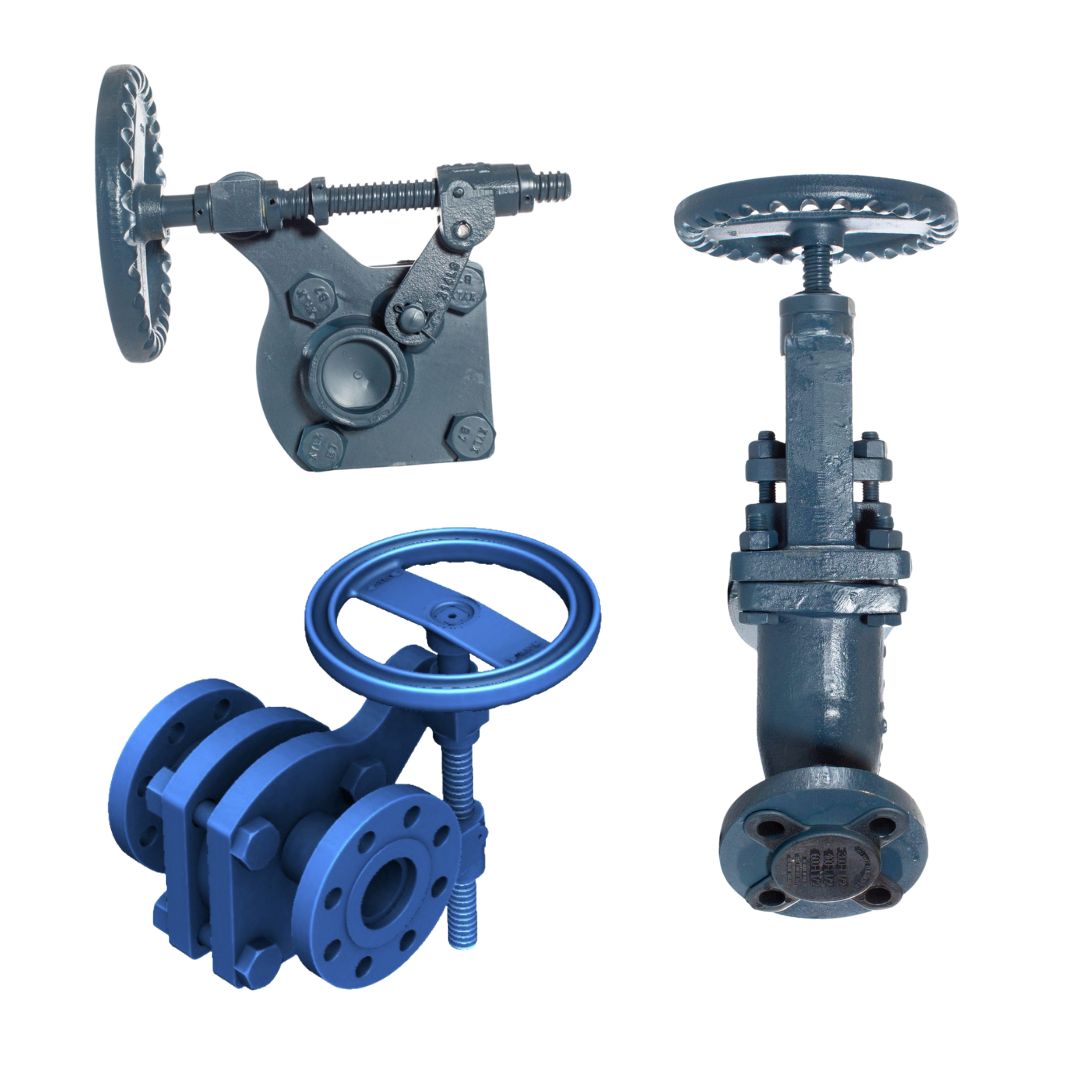

The 4060 & 6561 Series valves are ISO 9001 Certified handwheel Operated Blowdown Valve that has a Straight-through flow design freaturing leak proof seal and disc that has self lapping & self wiping action that will not hang up on Boiler scale.
Everlasting Valves were developed for steam boiler blow down Blow Off nearly 100 years ago for abrasive solids. The packaged steam boiler industry has standardized on the everlasting valve rotating flat disc boiler blow off valve. This boiler blow down valve is available in quick opening, slow opening straight and angle configurations. They are manual on-off valves that effectively blow down sludge formed in steam boilers.
Boiler Blow Down Valves are based on ASME boiler and pressure vessel section 1 codes and ANSI B16.31 power piping codes. Application include steam boiler blow down, surface blow down, water column drain, and shut-off, and stop valves.

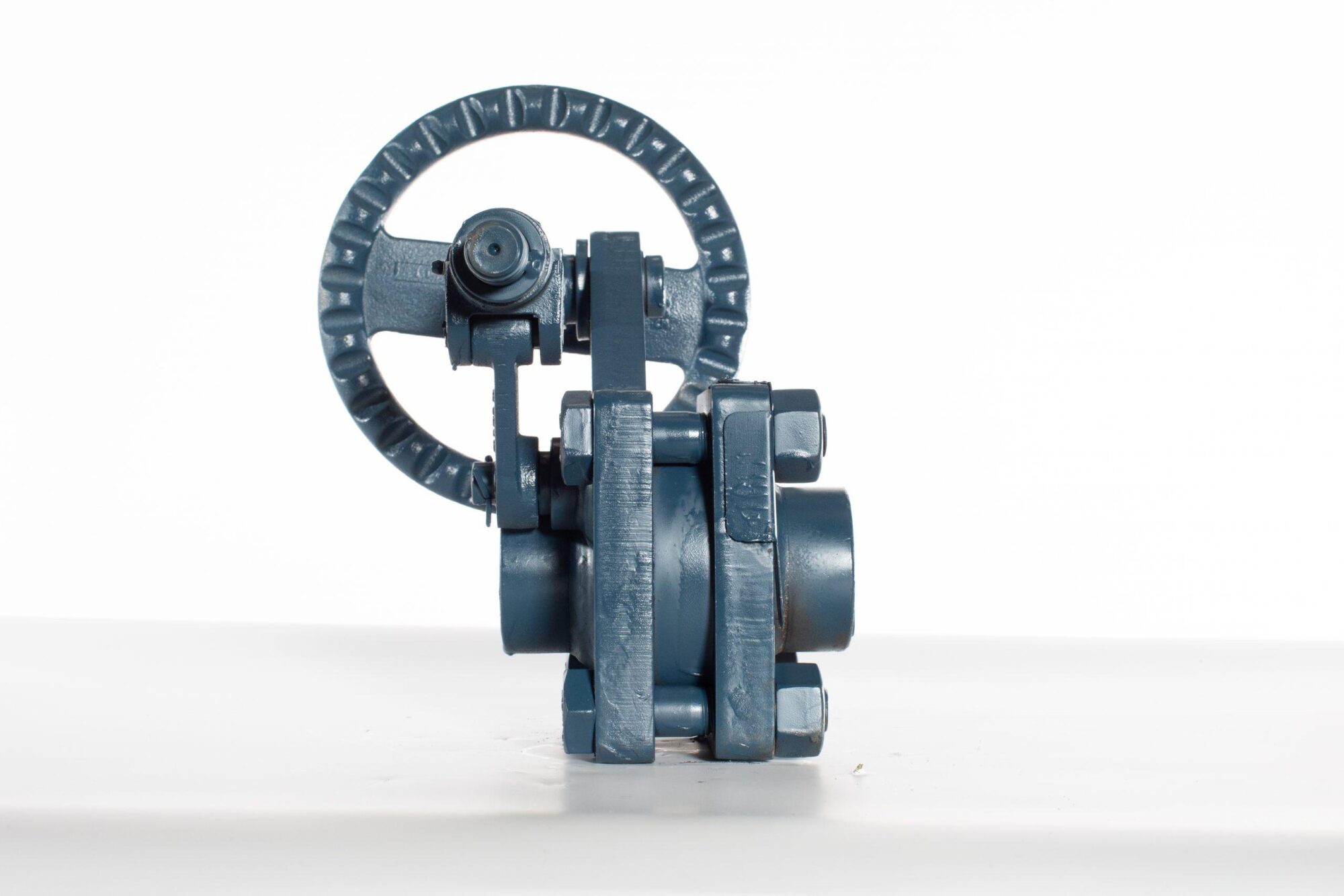

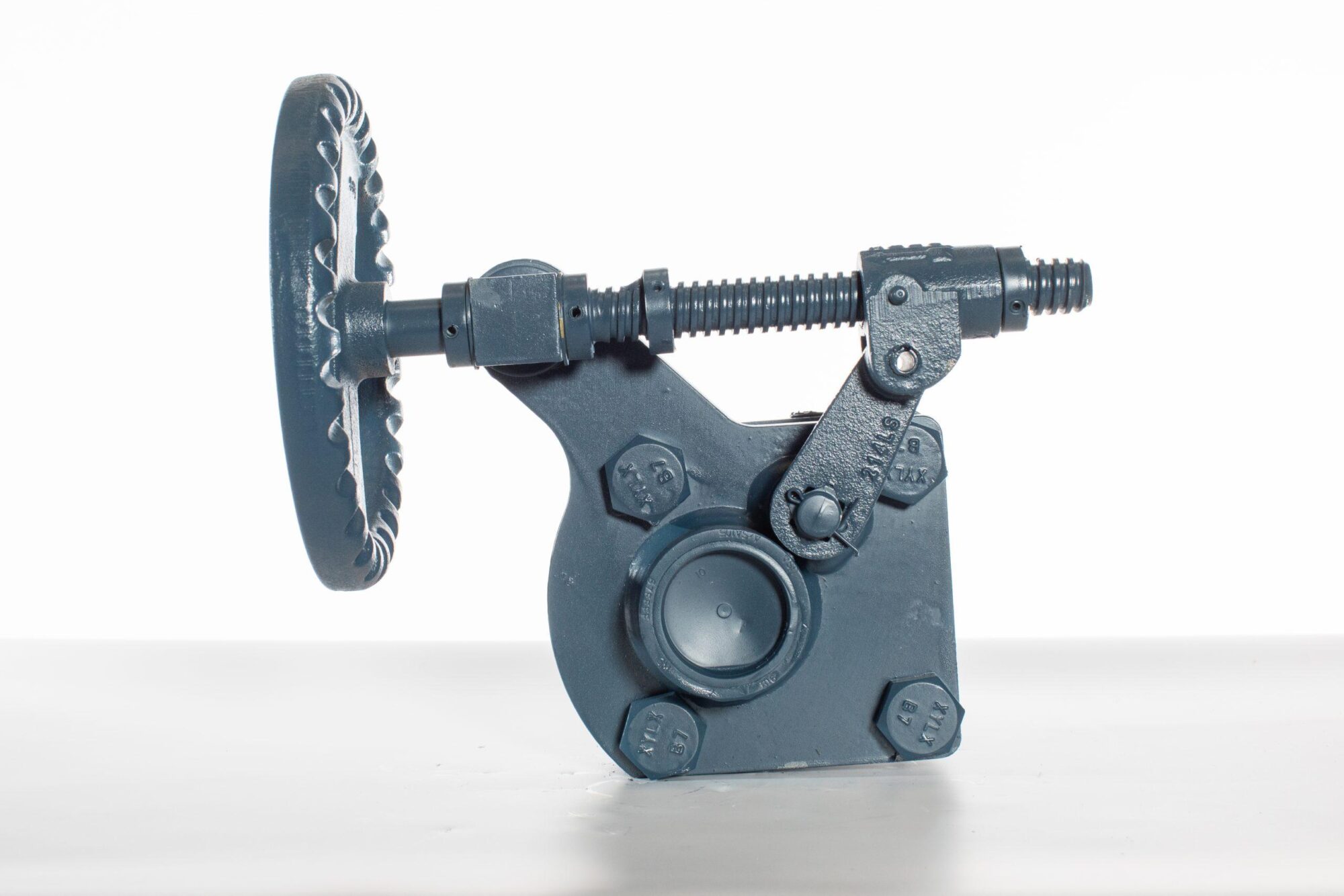

Fig. # 4060-S (58)*** Steel Body, Screw End, Wheel Operated
Part # | Size | Description |
Valve Class |
Max. Blow-Off Pressure A.S.M.E. |
Wt, lbs. | Price | |
---|---|---|---|---|---|---|---|
4060-S(58)-1 | 1" | 1" 4060-S(58) Everlasting Blowdown Valve | 600 lb. | 935 psi | 35 | $3,090.95 | Add to RFQ |
4060-S(58)-1.25 | 1-1/4" | 1-1/4" 4060-S(58) Everlasting Blowdown Valve | 600 lb. | 935 psi | 36 | $3,052.95 | Add to RFQ |
4060-S(58)-1.50 | 1-1/2" | 1-1/2" 4060-S(58) Everlasting Blowdown Valve | 600 lb. | 935 psi | 47 | $3,384.95 | Add to RFQ |
4060-S(58)-2 | 2" | 2" 4060-S(58) Everlasting Blowdown Valve | 600 lb. | 935 psi | 50 | $3,617.95 | Add to RFQ |
4060-S(58)-2.50 | 2-1/2" | 2-1/2" 4060-S(58) Everlasting Blowdown Valve | 600 lb. | 935 psi | 70 | $5,442.95 | Add to RFQ |

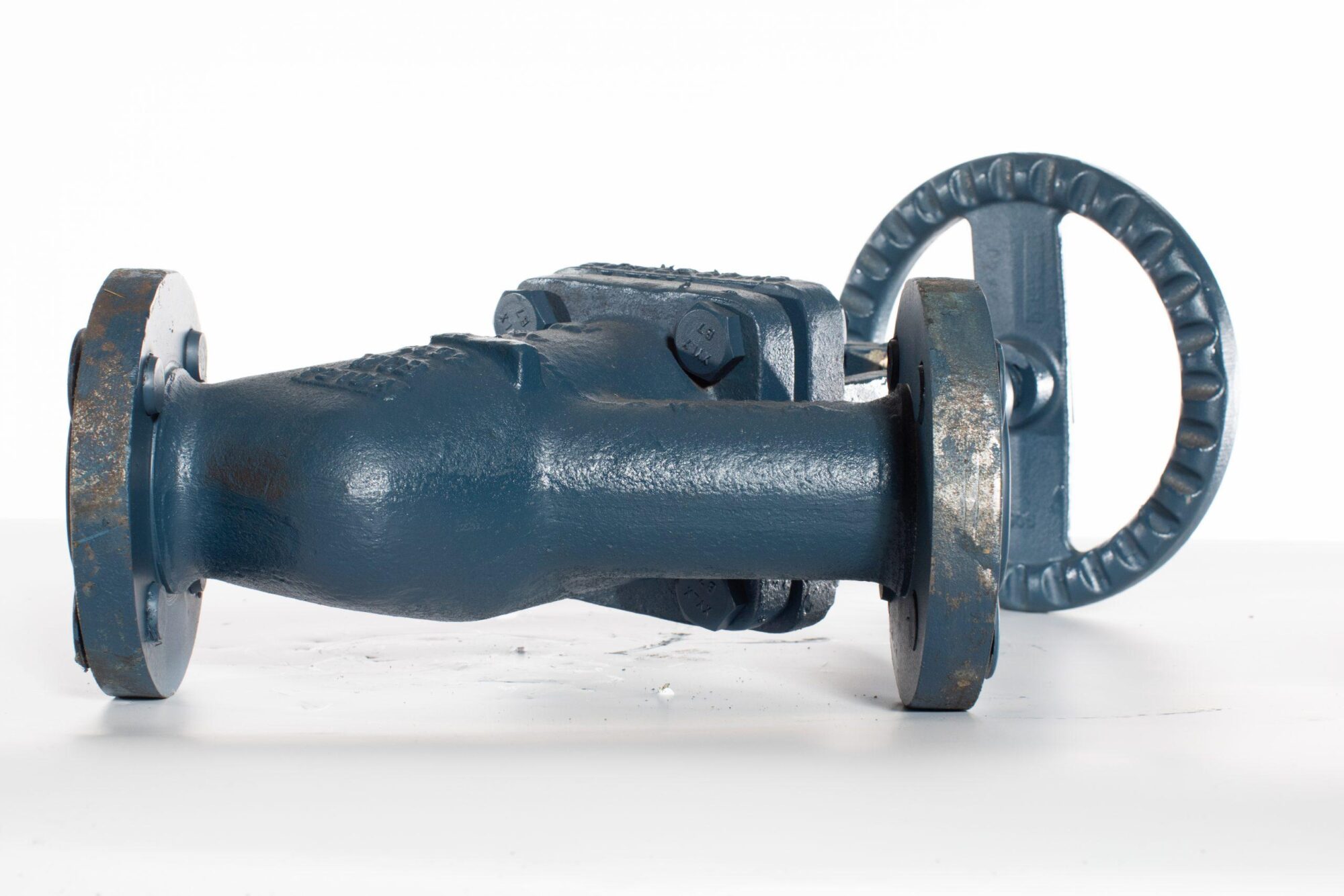

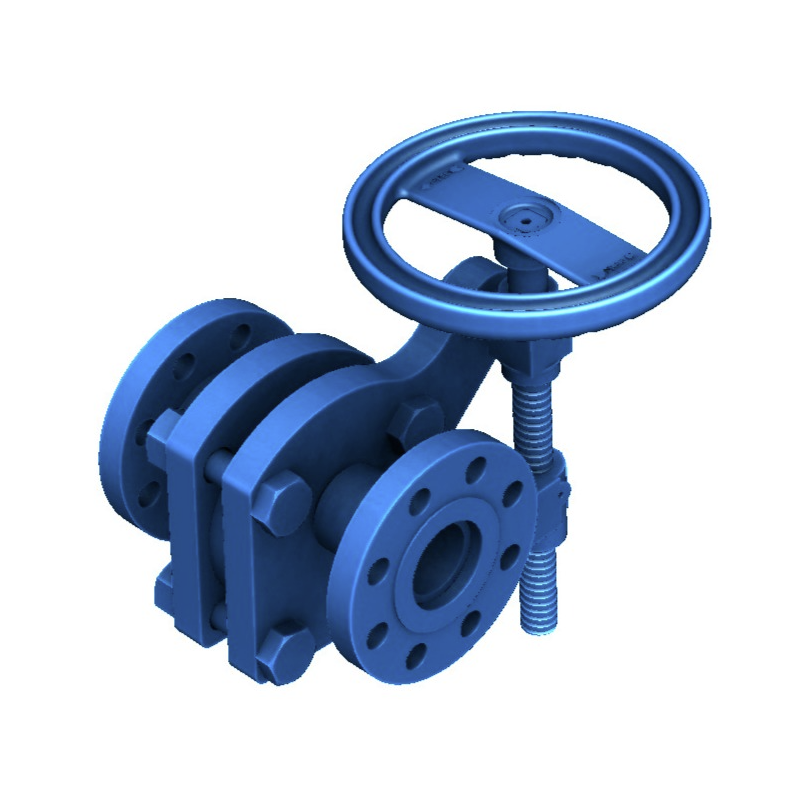

Fig. # 4061-S (58) Steel Body, Flanged, Wheel Operated
Part # | Size | Description |
Valve Class |
Max. Blow-Off Pressure A.S.M.E. |
Wt, lbs. | Price | |
---|---|---|---|---|---|---|---|
4061-S(58)-1 | 1" | 1" 4061-S(58) Everlasting Blowdown Valve | 600 lb. | 935 psi | 40 | $3,660.95 | Add to RFQ |
4061-S(58)-1.25 | 1-1/4" | 1-1/4" 4061-S(58) Everlasting Blowdown Valve | 600 lb. | 935 psi | 42 | $3,717.95 | Add to RFQ |
4061-S(58)-1.50 | 1-1/2" | 1-1/2" 4061-S(58) Everlasting Blowdown Valve | 600 lb. | 935 psi | 60 | $3,706.95 | Add to RFQ |
4061-S(58)-2 | 2" | 2" 4061-S(58) Everlasting Blowdown Valve | 600 lb. | 935 psi | 64 | $3,981.95 | Add to RFQ |
4061-S(58)-2.50 | 2-1/2" | 2-1/2" 4061-S(58) Everlasting Blowdown Valve | 600 lb. | 935 psi | 93 | $5,449.95 | Add to RFQ |

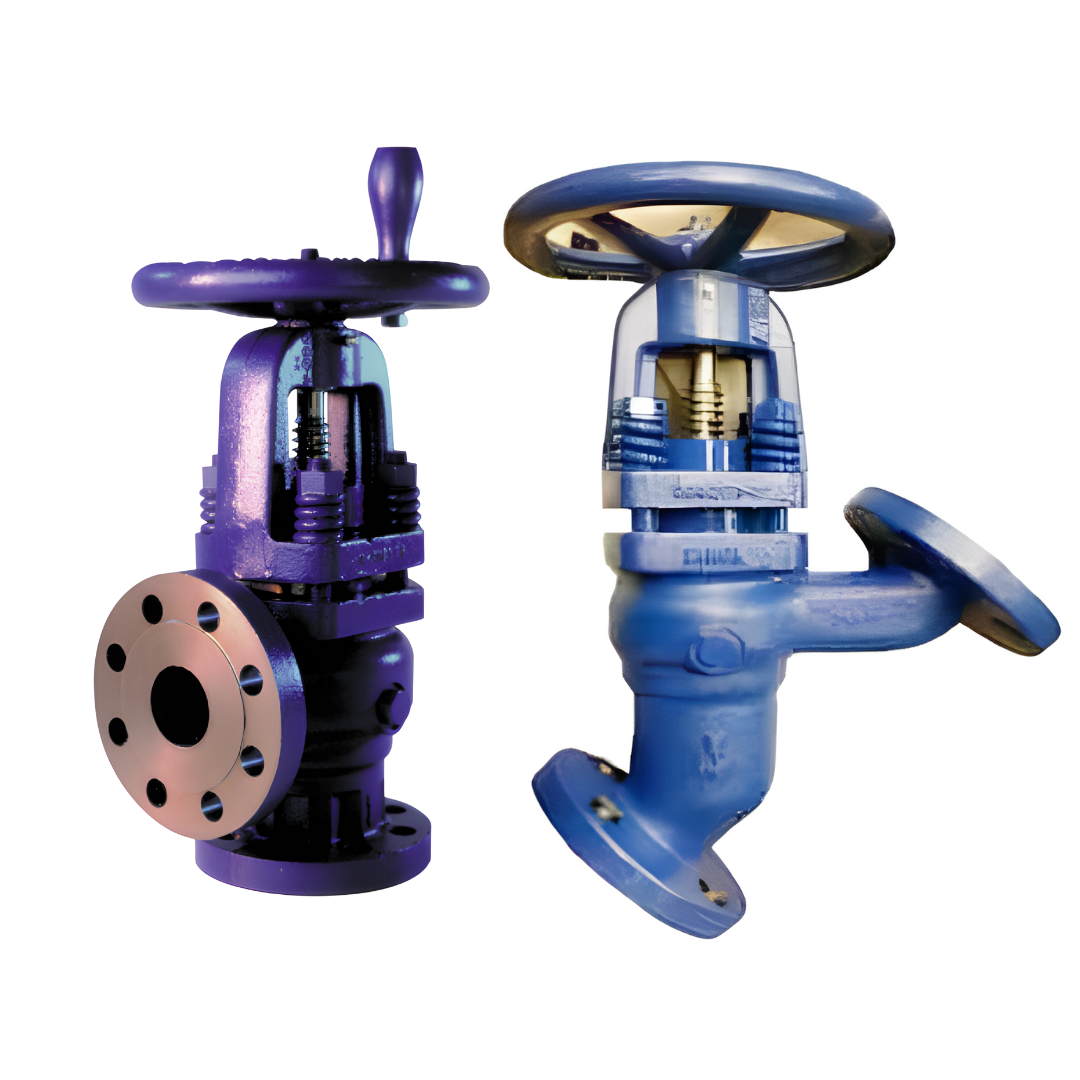

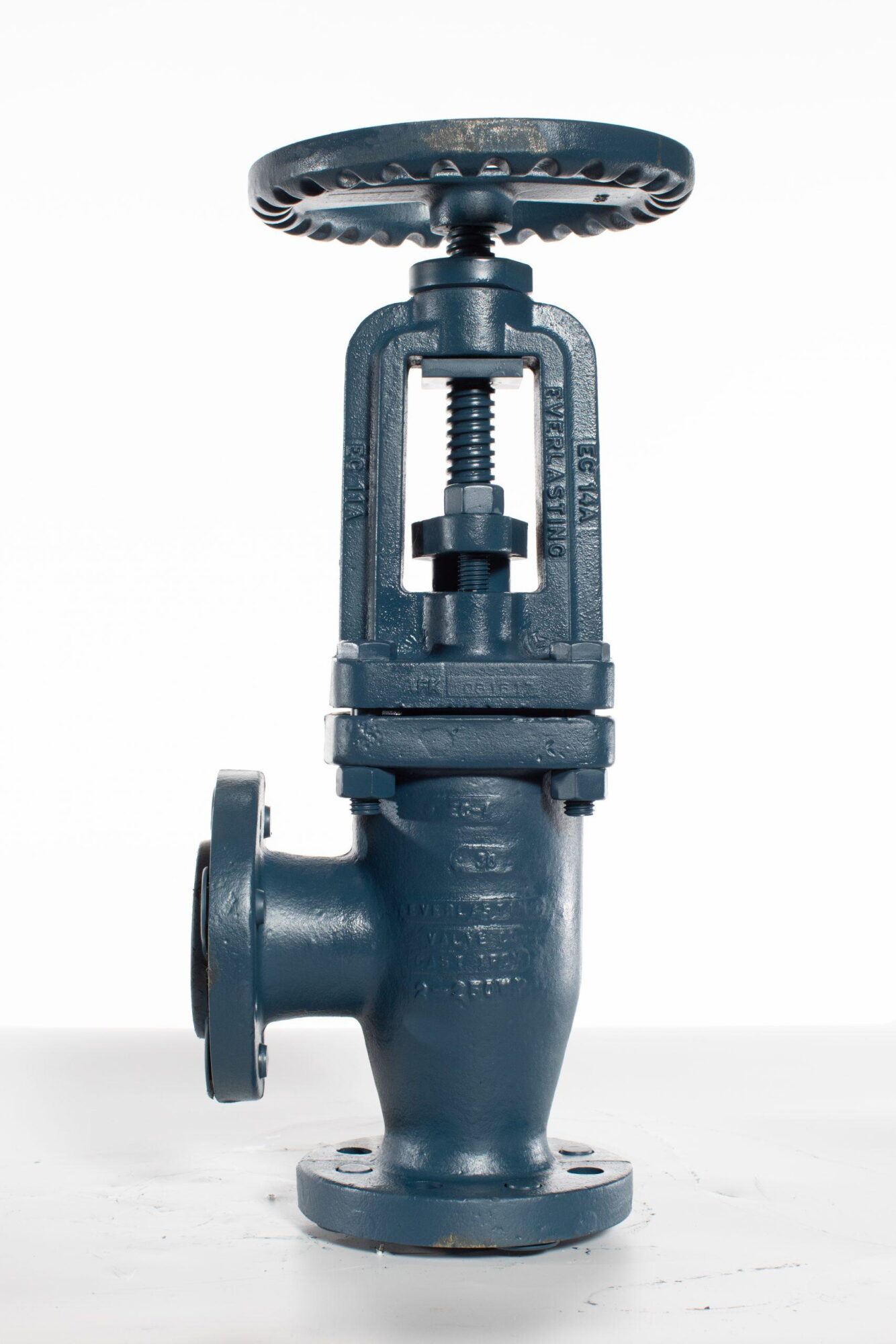

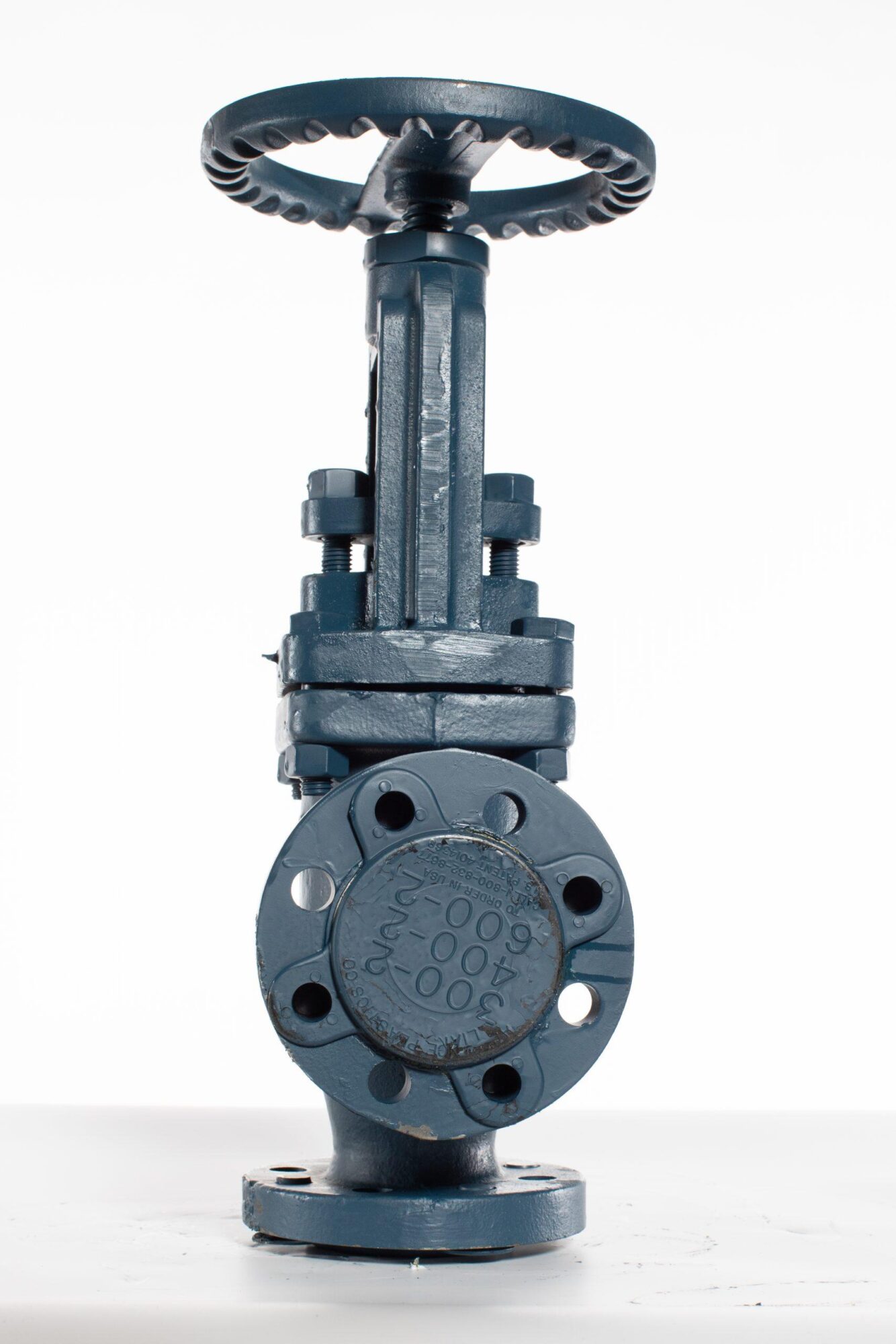

Fig # B6761 - Angle Steel Body, Flanged, F & D 600 lbs.
Part # | Size | Description |
Valve Class |
Max. Blow-Off Pressure A.S.M.E. |
Wt, lbs. | Price | |
---|---|---|---|---|---|---|---|
B6761-1.50 | 1 1/2" | 1-1/2" B6761 Everlasting Blowdown Valve | 600 lb. | 935 psi | 77 | $4,047.95 | Add to RFQ |
B6761-2 | 2" | 2" B6761 Everlasting Blowdown Valve | 600 lb. | 935 psi | 86 | $4,922.95 | Add to RFQ |
B6761-2.50 | 2 1/2" | 2-1/2" B6761 Everlasting Blowdown Valve | 600 lb. | 935 psi | 120 | $7,494.95 | Add to RFQ |

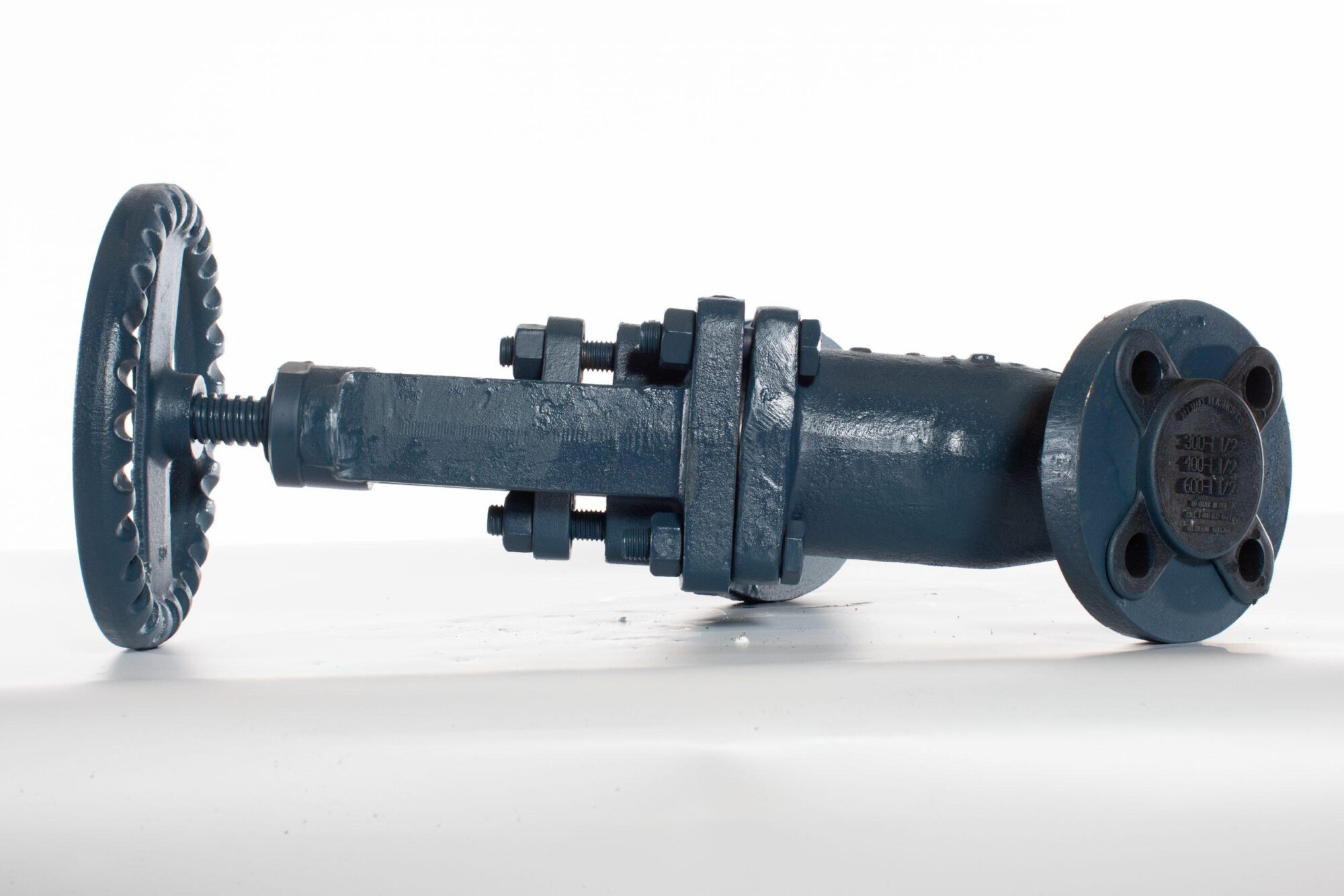

Fig # B6771 - Stwy "Y" Steel Body, Flanged, F & D 600 lbs.
Part # | Size | Description |
Valve Class |
Max. Blow-Off Pressure A.S.M.E. |
Wt, lbs. | Price | |
---|---|---|---|---|---|---|---|
B6771-1.50 | 1 1/2" | 1-1/2" B6771 Everlasting Blowdown Valve | 600 lb. | 935 psi | 77 | $4,047.95 | Add to RFQ |
B6771-2 | 2" | 2" B6771 Everlasting Blowdown Valve | 600 lb. | 935 psi | 86 | $4,922.95 | Add to RFQ |
B6771-2.50 | 2 1/2" | 2-1/2" B6771 Everlasting Blowdown Valve | 600 lb. | 935 psi | 120 | $7,494.95 | Add to RFQ |
