Yarway Cast Iron & Cast Steel Repair Kits & Parts In Stock

Item Name: Maintenance Kit - 300 Class Type B Only - Cast Steel
Manufacturer:
Yarway
Description:

Includes:

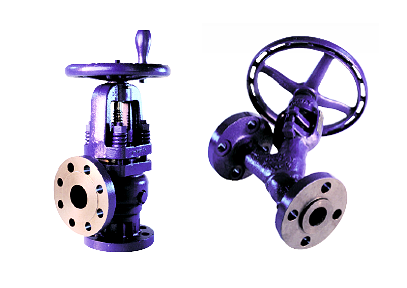

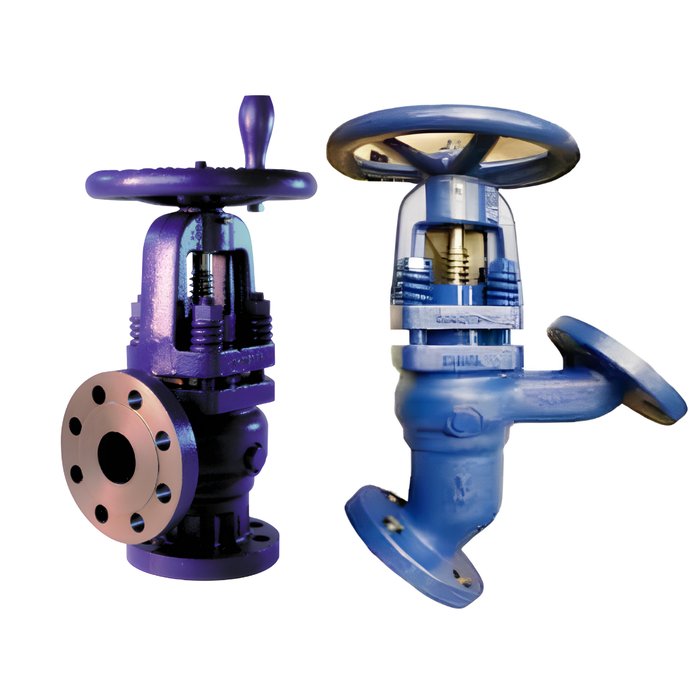

  • Upper/Lower Glands, Packing Set, Springs, Studs, Bearing, Stem, Stop Screw and Gasket Suitable for Yarway 3486R and 3488R Straight and Angle Blowdown Valves.
Shipping Time: 1-3 Business Day
Specifications
Part # Size
963788-05 1" Add to RFQ
963788-05 1 1/4" Add to RFQ
963788-06 1 1/2" Add to RFQ
963788-07 2" Add to RFQ
963788-08 2 1/2" Add to RFQ
Item Name: Maintenance Kit - 250 Class Type B Only - Cast Iron
Manufacturer:
Yarway
Description:

Includes:

  • Upper/Lower Glands, Packing Set, Springs, Studs, Stop Screw and Gasket Suitable for Yarway 3482R and 3484R Straight and Angle Blowdown Valves.
Shipping Time: 1-3 Business Day
Specifications
Part # Size
963788-01 1" Add to RFQ
963788-01 1 1/4" Add to RFQ
963788-02 1 1/2" Add to RFQ
963788-03 2" Add to RFQ
963788-04 2 1/2" Add to RFQ
Item Name: Separate Parts available for both Iron & Steel Valves
Manufacturer:
Yarway
Description:

Yoke Ball Bearings, Stem, Stem Nut, Upper Gland, Lower Gland, Plunger, Packing, Yoke Springs, Studs & Nuts, Stop Screw & Alemite Fitting, Handwheel, Handgrip



REPAIR PARTS, TYPE B Sizes 1" thru 1-1/2"



CLASS 250: Figure 3481, 3481R, 3482, 3482R, 3483, 3483R, 3484, 3484R

CLASS 300 & 400: Figure 3485, 3485R, 3486, 3486R, 3487, 3487R, 3488, 3488R, 3927, 3928

Shipping Time: 1-3 Business Day
Description
Part # Size Description
900046-03 1" Yoke Ball Bearings Add to RFQ
912163 1" Stem Add to RFQ
938426-09 1" Stem Nut Add to RFQ

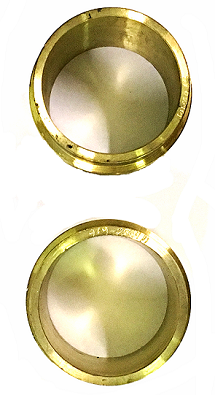

912140-01 1" Upper Gland: Bronze Add to RFQ
912140-02 1" Upper Gland: Steel (Acid Wash Trim) Add to RFQ
912145-01 1" Lower Gland: Bronze Add to RFQ
912145-03 1" Lower Gland: Ni-Resist (Acid Wash Trim) Add to RFQ
912142-02 1" Plunger: Nitralloy Add to RFQ
016060-04 1" Plunger: Electroless Nickel Plated Add to RFQ

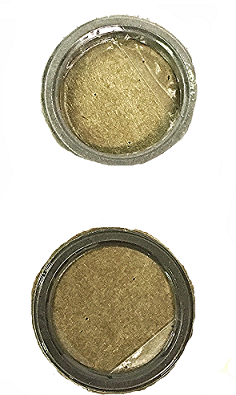

965064-01 1" Packing: Set of Packing-Iron Valves (250)psi Add to RFQ
965064-01 1" Packing: Set of Packing-Steel Valves (300psi & 400psi) Add to RFQ

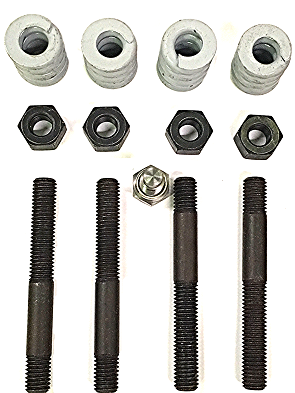

093915-56 1" Yoke Springs, Studs & Nuts: Springs (4 required) Add to RFQ
906278-06 1" Yoke Springs, Studs & Nuts: Studs (4 required) 250psi, 300psi Add to RFQ
938426-09 1" Yoke Springs, Studs & Nuts: Nuts (4 required) Add to RFQ
NA 1" Stop Screw & Alemite Fitting: O/S Standard Non "R" Valves Add to RFQ
927431-12 1" Stop Screw & Alemite Fitting: "R" Valves, Special Inc. - Gasket Below Add to RFQ
927431-09 1" Stop Screw & Alemite Fitting: For Fig. 3927-3928 New Style Add to RFQ
923616 1" Stop Screw Fitting: Stop Valves "R" Valves Add to RFQ
915882-02 1" Stop Screw Gasket Without
Alemite Fitting Stop Screw
Add to RFQ
921339-01 1" Stop Screw Gasket Without
Alemite Fitting Stop Screw
Fig. 3927-28 only
Add to RFQ
301871 1" Alemite Fitting Only: Yoke Add to RFQ
301870 1" Alemite Fitting Only: Stop Screw Add to RFQ
014813-02 1" Handwheel (except 3927, 3928) Add to RFQ
001176 1" Handgrip (must also order 1 bolt, p/n 092381, $6.00; 1 nut,
p/n 938426-06, $8.00; & 1 lock washer p/n 300483, $8.00)
Add to RFQ
900046-03 1-1/4" Yoke Ball Bearings Add to RFQ
912163 1-1/4" Stem Add to RFQ
938426-09 1-1/4" Stem Nut Add to RFQ
912140-01 1-1/4" Upper Gland: Bronze Add to RFQ
912140-02 1-1/4" Upper Gland: Steel (Acid Wash Trim) Add to RFQ
912145-01 1-1/4" Lower Gland: Bronze Add to RFQ
912145-03 1-1/4" Lower Gland: Ni-Resist (Acid Wash Trim) Add to RFQ
912142-02 1-1/4" Plunger: Nitralloy Add to RFQ
016060-04 1-1/4" Plunger: Electroless Nickel Plated Add to RFQ
965064-01 1-1/4" Packing: Set of Packing-Iron Valves (250)psi Add to RFQ
965064-01 1-1/4" Packing: Set of Packing-Steel Valves (300psi & 400psi) Add to RFQ
093915-56 1-1/4" Yoke Springs, Studs & Nuts: Springs (4 required) Add to RFQ
906278-06 1-1/4" Yoke Springs, Studs & Nuts: Studs (4 required) 250psi, 300psi Add to RFQ
938426-09 1-1/4" Yoke Springs, Studs & Nuts: Nuts (4 required) Add to RFQ
902355-17 1-1/4" Stop Screw & Alemite Fitting: O/S Standard Non "R" Valves Add to RFQ
927431-12 1-1/4" Stop Screw & Alemite Fitting: "R" Valves, Special Inc. - Gasket Below Add to RFQ
927431-09 1-1/4" Stop Screw & Alemite Fitting: For Fig. 3927-3928 New Style Add to RFQ
923616 1-1/4" Stop Screw Fitting: Stop Valves "R" Valves Add to RFQ
915882-02 1-1/4" Stop Screw Gasket Without
Alemite Fitting Stop Screw
Add to RFQ
921339-01 1-1/4" Stop Screw Gasket Without
Alemite Fitting Stop Screw
Fig. 3927-28 only
Add to RFQ
301871 1-1/4" Alemite Fitting Only: Yoke Add to RFQ
301870 1-1/4" Alemite Fitting Only: Stop Screw Add to RFQ
014813-02 1-1/4" Handwheel (except 3927, 3928) Add to RFQ
001176 1-1/4" Handgrip (must also order 1 bolt, p/n 092381, $6.00; 1 nut,
p/n 938426-06, $8.00; & 1 lock washer p/n 300483, $8.00)
Add to RFQ
900489-02 1-1/2" Yoke Ball Bearings Add to RFQ
92086 1-1/2" Stem Add to RFQ
938426-12 1-1/2" Stem Nut Add to RFQ
908233-01 1-1/2" Upper Gland: Bronze Add to RFQ
95515 1-1/2" Upper Gland: Steel (Acid Wash Trim) Add to RFQ
908236 1-1/2" Lower Gland: Bronze Add to RFQ
901398 1-1/2" Lower Gland: Ni-Resist (Acid Wash Trim) Add to RFQ
933187-02 1-1/2" Plunger: Nitralloy Add to RFQ
016060-03 1-1/2" Plunger: Electroless Nickel Plated Add to RFQ
965064-03 1-1/2" Packing: Set of Packing-Iron Valves (250)psi Add to RFQ
965064-04 1-1/2" Packing: Set of Packing-Steel Valves (300psi & 400psi) Add to RFQ
965064-05 1-1/2" Packing Acid Trim Wash Only Add to RFQ
093915-56 1-1/2" Yoke Springs, Studs & Nuts: Springs (4 required) Add to RFQ
906278-15 1-1/2" Yoke Springs, Studs & Nuts: Studs (4 required) 250psi, 300psi Add to RFQ
938426-12 1-1/2" Yoke Springs, Studs & Nuts: Nuts (4 required) Add to RFQ
902355-17 1-1/2" Stop Screw & Alemite Fitting: O/S Standard Non "R" Valves Add to RFQ
927431-15 1-1/2" Stop Screw & Alemite Fitting: "R" Valves, Special Inc. - Gasket Below Add to RFQ
927431-09 1-1/2" Stop Screw & Alemite Fitting: For Fig. 3927-3928 New Style Add to RFQ
924532 1-1/2" Stop Screw Alemite Fitting: Stop Valves "R" Valves Add to RFQ
915882-02 1-1/2" Stop Screw Gasket Without
Alemite Fitting Stop Screw
Add to RFQ
921339-01 1-1/2" Stop Screw Gasket Without
Alemite Fitting Stop Screw
Fig. 3927-28 only
Add to RFQ
301871 1-1/2" Alemite Fitting Only: Yoke Add to RFQ
301870 1-1/2" Alemite Fitting Only: Stop Screw Add to RFQ
014813-02 1-1/2" Handwheel (except 3927, 3928) Add to RFQ
001176 1-1/2" Handgrip (must also order 1 bolt, p/n 092381, $6.00; 1 nut,
p/n 938426-06, $8.00; & 1 lock washer p/n 300483, $8.00)
Add to RFQ
Item Name: Separate parts available for iron and steel valves
Manufacturer:
Yarway
Description:

Yoke Ball Bearings, Stem, Stem Nut, Upper Gland, Lower Gland, Plunger, Packing, Yoke Springs, Studs & Nuts, Stop Screw & Alemite Fitting, Handwheel, Handgrip



REPAIR PARTS, TYPE B Sizes 2" thru 2-1/2"



CLASS 250: Figure 3481, 3481R, 3482, 3482R, 3483, 3483R, 3484, 3484R

CLASS 300: & 400: Figure 3485, 3485R, 3486, 3486R, 3487, 3487R, 3488, 3488R, 3927, 3928



Shipping Time: 1-3 Business Day
Description
Part # Size Description
972557-01 2" Yoke Ball Bearings Add to RFQ
90324 2" Stem Add to RFQ
938426-15 2" Stem Nut Add to RFQ
908234 2" Upper Gland: Bronze Add to RFQ
95516 2" Upper Gland: Steel (Acid Wash Trim) Add to RFQ
908237 2" Lower Gland: Bronze Add to RFQ
90190 2" Lower Gland: Ni-Resist (Acid Wash Trim) Add to RFQ
098974-02 2" Plunger: Nitralloy Add to RFQ
016060-01 2" Plunger: Electroless Nickel Plated Add to RFQ
965064-06 2" Packing: Set of Packing-Iron Valves (250)psi Add to RFQ
965064-07 2" Packing: Set of Packing-Steel Valves (300psi & 400psi) Add to RFQ
965064-08 2" Acid Trim Wash Only Add to RFQ
093915-58 2" Yoke Springs, Studs & Nuts: Springs (4 required) Add to RFQ
906278-35, 36 2" Yoke Springs, Studs & Nuts: Studs (4 required) 250psi, 300psi Add to RFQ
938426-18 2" Yoke Springs, Studs & Nuts: Nuts (4 required) Add to RFQ
902355-27 2" Stop Screw & Alemite Fitting: O/S Standard Non "R" Valves Add to RFQ
927431-16 2" Stop Screw & Alemite Fitting: "R" Valves, Special Inc. - Gasket Below Add to RFQ
927431-20 2" Stop Screw & Alemite Fitting: For Fig. 3927-3928 New Style Add to RFQ
923610-01 2" Stop Screw & Gasket
w/o Alemite Fitting: Stop Valves "R" Valves
Add to RFQ
915882-03 2" Stop Screw & Gasket
w/o Alemite Fitting: Gasket
Add to RFQ
921832-01 2" Stop Screw & Gasket
w/o Alemite Fitting: Stop Screw Fig. 3927-28 only
Add to RFQ
915882-03 2" Stop Screw & Gasket
w/o Alemite Fitting: Gasket
Add to RFQ
301871 2" Alemite Fitting Only: Yoke Add to RFQ
301870 2" Alemite Fitting Only: Stop Screw Add to RFQ
014813-05 2" Handwheel (except 3927, 28) Add to RFQ
001176 2" Handgrip (must also order 1 bolt, p/n 092381, $6.00; 1 nut,
p/n 938426-06, $8.00; & 1 lock washer p/n 300483, $8.00)
Add to RFQ
972557-01 2-1/2" Yoke Ball Bearings Add to RFQ
90380 2-1/2" Stem Add to RFQ
938426-18 2-1/2" Stem Nut Add to RFQ
908235 2-1/2" Upper Gland: Bronze Add to RFQ
95517 2-1/2" Upper Gland: Steel (Acid Wash Trim) Add to RFQ
908238 2-1/2" Lower Gland: Bronze Add to RFQ
90069 2-1/2" Lower Gland: Ni-Resist (Acid Wash Trim) Add to RFQ
098978-02 2-1/2" Plunger: Nitralloy Add to RFQ
016060-02 2-1/2" Plunger: Electroless Nickel Plated Add to RFQ
965064-11 2-1/2" Packing: Set of Packing-Iron Valves (250)psi Add to RFQ
965064-09 2-1/2" Packing: Set of Packing-Steel Valves (300psi & 400psi) Add to RFQ
965064-10 2-1/2" Acid Trim Wash Only Add to RFQ
093915-57 2-1/2" Yoke Springs, Studs & Nuts: Springs (4 required) Add to RFQ
906278-51 2-1/2" Yoke Springs, Studs & Nuts: Studs (4 required) 250psi, 300psi Add to RFQ
938426-21 2-1/2" Yoke Springs, Studs & Nuts: Nuts (4 required) Add to RFQ
902355-27 2-1/2" Stop Screw & Alemite Fitting: O/S Standard Non "R" Valves Add to RFQ
927431-17 2-1/2" Stop Screw & Alemite Fitting: "R" Valves, Special Inc. - Gasket Below Add to RFQ
927431-21 2-1/2" Stop Screw & Alemite Fitting: For Fig. 3927-3928 New Style Add to RFQ
923611-01 2-1/2" Stop Screw & Gasket
w/o Alemite Fitting: Stop Valves "R" Valves
Add to RFQ
915882-03 2-1/2" Stop Screw & Gasket
w/o Alemite Fitting: Gasket
Add to RFQ
922120 2-1/2" Stop Screw & Gasket
w/o Alemite Fitting: Stop Screw Fig. 3927-28 only
Add to RFQ
915882-03 2-1/2" Stop Screw & Gasket
w/o Alemite Fitting: Gasket
Add to RFQ
301871 2-1/2" Alemite Fitting Only: Yoke Add to RFQ
301870 2-1/2" Alemite Fitting Only: Stop Screw Add to RFQ
014813-07 2-1/2" Handwheel (except 3927, 28) Add to RFQ
001176 2-1/2" Handgrip (must also order 1 bolt, p/n 092381, $6.00; 1 nut,
p/n 938426-06, $8.00; & 1 lock washer p/n 300483, $8.00)
Add to RFQ
