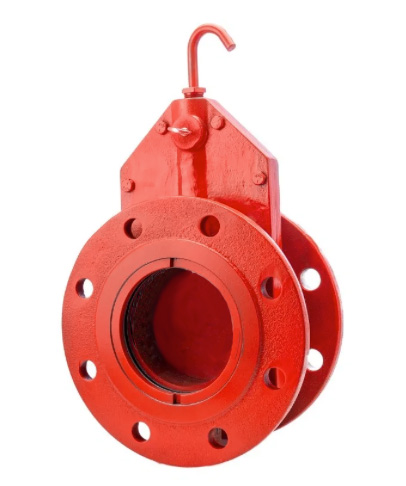

SAF Industrial Viewports (formerly Tate-Jones, Inc.) provides Blast Gate Valves Flanged are used to regulate air flow, and the flow of other materials in a variety of applications.
It uses a sturdy, cast iron body that houses the precise-machined, self-cleaning stainless steel slide. The slide is adjusted easily to any position by a choice of operating mechanisms.
These Blast Gates are especially suited for low pressure appications where 100% shut-off is NOT required.
RPM flange valves are also available in 4", 5", and 6" sizes.
The standard unit is a Class 30 gray iron with Max Temp. of 425 °F.
These are are all custom units made from Carbon Steel
*Stainless Steel by request*
Part # | Pipe Size | A | B | C | D | E | F | G | H | I | Bolt Size |
# of Holes in Flange |
Carbon Steel Or Stainless Steel Housing |
|
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
3FBGPH | 3" | 12-1/8" | 4-3/4" | 4-1/4" | 8-3/8" | 3-3/4" | 2-1/8" | 3-1/4" | 6" | 7-1/2" | 5/8" | 4 | Add to RFQ | |
4FBGPH | 4" | 15-1/4" | 5-3/4" | 4-1/4" | 10-3/4" | 4-1/2" | 2-1/8" | 4-1/4" | 7-1/2" | 9" | 5/8" | 8 | Add to RFQ | |
5FBGPH | 5" | 20" | 7-1/8" | 4-1/4" | 15" | 5" | 2-1/8" | 5-1/2" | 8-1/2" | 10" | 3/4" | 8 | Add to RFQ | |
6FBGPH | 6" | 22-1/4" | 9" | 4-3/4" | 16-3/4" | 5-1/2" | 2-3/8" | 6-1/4" | 9-1/2" | 11" | 3/4" | 8 | Add to RFQ | |
8FBGPH | 8" | 28-1/2" | 11" | 5-1/8" | 21-3/4" | 6-3/4" | 2-9/16" | 8-1/4" | 11-3/4" | 13-1/2" | 3/4" | 8 | Add to RFQ | |
12FBGPH | 12" | 37-1/4" | 16" | 6-3/8" | 27-3/4" | 9-1/2" | 3-3/16" | 12-5/8" | 17" | 19" | 7/8" | 12 | Add to RFQ |
