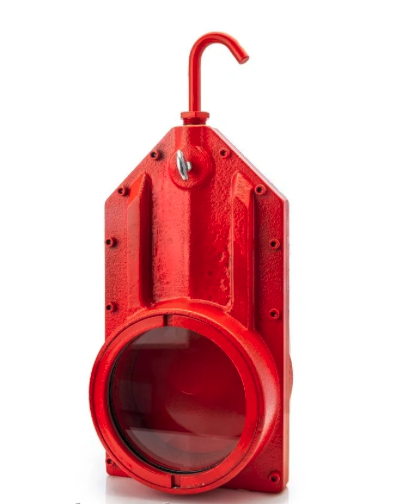

Blast Gate Observation Port Threaded In Stock

Description:

The stainless steel slide arrangment is the blast gate gives added protection and life to the lens during operation, and allows maintenance to be performed with added safety during vessel down-time. Additional cooling can be obtained by adding a purge connection on the glass or vessel side of the blast gate housing. Three choices of glass are available for varying temperature exposures and viewing requirements. Threaded sizes range from 2" to 6" NPT threaded openings. Temperature ratings apply only for the operating conditions of the glass. Ratings for housings vary on type of steel. The Blast Gate Observation Ports use the standard line of blast gates as the primary component and incorporate a glass lens, gaskets and rings securely retained with metal bushings.





Item Name: Threaded Blast Gate Observation Port
Description:

Quartz Clear - Designated by a "Q" in the model number. Maximum intermittent operating temperature is 2048°F. Maximum continuous operating temperature is 1600°F (Glass Only)*.
Pyrex Clear - (borosilicate glass) Designated by a "P" in the model number. Maximum intermittent operating temperature is 554°F. Maximum continuous operating temperature is 446°F (Glass Only)* . Glass is heat strengthened for safety and is coated with a heat reflecting shield.

Lead Time: 3-5 Day Standard Lead Time...Expedite Shipping Available
Threaded Blast Gate Observation Port Diagram
Part # Pipe Size Viewing
Area
A B C D E F Unpacked
Weight
PSI
Rating
Pyrex Glass"P"
Quartz Glass "Q"

2BGOP 2" 1-11/16" 8-3/4" 3-1/2" 3-1/4" 2-1/2" 1-3/4" 7" 5 5 Add to RFQ
2-1/2BGOP 2-1/2" 2" 10" 4-3/8" 4-1/8" 3-1/4" 2" 8" 7 5 Add to RFQ
3BGOP 3" 2-1/4" 11" 4-5/8" 4-3/4" 3-7/8" 2-7/16" 8-9/16" 12 5 Add to RFQ
4BGOP 4" 3-3/8" 13-3/4" 5-5/8" 4-5/8" 3-13/16" 2-7/8" 10-7/8" 15 5 Add to RFQ
6BGOP 6" 5-1/4" 21" 8-1/4" 6-1/2" 4-7/16" 4-1/4" 16-3/4" 44 5 Add to RFQ
