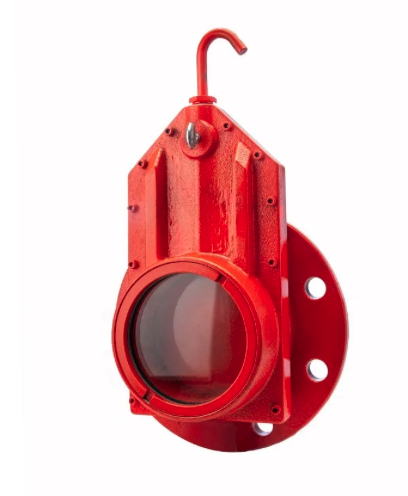

SAF Industrial Viewports (formerly Tate-Jones, Inc.) provides this unit, available in 3" or 4" pipe size, mounts to a mating flange, while the viewing components are housed in a NPT threaded body half. The standard stainless steel slide arrangement in the blast gate gives added protection and life to the lens during operation, and allows maintenance to be performed with added safety during vessel down-time. Additional cooling can be obtained by adding a purge connection on the glass or vessel side of the blast gate housing.
This special half-flanged, half-threaded unit is only available in 3" and 4" sizes.
The standard unit is a Class 30 gray iron with maximum temperature of 425 °F. Custom units made from Carbon Steel and Stainless Steel by special order.
Quartz Clear - Designated by a "Q" in the model number. Maximum intermittent operating temperature is 2048°F. Maximum continuous operating temperature is 1600°F (Glass Only)*.
Pyrex Clear - (borosilicate glass) Designated by a "P" in the model number. Maximum intermittent operating temperature is 554°F. Maximum continuous operating temperature is 446°F (Glass Only)* . Glass is heat strengthened for safety and is coated with a heat reflecting shield.
Part # |
Pipe Size |
Viewing Area |
A | B | C | D | E |
Size of Bolts |
Flange Bolt Circle |
PSI Rating |
Pyrex Glass Quartz Glass |
|
---|---|---|---|---|---|---|---|---|---|---|---|---|
3F/TBGOP | 3" | 2-1/4" Dia. | 11" | 4-5/8" | 5-3/8" | 7-1/2" | 2-7/16" | 5/8" | 4 on 6" | 5 | Add to RFQ | |
4F/TBGOP | 4" | 3-3/8" Dia. | 13-3/4" | 5-5/8" | 5-3/8" | 9" | 2-7/8" | 5/8" | 8 on 7-1/2" | 5 | Add to RFQ |
