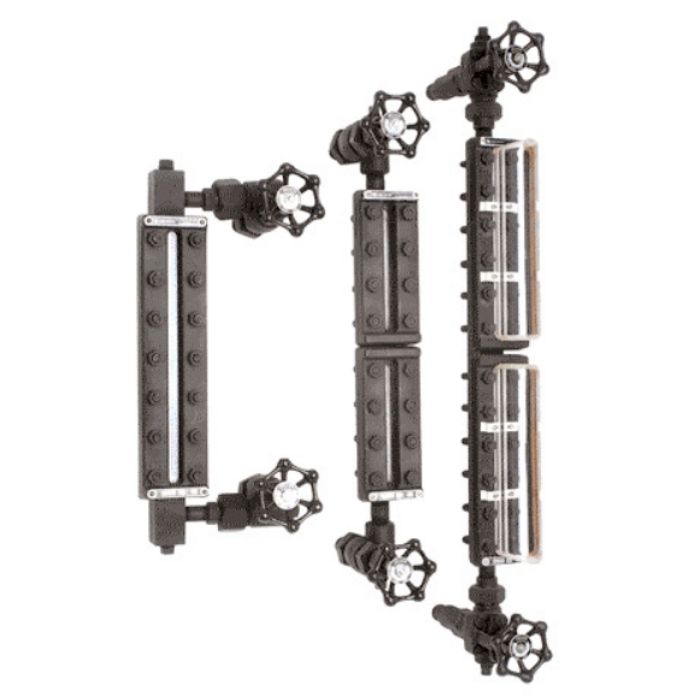

Item Name: Transparent High Pressure Gauges
Description:

The ARCHON liquid level gauges are low pressure gauges. These models are available in Single and Multiple Section type sizes 4 through 9 with a one piece liquid chamber, machined from solid bar stock of cold rolled carbon steel, stress relieved and assembled complete with drop forged steel covers, tempered borosilicate glasses, resistant to thermal shock, heat, corrosion and abrasion; gaskets; bolts and nuts. The liquid chamber is recessed for each individual glass and the gasket fits into this recess snugly, so it cannot be forced out in any direction by internal pressure.

The gaskets used are of the finest quality, uniform in thickness and accurately die cut. The standard gasket material is compressed non-asbestos, but can be furnished in other materials most suitable for the liquid involved. These gauges can also be furnished in other special metals such as Stainless Steel, Monel, etc.



Power Plus International does not recommend low pressure gauges for steam applications. Please review the tables below for temperature and pressure ratings.



Transparent gauges have two pieces of glass on opposite sides of the chamber. Light enters the gauge from one side, and the level is viewed from the other. Transparent gauges are useful when the actual liquid characteristics need to be seen. They are also commonly used for liquid-liquid interfaces. Mica shields can be used in transparent gauges to protect the glass in steam environments. Kel-F shields should be used in corrosive environments.

Shipping Time: 1-3 Business Day

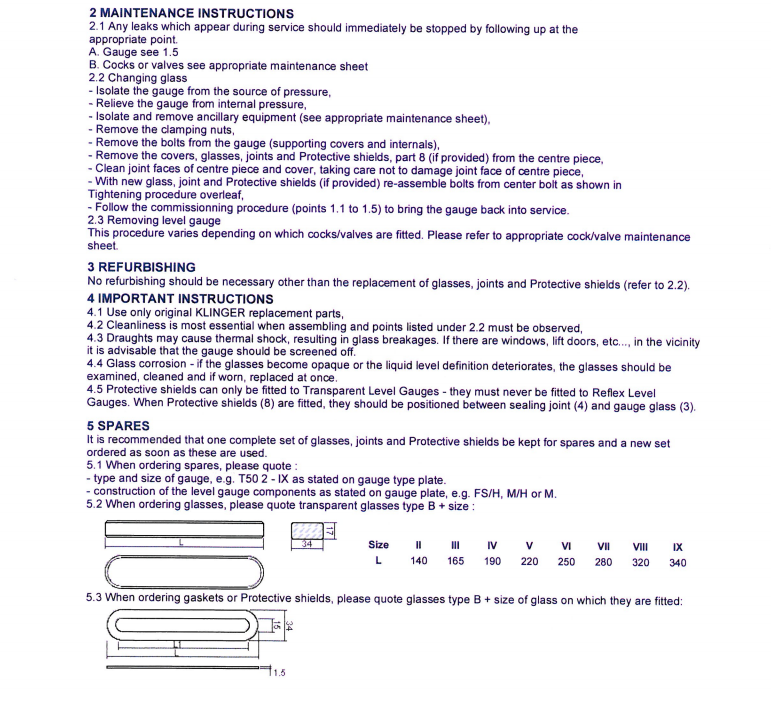

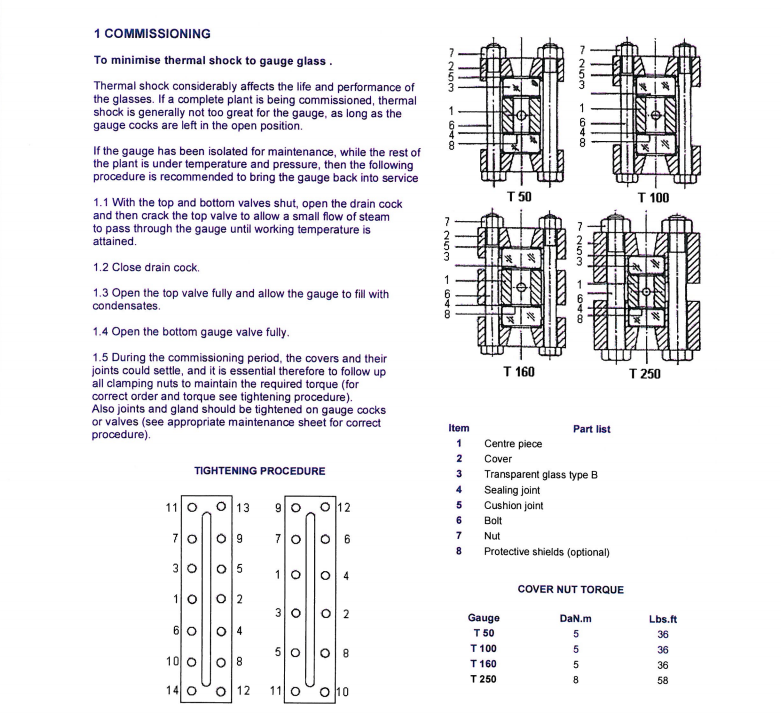

Specifications for Transparent High Pressure Models
Part # Sections
x
Glass Size
Glass
Size
Visible
Length
(Inches)
End Connected
Overall Length
(Inches)
Description
PPI-ATH11 1 x 1 1 3.750 5.250 High Pressure Gauge Add to RFQ
PPI-ATH12 1 x 2 2 4.750 6.250 High Pressure Gauge Add to RFQ
PPI-ATH13 1 x 3 3 5.750 7.250 High Pressure Gauge Add to RFQ
PPI-ATH14 1 x 4 4 6.750 8.250 High Pressure Gauge Add to RFQ
PPI-ATH15 1 x 5 5 7.875 9.375 High Pressure Gauge Add to RFQ
PPI-ATH16 1 x 6 6 9.125 10.625 High Pressure Gauge Add to RFQ
PPI-ATH17 1 x 7 7 10.250 11.750 High Pressure Gauge Add to RFQ
PPI-ATH18 1 x 8 8 11.875 13.375 High Pressure Gauge Add to RFQ
PPI-ATH19 1 x 9 9 12.625 14.125 High Pressure Gauge Add to RFQ
PPI-ATH23 2 x 3 3 13.00 14.50 High Pressure Gauge Add to RFQ
PPI-ATH24 2 x 4 4 15.000 16.500 High Pressure Gauge Add to RFQ
PPI-ATH25 2 x 5 5 17.250 18.750 High Pressure Gauge Add to RFQ
PPI-ATH26 2 x 6 6 19.750 21.250 High Pressure Gauge Add to RFQ
PPI-ATH27 2 x 7 7 22.000 23.500 High Pressure Gauge Add to RFQ
PPI-ATH28 2 x 8 8 25.250 26.750 High Pressure Gauge Add to RFQ
PPI-ATH29 2 x 9 9 26.750 28.250 High Pressure Gauge Add to RFQ
PPI-ATH36 3 x 6 6 30.375 31.875 High Pressure Gauge Add to RFQ
PPI-ATH37 3 x 7 7 33.750 35.250 High Pressure Gauge Add to RFQ
PPI-ATH38 3 x 8 8 38.625 40.125 High Pressure Gauge Add to RFQ
PPI-ATH39 3 x 9 9 40.875 42.375 High Pressure Gauge Add to RFQ
PPI-ATH47 4 x 7 7 45.500 47.000 High Pressure Gauge Add to RFQ
PPI-ATH48 4 x 8 8 52.000 53.500 High Pressure Gauge Add to RFQ
PPI-ATH49 4 x 9 9 55.000 56.500 High Pressure Gauge Add to RFQ
PPI-ATH57 5 x 7 7 57.250 58.750 High Pressure Gauge Add to RFQ
PPI-ATH58 5 x 8 8 65.375 66.875 High Pressure Gauge Add to RFQ
PPI-ATH59 5 x 9 9 69.125 70.625 High Pressure Gauge Add to RFQ
PPI-ATH68 6 x 8 8 78.750 80.250 High Pressure Gauge Add to RFQ
PPI-ATH69 6 x 9 9 83.250 84.750 High Pressure Gauge Add to RFQ
PPI-ATH78 7 x 8 8 92.125 93.625 High Pressure Gauge Add to RFQ
PPI-ATH79 7 x 9 9 97.375 98.875 High Pressure Gauge Add to RFQ
PPI-ATH88 8 x 8 8 105.500 107.000 High Pressure Gauge Add to RFQ
PPI-ATH89 8 x 9 9 111.500 113.000 High Pressure Gauge Add to RFQ
PPI-ATH98 9 x 8 8 118.875 120.375 High Pressure Gauge Add to RFQ
PPI-ATH99 9 x 9 9 125.625 127.125 High Pressure Gauge Add to RFQ
PPI-ATH108 10 x 8 8 132.250 133.750 High Pressure Gauge Add to RFQ
PPI-ATH109 10 x 9 9 139.750 141.250 High Pressure Gauge Add to RFQ
